4WD Control Ecu: Installation

1. INSTALL 4WD CONTROL ECU
   1. Connect the connector and clamp to the 4WD control ECU.

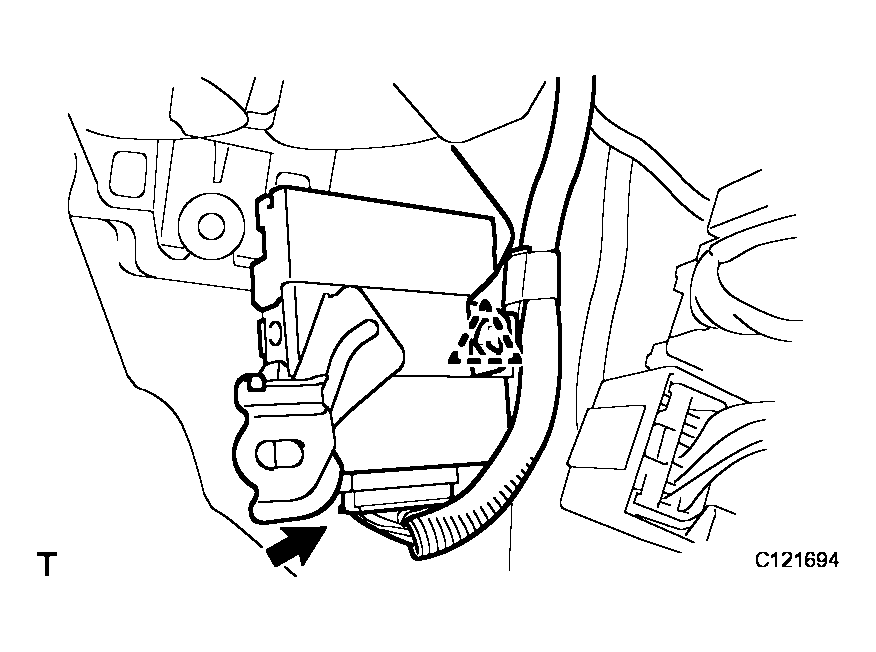

      Fig 1: Connecting Connector & Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the 4WD control ECU with the bolt and nut.

      Torque: Bolt

      14 N*m (137 kgf*cm, 10 ft.*lbf)

      Nut

      6.0 N*m (61 kgf*cm, 54 in.*lbf)

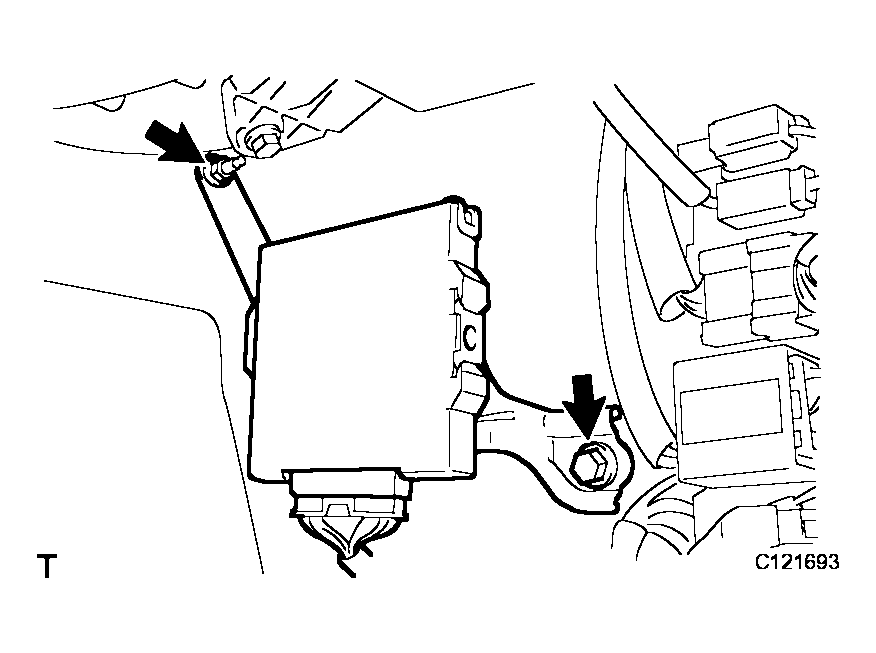

      Fig 2: Installing 4WD Control ECU With Bolt & Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Connect the junction connector with the 2 clips.

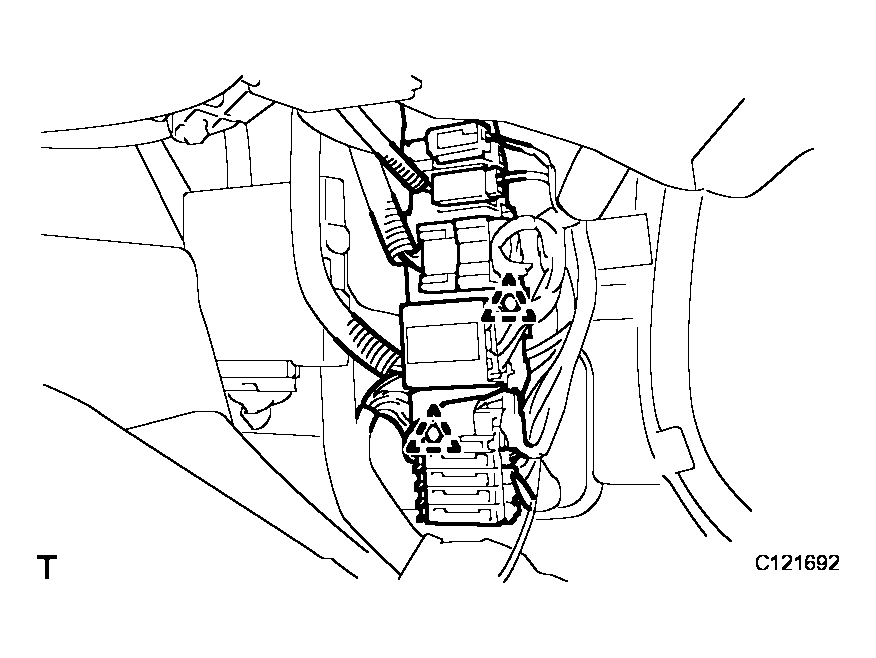

      Fig 3: Connecting Junction Connector With 2 Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 16 in  INSTALLATION  )
3. INSTALL SIDE INSTRUMENT PANEL RH (See Step 17 in  INSTALLATION  )
4. INSTALL FRONT DOOR OPENING TRIM COVER RH (See Step 18 in  INSTALLATION  )
5. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)

   HINT:

   Use the same procedures for the RH side and the LH side (See Step 19 in INSTALLATION ).

6. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)

HINT:

Use the same procedures for the RH side and the LH side (See Step 20 in INSTALLATION ).
