4WD Control Ecu: Removal

REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
HINT:

Use the same procedures for the RH side and the LH side (See Step 34 in REMOVAL ).
REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
HINT:

Use the same procedures for the RH side and the LH side (See Step 35 in REMOVAL ).
REMOVE FRONT DOOR OPENING TRIM COVER RH (See Step 36 in REMOVAL )
REMOVE SIDE INSTRUMENT PANEL RH (See Step 37 in REMOVAL )
REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 38 in REMOVAL )
REMOVE 4WD CONTROL ECU
1. Turn back the front floor carpet assembly.

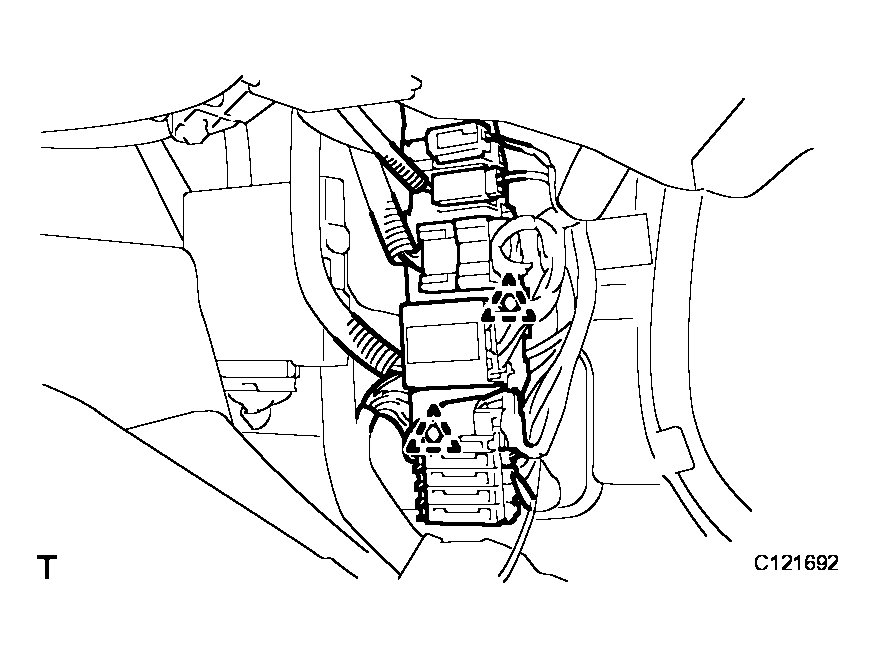

2. Disengage the 2 clips and separate the junction connector.

  Fig 1: Locating Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

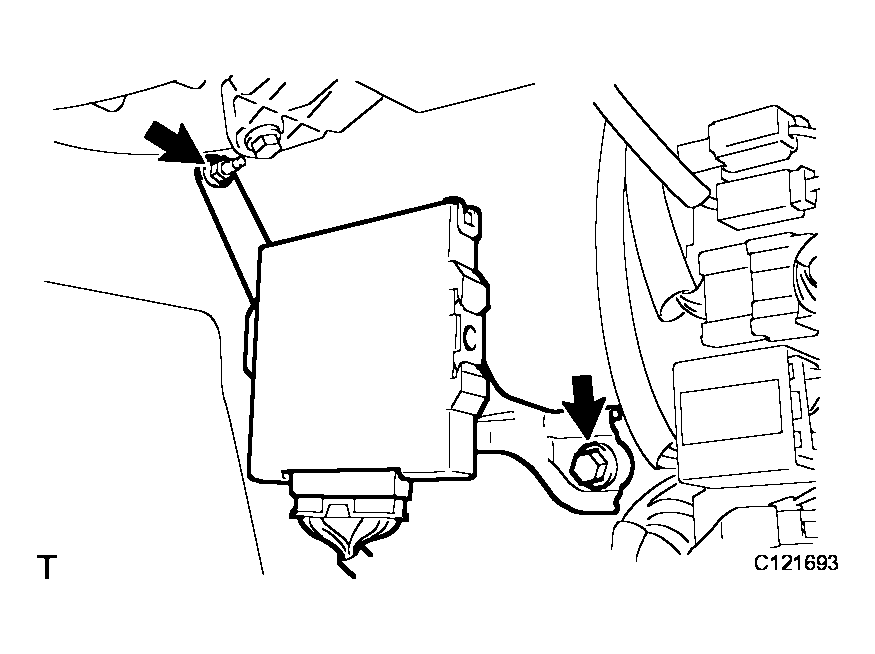

3. Remove the bolt and nut.

  Fig 2: Removing Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

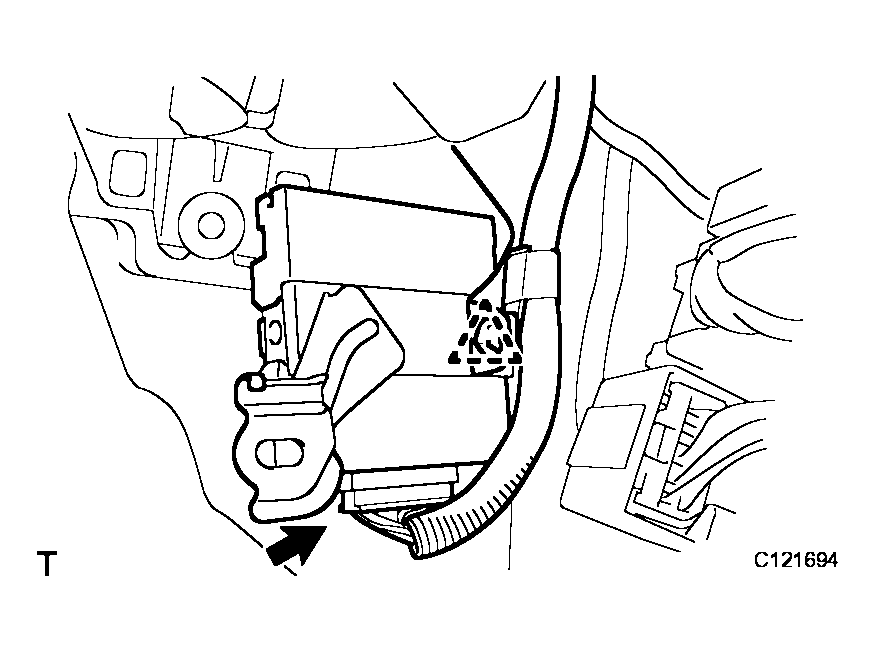

4. Disconnect the clamp and connector, and remove the 4WD control ECU.
Fig 3: Identifying Clamp & Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
