System Description

GENERAL DESCRIPTION

The Four Wheel Drive Control System (4WD Control System) consists of the hydraulic control mechanism of the transfer unit, steering angle sensor, wheel speed sensor, skid control ECU, and 4WD control ECU.
The 4WD Control ECU controls the fluid pressure in the center differential limiting clutch to distribute the drive force to the front and rear wheels in accordance with the vehicle speed and vehicle behavior. Thus, it helps create a stable driving performance.

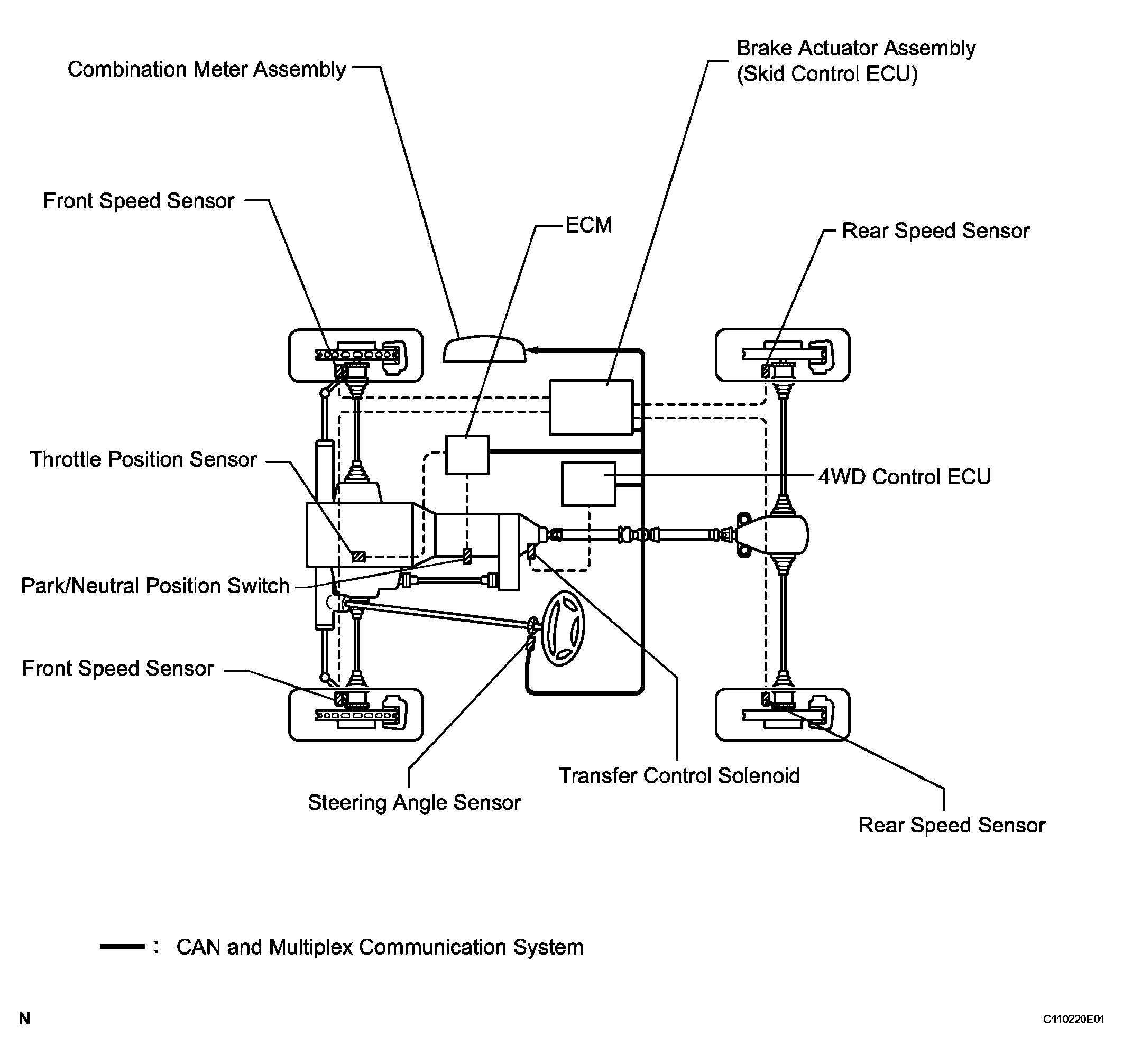

Fig 1: CAN & Multiplex Communication System Operation Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Main components and their functions.

COMPONENTS FUNCTION

Component	Function
4WD Warning (Multi-information Display)	Displays a warning to the driver when the system malfunctions
Slip Indicator Light	Notifies driver that the current road surface is slippery
Stop Light Switch	Detects the brake operation
Throttle Position Sensor	Detects the opening angle of the throttle valve
Park/Neutral Position Switch	Detects the "P/N" position
Steering Angle Sensor	Detects turning of the steering wheel
Linear Solenoid (Transfer control solenoid)	Controls hydraulic pressure of the center differential control limiting clutch in accordance with the signals from the 4WD control ECU
Brake Actuator assembly (Skid Control ECU)	Detects the signals from each sensor and outputs them to the 4WD control ECU
4WD Control ECU	Detects the signals provided by various sensors via the skid control ECU, actuates the linear solenoid, and controls the system
ECM	Sends the throttle valve angle signal and park / neutral position switch signal to the skid control ECU
Speed Sensor	Detects the wheel speed of each 4 wheels

FOUR WHEEL DRIVE CONTROL SYSTEM OUTLINE

The four wheel drive control system (4WD control system) is a full-time 4WD system that electronically controls the center differential limiting clutch of the transfer to distribute optimal drive forces to the front and rear wheels in accordance with the driving conditions.
This system adopts a UF1A transfer case that uses a planetary gear type center differential in the transfer section. A wet type multiple disc clutch in the differential control limiting clutch and a silent chain are used to transfer driving force to the front wheels.
Four wheel drive control system function.

OPERATION AND DESCRIPTION

Operation	Description
Vehicle initial acceleration and low-speed turn control	This controls the amount of sideway sliding that occurs at the rear of vehicles when accelerating from a stop to improve acceleration and hill climbing capacity This prevents tight corner braking during a low-speed turn
Slip control at vehicle initial acceleration	This helps prevent the vehicle from sliding sideways, when accelerating from a stop with the steering wheel turned and ensures a stable start up and steerability
Slip control	This ensures high turning performance and stability not affected by road surface conditions during mid and high speed running
Acceleration control	This controls straight-line running when accelerating during mid and high speed running to ensure straight-line capacity and stability of the vehicle

SYSTEM OPERATION
Vehicle Start up and Low-speed Turn Control
- The 4WD control ECU controls the transfer control solenoid based on signals from the throttle position sensor and steering angle sensor. The transfer control solenoid controls the fluid pressure applied to the center differential limiting clutch. Thus, vehicle start up and low-speed turn control will be performed.
- The 4WD control ECU controls the center differential coupling it directly before starting the vehicle in order to prevent slipping at vehicle initial acceleration or during acceleration on a grade or a low friction road.
- The 4WD control ECU decreases the fluid pressure applied to the center differential limiting clutch during a low-speed turn based on the steering angle to prevent tight corner braking.

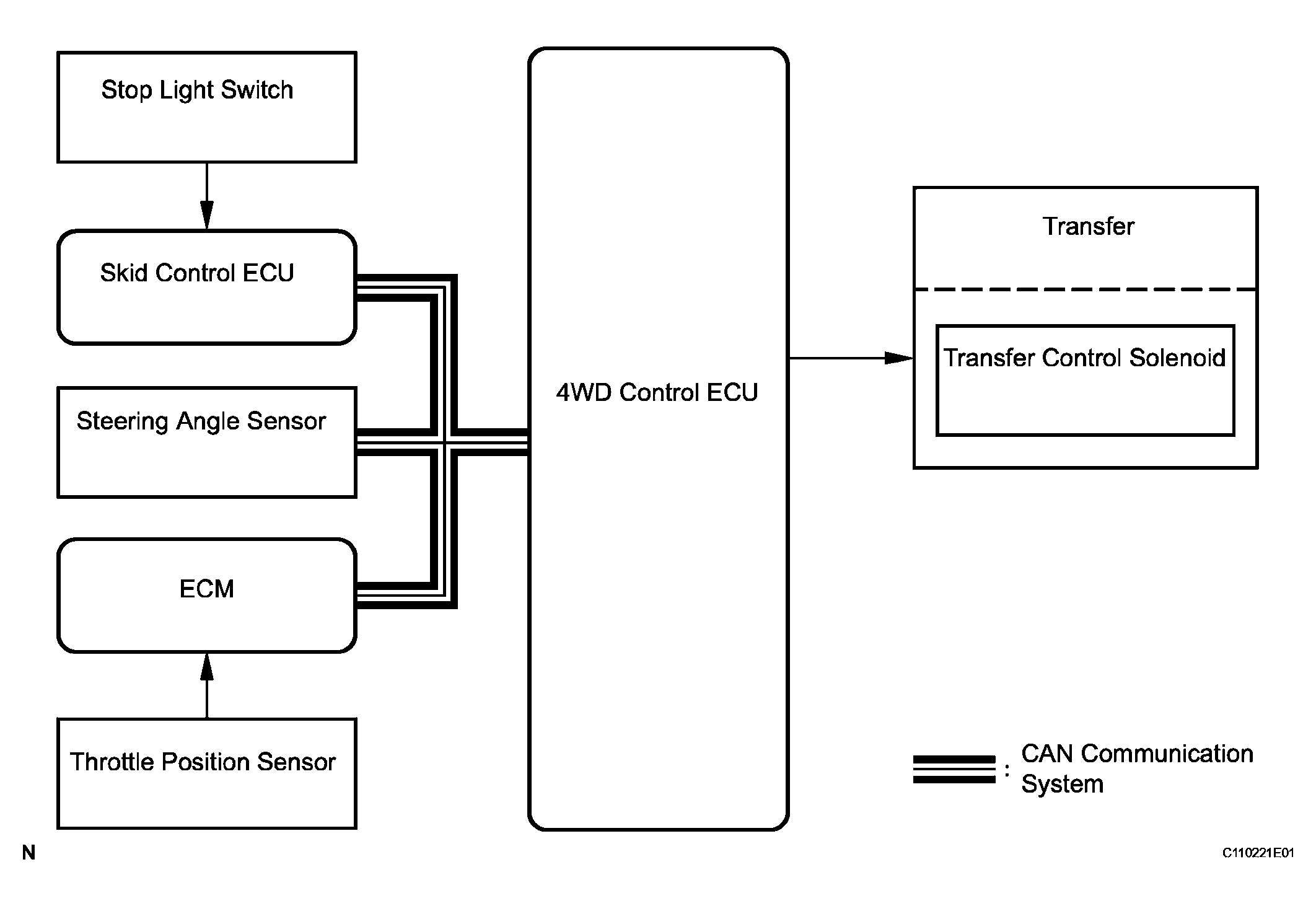

Fig 2: CAN Communication Diagram - Vehicle Start Up & Low-Speed Turn Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slip Control at Vehicle Start up
- The 4WD control ECU controls the transfer control solenoid based on signals from the throttle position sensor and speed sensor. The transfer control solenoid controls the fluid pressure applied to the center differential limiting clutch. Thus, slip control at vehicle initial acceleration will be performed.
- If the vehicle starts moving with the steering wheel turned, the fluid pressure applied to the center differential limiting clutch is decreased by low-speed turn control. An excessive driving force may be applied to the rear wheels on a low friction road, causing the vehicle rear to move sideways. To prevent this, the 4WD control ECU detects differences between the front wheel speed and the rear wheel speed based on signals from the speed sensors to directly couple the center differential immediately.

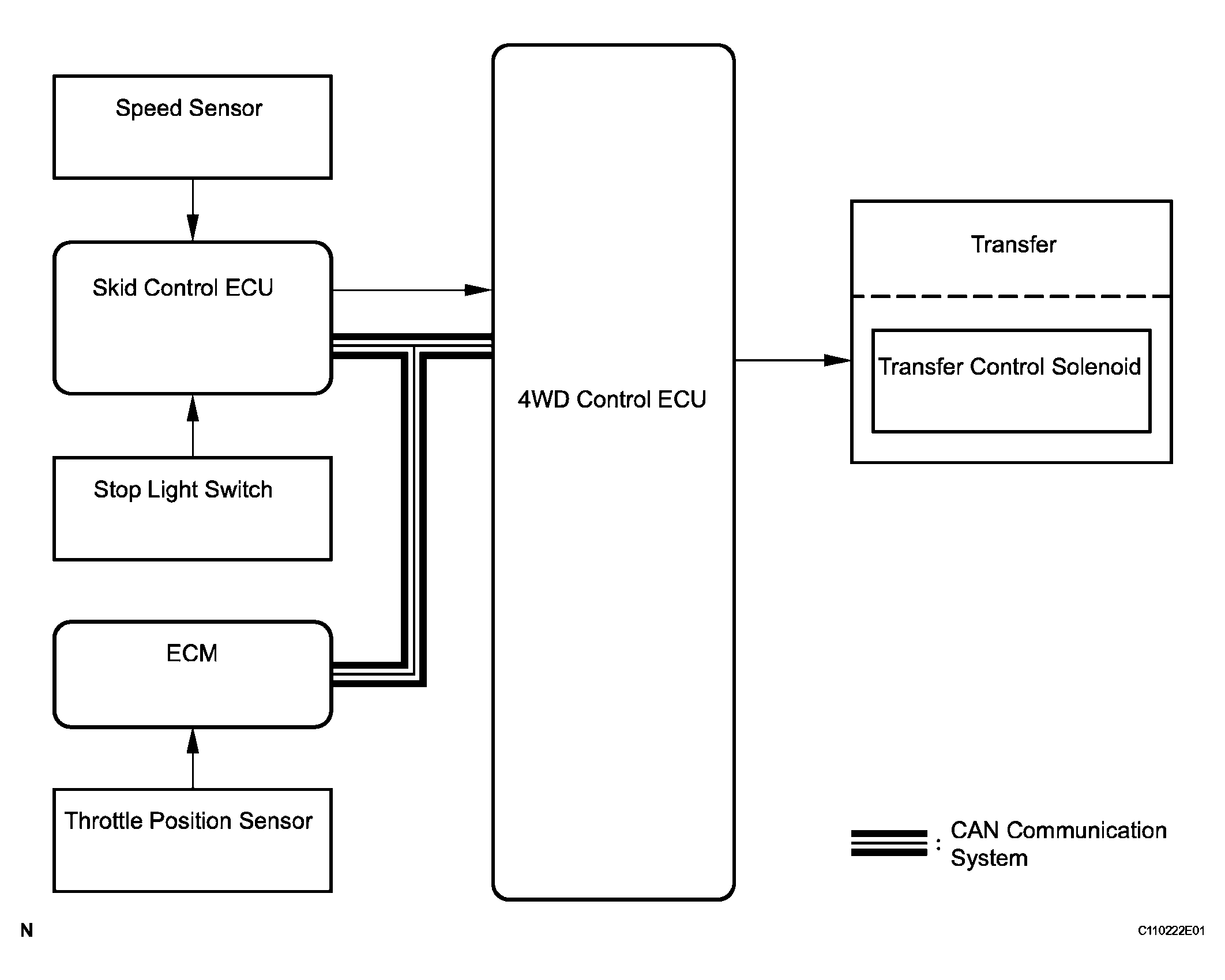

Fig 3: CAN Communication Diagram - Slip Control At Vehicle Start Up
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slip Control
- The 4WD control ECU controls the transfer control solenoid based on signals from the speed sensor. The transfer control solenoid controls the fluid pressure applied to the center differential limiting clutch. Thus, slip control will be performed.
- The 4WD control ECU detects differences between the front wheel speed and the rear wheel speed while driving at a medium or high speed based on signals from the speed sensors. Then, the 4WD control ECU calculates the fluid pressure required based on the difference in the wheel speeds and the vehicle speed and continuously applies the appropriate fluid pressure to the center differential limiting clutch, which stabilizes the vehicle.

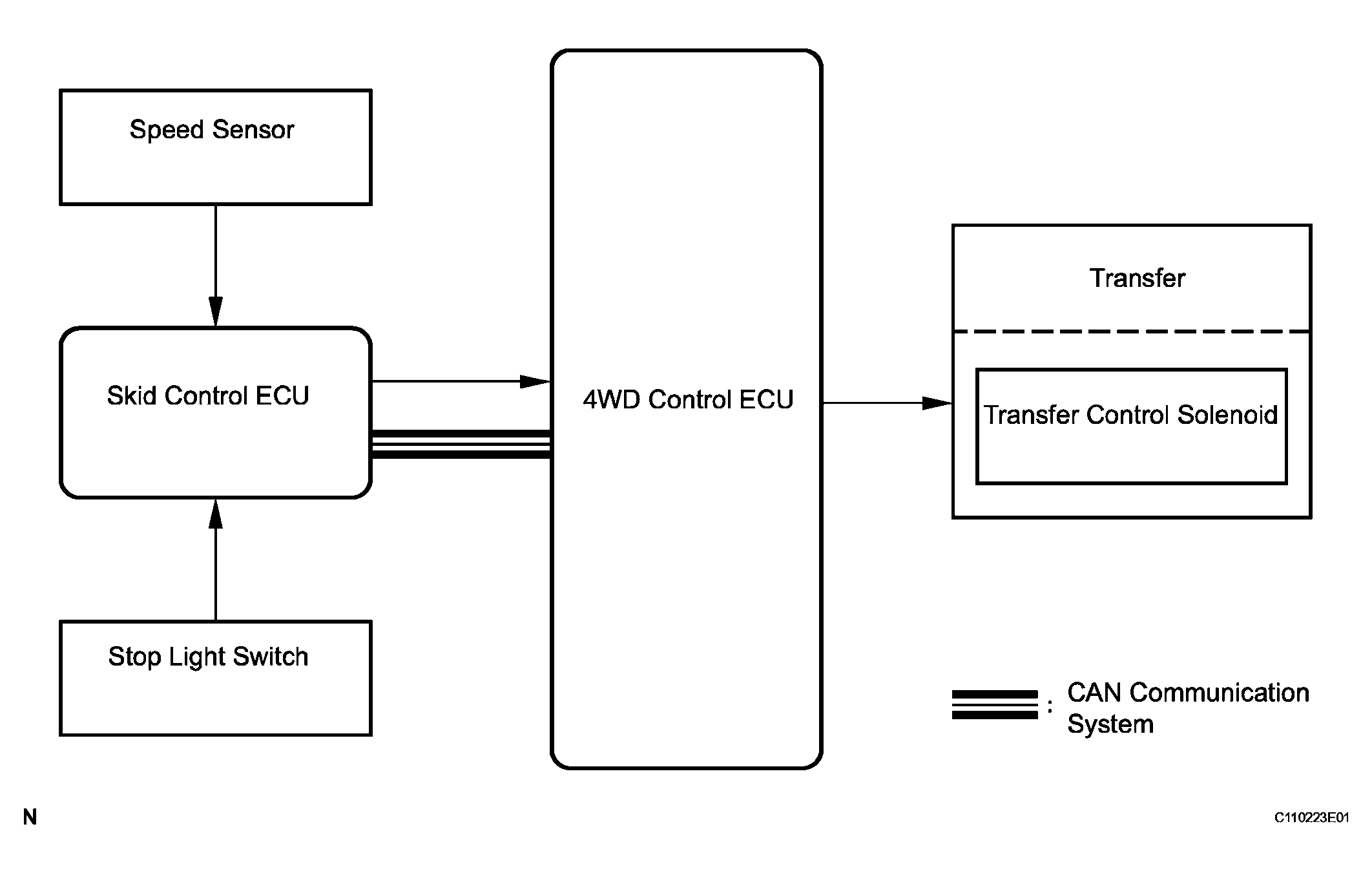

Fig 4: CAN Communication Diagram - Slip Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Acceleration Control
- The 4WD control ECU controls the transfer control solenoid based on the throttle position sensor and speed sensors. The transfer control solenoid controls the fluid pressure applied to the center differential limiting clutch. Thus, acceleration control will be performed.
- If the difference between the front wheel speed and the rear wheel speed exceeds the specified value while driving at a medium or high speed, the 4WD control ECU, in accordance with the throttle valve angle, increases the fluid pressure applied to the center differential limiting clutch to directly couple the center differential. This prevents the rear wheels from slipping and stabilizes the vehicle.

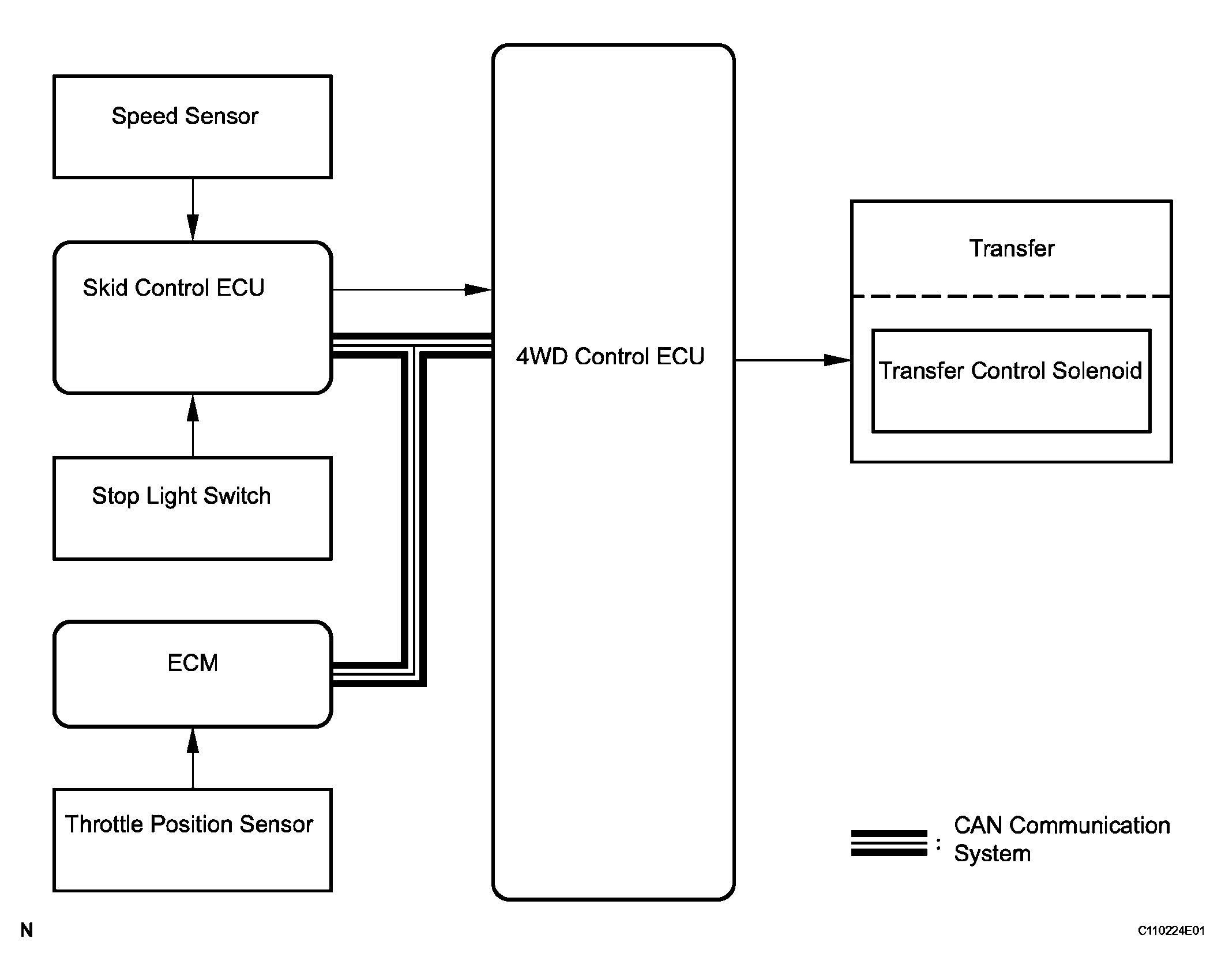

Fig 5: CAN Communication Diagram - Acceleration Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MECHANISM REFERENCE
1. Mechanism of the Center Differential.
  1. The center differential distributes the power from the transmission to the front and rear wheels. In addition, it absorbs the rotational difference between the front and rear drive shafts that is created during cornering.
  2. A planetary gear is used for the center differential, which unevenly distributes the driving force to the front and rear wheels.
  3. The center differential receives the drive force that is input by the transmission by way of the planetary carrier. The planetary carrier and the sun gear are controlled by the differential limiting clutch until they are in the lockup state.
  4. A compact, lightweight and extremely silent chain is used for the front wheel drive transmission, and the driving force is transferred to the front wheel drive shaft by the sun gear of the center differential.
  5. The drive force to the rear wheel drive shaft is output in a straight line with the transmission.

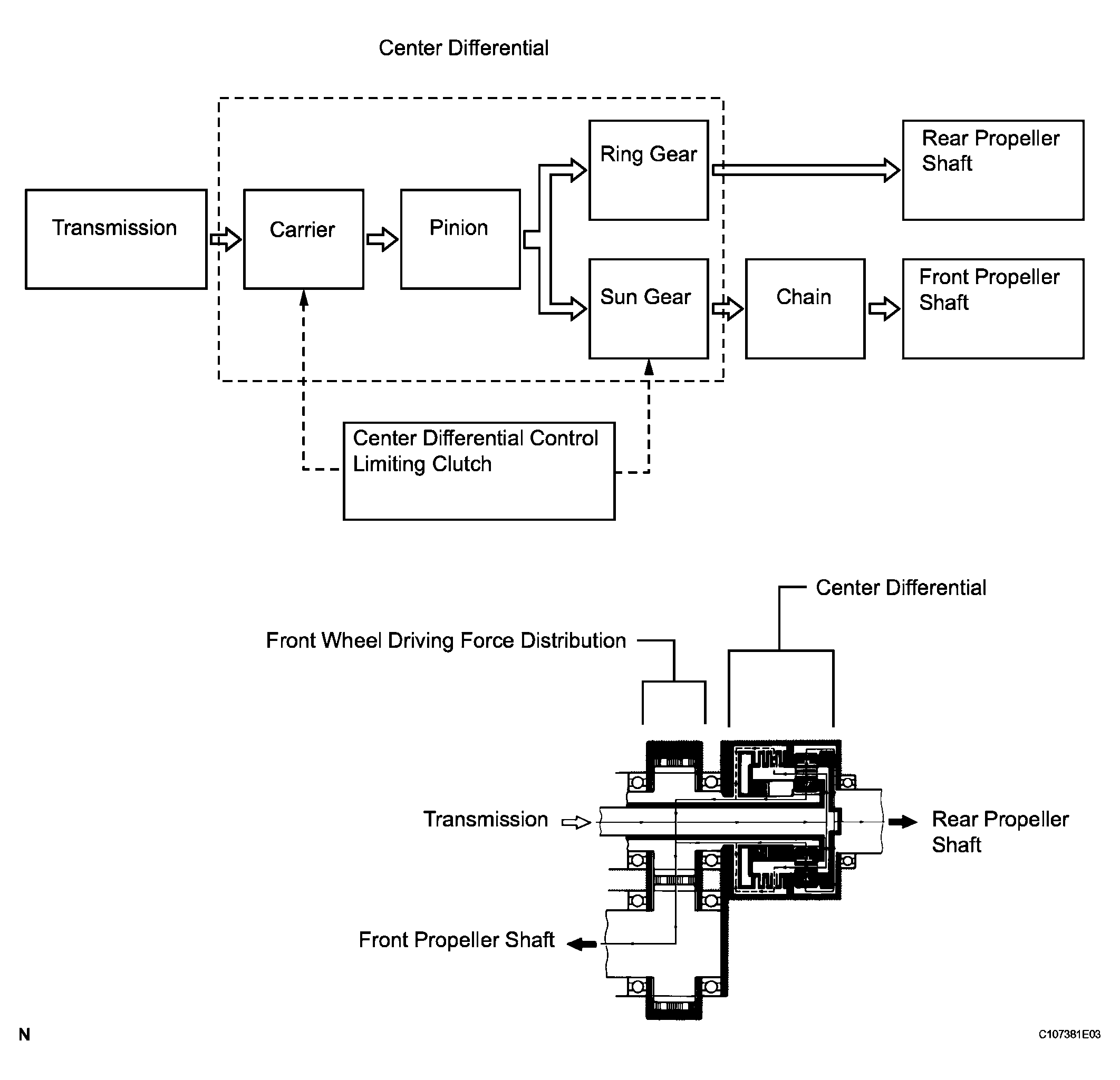

  Fig 6: Center Differential Power Distribution Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Mechanism of the Center Differential Control Limiting Clutch.
  1. The center differential control limiting clutch is located between the planetary gear and the front wheel driving force distribution section. It consists of wet type clutch discs, plates, and piston. Its basic structure is the same as the clutch of an automatic transmission.
  2. This clutch utilizes the friction resistance, which is created by the speed difference that occurs between the plates and discs, to transmit torque and distribute torque to the center differential limiting clutch and the front and rear wheels.
  3. Adjustment of differential control limiting force is controlled by changing the hydraulic pressure that functions in the piston.

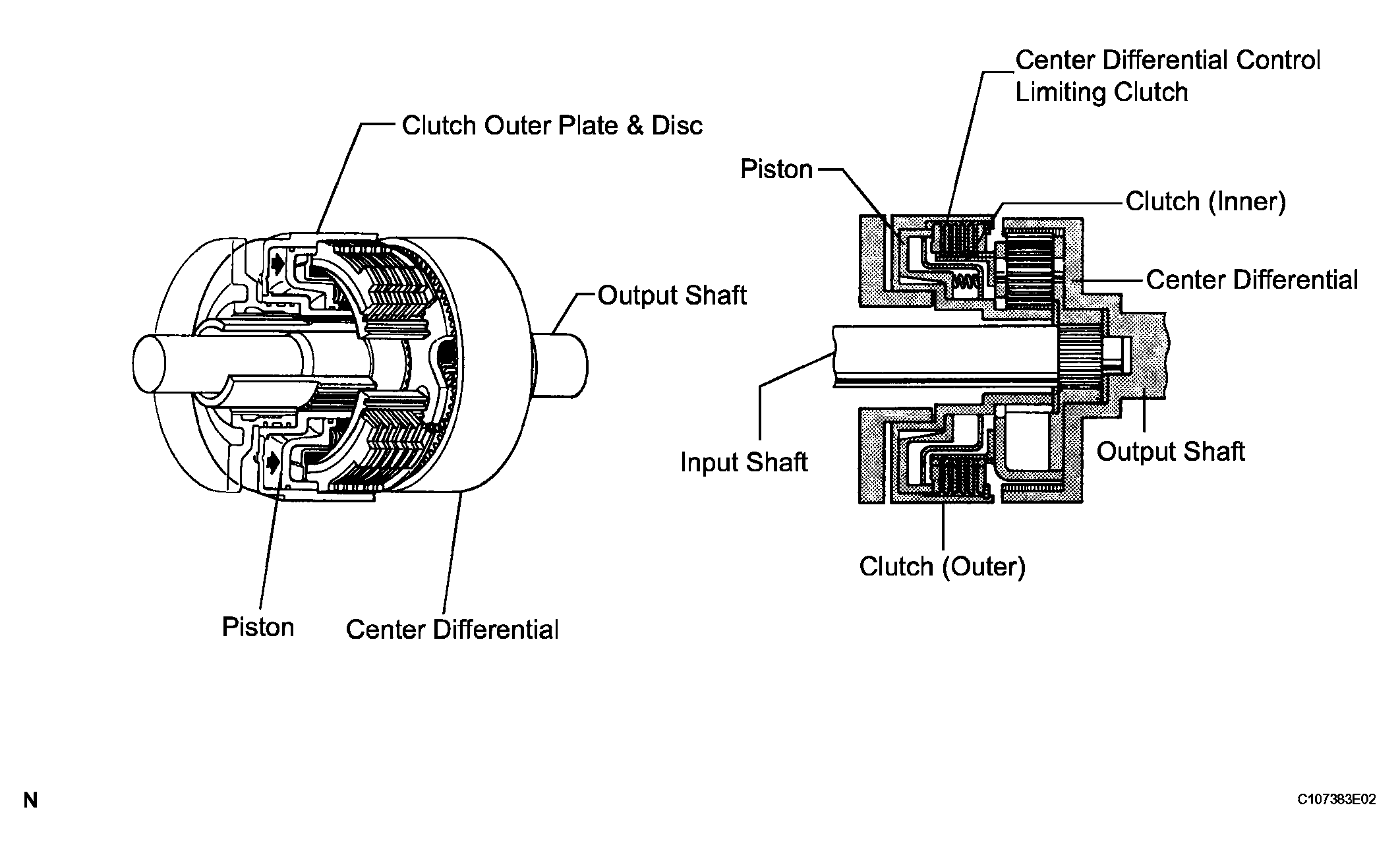

  Fig 7: Cross Sectional View Of Center Differential
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Mechanism of the Hydraulic Control (ATF Pressure Control).
  1. Line pressure for transmission control is also used by the transfer to simplify the transfer hydraulic system.
  2. Line pressure from the transmission is controlled by a modulator valve so that it does not rise above a specific pressure. This stabilizes hydraulic control of the linear solenoid valve.
  3. Hydraulic pressure controlled by the linear solenoid valve operates the control valve. It also controls the slip status of the center differential control limiting clutch by modulating the line hydraulic pressure from the transmission in the linear solenoid (transfer control solenoid).

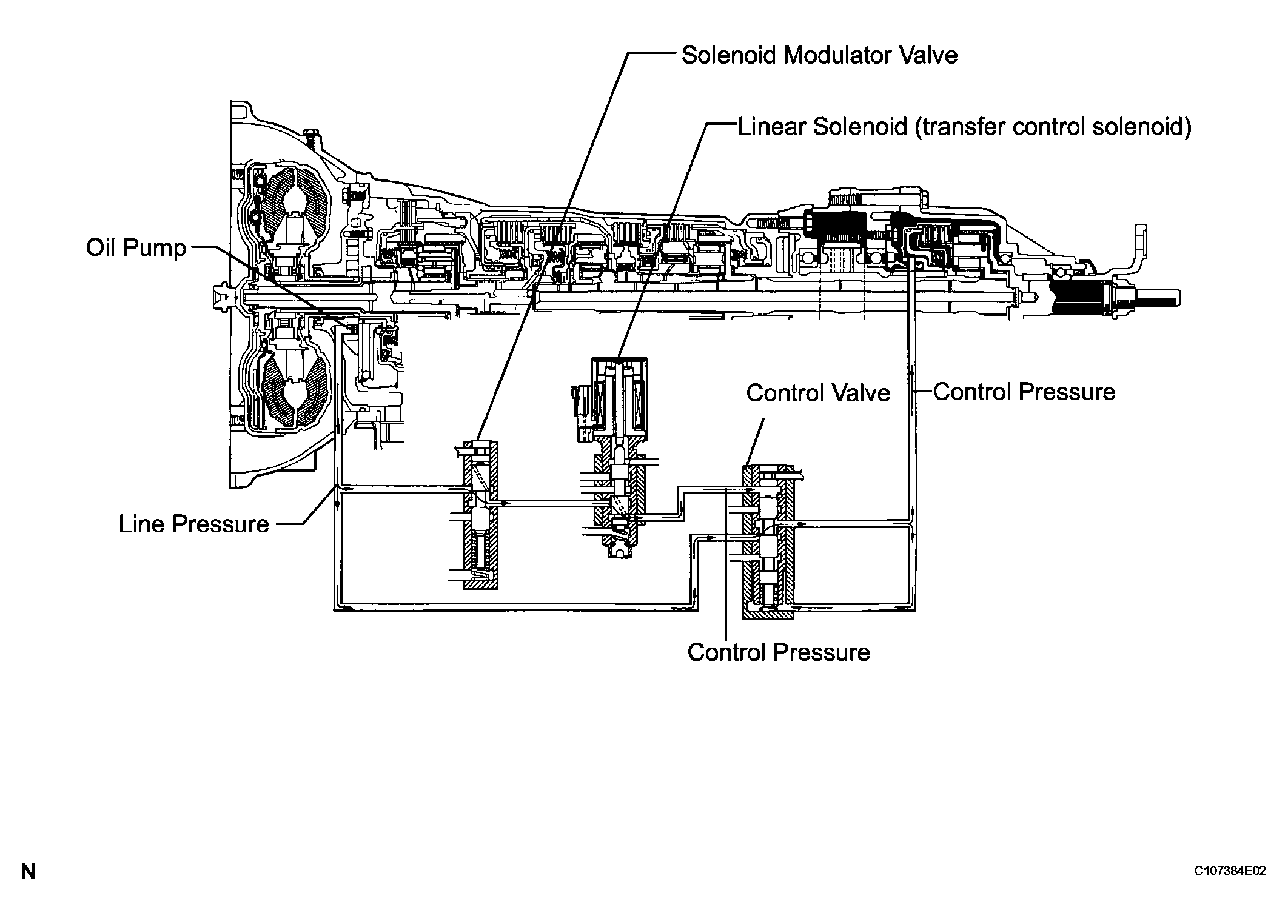

  Fig 8: Transmission Line Pressure Flow Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Mechanism of the Valve body & Linear Solenoid (Transfer Control Solenoid).
  1. The valve body, which is located in the bottom of the transfer case, has a two-stage composition consisting of an upper valve body and a valve body cover. The transfer control solenoid is installed in the upper valve body.
  2. The linear solenoid is integrated with electromagnetic section and the pressure modulating section. The spool pushes the pressure modulator valve according to the electric current value that makes the electromagnetic section function. The pressure modulating valve then generates hydraulic pressure to resist the pushing force of the spool, so it is possible to obtain hydraulic pressure proportional to the electric current value.

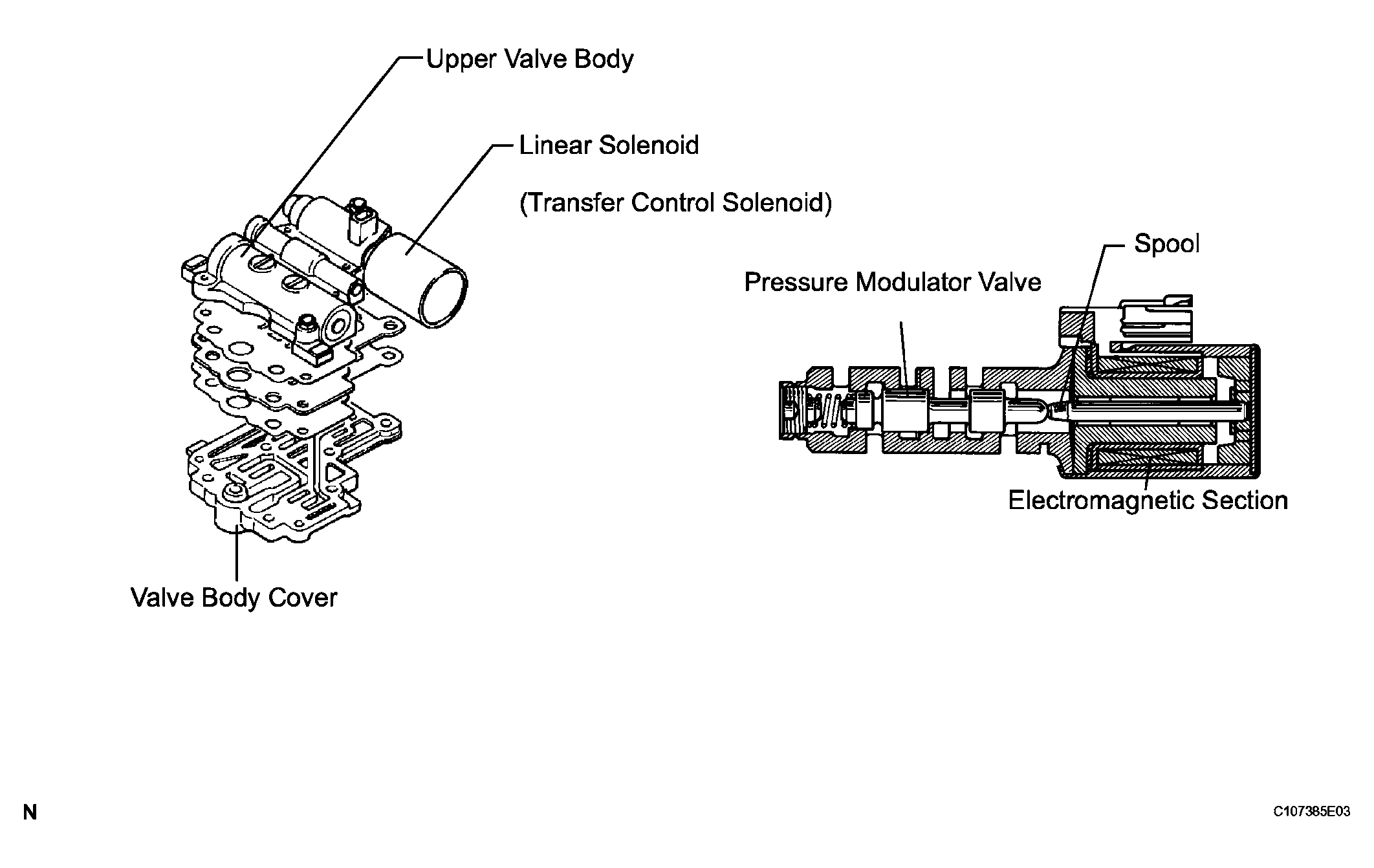

Fig 9: Identifying Liner Solenoid
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
