Transfer Control Solenoid: Inspection

1. INSPECT TRANSFER CONTROL SOLENOID
   1. Connect the battery's positive (+) terminal and a bulb of 12 V - 21 W to terminal 1 as shown in Fig 1 .

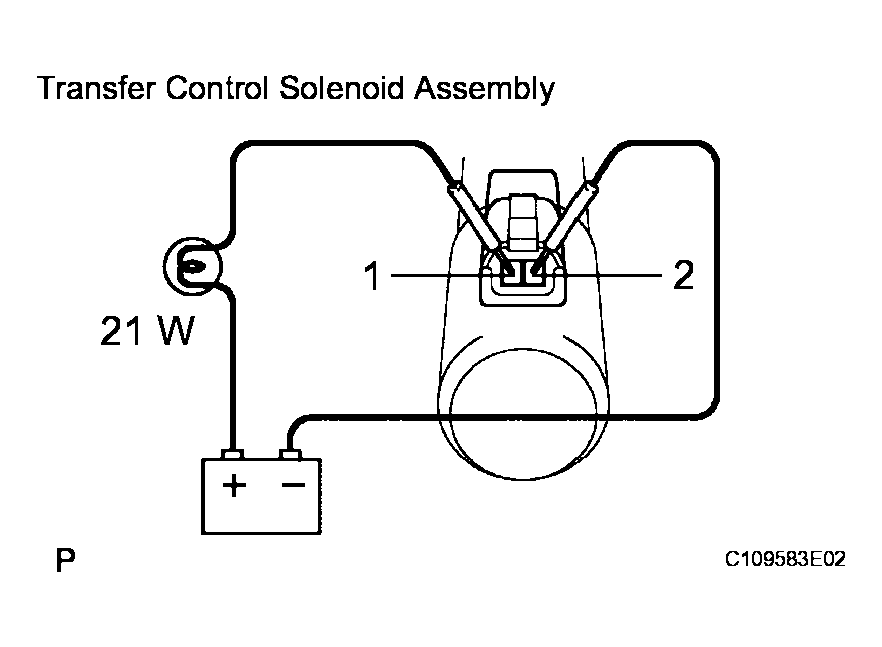

      Fig 1: Inspecting Transfer Control Solenoid

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the battery's negative (-) terminal to terminal 2 and check if the solenoid operates.

      OK: The solenoid operates and operating sound is heard.

   3. Measure the resistance according to the value(s) in RESISTANCE SPECIFICATIONS TABLE  .

Standard resistance

If the resistance is not within the specified range, replace the transfer control solenoid.
