Transfer Control Solenoid: Installation

INSTALL TRANSFER CONTROL SOLENOID
1. Install the transfer control solenoid and solenoid lock plate to the transfer upper valve body with the bolt.

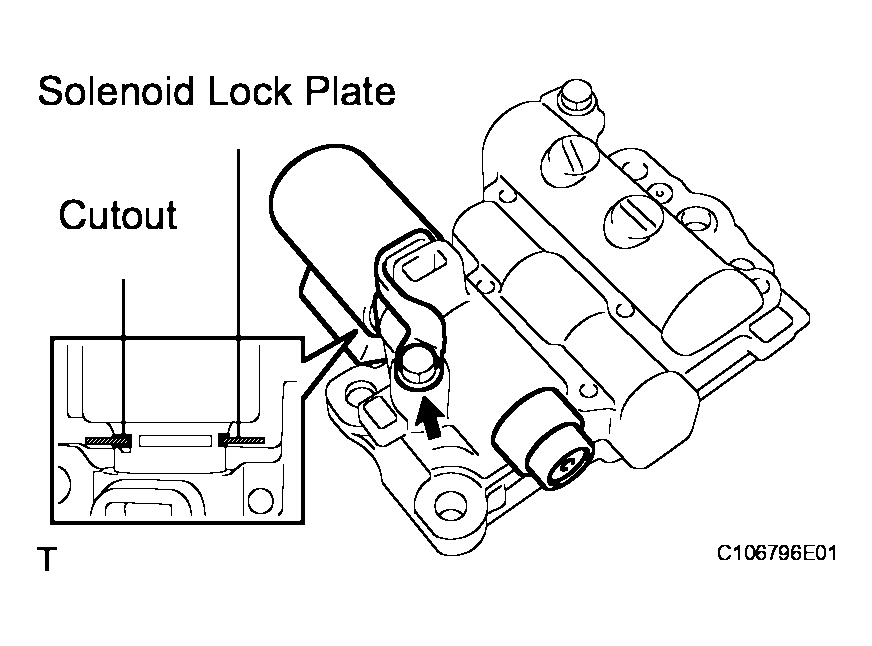

Fig 1: Installing Solenoid Lock Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

HINT:

Install the solenoid lock plate into the cutout on the transfer control solenoid.
INSTALL TRANSFER VALVE BODY ASSEMBLY (See Step 2 in INSTALLATION )
INSTALL TRANSFER OIL PAN (See Step 2 in INSTALLATION )
INSTALL TRANSFER DYNAMIC DAMPER (See Step 3 in INSTALLATION )
INSTALL ENGINE REAR MOUNTING MEMBER (See Step 4 in INSTALLATION )
INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (See Step 3 in INSTALLATION )
INSTALL FRONT EXHAUST PIPE ASSEMBLY (See Step 4 in INSTALLATION )
INSTALL HEATED OXYGEN SENSOR (See Step 5 or 6 in INSTALLATION )
INSTALL FRONT CENTER FLOOR BRACE (See Step 7 in INSTALLATION )
INSTALL REAR NO. 1 FLOOR PANEL BRACE (See Step 8 in INSTALLATION )
ADD AUTOMATIC TRANSMISSION FLUID (See AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E) )
CHECK FOR EXHAUST GAS LEAKS
