Transfer Control Solenoid: Removal

  1. DRAIN AUTOMATIC TRANSMISSION FLUID (See  AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E)  )
  2. REMOVE REAR NO. 1 FLOOR PANEL BRACE (See  REMOVAL  )
  3. REMOVE FRONT CENTER FLOOR BRACE (See Step 2 in  REMOVAL  )
  4. DISCONNECT HEATED OXYGEN SENSOR (See Step 3 or 4 in  REMOVAL  )
  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See Step 5 in  REMOVAL  )
  6. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (See Step 2 in  REMOVAL  )
  7. SUPPORT AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (See  AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E)  )
  8. REMOVE ENGINE REAR MOUNTING MEMBER (See Step 8 in  REMOVAL   )
  9. REMOVE TRANSFER DYNAMIC DAMPER (See Step 9 in  REMOVAL   )
  10. REMOVE TRANSFER OIL PAN (See Step 10 in  REMOVAL   )
  11. REMOVE TRANSFER VALVE BODY ASSEMBLY (See Step 11 in  REMOVAL   )
  12. REMOVE TRANSFER CONTROL SOLENOID
  1. Remove the bolt, solenoid lock plate and transfer control solenoid.

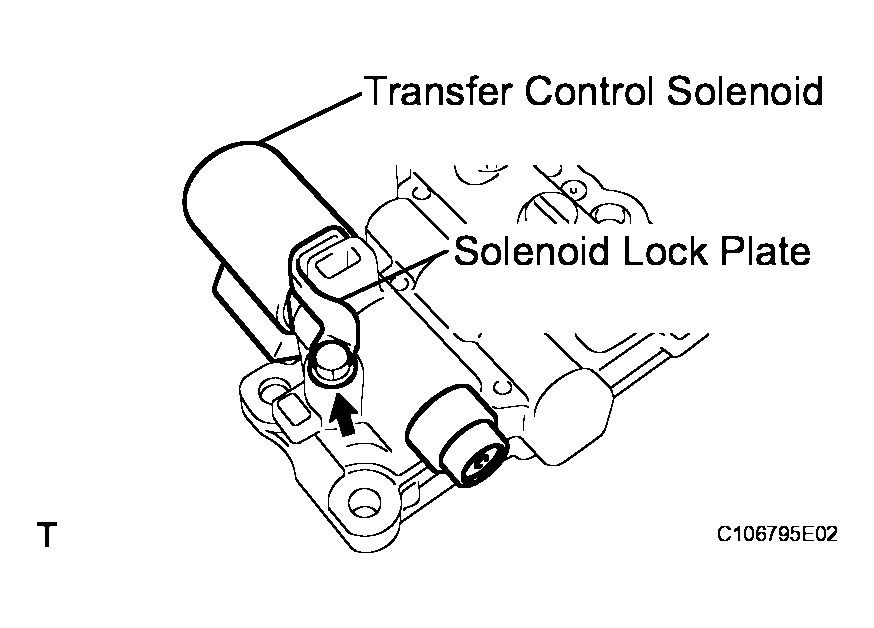

Fig 1: Identifying Bolt For Removing Transfer Control Solenoid
G04046854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
