Transfer Valve Body Assembly: Installation

INSTALL TRANSFER CONTROL SOLENOID (See Step 4 in REASSEMBLY )
INSTALL TRANSFER VALVE BODY ASSEMBLY
1. Connect the transfer wire connector to the transfer control solenoid.
2. Install the transfer upper valve body with the 4 bolts.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

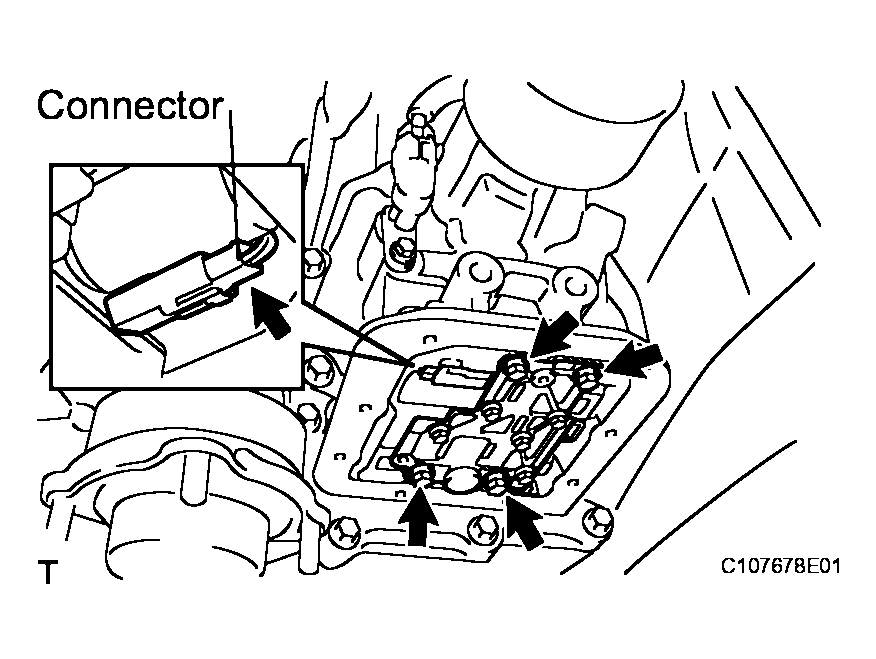

Fig 1: Installing Transfer Valve Body Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSFER OIL PAN (See Step 2 in INSTALLATION )
INSTALL TRANSFER DYNAMIC DAMPER (See Step 3 in INSTALLATION )
INSTALL ENGINE REAR MOUNTING MEMBER (See Step 4 in INSTALLATION )
INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (See Step 3 in INSTALLATION )
INSTALL FRONT EXHAUST PIPE ASSEMBLY (See Step 4 in INSTALLATION )
INSTALL HEATED OXYGEN SENSOR (See Step 5 or 6 in INSTALLATION )
INSTALL FRONT CENTER FLOOR BRACE (See Step 7 in INSTALLATION )
INSTALL REAR NO. 1 FLOOR PANEL BRACE (See Step 8 in INSTALLATION )
ADD AUTOMATIC TRANSMISSION FLUID (See AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E) )
CHECK FOR EXHAUST GAS LEAKS Connector
