Transfer Wire: Installation

1. Coat the transfer wire O-ring with ATF.

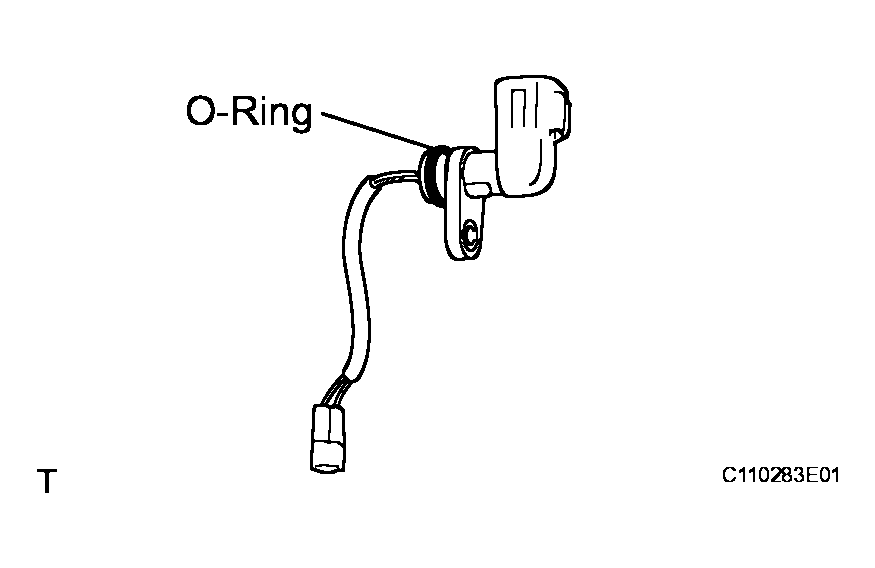

   Fig 1: Identifying Transfer Wire O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transfer wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

3. Connect the 2 transfer wire connectors to the transfer control solenoid.
4. Install the transfer upper valve body with the 4 bolts.

Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

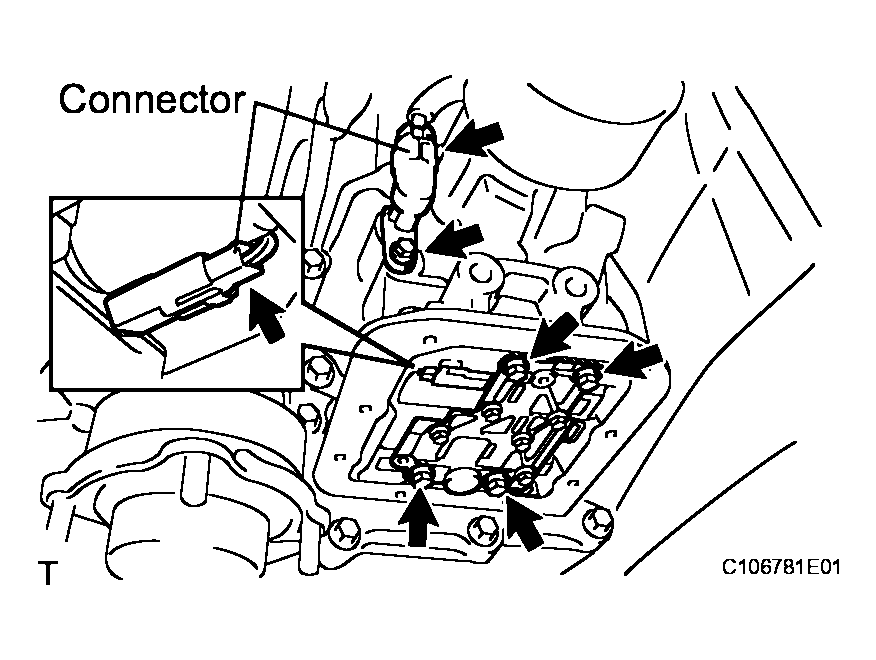

Fig 2: Installing Transfer Upper Valve Body With 4 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer oil cleaner magnet to the transfer oil pan.

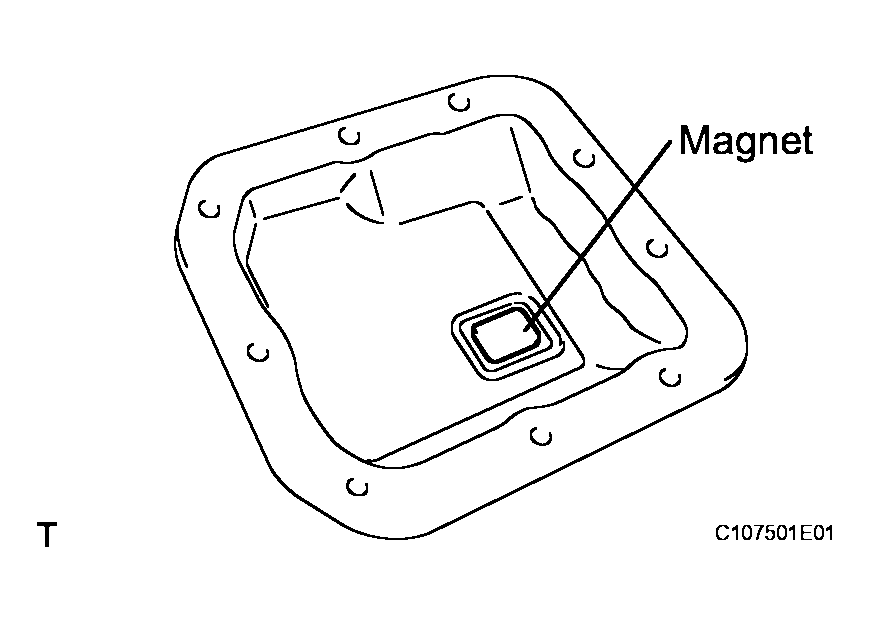

   Fig 3: Installing Transfer Oil Cleaner Magnet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove all residual FIPG material from the contact surfaces using gasoline or alcohol.
3. Apply seal packing to the transfer chain case front as shown in Fig 4 .

   Seal packing:

   Part No. 08826-00090, THREE BOND or equivalent

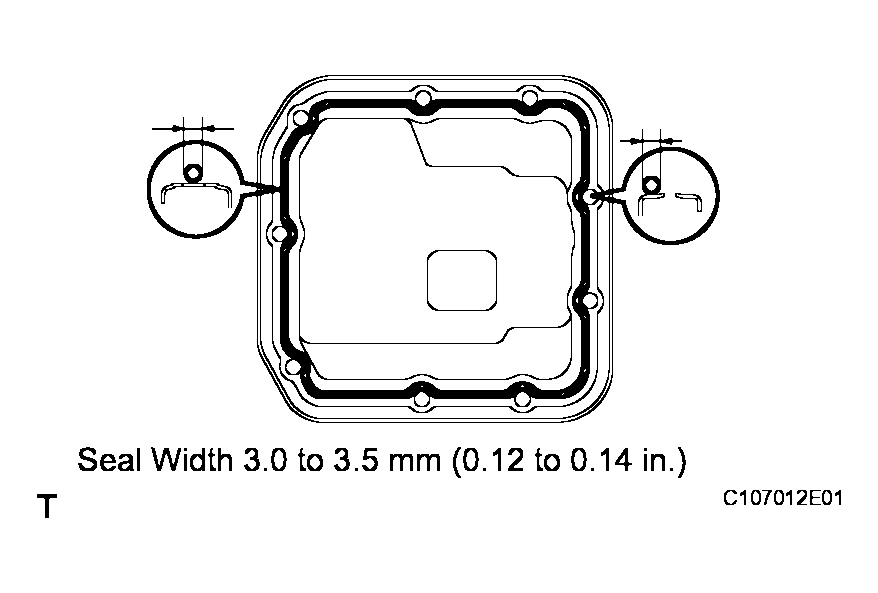

   Fig 4: Applying Seal Packing To Transfer Chain Case Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Temporarily tighten the 9 bolts in several steps, and then tighten them to the specified torque.

Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

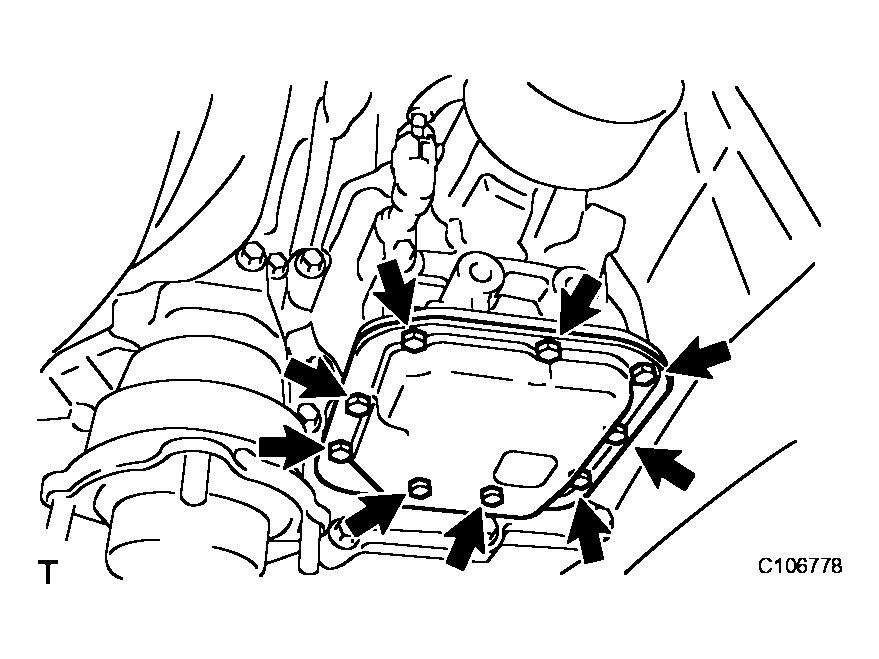

Fig 5: Tightening Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer dynamic damper with the 2 bolts.

Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

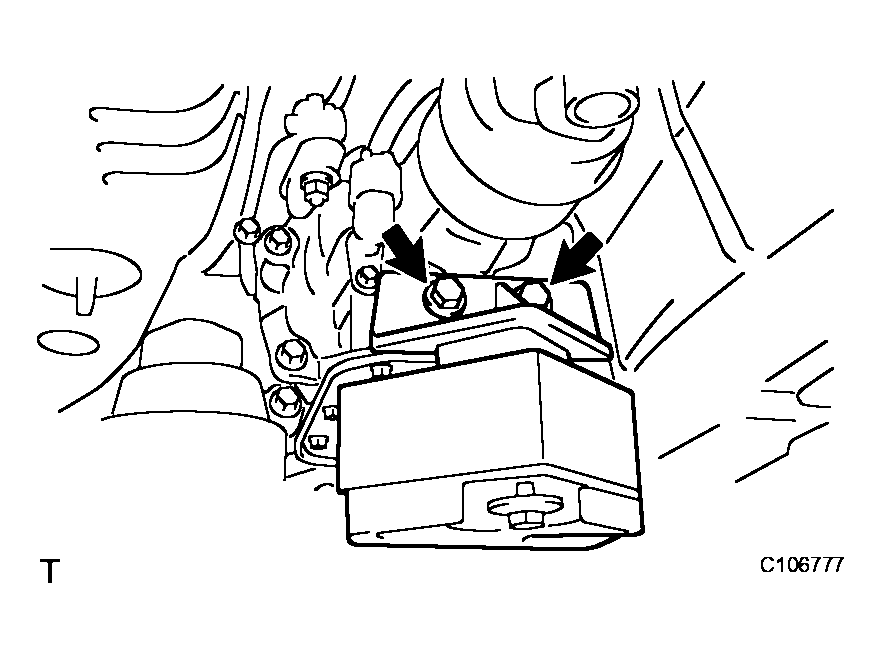

Fig 6: Installing Transfer Dynamic Damper With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine rear mounting member with the 4 bolts and 3 nuts.

Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf) (Bolt)

38 N*m (387 kgf*cm, 28 ft.*lbf) (Nut)

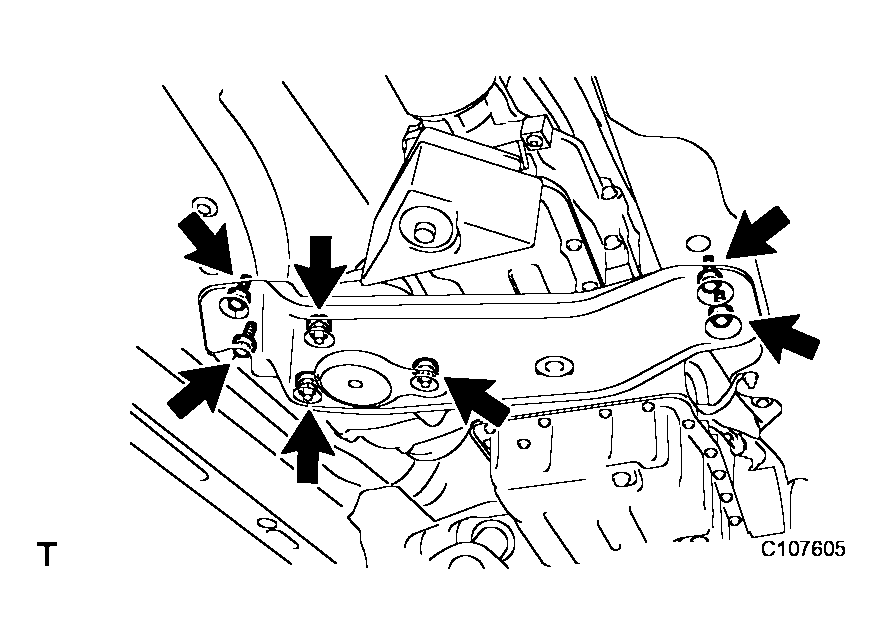

Fig 7: Installing Engine Rear Mounting Member
