Transfer Wire: Removal

  1. DRAIN AUTOMATIC TRANSMISSION FLUID (See  AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E)  )
  2. REMOVE REAR NO. 1 FLOOR PANEL BRACE (See  REMOVAL  )
  3. REMOVE FRONT CENTER FLOOR BRACE (See  REMOVAL  )
  4. DISCONNECT HEATED OXYGEN SENSOR (See Step 3 or 4 in  REMOVAL  )
  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See Step 5 in  REMOVAL  )
  6. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (See  REMOVAL  )
  7. SUPPORT AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (See  AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E)  )
  8. REMOVE ENGINE REAR MOUNTING MEMBER
    1. Remove the 4 bolts, 3 nuts and engine rear mounting member.

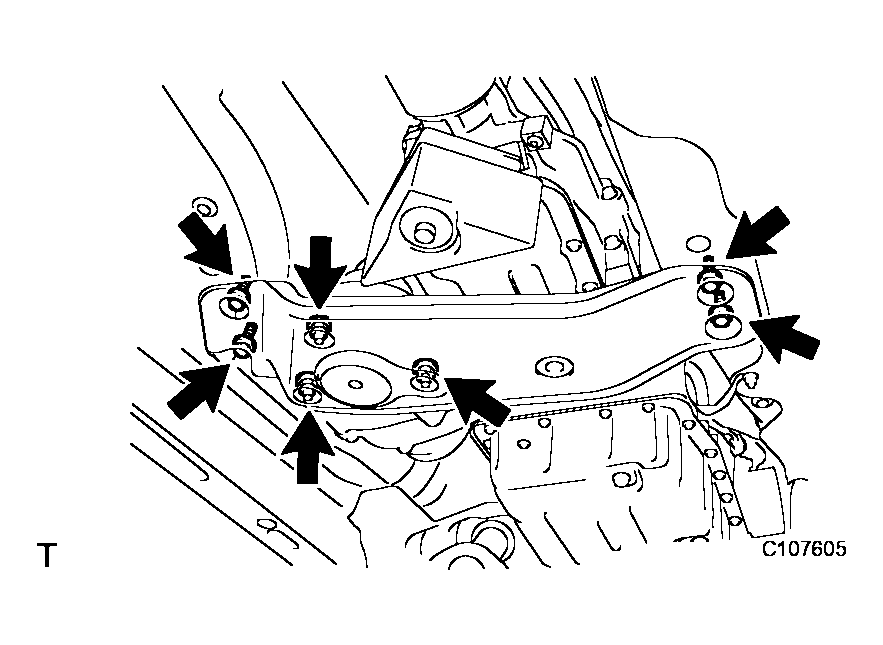

    Fig 1: Locating Engine Rear Mounting Member Bolt & Nuts
    G04046859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TRANSFER DYNAMIC DAMPER
    1. Remove the 2 bolts and the transfer dynamic damper.

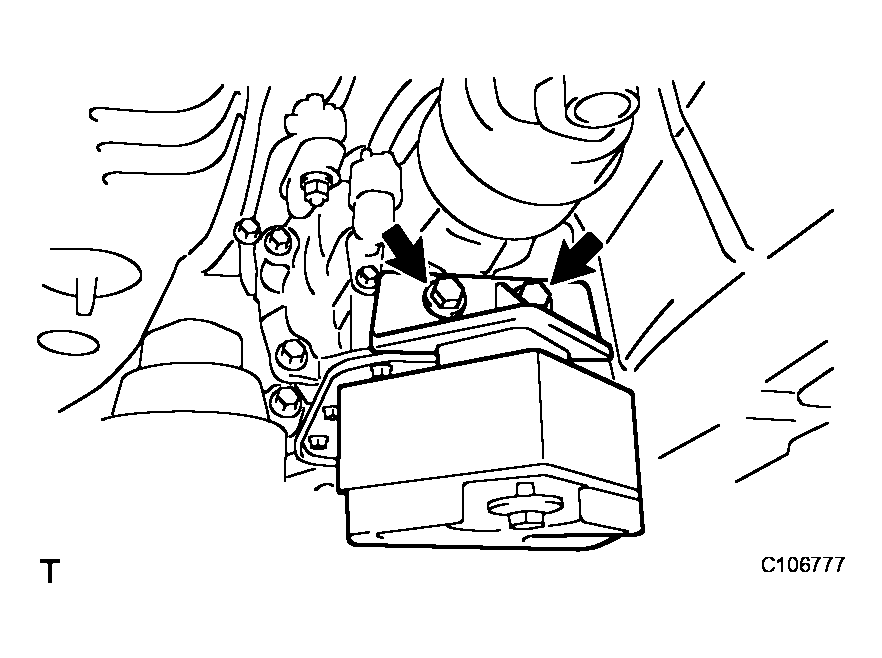

    Fig 2: Identifying Transfer Dynamic Damper Removing Bolts
    G04046860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE TRANSFER OIL PAN
    1. Remove the 9 bolts.

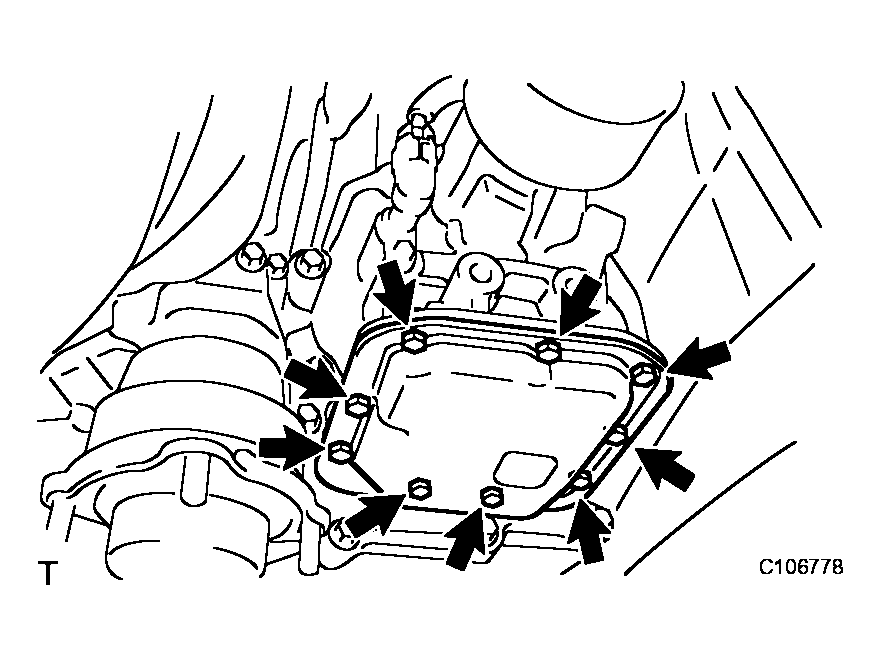

      Fig 3: Identifying Transfer Oil Pan Bolts
      G04046861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the blade of SST between the transfer oil pan and transfer case. Cut through the sealer and remove the transfer oil pan.

      SST 09032-00100

      NOTE: Do not damage the contact surface of the transfer oil pan.

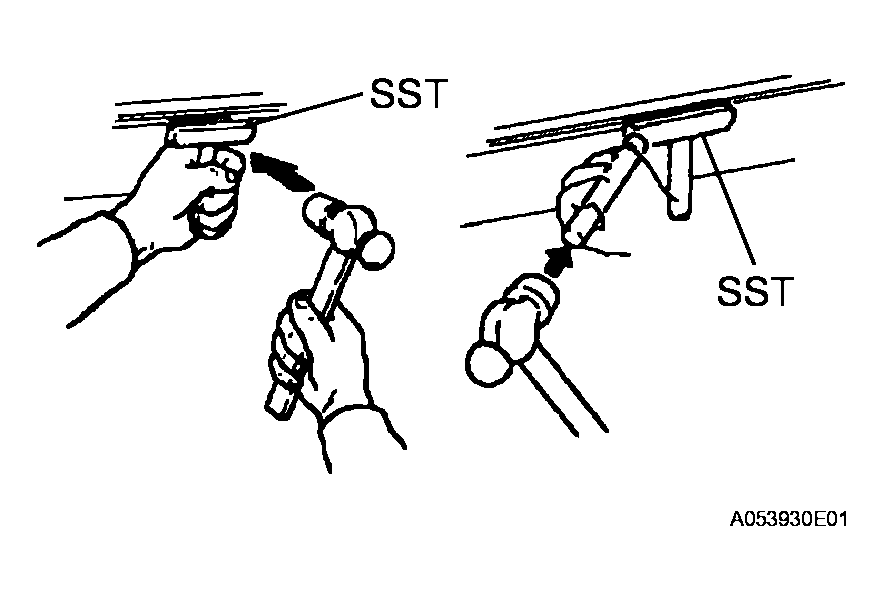

      Fig 4: Inserting Blade Of SST Between Transfer Oil Pan & Transfer Case
      G04046862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the transfer oil cleaner magnet from the transfer oil pan.
    NOTE:
    • Clean the inside of the oil pan thoroughly, removing all metal shavings, sludge and any other foreign objects.
    • Remove any metal shavings from the magnet.

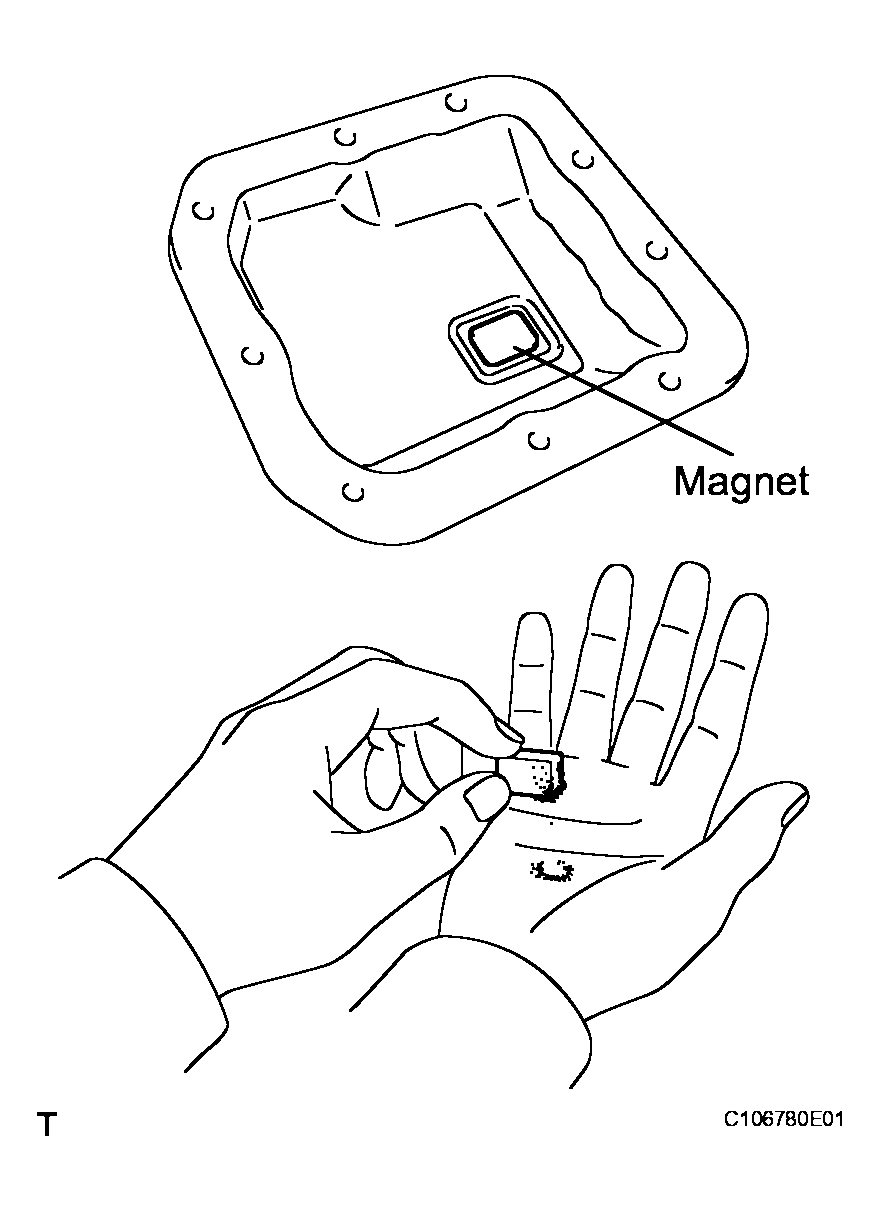

    Fig 5: Removing Metal Shavings From Magnet
    G04046863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSFER WIRE
  1. Remove the 4 bolts and the transfer upper valve body.
  2. Disconnect the 2 transfer wire connectors.
  3. Remove the bolt and the transfer wire.

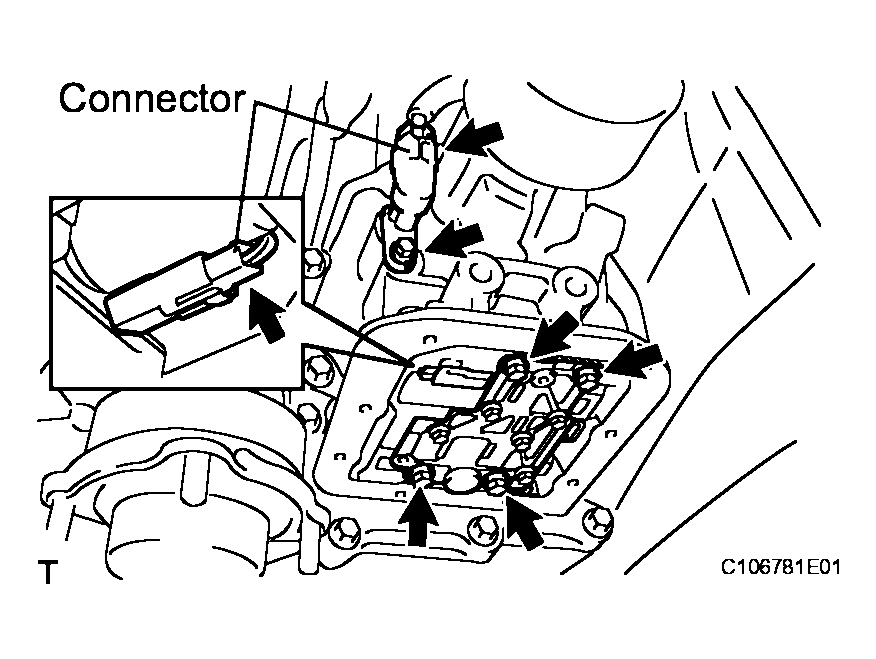

Fig 6: Removing Transfer Wire
G04046864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
