Coolant Temperature Sensor/Switch (For Computer)

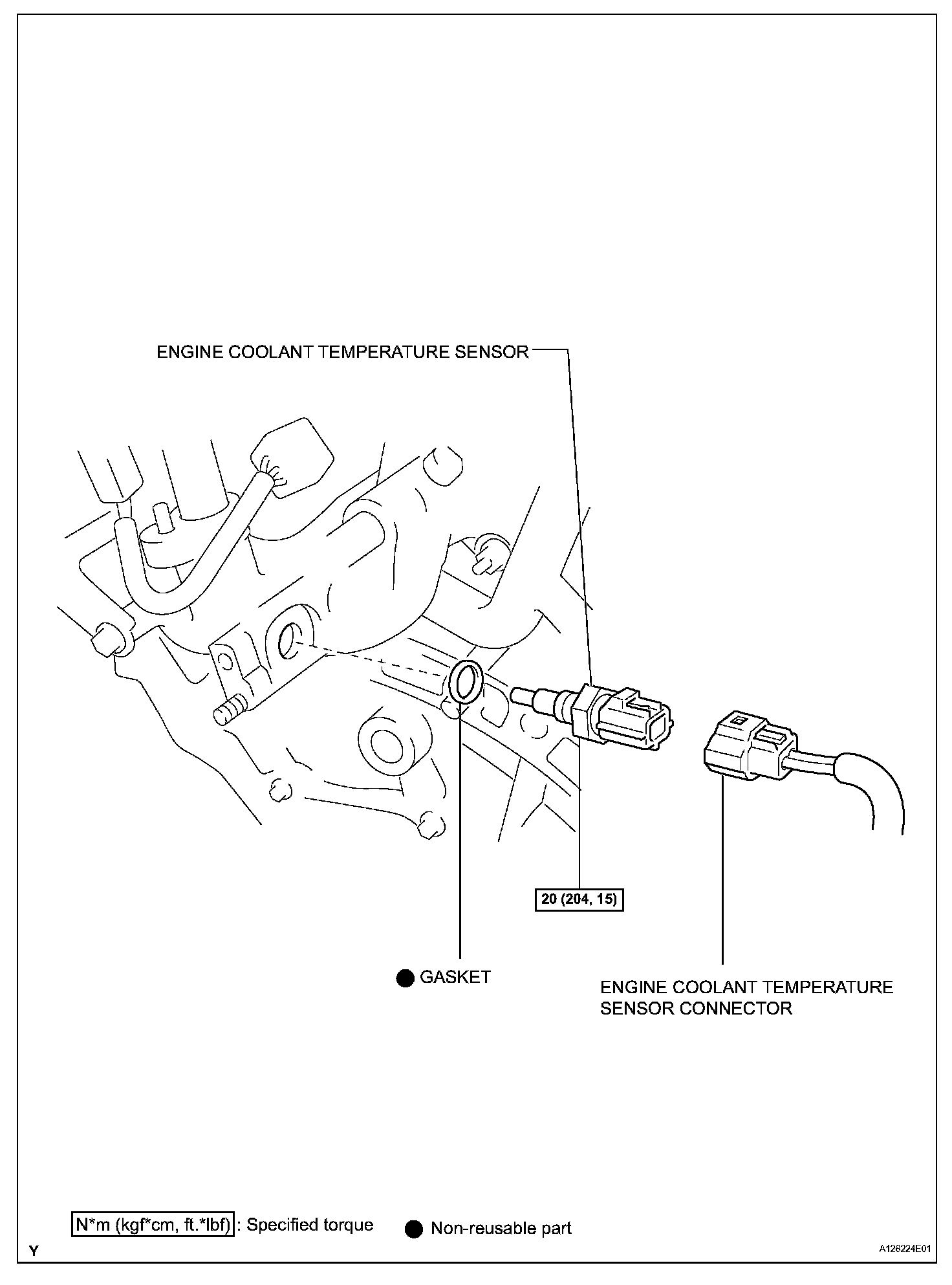

Engine Coolant Temperature Sensor:

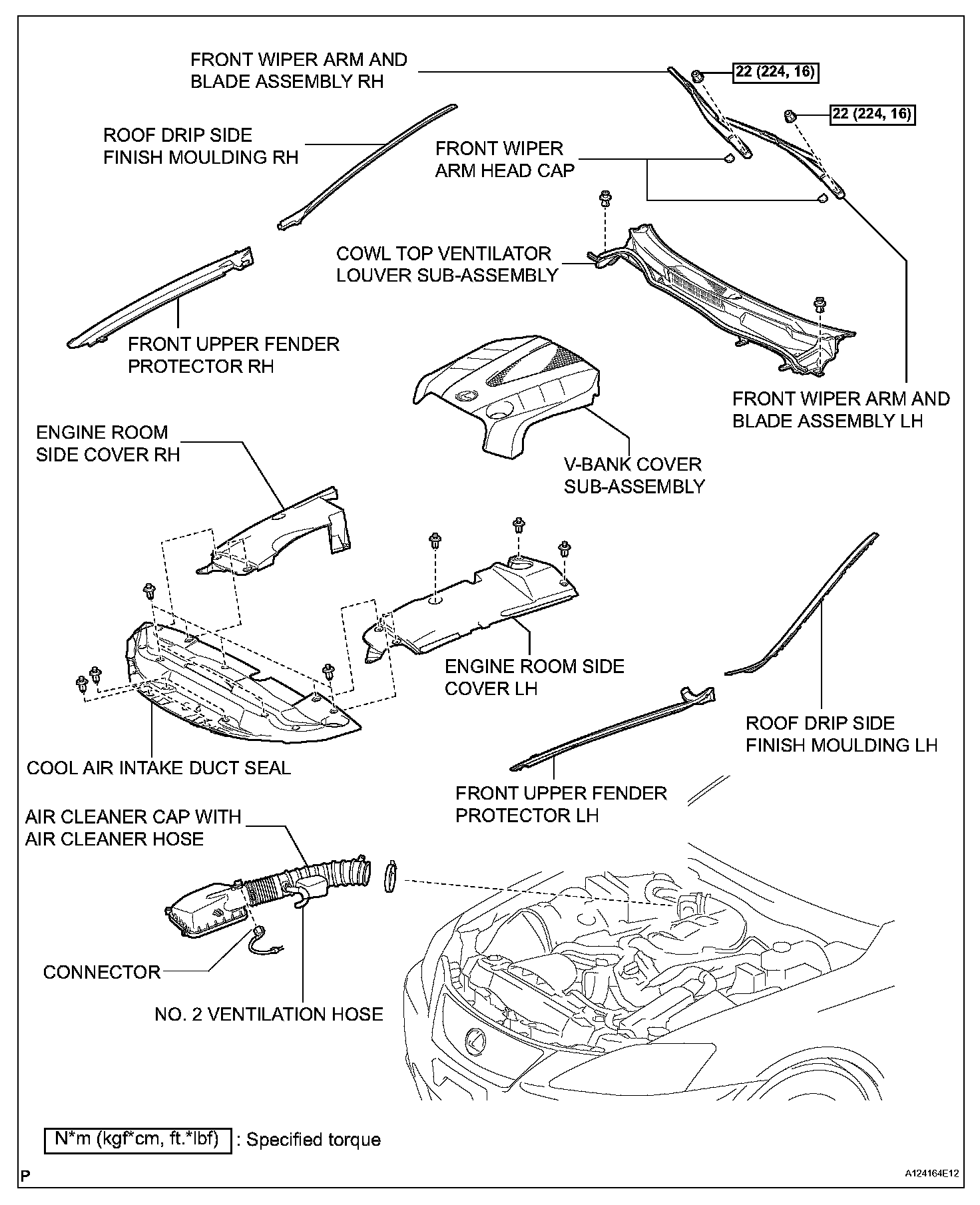

Engine Coolant Temperature Sensor:

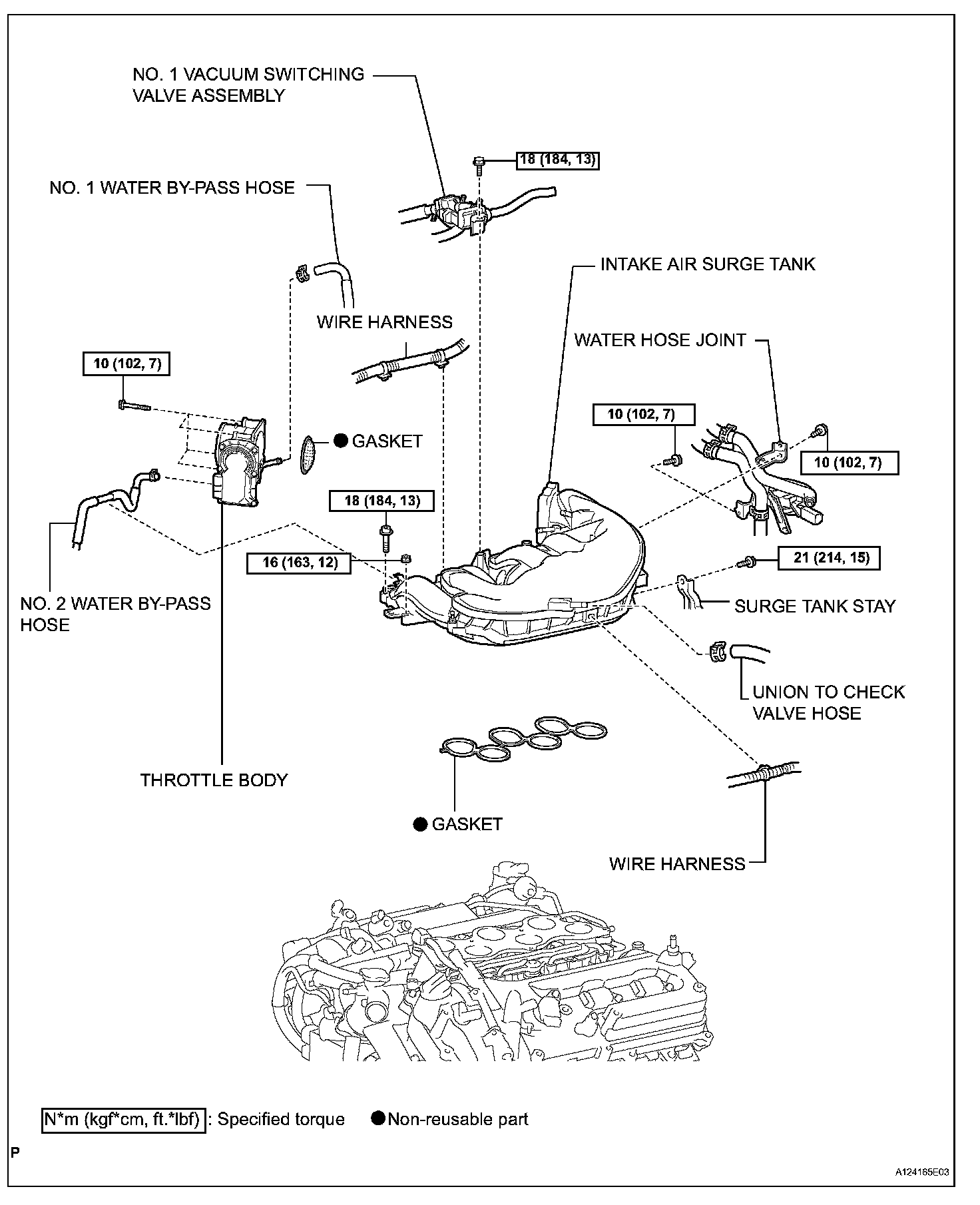

Engine Coolant Temperature Sensor:
