Power Distribution Module: Locations

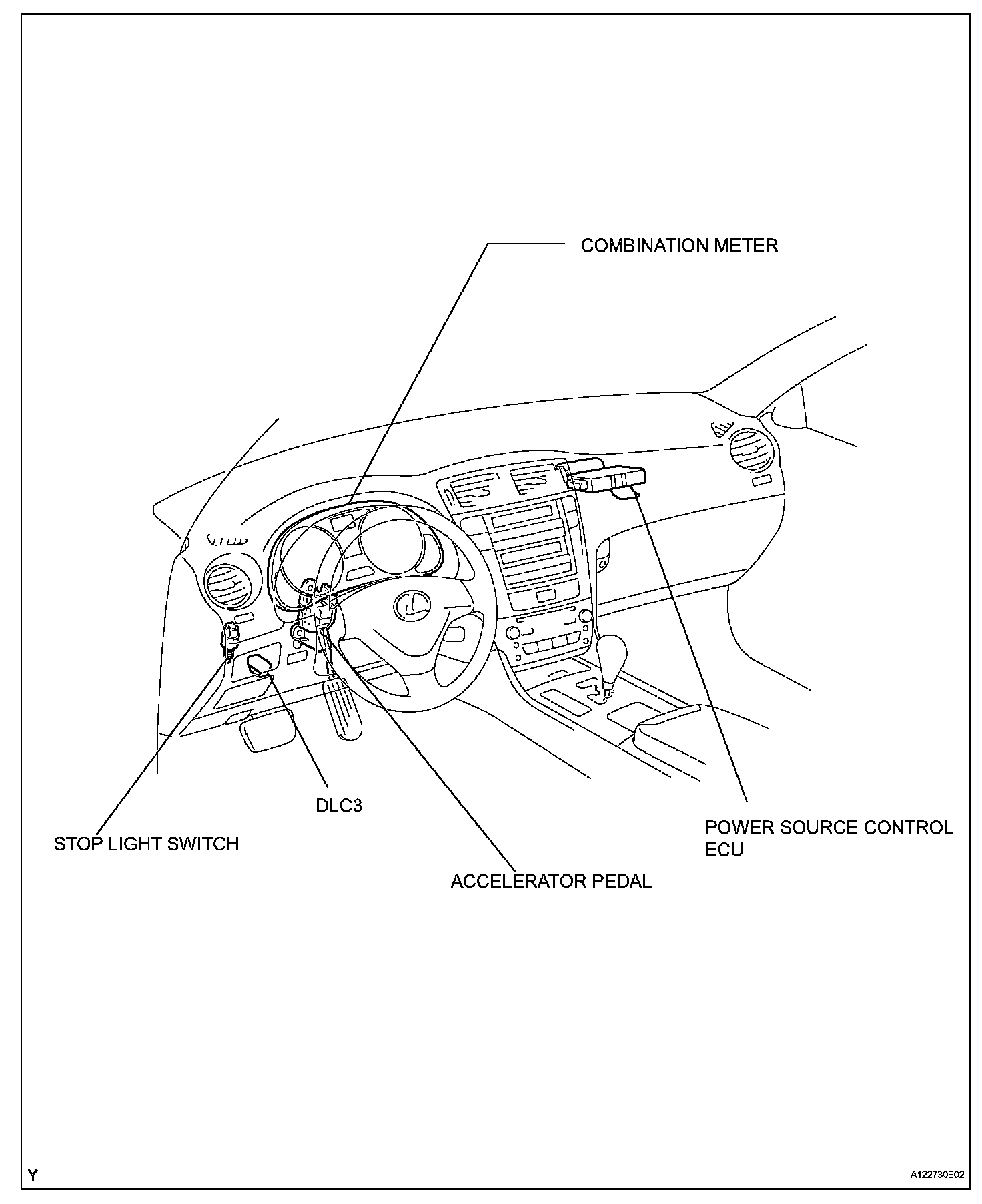

SFI System:

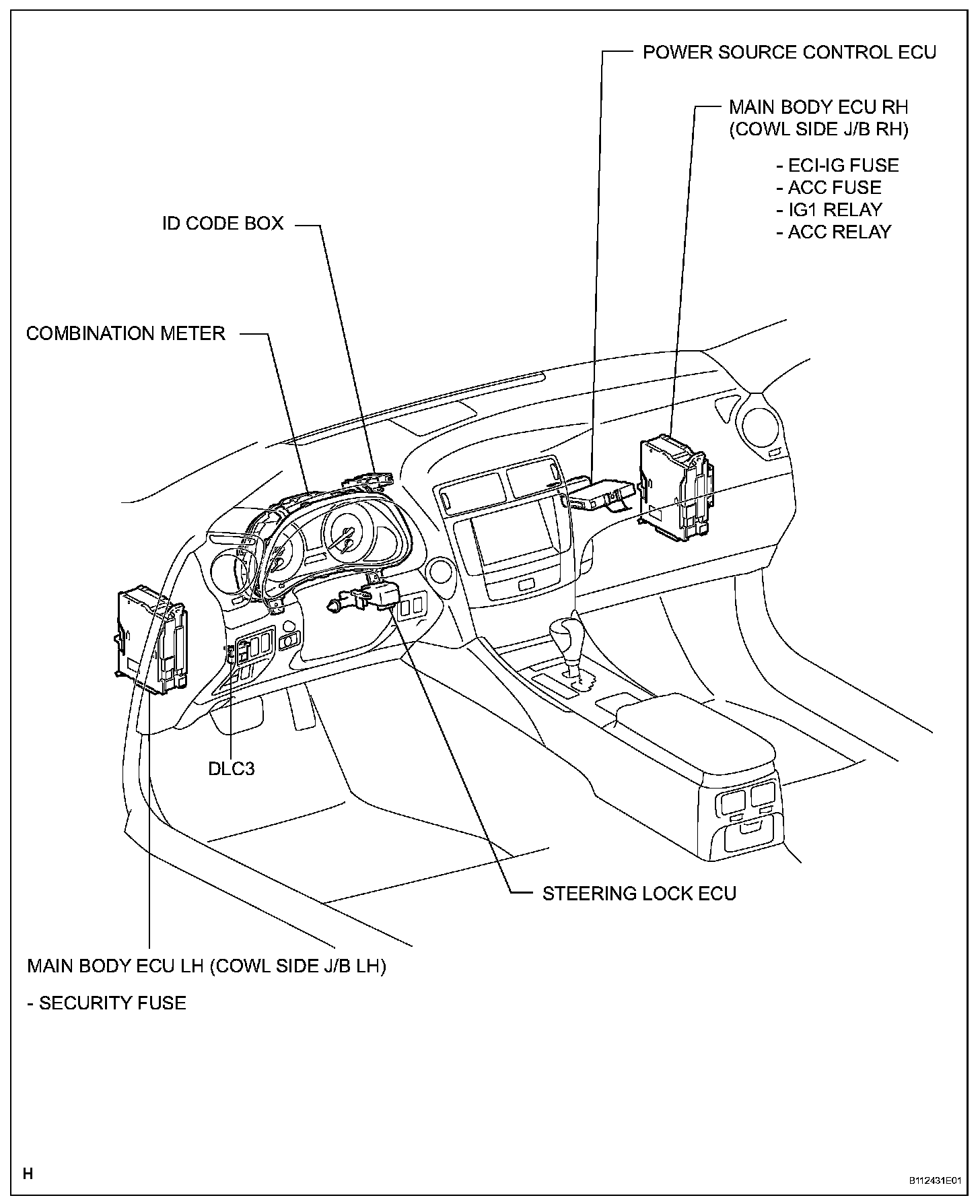

Instrument Panel:



Smart Access System With Push-Button Start:



Starting System:
