Check For Short Circuits

CHECK FOR SHORT CIRCUIT

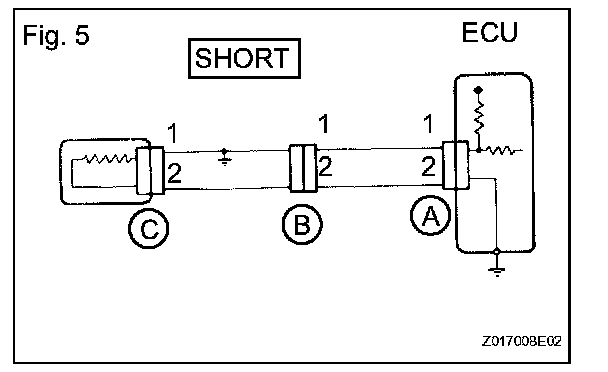

a. If the wire harness is ground shorted (Fig. 5), locate the section by conducting a resistance check with the body ground.

b. Check the resistance with the body ground.

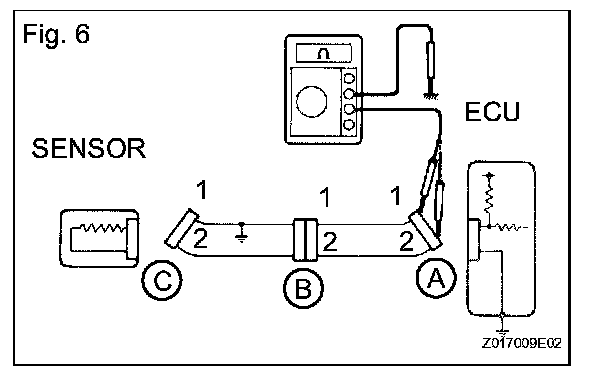

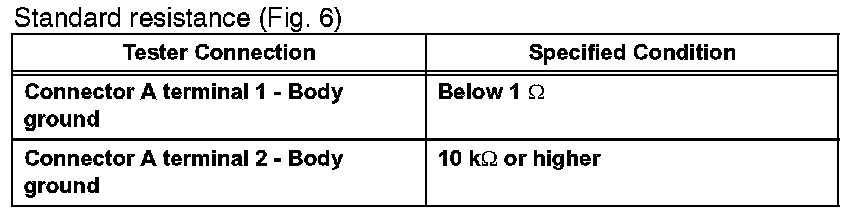

1. Disconnect connectors A and C and measure the resistance.

HINT: Measure the resistance while lightly shaking the wire harness vertically and horizontally. If your results match the examples above, an open circuit exists between terminal 1 of connector A and terminal 1 of connector C.

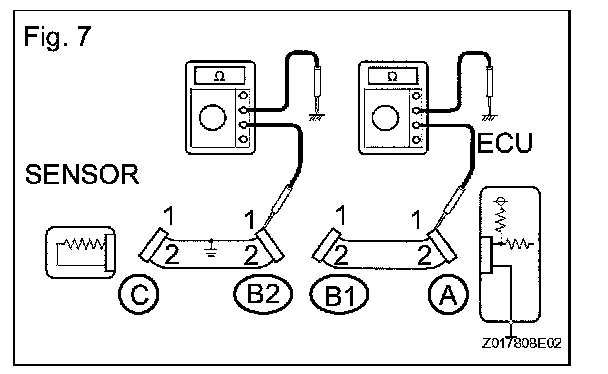

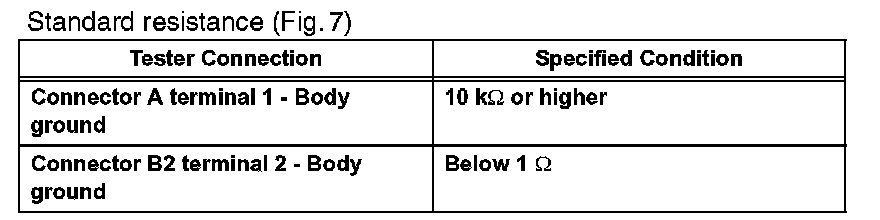

2. Disconnect connector B and measure the resistance.







If the results match the examples above, a short circuit exists between terminal 1 of connector B2 and terminal 1 of connector C.
