Knock Sensor: Testing and Inspection
INSPECTIONINSPECT KNOCK SENSOR

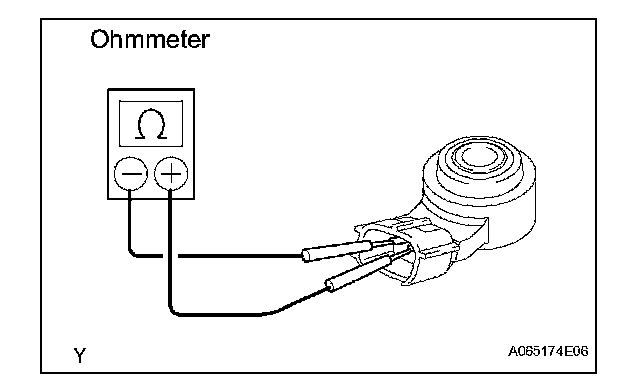

a. Measure the resistance between the terminals.
Standard resistance:
120 to 280 kOhms at degrees C (68 degrees)
If the result is not as specified, replace the sensor.
INSPECT KNOCK SENSOR
a. Measure the resistance between the terminals.
Standard resistance:
120 to 280 kOhms at degrees C (68 degrees)
If the result is not as specified, replace the sensor.
