Main Relay (Computer/Fuel System): Service and Repair

Integration Relay:

REMOVAL

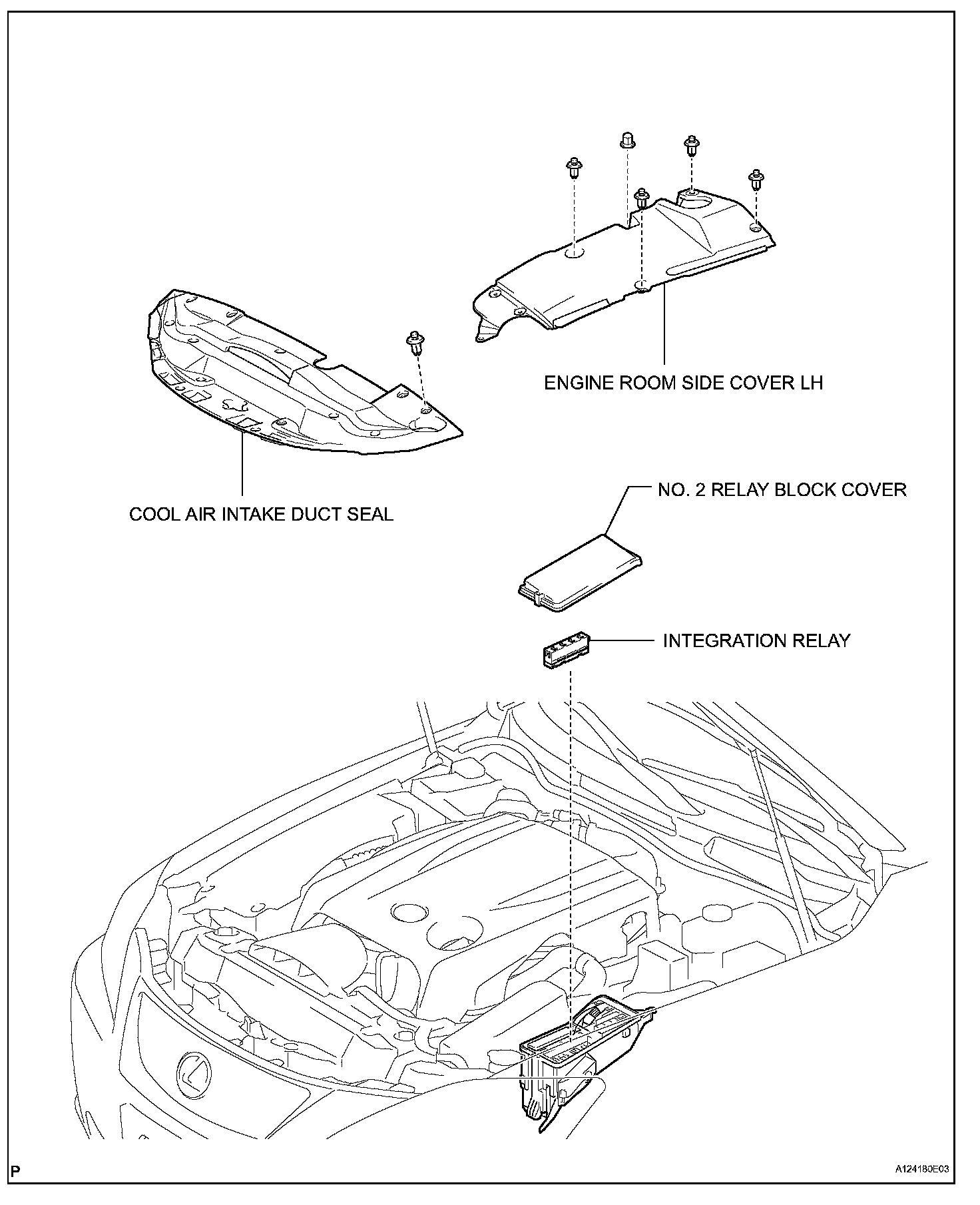

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE ENGINE ROOM SIDE COVER LH
3. REMOVE INTEGRATION RELAY




a. Remove the No. 2 relay block cover.

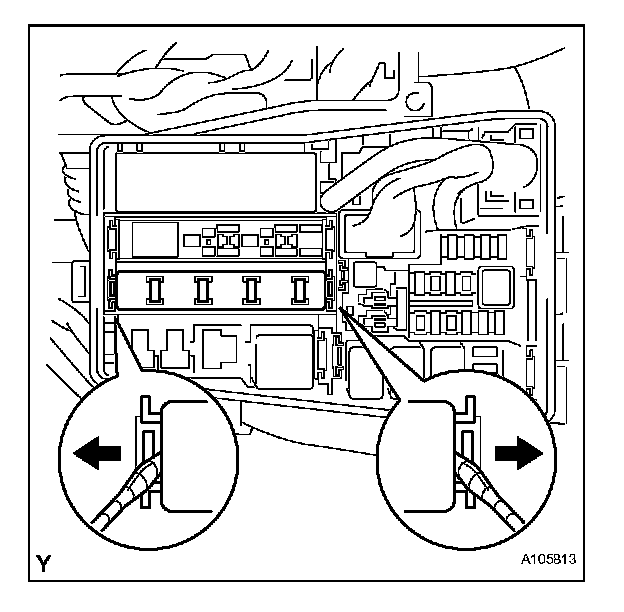

b. Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.

HINT: Tape the screwdriver tip before use.

c. Disconnect the 3 connectors.

INSTALLATION

1. INSTALL INTEGRATION RELAY
a. Connect the 3 connectors.

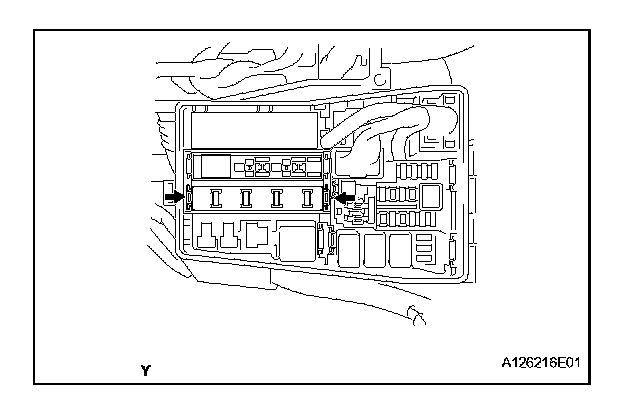

b. Attach the integration relay to the engine room No. 2 relay block.
c. Install the No. 2 relay block cover.




2. REMOVE ENGINE ROOM SIDE COVER LH
3. REMOVE COOL AIR INTAKE DUCT SEAL
