Shift Lock: Notes

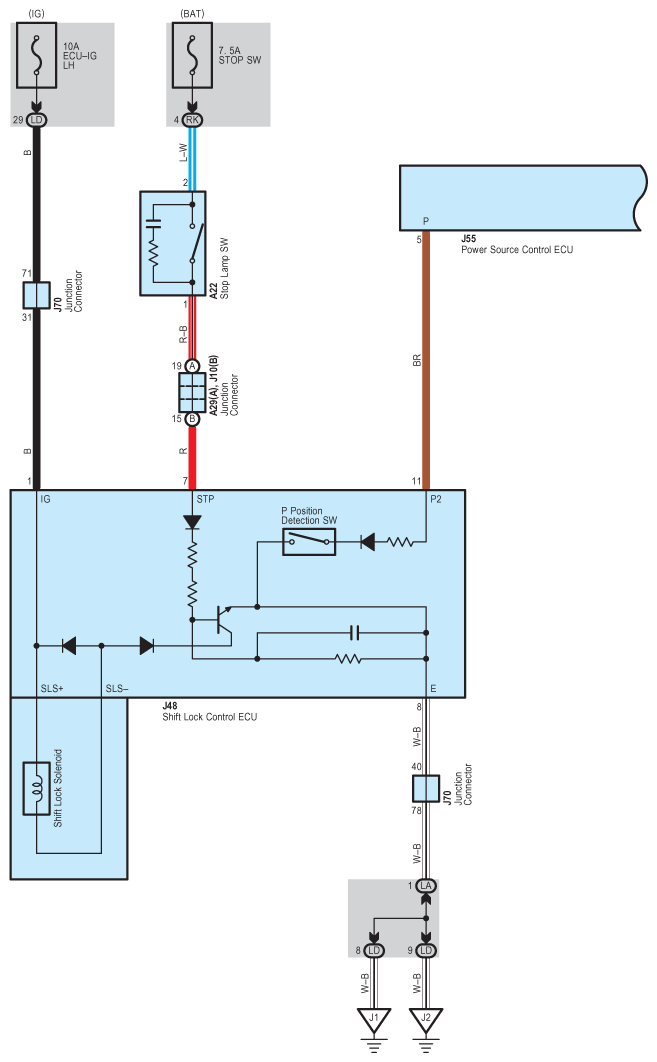

Fig 1: Shift Lock - Wiring Diagram (1 Of 2)
G08927342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Shift Lock - Wiring Diagram (2 Of 2)
G08927343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
