Pattern Select Switch: Installation

INSTALL NO. 1 PATTERN SELECT SWITCH ASSEMBLY
1. Engage the 2 claws and install the pattern select switch to the switch base.

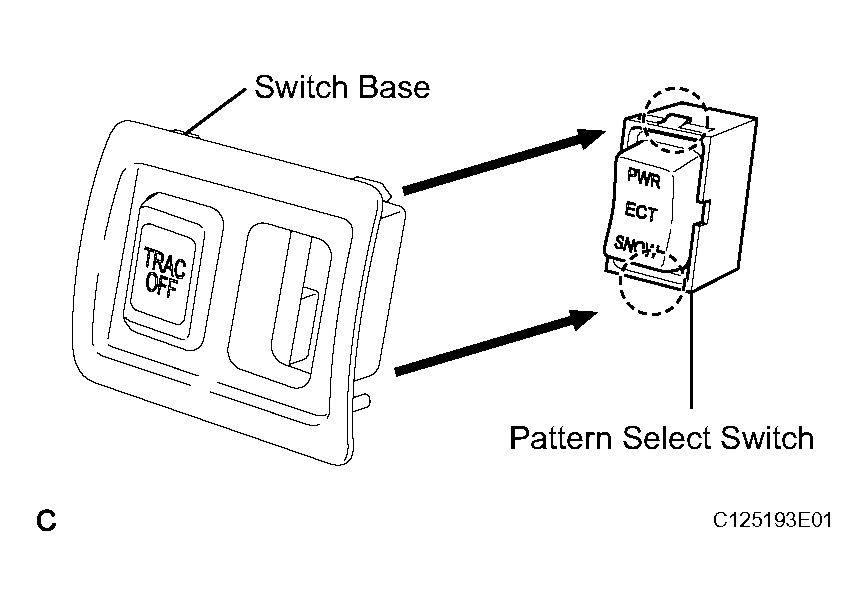

  Fig 1: Identifying Pattern Select Switch And Switch Base
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SWITCH BASE
1. Engage the 4 claws and install the switch base to the lower instrument panel finish panel.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )

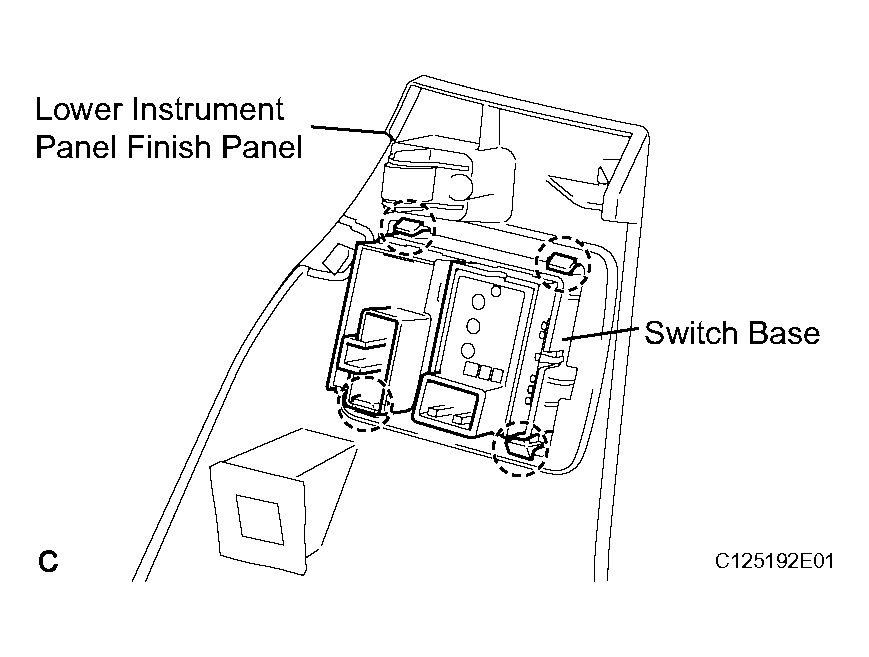

Fig 2: Identifying Switch Base And Lower Instrument Panel Finish Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE INSTRUMENT PANEL LH (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
