Outer Mirror Switch: Inspection

1. Inspect the outer mirror switch.
   1. Measure the resistance according to the value(s) in TESTER CONDITION SPECIFIED CONDITION TABLE  when the switch is operated.

      Resistance:

      Select "L" on the left/right adjustment switch

   TESTER CONDITION SPECIFIED CONDITION TABLE



   Tester Connection	Switch Position	Specified Condition
   4 - 8	UP	Below 1 ohms
   6 - 7
   4 - 7	DOWN
   6 - 8
   5 - 8	LEFT
   6 - 7
   5 - 7	RIGHT
   6 - 8

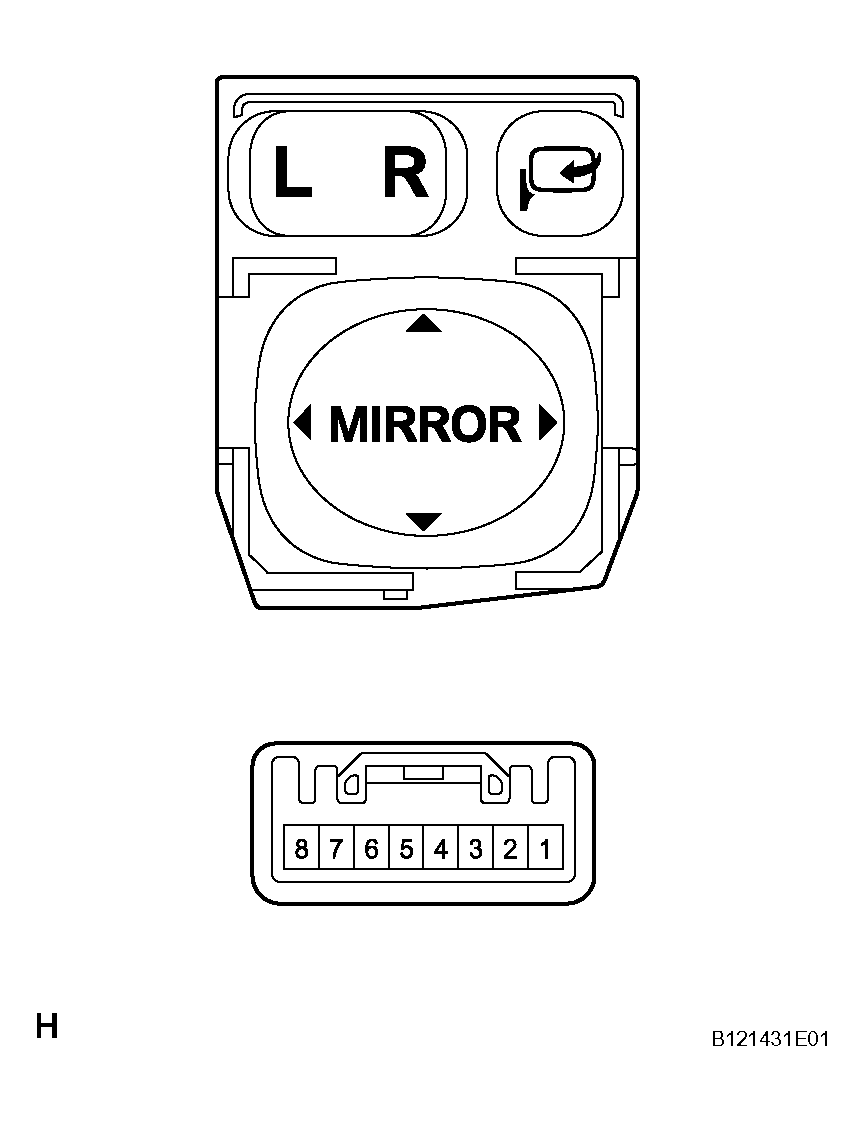

Fig 1: Identifying Outer Mirror Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Select "R" on the left/right adjustment switch

1. Inspect the outer mirror switch.
   1. Measure the resistance according to the value(s) in TESTER CONDITION SPECIFIED CONDITION TABLE  when the switch is operated.

      Resistance

   TESTER CONDITION SPECIFIED CONDITION TABLE



   Tester Connection	Switch Position	Specified Condition
   2 - 3	OFF	10 k ohms or higher
   	UP	225 to 275 ohms
   	DOWN	437 to 503 ohms
   	LEFT	744 to 856 ohms
   	RIGHT	437 to 503 ohms
   1 - 2	L	90 to 110 ohms
   	R	10 ohms or less
   4 - 7 6 - 8	Retracts	Below 1 ohms
   4 - 8 6 - 7	Returns (Driving position)	Below 1 ohms

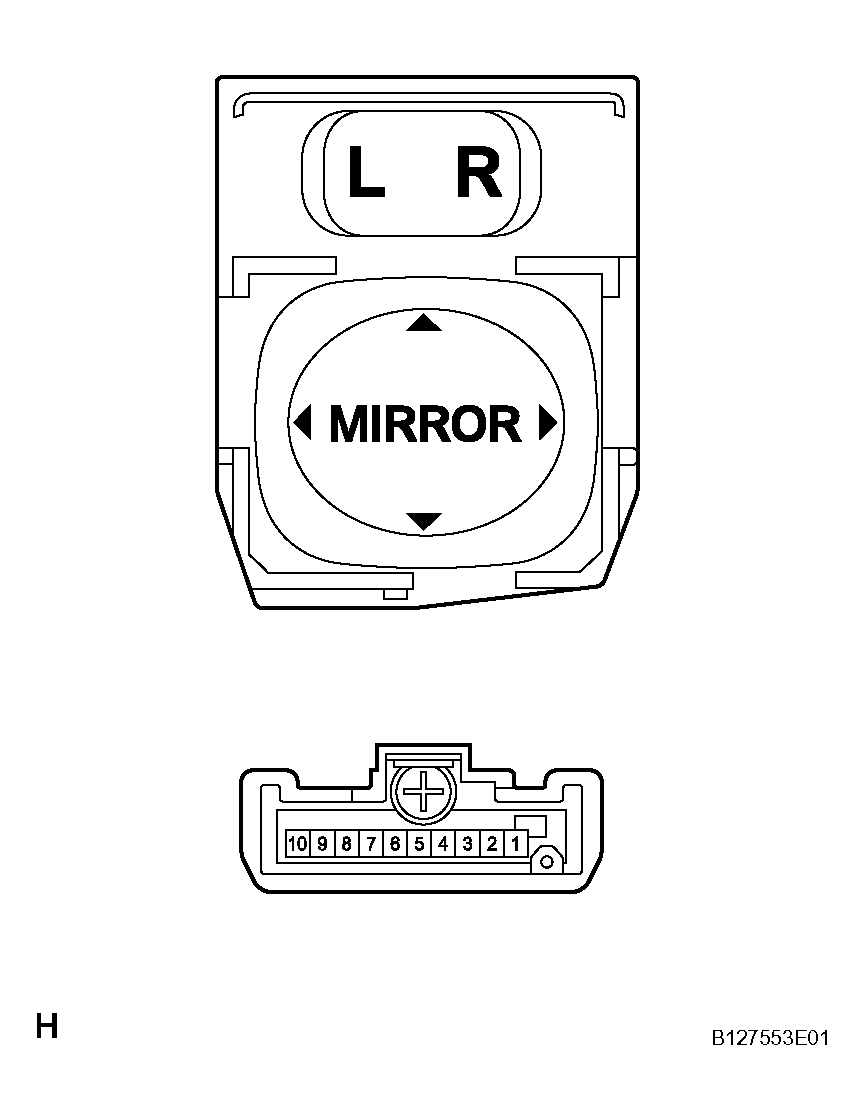

Fig 2: Identifying Outer Mirror Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
