Brake Control Brake Actuator: Installation

INSTALL BRAKE ACTUATOR BOLT CUSHION
1. Install the 2 brake actuator bolt cushions and 2 bolts to the brake actuator assembly.

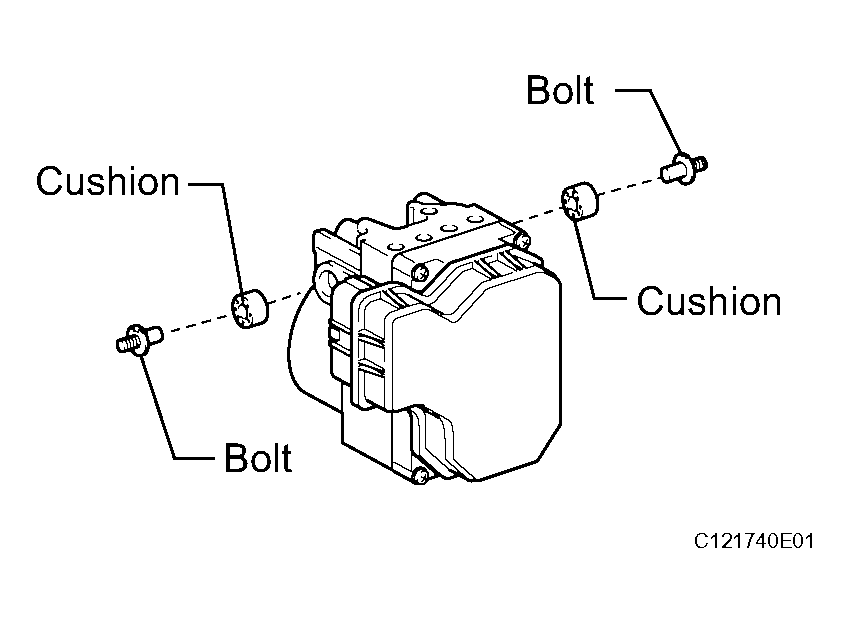

  Fig 1: Identifying Brake Actuator Bolt Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY
1. Install the brake actuator bolt cushion with the actuator bracket assembly.
2. Install the brake actuator to the actuator bracket assembly with the 2 nuts.

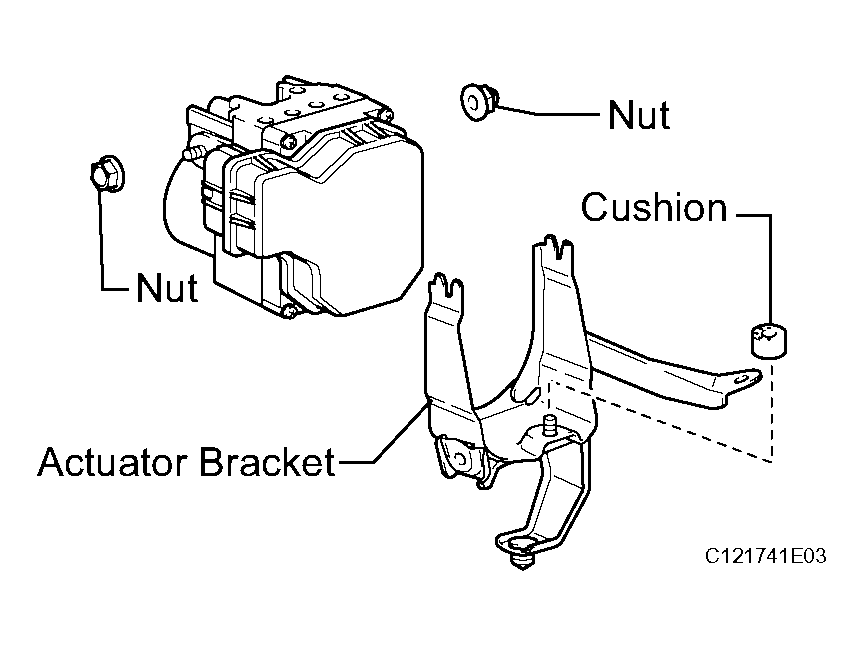

  Fig 2: Identifying Brake Actuator Bracket Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL BRAKE ACTUATOR ASSEMBLY WITH BRACKET
1. Install the actuator assembly with bracket to the body with the 2 bolts and nut.

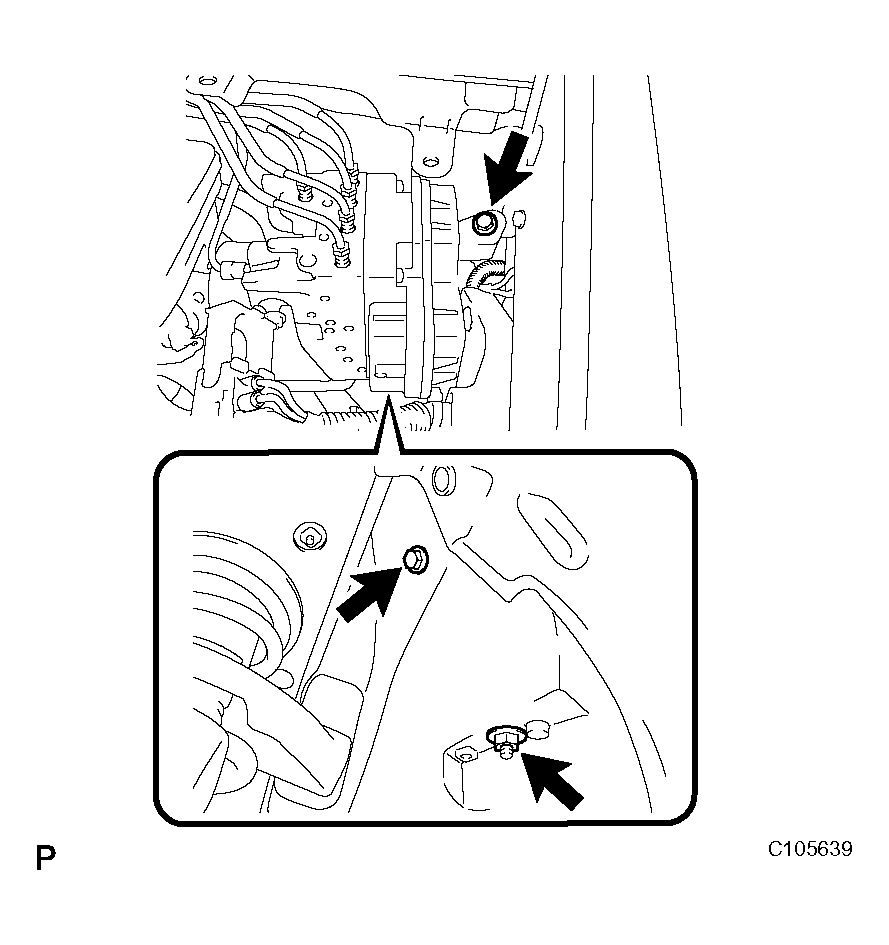

  Fig 3: Locating Actuator Assembly Bracket To Body 2 Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

  NOTE: Do not to damage the brake tubes.
2. Using SST, connect the No. 3 front brake tube to the flexible hose.

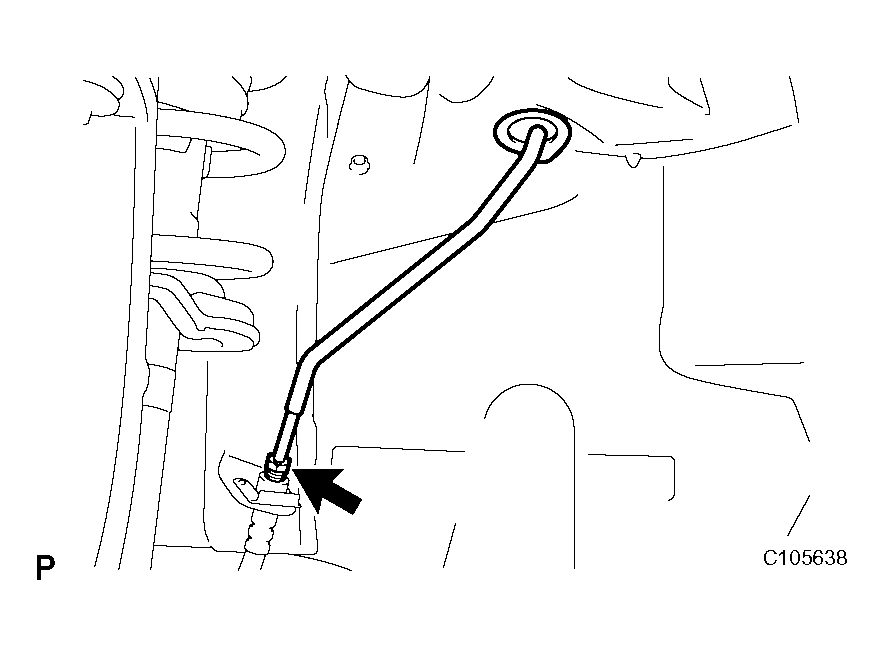

  Fig 4: Identifying Brake No.3 Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
3. Install the grommet to the body.
  NOTE: Make sure that the grommet is installed correctly.
4. Temporarily tighten each brake tube to the correct positions of the brake actuator assembly with bracket as shown in the illustration.

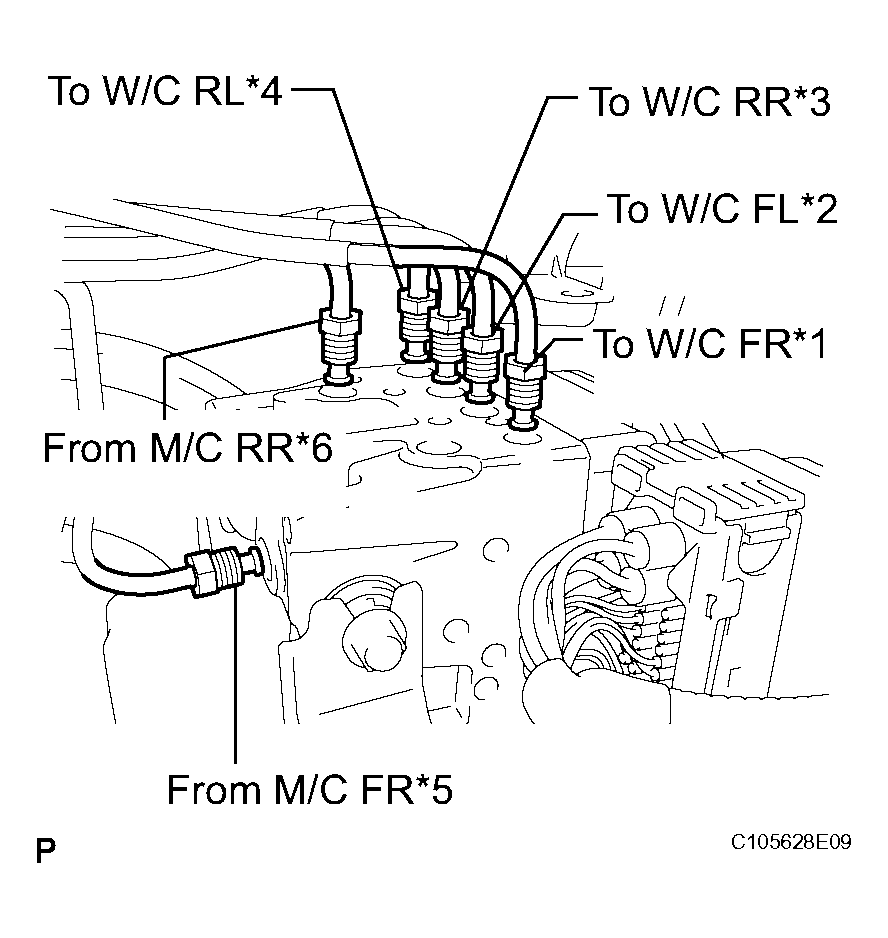

  Fig 5: Tightening Brake Tube To Correct Positions Of Brake Actuator Assembly With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: To Front Wheel Cylinder RH
  - *2: To Front Wheel Cylinder LH
  - *3: To Rear Wheel Cylinder RH
  - *4: To Rear Wheel Cylinder LH
  - *5: From Front Master Cylinder
  - *6: From Rear Master Cylinder
5. Using SST, fully tighten each brake tube.
  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
6. Connect the actuator connector.

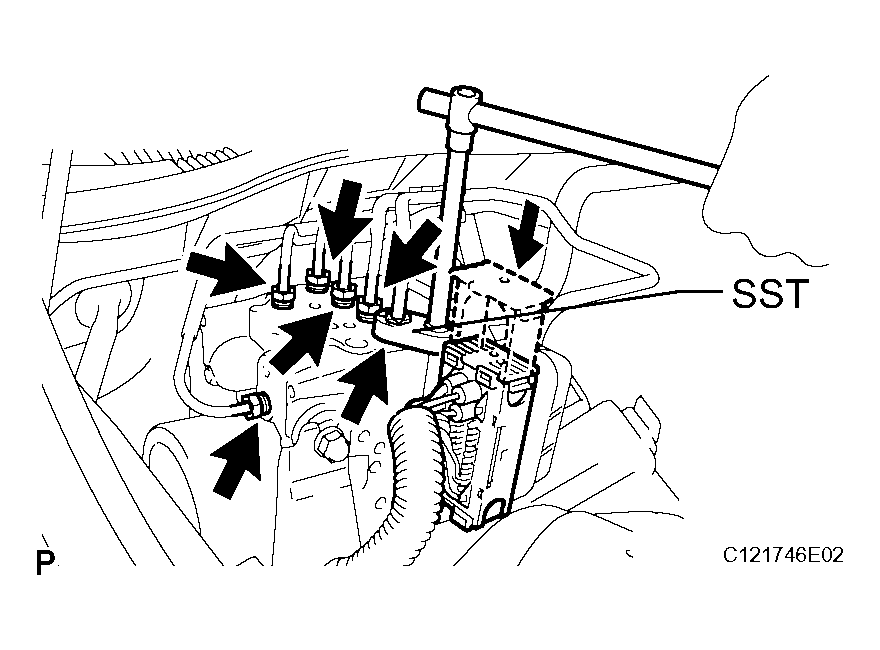

  Fig 6: Identifying Brake Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Make sure that the connector is locked securely.
INSTALL BRAKE MASTER CYLINDER SUBASSEMBLY (See INSTALLATION )
INSTALL NO. 3 ENGINE ROOM RELAY BLOCK (See INSTALLATION )
ADD RESERVOIR WITH BRAKE FLUID (See BLEEDING )
BLEED BRAKE MASTER CYLINDER SUBASSEMBLY (See BLEEDING )
BLEED BRAKE LINE (See BLEEDING )
BLEED BRAKE ACTUATOR ASSEMBLY (See BLEEDING )
INSPECT DTC
HINT:

(See DTC CHECK / CLEAR ).
INSPECT FLUID LEVEL IN RESERVOIR (See BLEEDING )
INSPECT FOR BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See INSTALLATION )
INSTALL FRONT WIPER ARM HEAD CAP (See INSTALLATION )
INSTALL FRONT UPPER FENDER PROTECTOR LH (See INSTALLATION )
INSTALL FRONT UPPER FENDER PROTECTOR RH
HINT:

Use the same procedures for the RH side and the LH side.
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
HINT:

(See CALIBRATION )
INSPECT SENSOR SIGNAL
HINT:

(See TEST MODE PROCEDURE )
INSPECT ACTUATOR WITH INTELLIGENT TESTER
HINT:

(See ON-VEHICLE INSPECTION )
