Brake Control Brake Actuator: Removal

REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL )
REMOVE FRONT UPPER FENDER PROTECTOR LH (See REMOVAL )
REMOVE FRONT UPPER FENDER PROTECTOR RH
HINT:

Use the same procedures for the RH side and the LH side.
REMOVE FRONT WIPER ARM HEAD CAP (See REMOVAL )
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See REMOVAL )
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See REMOVAL )
REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See REMOVAL )
SEPARATE NO. 3 ENGINE ROOM RELAY BLOCK (See REMOVAL )
REMOVE FRONT WHEEL
DRAIN BRAKE FLUID
NOTE: If brake fluid leaks onto any painted surface, wash or remove it completely.
REMOVE BRAKE MASTER CYLINDER SUBASSEMBLY (See REMOVAL )
REMOVE BRAKE ACTUATOR ASSEMBLY WITH BRACKET
1. Release the lock lever and disconnect the actuator connector.
2. Using SST, disconnect the 6 brake tubes from the brake actuator assembly with bracket.

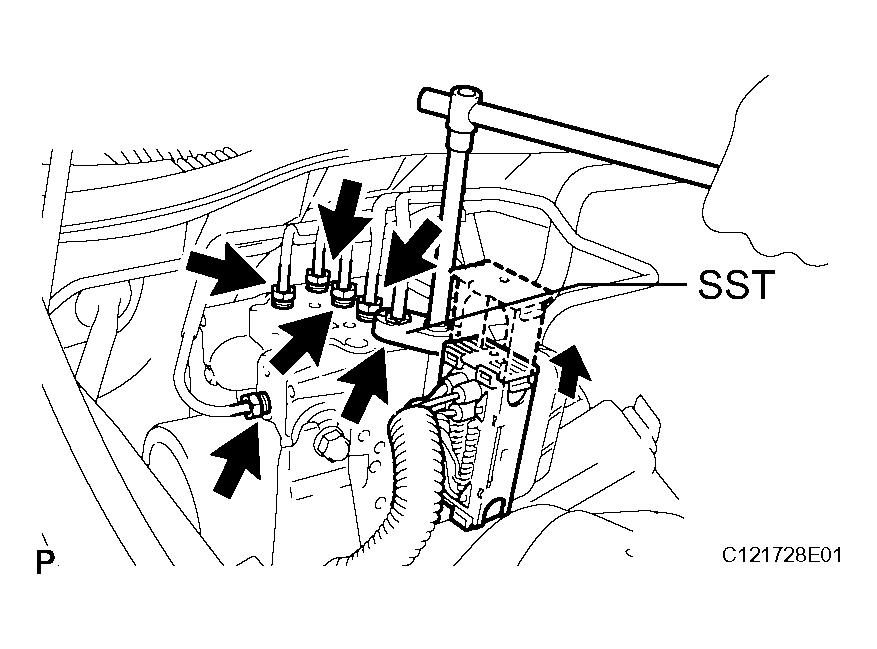

  Fig 1: Disconnecting 6 Brake Tubes From Brake Actuator Assembly With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09023-00101
3. Use tags or make a memo to identify the places to reconnect.

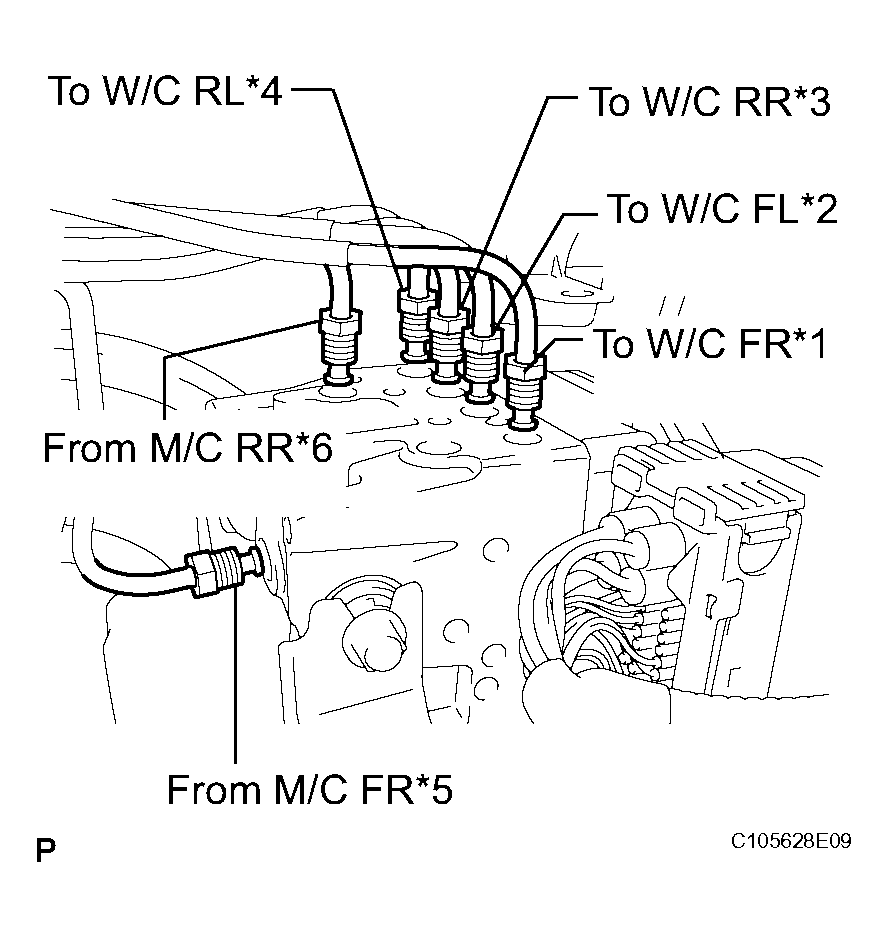

  Fig 2: Using Tags To Identify Places To Reconnect
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: To Front Wheel Cylinder RH
  - *2: To Front Wheel Cylinder LH
  - *3: To Rear Wheel Cylinder RH
  - *4: To Rear Wheel Cylinder LH
  - *5: From Front Master Cylinder
  - *6: From Rear Master Cylinder
4. Using SST, disconnect the No. 3 front brake tube from the flexible hose.

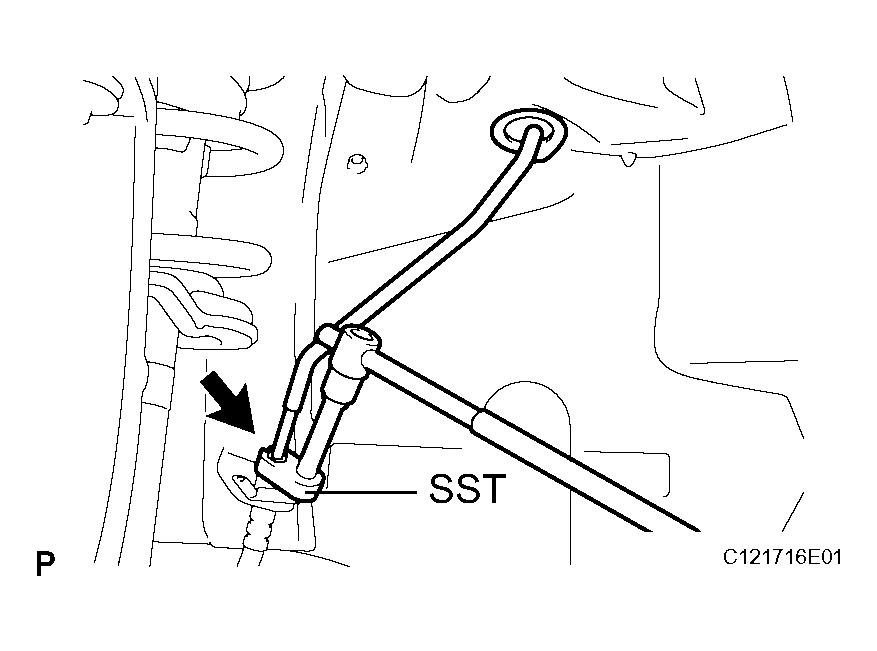

  Fig 3: Disconnecting No. 3 Front Brake Tube From Flexible Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09023-00101
5. Separate the grommet and remove the No. 3 front brake tube.
  NOTE: Do not damage the brake tube.
6. Remove the 2 bolts, nut and brake actuator assembly with bracket from the body.

  Fig 4: Locating Actuator Assembly Bracket To Body 2 Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the brake tubes.
REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY
1. Remove the 2 nuts and the brake actuator from the actuator bracket assembly.
2. Remove the brake actuator bolt cushion and actuator bracket.

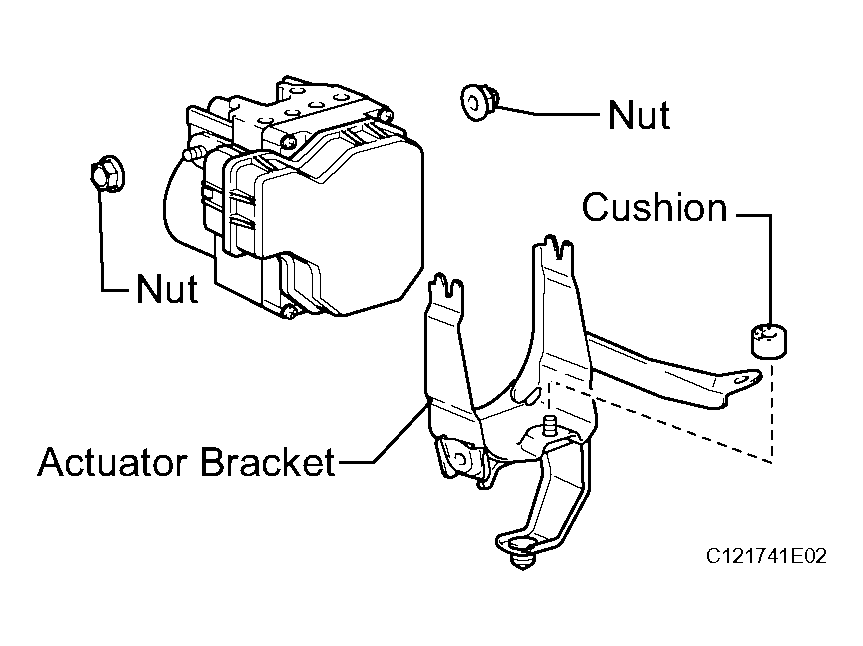

  Fig 5: Removing Brake Actuator Bolt Cushion And Actuator Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR BOLT CUSHION
1. Remove the 2 bolts and the 2 brake actuator bolt cushions from the brake actuator assembly.

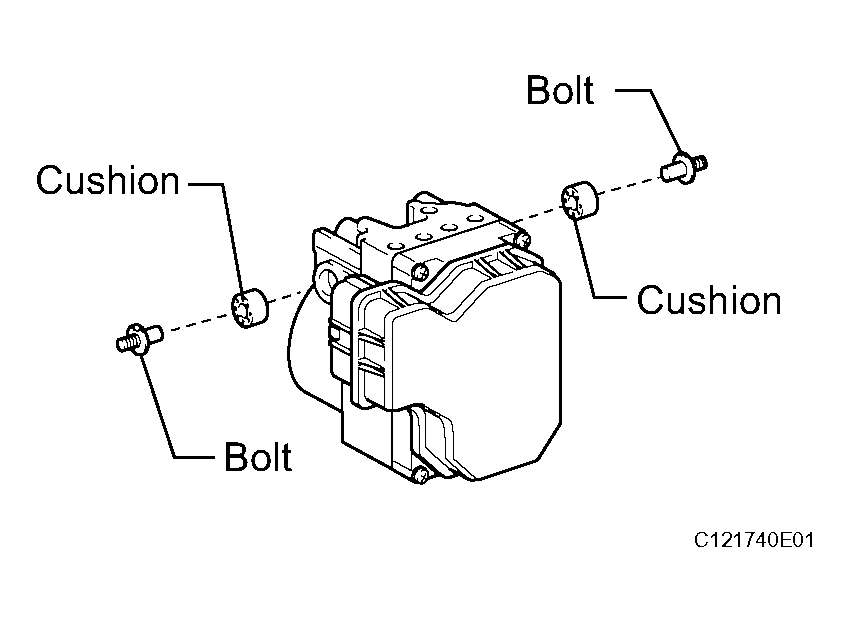

  Fig 6: Removing 2 Bolts And 2 Brake Actuator Bolt Cushions From Brake Actuator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
