Skid Control Buzzer: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing (See AIRBAG SYSTEM ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE SIDE INSTRUMENT PANEL LH (See  REMOVAL  )
  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE LOWER INSTRUMENT FINISH PANEL SUBASSEMBLY (See  REMOVAL  )
  6. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  7. REMOVE SKID CONTROL BUZZER ASSEMBLY
    1. Remove the clip and skid control buzzer assembly.

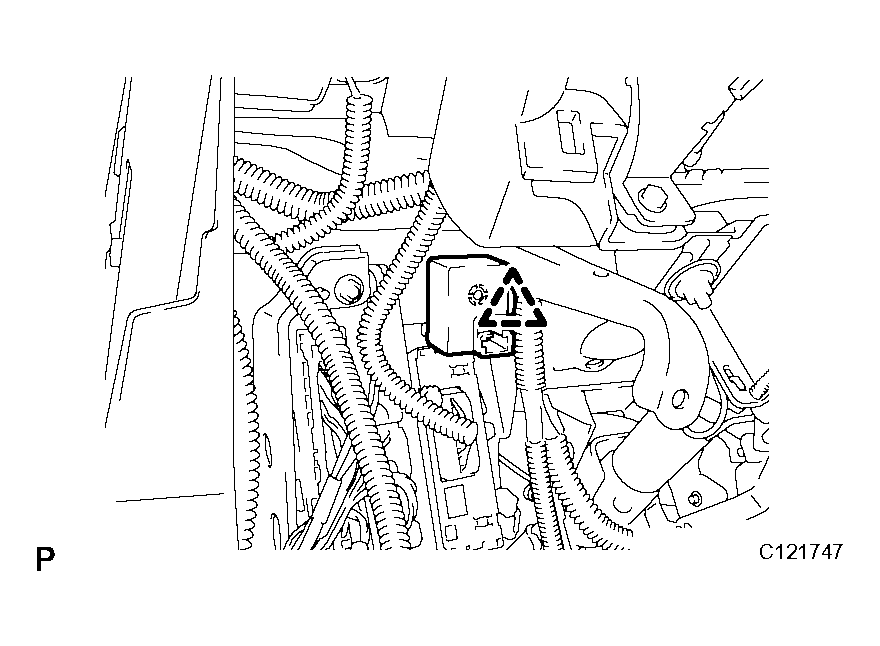

      Fig 1: Identifying Clip And Skid Control Buzzer Assembly
      G04052222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
