Yaw Rate And Acceleration Sensor: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  3. REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  4. REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  8. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY (See  REMOVAL  )
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  10. REMOVE CONSOLE BOX (See  REMOVAL  )
  11. REMOVE NO. 2 REAR AIR DUCT (for Automatic Transmission)
    1. Remove the 2 clips and the No. 2 rear air duct.

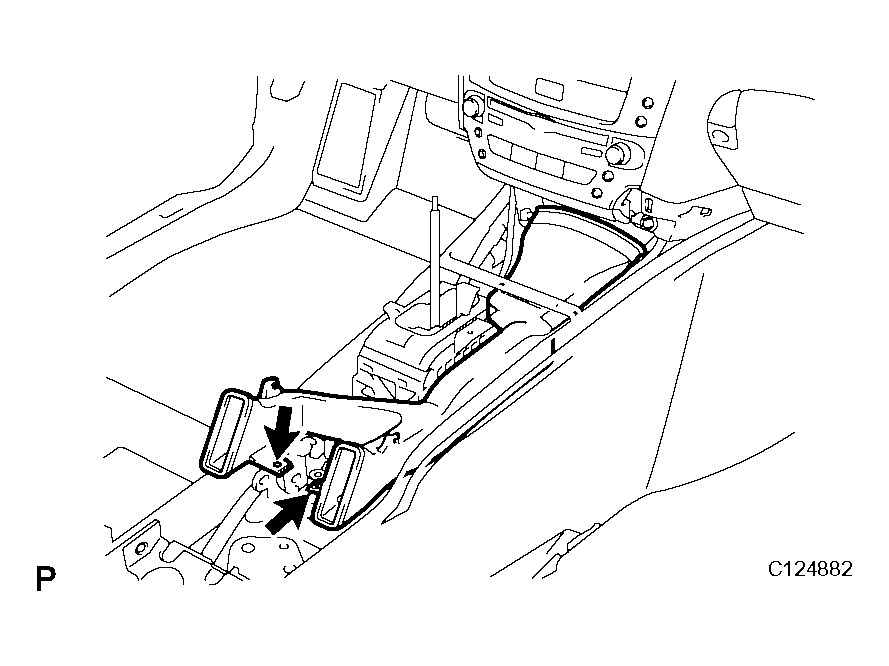

      Fig 1: Identifying 2 Clips And No. 2 Rear Air Duct
      G04052205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 REAR AIR DUCT (for Manual Transmission)
    1. Remove the clip and the No. 2 rear air duct.

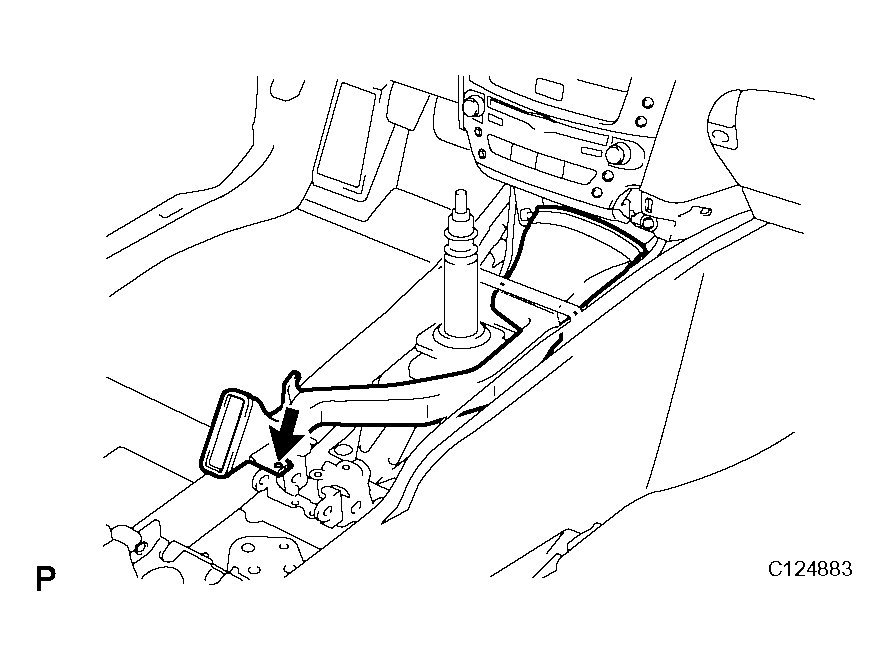

      Fig 2: Identifying Clip And No. 2 Rear Air Duct
      G04052206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE YAW RATE AND ACCELERATION SENSOR
    1. Disconnect the yaw rate and acceleration sensor connector.
    2. Separate the 2 wire harness clamps.
    3. Remove the 2 bolts and yaw and acceleration rate sensor.

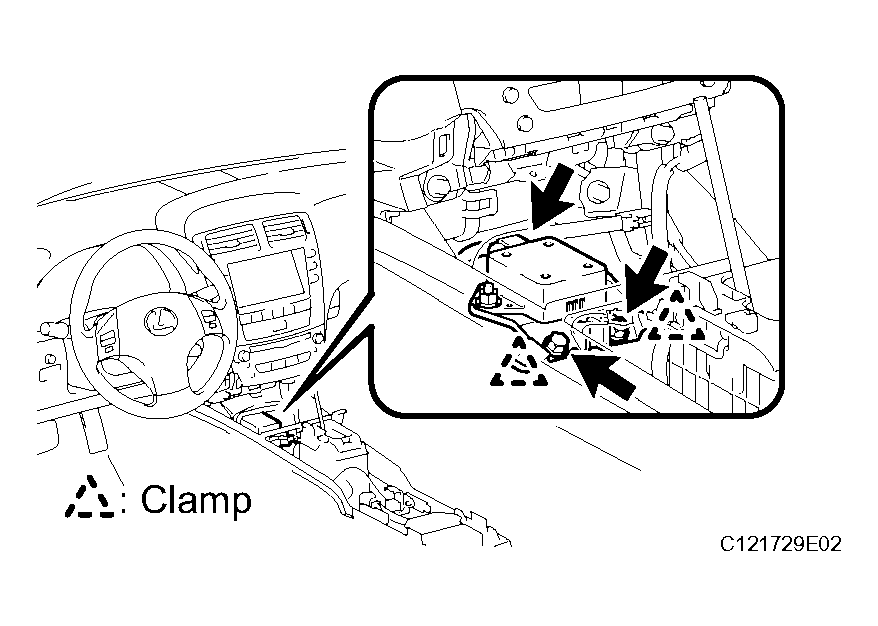

      Fig 3: Identifying 2 Bolts, Yaw And Acceleration Rate Sensor
      G04052207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not remove the sensor from the bracket.
