Multiplex Communication System - BEAN
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Multiplex Communication System - BEAN: Notes

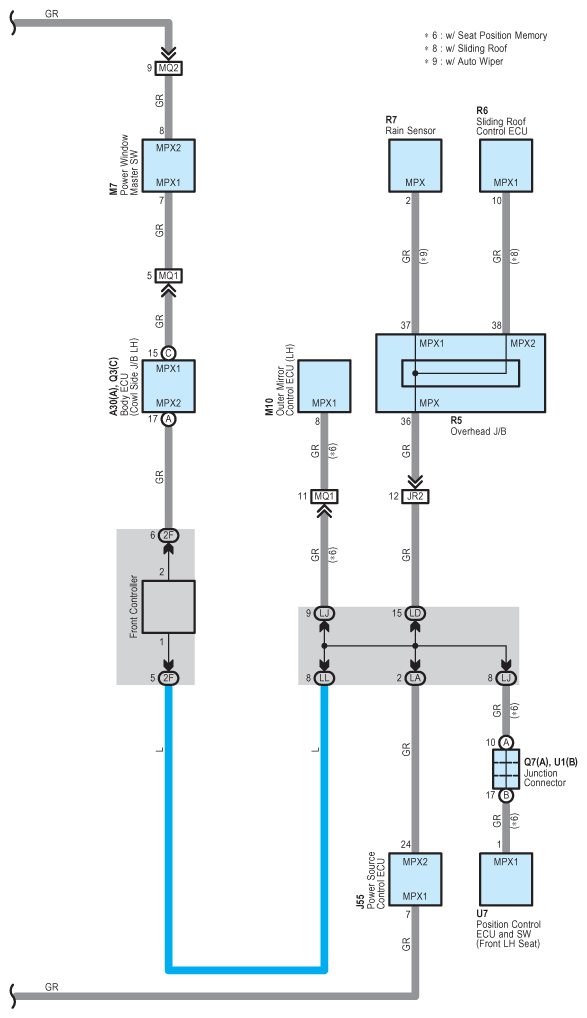

Fig 1: Multiplex Communication System - Bean - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

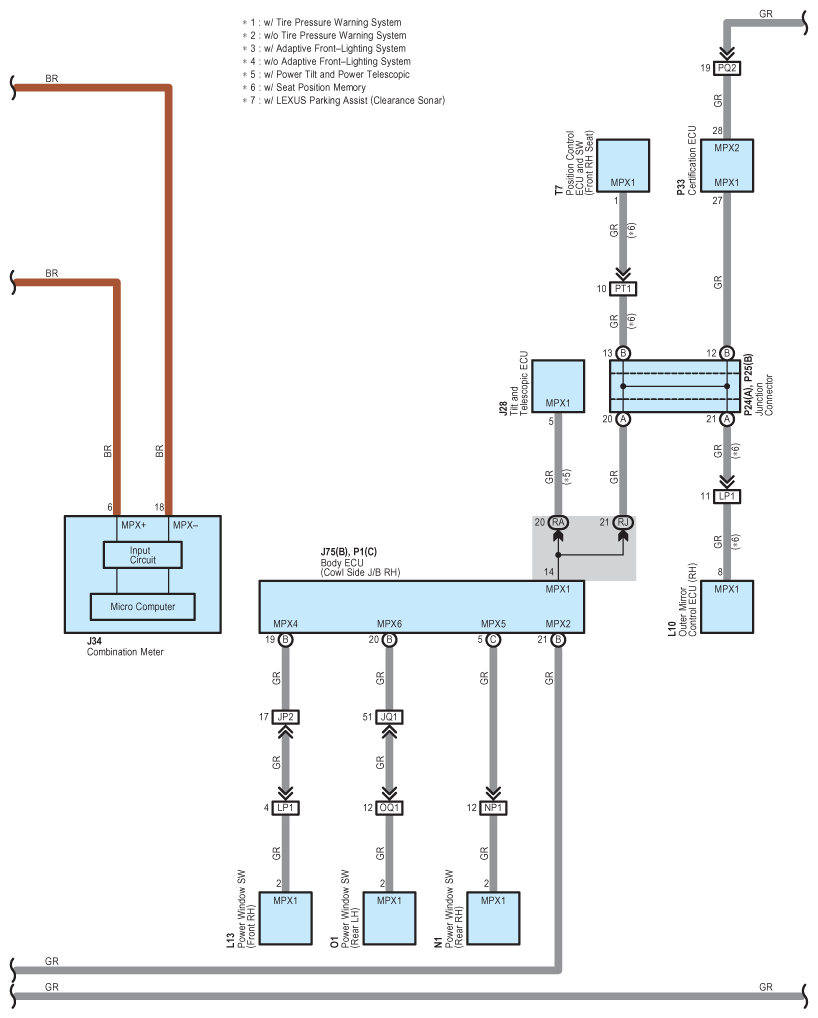

Fig 2: Multiplex Communication System - Bean - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

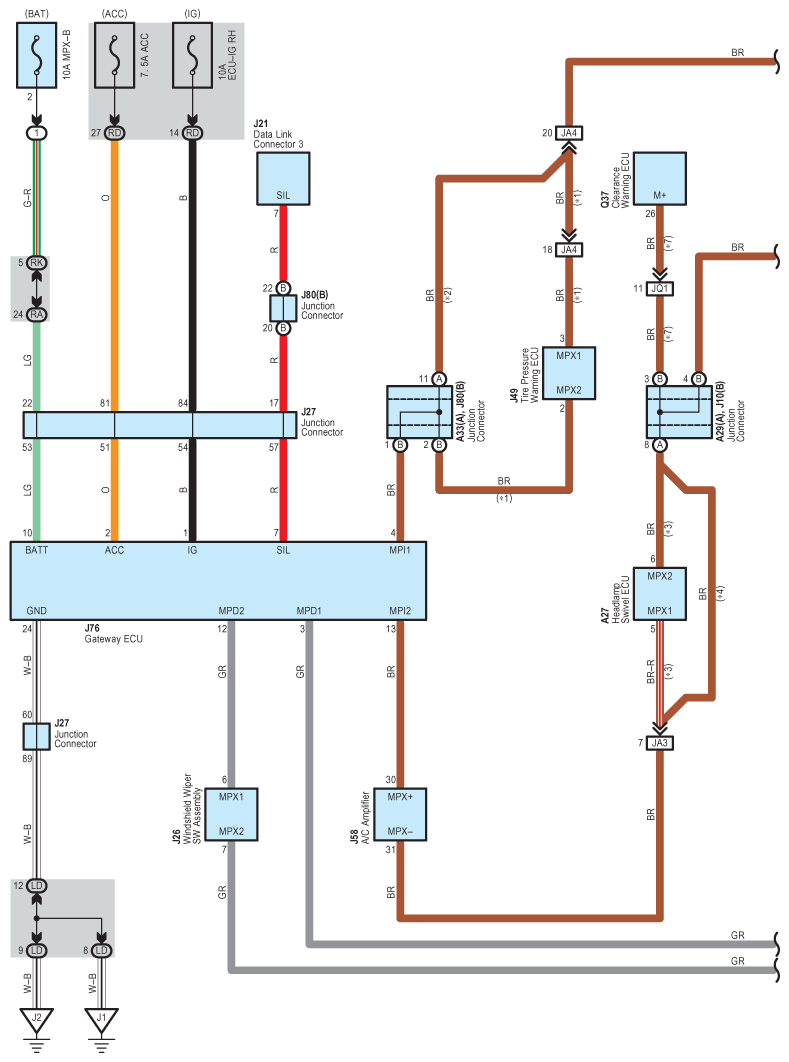

Fig 3: Multiplex Communication System - Bean - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
