On-Vehicle Inspection

  1. INSPECT ENGINE OIL LEVEL SENSOR
    1. Remove the engine oil level sensor.
    2. Measure the resistance according to the value(s) in the table below.

    Standard resistance

    STANDARD RESISTANCE SPECIFICATION

    Tester Connection Condition Specified Condition
    1 - 2 Float position is at the top Below 1 Ω
    1 - 2 Float position is at the bottom 10 kΩ or higher

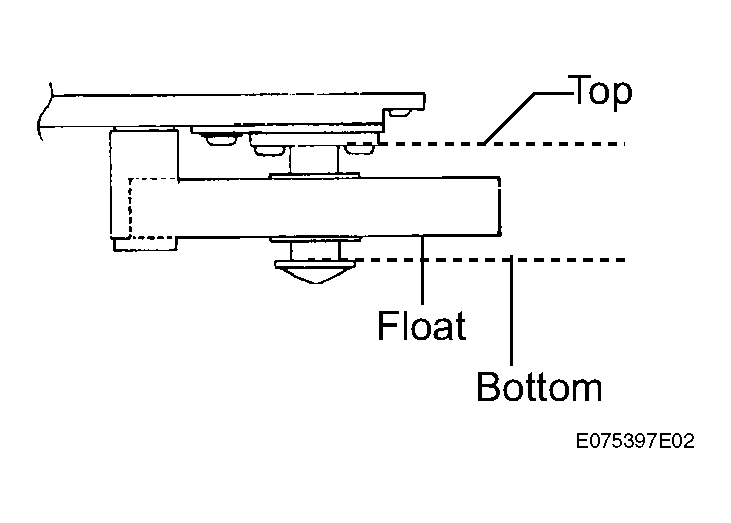

    Fig 1: Identifying Engine Oil Level Sensor
    G04050054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If the value is not as specified, replace the engine oil level sensor.
