System Description

METER GAUGE

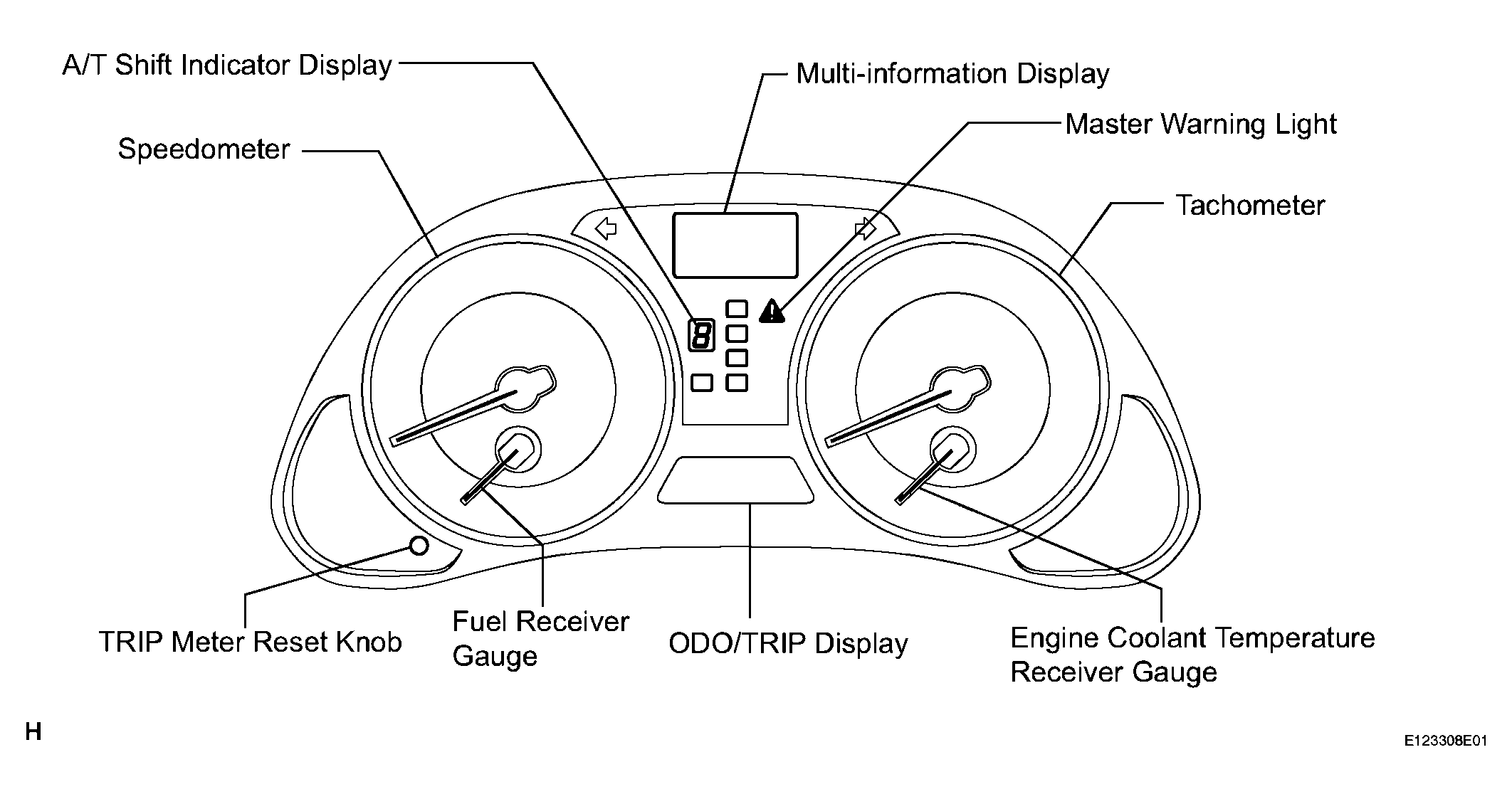

Fig 1: Identifying Meter Gauge System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

METER/GAUGE

METER/GAUGE ITEM DESCRIPTION

Item	Detail
Speedometer	Indicates the vehicle speed based on a signal received from the ABS & traction actuator assembly (1)/Skid Control ECU. (2) (Direct Line)
Tachometer	Indicates the engine speed based on a signal received from the ECM. (Direct Line)
Fuel Gauge	Receives a fuel signal from the two fuel sender gauges (main and sub). (Direct Line)
Engine Coolant Temperature Receiver Gauge	Indicates the engine coolant temperature based on a signal received from the ECM. (CAN-BEAN)

WARNING/INDICATOR

WARNING/INDICATOR DESCRIPTION CHART

Item	Detail
TURN SIGNAL	Receives a turn signal from the turn signal flasher. (Direct Line)
BEAM	Receives a beam signal from the main body ECU RH (Cowl Side J/B RH). (BEAN)
CHECK E/G	Receives a check engine signal from the ECM. (Direct Line)
DOOR	Open door indicator light comes on receiving a door condition signal from the main body ECU RH (Cowl Side J/B RH). (BEAN)
D-BELT	Receives a driver side seat belt signal from the center airbag sensor assembly. (CAN-BEAN)
P-BELT	Receives a front passenger side seat belt signal from the center airbag sensor assembly and transmits a front passenger side seat belt condition signal to the integration control & panel assembly (3)/multi-display (4). (Direct Line)
HEAD (*5)	Receives a taillight signal from the main body ECU RH (Cowl Side J/B RH). (BEAN)
TAIL (*6)	Receives a taillight signal from the main body ECU RH (Cowl Side J/B RH). (BEAN)
A/T SHIFT	Receives an A/T shift condition signal from the park/neutral position switch and the ECM. (CANBEAN)
FUEL	Receives a fuel signal from the fuel sender gauges (main and sub). (Direct Line)
ABS	Receives a ABS signal from the ABS & traction actuator assembly (1)/Skid control ECU (2). (CAN-BEAN)
SLIP	Receives a SLIP signal from the ABS & traction actuator assembly (1)/Skid control ECU (2). (CAN-BEAN)
BRAKE	Receives a BRAKE signal from the ABS & traction actuator assembly (1)/Skid control ECU (2). (CAN-BEAN)
CRUISE	Receives a cruise signal from the ECM. (CAN-BEAN)
AIRBAG	Receives an airbag signal from the center airbag sensor assembly. (CAN-BEAN)
AFS OFF (*7)	Receives an AFS OFF signal from the AFS ECU. (BEAN)
EPS	Receives an EPS signal from the EPS ECU. (CAN-BEAN)
Tire pressure (*8)	Receives a tire pressure signal from the tire pressure warning ECU. (BEAN)
PCS (*9)	Receives a PCS signal from the seat belt control ECU. (CAN-BEAN)
Speed warning	Receive a vehicle speed signal from the ABS & traction actuator assembly (1)/Skid control ECU (2) and displays a speed indicator setting set with the satellite switch. (Direct Line)
Tach warning	Receive a tachometer signal from the ECM and displays a tach indicator setting set with the satellite switch. (Direct Line)

HINT:

The multi-information display is located in the center of the combination meter assembly.
The display shows a message or animation for each of the functions described in the table below.

MULTI-INFORMATION DISPLAY

MULTI-INFORMATION DISPLAY DESCRIPTION CHART

Item	Detail
Door warning	When a door (front passenger, back and hood) of the vehicle is opened or closed, the dot comes on to inform the driver of the condition of the door.
Outside temperature display	Displays an outside temperature in accordance with an ambient temperature signal from the A/C control amplifier.
Instant fuel consumption	Displays the value that has been calculated by the meter CPU, which is based on the driven distance and the fuel consumption volume (fuel injection No. 1 injector), provided that the engine switch on (IG). The display updates every 0.5 seconds.
Average fuel consumption	Displays a value that has been calculated by the meter CPU, which is based on the driven distance and the fuel consumption volume after the meter CPU detects a refueling. Updated every 10 seconds.
Dynamic radar cruise control system display (*10)	Displays a description of the operation while the dynamic radar cruise control systems operating.
A/T gear position signal	Displays the A/T gear position and A/T range receiving a signal from the ECM.
Warning message	Illuminates or blinks the master warning light and displays a warning message for each type of system failure.
DTC (Diagnostic Trouble Code) display	Displays the 2 digit DTCs pertaining to the VSC function.

ODO/TRIP Display

ODO/TRIP DISPLAY REFERENCE

Item

Display

Maintenance required

An oil maintenance required indication will display to remind the driver to change the engine oil depending on the vehicle driving distance. (⁽¹⁾)
Displays the mode while in the maintenance request reset mode.

ODO/TRIP display

This display switches between odometer, trip meter A, and trip meter B in accordance with the operation of the ODO/TRIP switch.

*1: without VDIM

*2: with VDIM

*3: without Navigation System

*4: with Navigation System

⁽¹⁾	for U.S.A.

*6: for Canada

*7: with Intelligent AFS

*8: with Tire Pressure Warning System

*9: with Pre-collision System

*10: with Dynamic Radar Cruise Control System

ILLUMINATION CONTROL
HINT:

If the engine switch on (IG), the illumination control operates as follows. However, all illuminations other than the tachometer needle turn off while cranking the engine.
1. The speedometer and tachometer needles illuminate starting from the base of the needles and moving to their tips.

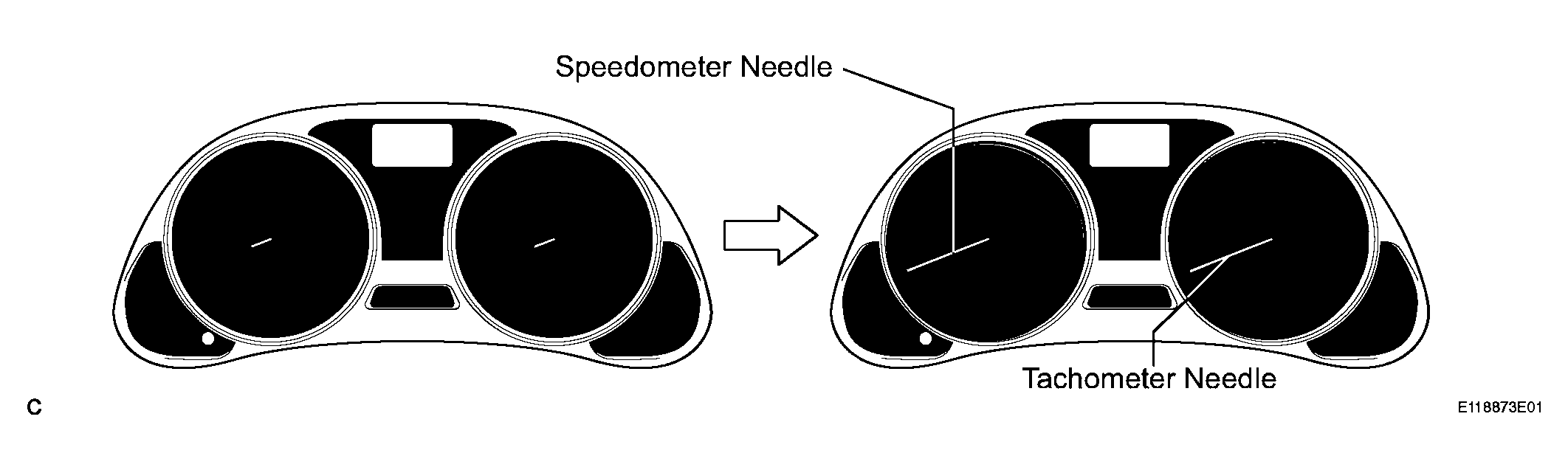

  Fig 2: Moving Speedometer And Tachometer Needles From Base Of Needles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. These needles move to their maximum position and return to zero.

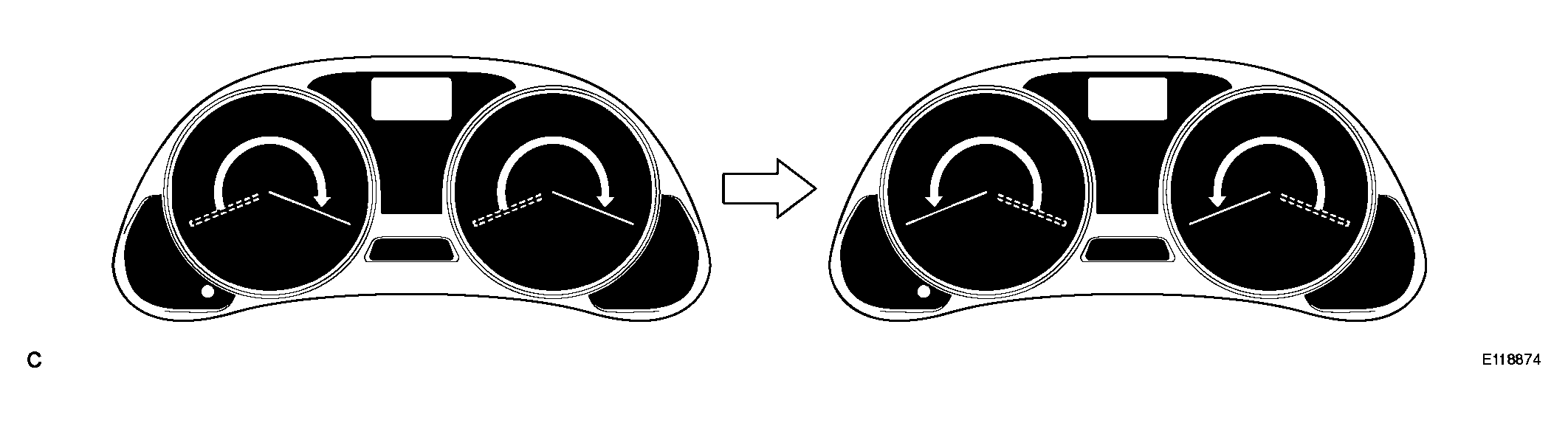

  Fig 3: Moving Needles To Maximum Position And Return To Zero
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. The fuel gauge and water temperature gauge light up, then the warning lights, indicator lights, multi-information display, and meter panel illumination come on.

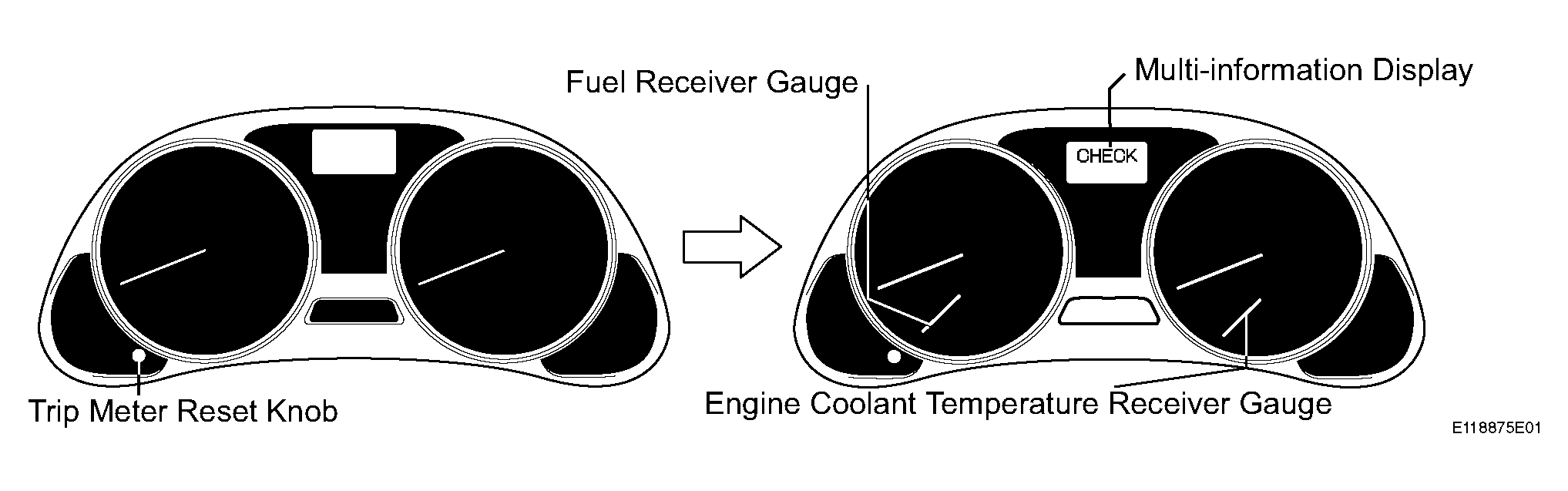

Fig 4: Display - Fuel Receiver Gauge And Multi-information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

MULTI-INFORMATION DISPLAY

MULTI-INFORMATION DISPLAY DESCRIPTION CHART

Mode

Outline

Cruise Information

In the cruise information mode, seven types of information (Outside Temperature, Driving Range, Average Fuel Consumption, Average Fuel Consumption After Refueling, Current Fuel Consumption, Average Speed, and Sequential Gear Position (⁽¹⁾) can be displayed.
The display can be switched by using the DISP switch.

Warning

The warning mode display will interrupt the multi-information display immediately when a warning occurs.

Multi-switch

In the multi-switch mode, 5 switches (Sonar ON/OFF (⁽²⁾), Tire pressure Initial/Tire select Main/2nd (⁽³⁾), AFS ON/OFF (⁽⁴⁾), SPEED indicator ON/OFF, TACH indicator ON/OFF) can be displayed.
The switches can be changed using the satellite switch (RH switch, ON/OFF switch, LH switch).

Dynamic Radar Cruise Display (⁽⁵⁾)

Displays the operating condition of the dynamic radar cruise control.

Parking Assist-sensor Display

Displays the location of an obstacle and the approximate distance between the vehicle and the obstacle and displays malfunction warning messages about sensor freezing or presence of dirt on the sensors.

Diagnosis

DTCs (Diagnostic Trouble Codes) for the following three systems can be displayed.

Brake Control System
Tire Pressure Warning System (⁽³⁾)
4WD Control System(⁽⁶⁾)

⁽¹⁾	for Automatic Transmission

⁽²⁾	with Clearance Sonar System

⁽³⁾	with Tire Pressure Warning System

⁽⁴⁾	with Intelligent AFS

⁽⁵⁾	with Dynamic Radar Cruise Control System

⁽⁶⁾

for 4WD

INTEGRATION CONTROL & PANEL ASSEMBLY (without NAVIGATION SYSTEM)/MULTI-DISPLAY (with NAVIGATION SYSTEM)

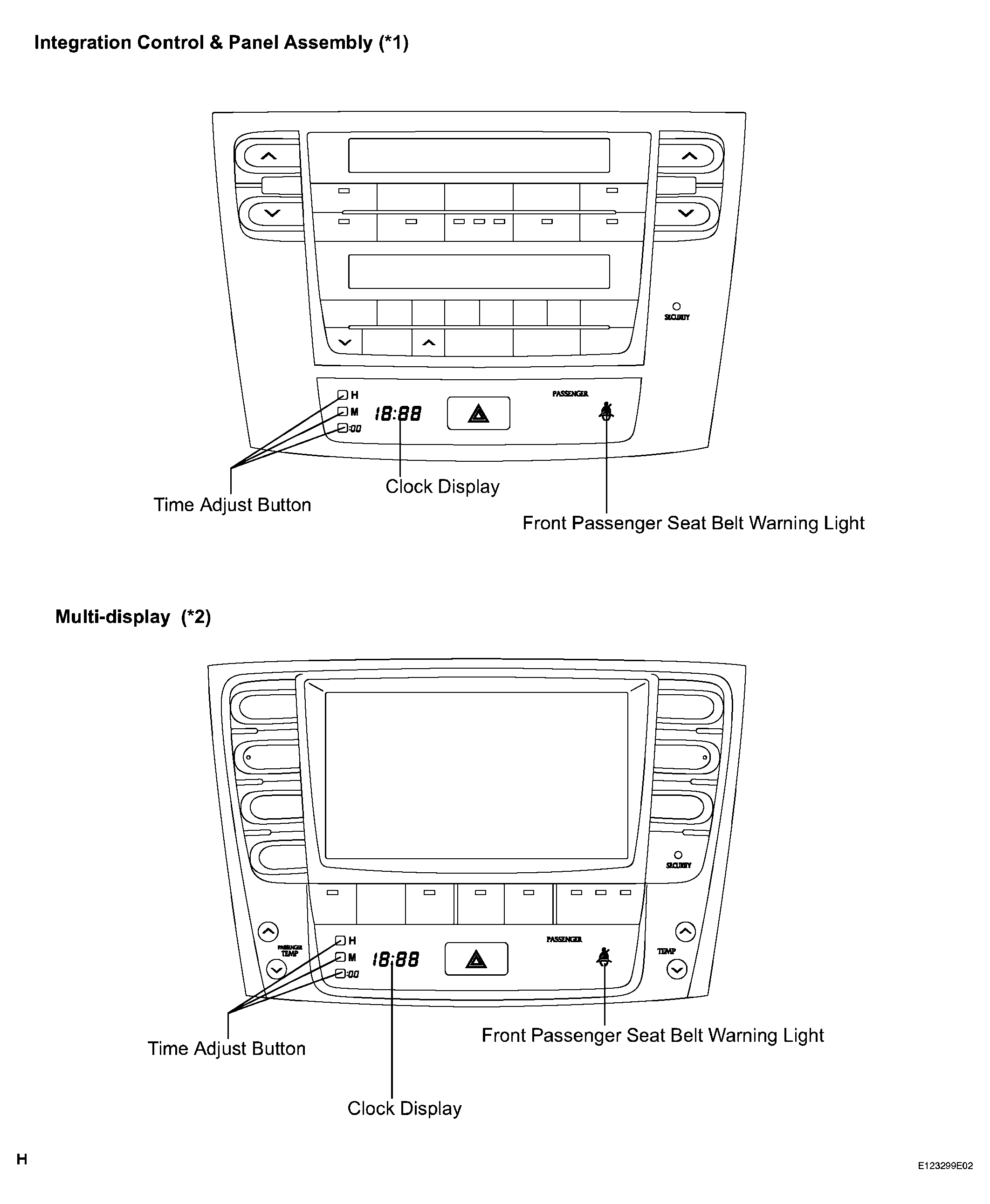

Fig 5: Display - Integration Control And Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Integration control & panel assembly (*1) consists of two parts (passenger information display and heater control panel). These areas display the contents given in the table below.
Multi-display (*2) consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below.

ITEM DESCRIPTION

Item

Detail

Passenger information display

Displays the condition of the front passenger seat belt ON/OFF.

Heater control panel

Displays the condition of the heater control panel.

Clock display (in the clock assembly)

Displays the time.

Navigation display (⁽¹⁾)

Displays the navigation data.

*1: without Navigation System

⁽¹⁾	with Navigation System

MULTI-INFORMATION DISPLAY FLOW-CHART

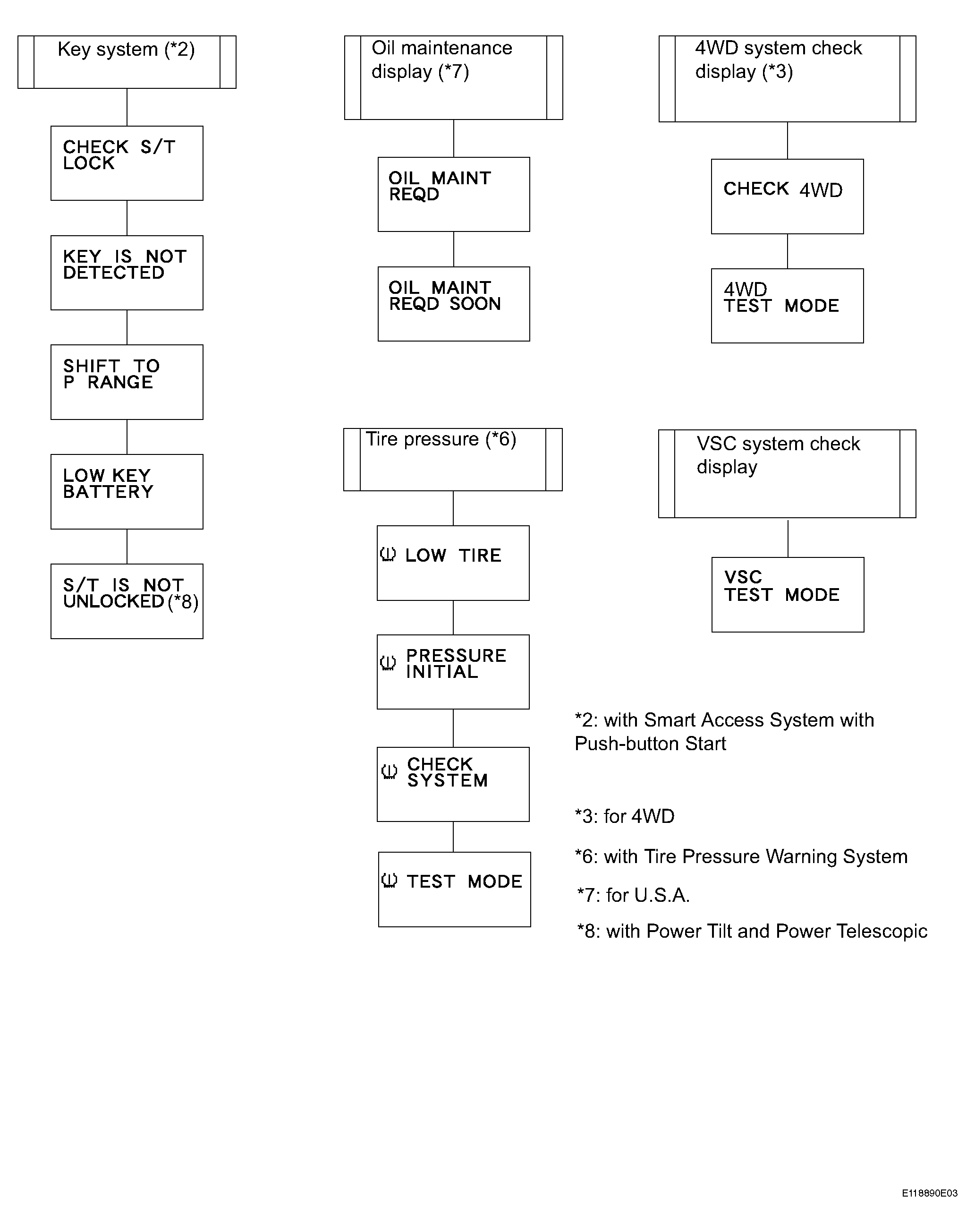

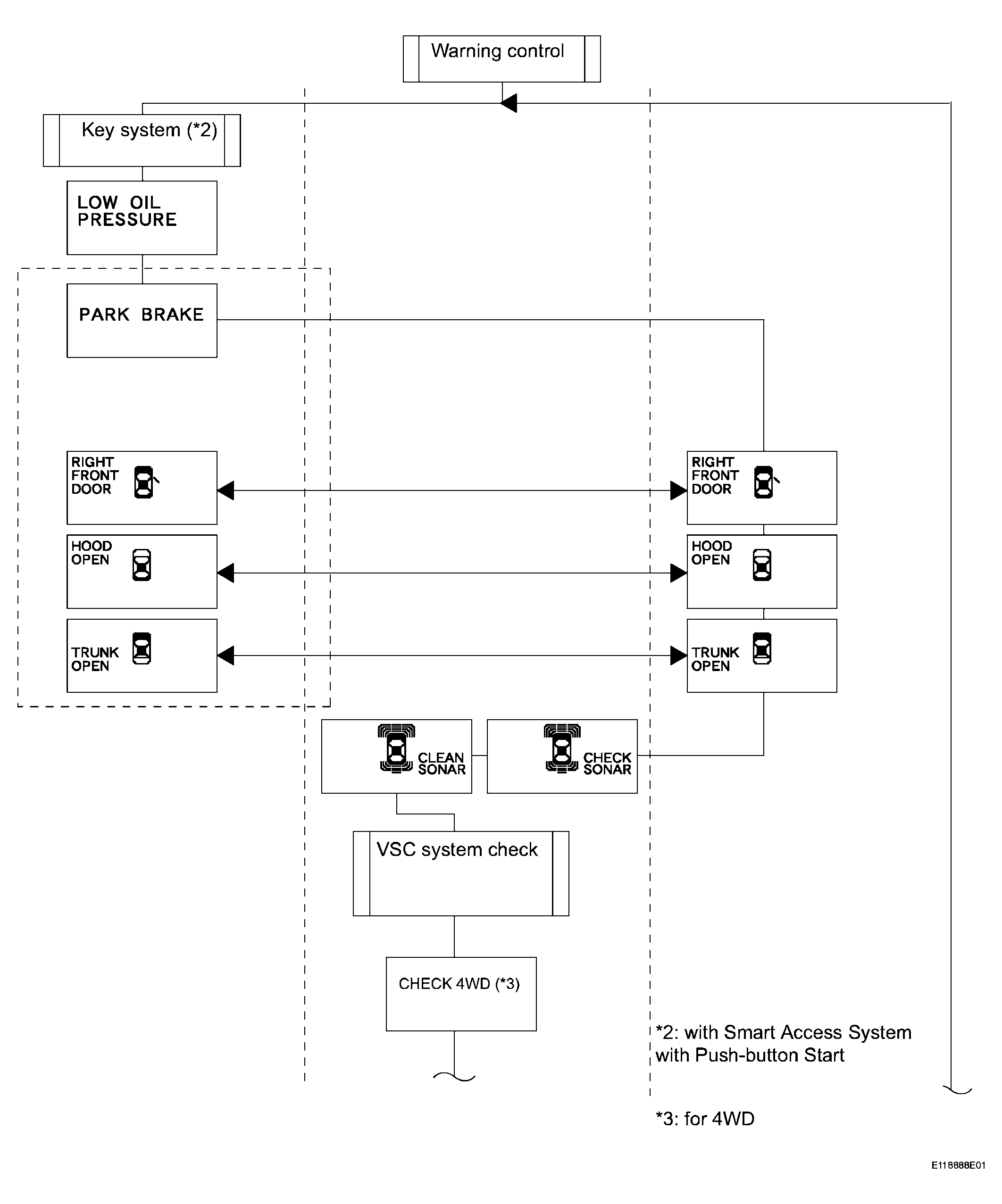

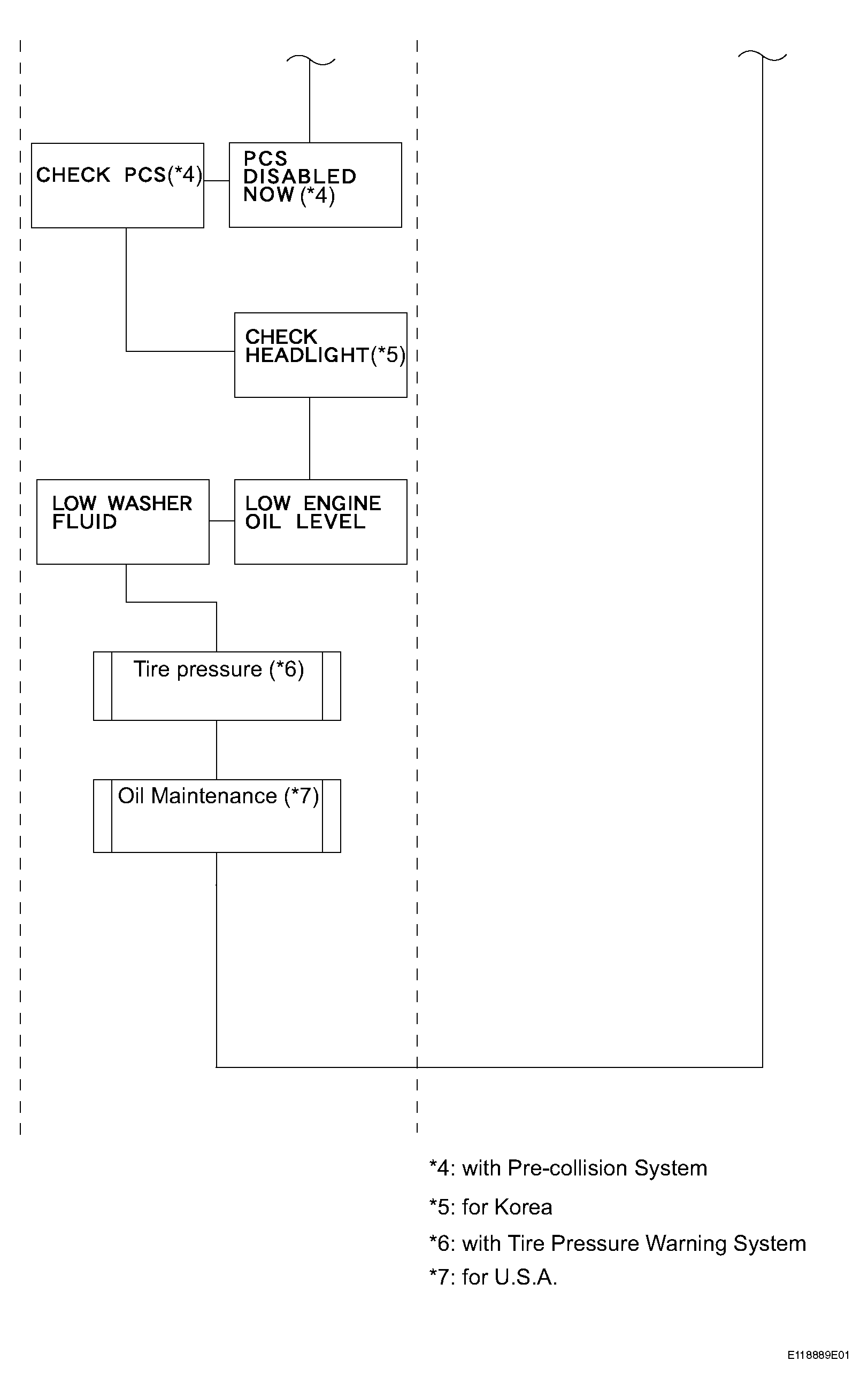

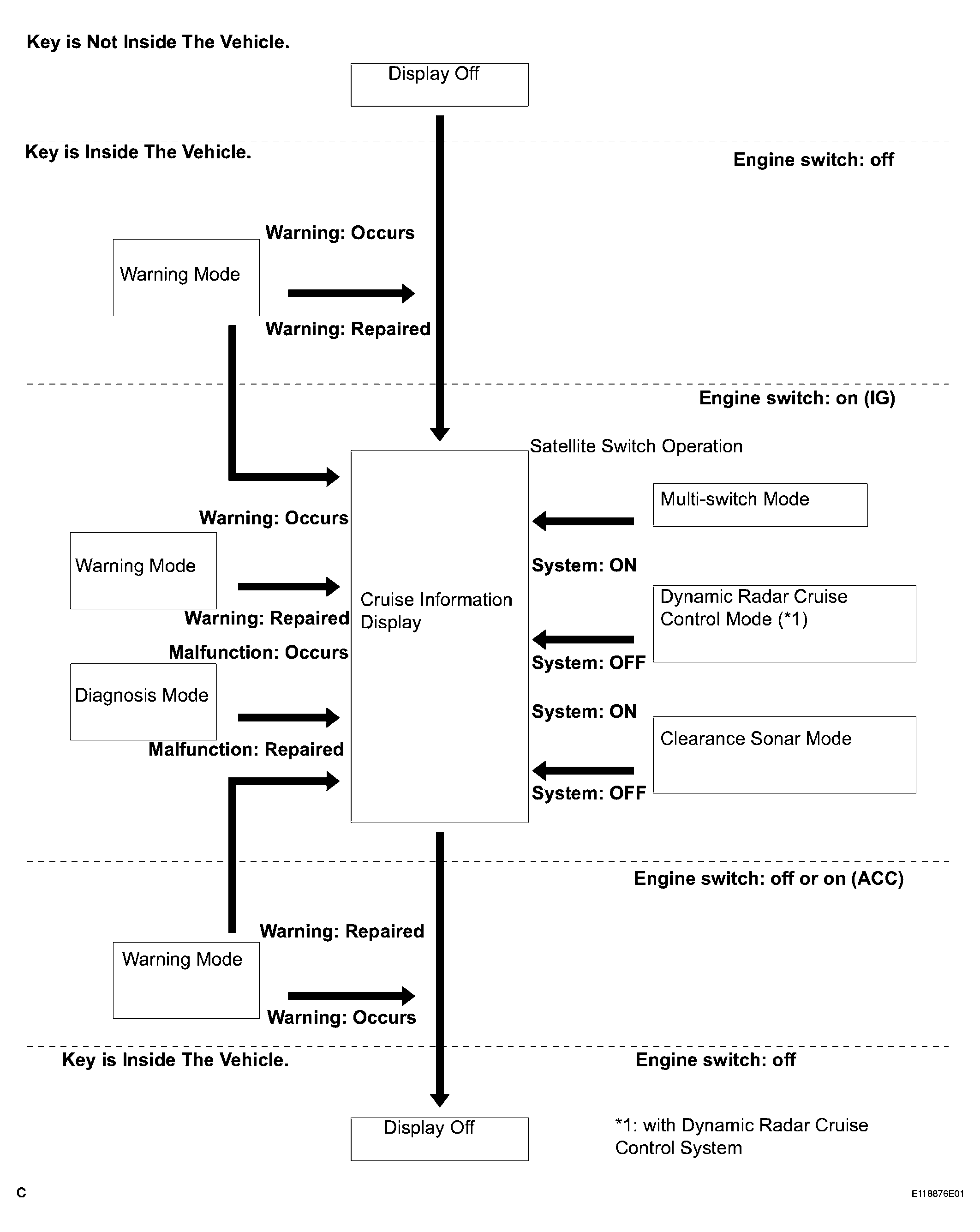

Fig 6: Multi-Information Display Flow-Chart (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Multi-Information Display Flow-Chart (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Multi-Information Display Flow-Chart (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Multi-Information Display Flow-Chart (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DIAGNOSIS SYSTEM

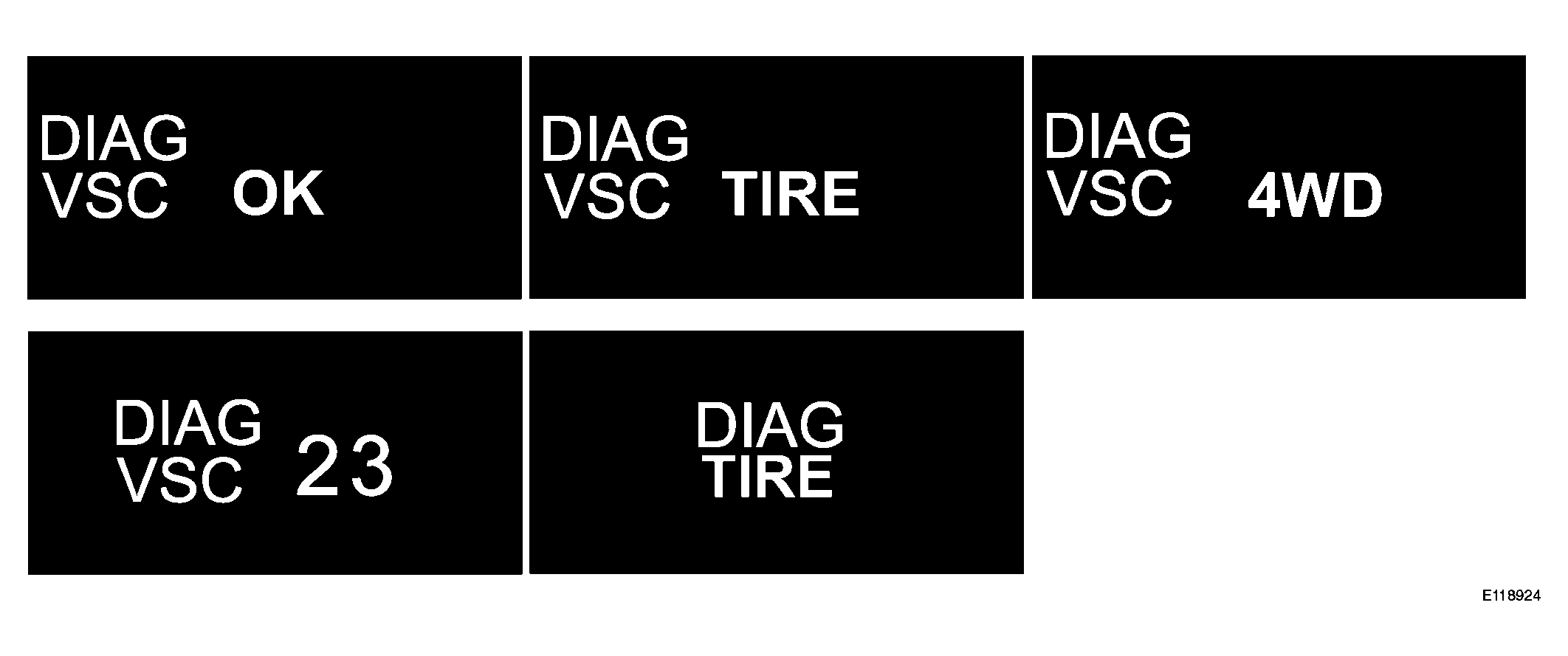

Fig 10: Display - Diagnosis System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The combination meter assembly indicates the diagnosis mode by blinking the warning light or by blinking the warning message in the multi-information display.
HINT:
- The multi-information display shows "DIAG" when the engine switch is on (IG) (See DIAGNOSIS SYSTEM ).
- Diagnosis information can be displayed on the multi-information display after connecting a jumper wire between TC (J21-13) and CG (J21-4) of the DLC3 connector.

SATELLITE SWITCH

By using satellite switch (RH switch, ON/OFF switch, LH switch), 5 different switch functions can be displayed and changed (SPEED indicator, TACH indicator, Tire pressure (*1), Sonar (*2), AFS (*3)).

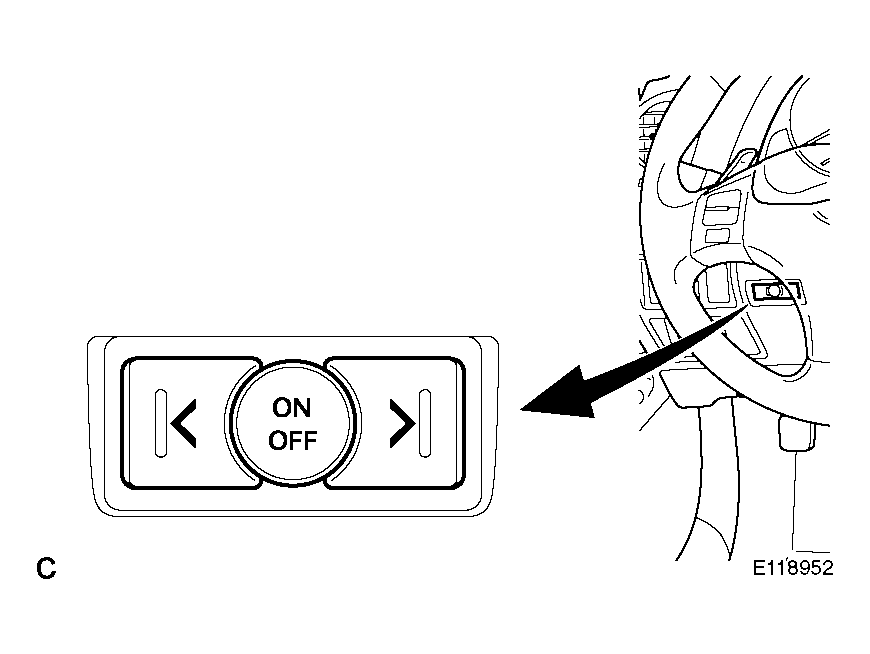

Fig 11: Identifying Satellite Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- *1: with Tire Pressure Warning System
- *2: with Clearance Sonar System
- *3: with Intelligent AFS
- When the engine switch on (IG) while driving at 3 mph (5 km/h) or less, the switch except for SONAR can be displayed.
- The switch functions displayed are changed in the order shown in the illustration using the satellite switch (RH switch, LH switch). The function can be set using the ON/OFF switch.
- The display automatically returns to the previous display 6 seconds after the satellite switch is operated. It will return to the previous display immediately if the DISP switch is operated.

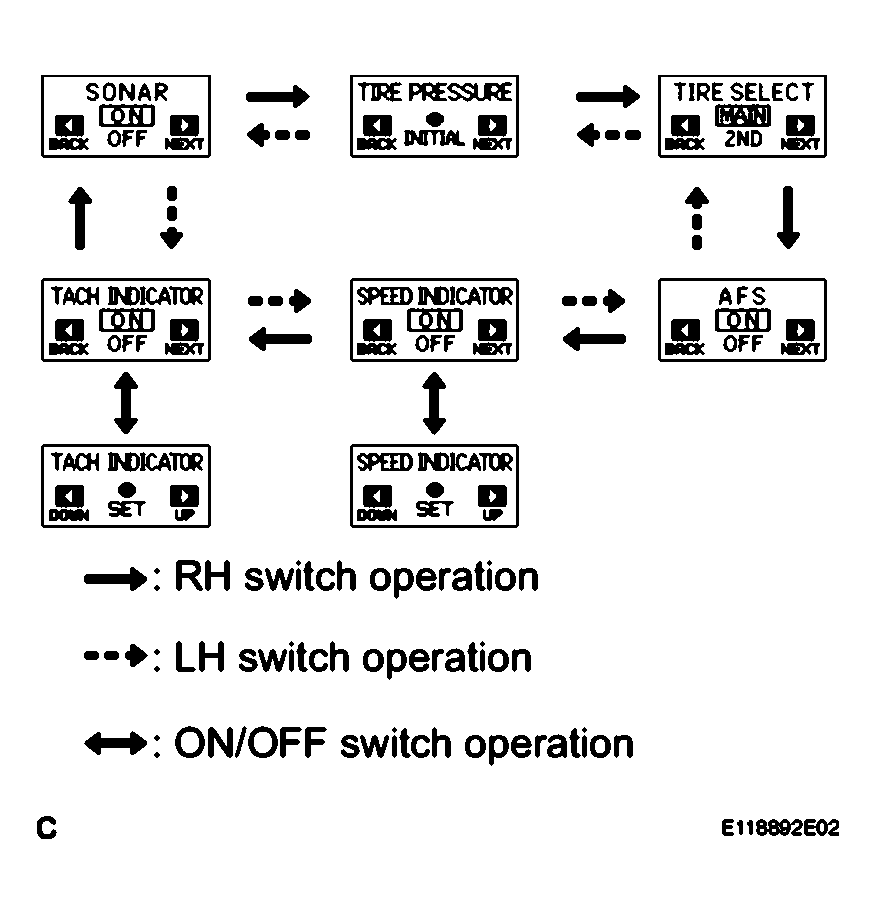

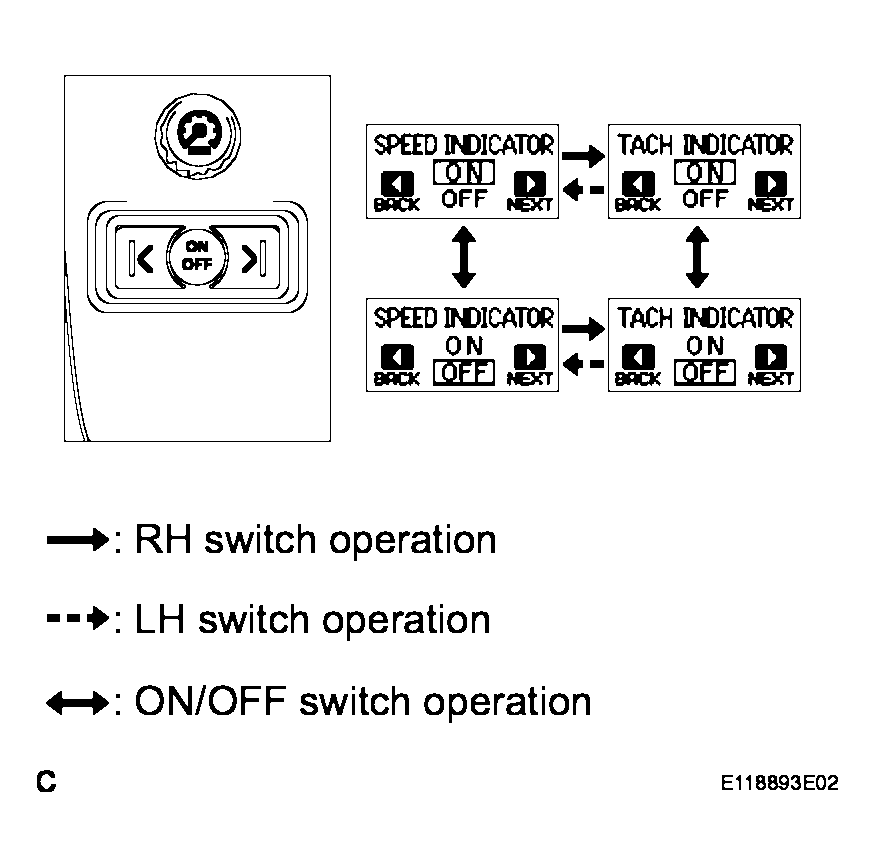

Fig 12: Display - RH, LH And ON/OFF Switch Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SPEED and TACH indicator

The SPEED indicator and TACH indicator come on when the vehicle speed or engine speed reaches the speed set using the satellite switch. The setting ranges of these indicators are shown in the table that follows.
Vehicle speed or engine speed can be set using the satellite switch.
These indicators consist of yellow and red dots that are arranged to form indicator rings.
When the set vehicle speed or engine speed is reached while driving, the red and yellow dots will turn on at the same time to cause amber light to illuminate the indicator ring.
However, if the vehicle or engine speed is set to the maximum speed of the indicator setting range, and the speed reaches this set speed, only red light will illuminate the indicator ring.

Fig 13: Display - Satellite Switch And Operation

HINT:

(See HOW TO PROCEED WITH TROUBLESHOOTING )

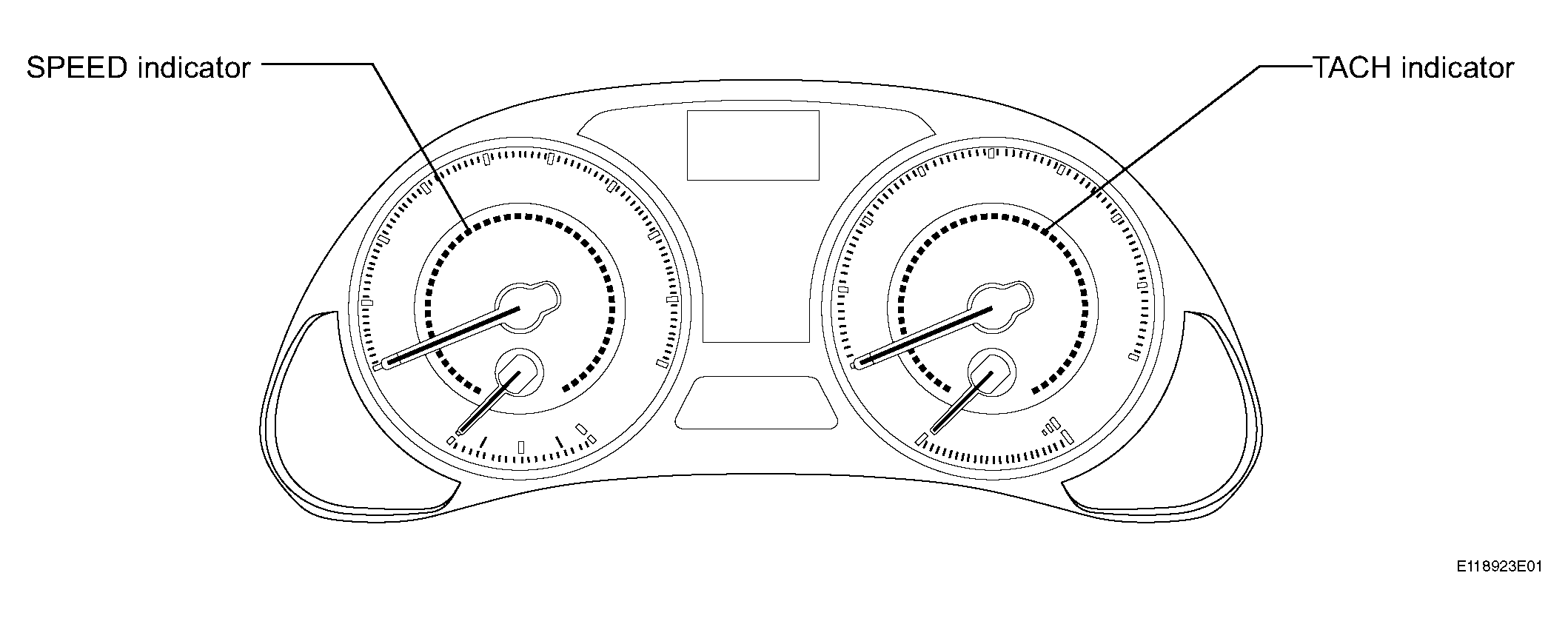

Fig 14: Identifying Speed Indicator And Tach Indicator

Speed Indicator:

SPEED INDICATOR SETTING RANGE REFERENCE

Destination	Setting Range	Initial Setting
U.S.A.	30 to 100 (mph)	75 (mph)
Canada	50 to 160 (km/h)	120 (km/h)

Tach Indicator:

TACH INDICATOR SETTING RANGE REFERENCE

Destination	Setting Range	Initial Setting
U.S.A.	2,000 to 6,500 (rpm)	5,000 (rpm)
Canada	2,000 to 6,500 (rpm)	5,000 (rpm)

HINT:

(See HOW TO PROCEED WITH TROUBLESHOOTING )
