Satellite Switch: Inspection

  1. INSPECT SATELLITE SWITCH
    1. Disconnect the connector from the satellite switch.
    2. Measure the resistance between the terminals according to the value(s) in the table below.

    Standard resistance

    STANDARD RESISTANCE SPECIFICATION

    Tester Connection Condition Specified Condition
    J16-2 (LSET) - J16-5 (E) Satellite switch LH is pressed Below 1 Ω
    J16-2 (LSET) - J16-5 (E) Satellite switch LH is not pressed 10 kΩ or higher
    J16-3 (SET) - J16-5 (E) Satellite switch ON/ OFF is pressed Below 1 Ω
    J16-3 (SET) - J16-5 (E) Satellite switch ON/OFF is not pressed 10 kΩ or higher
    J16-4 (RSEL) - J16-5 (E) Satellite switch RH is pressed Below 1 Ω
    J16-4 (RSEL) - J16-5 (E) Satellite switch RH is not pressed 10 kΩ or higher

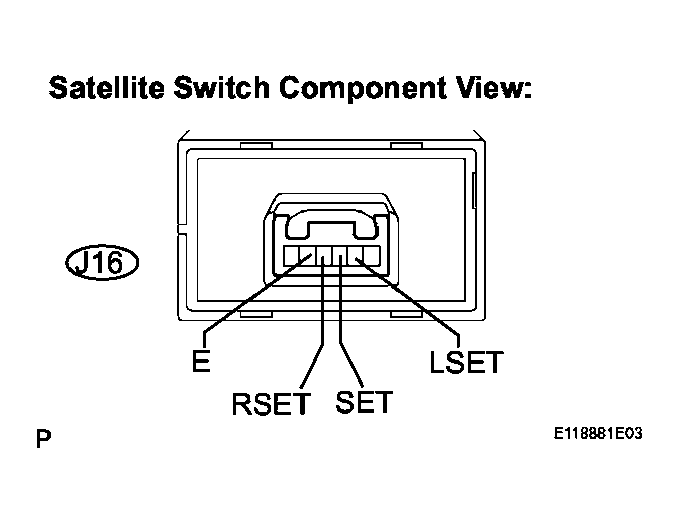

    Fig 1: Identifying Connector From Satellite Switch
    G04050070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If the value is not as specified, replace the satellite switch.
