Satellite Switch: Installation

INSTALL SATELLITE SWITCH SET
1. Engage the 2 claws and install the satellite switch set.

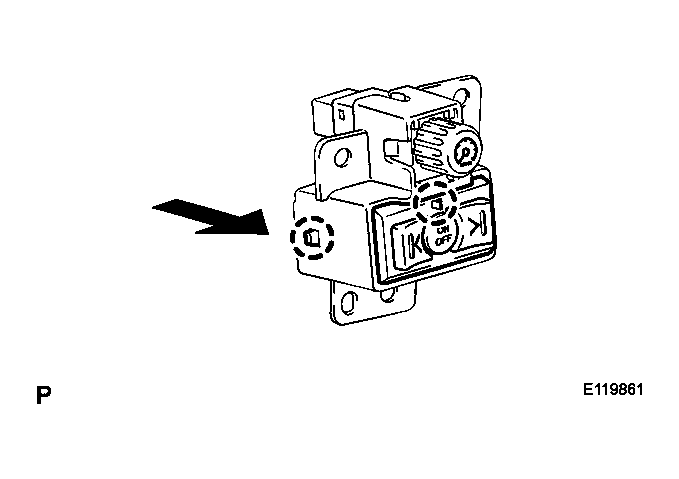

  Fig 1: Identifying Satellite Switch Set
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the finish panel No. 2 retainer with switch with the 3 screws.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL SIDE INSTRUMENT PANEL LH (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See INSTALLATION )

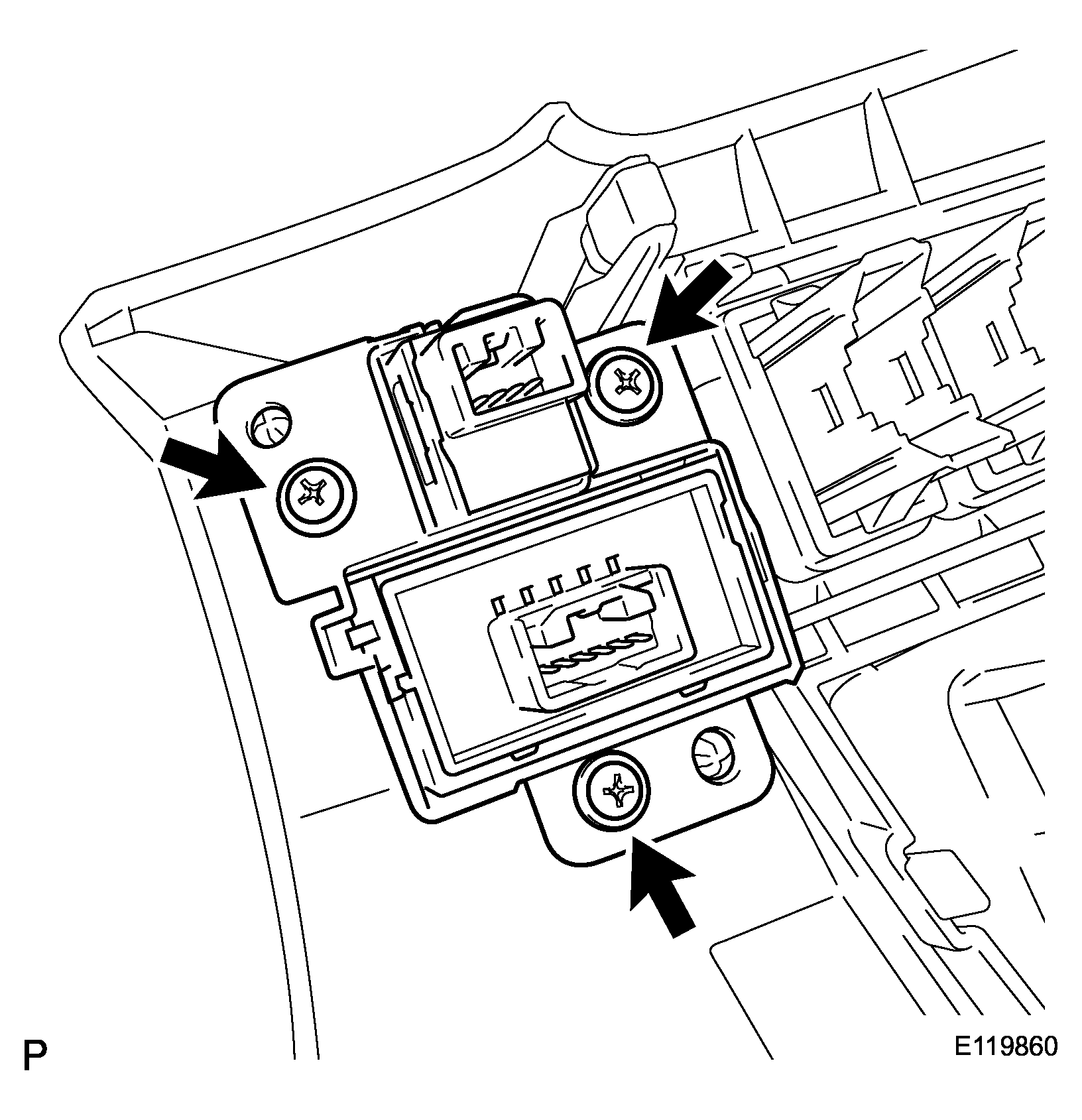

Fig 2: Identifying Finish Panel Retainer With Switch And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
