Steering Pad Switch: Inspection

INSPECT STEERING PAD SWITCH

Remove the steering pad switch connector with the steering pad switch and spiral cable still connected.

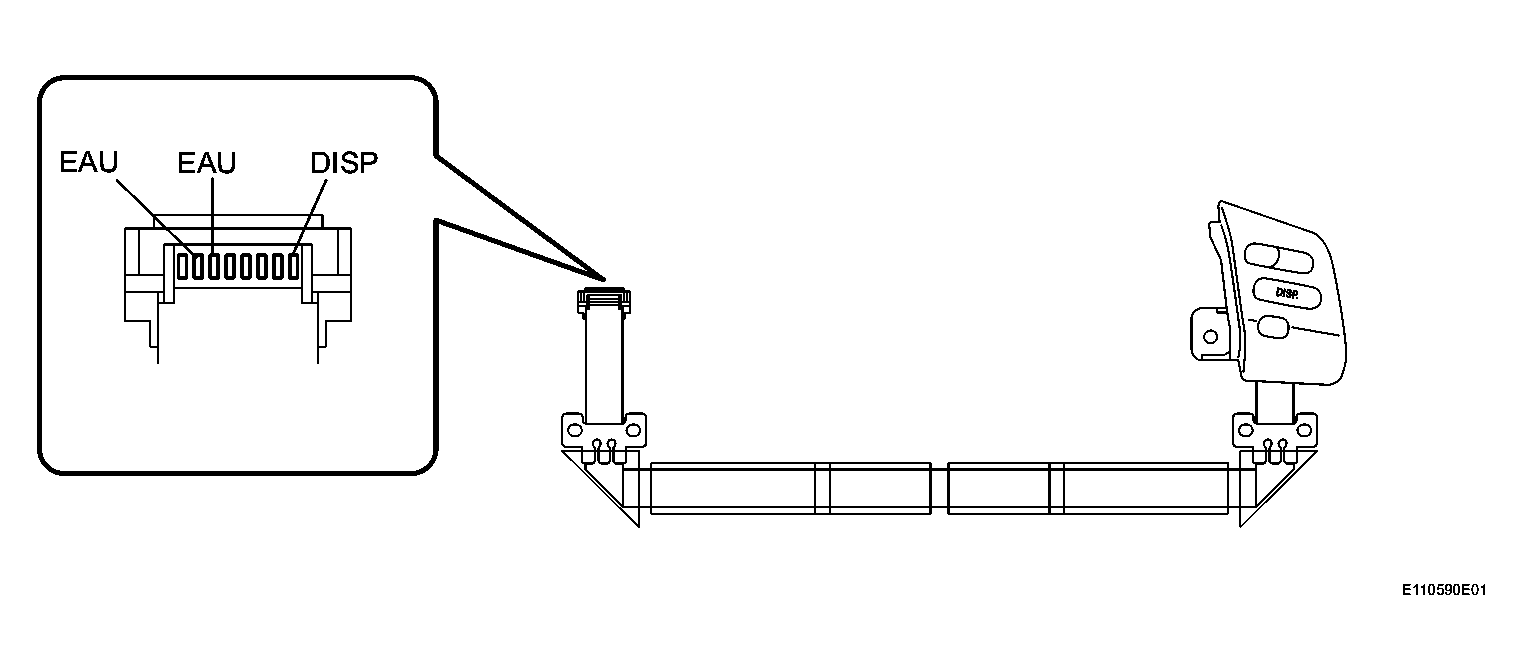

Fig 1: Identifying Steering Pad Switch Connector With Steering Pad Switch And Spiral Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
DISP - EAU	DISP switch is not pushed in.	10 kΩ or higher
DISP - EAU	DISP switch is pushed in.	Below 1Ω

HINT:

If the value is not as specified, replace the steering pad switch.
