Accelerator Pedal: Removal

  1. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and accelerator pedal.
      NOTE:
      • Avoid physical shock to the accelerator pedal.
      • Do not disassemble the accelerator pedal assembly.

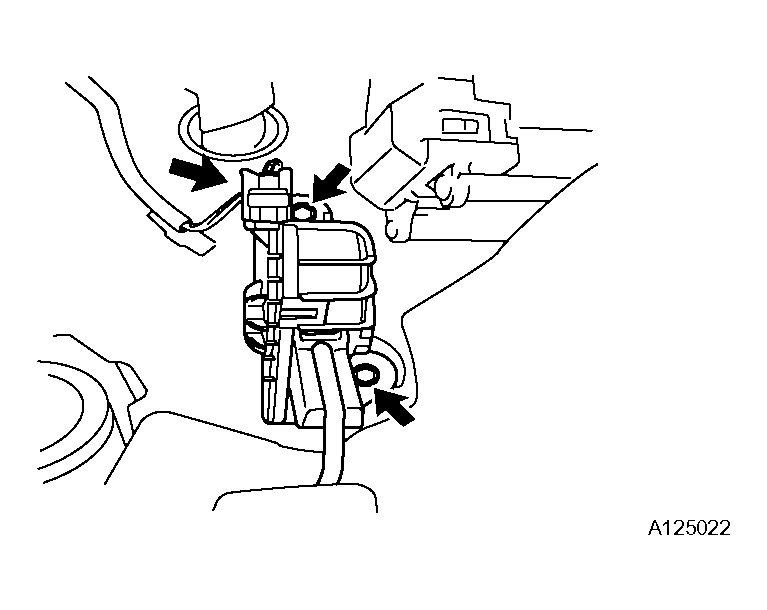

        Fig 1: Identifying Accelerator Pedal
        G04054996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
