Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

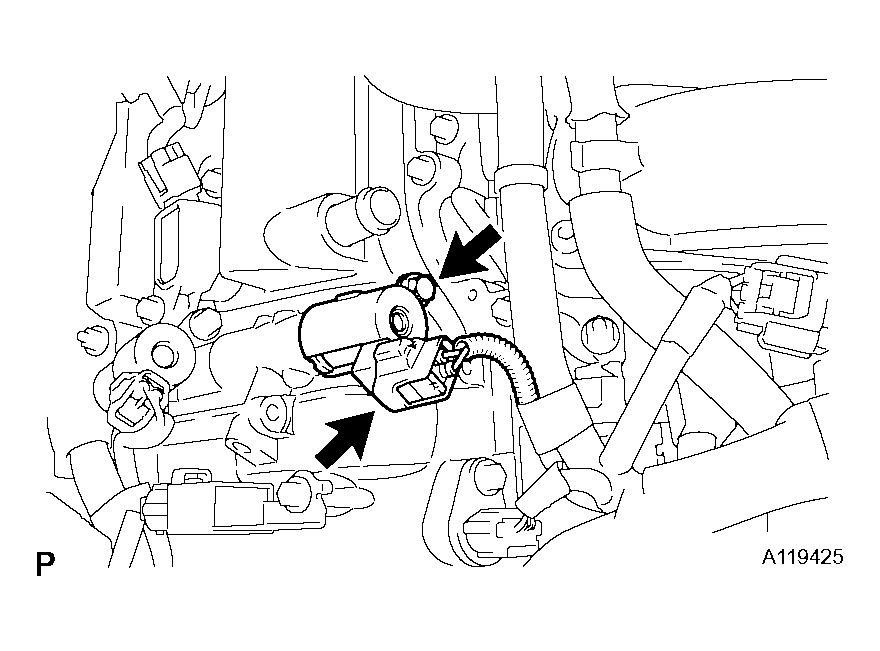

  Fig 1: Identifying Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.

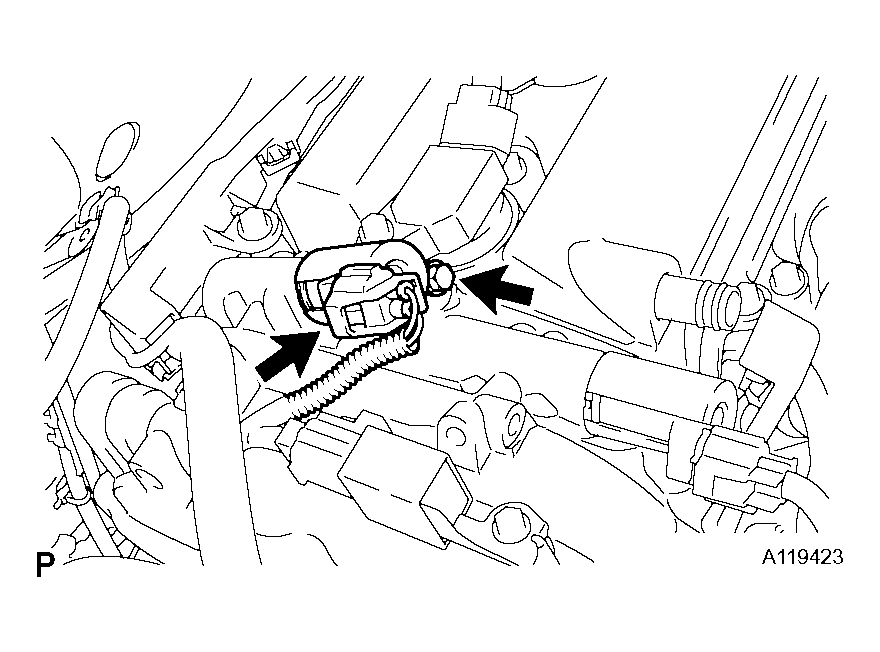

  Fig 2: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Intake Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE: Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
4. Install the bracket with the bolt.
  Torque: 10 N*m (104 kgf*cm, 7 ft.*lbf)
5. Connect the wiring harness at the bracket.

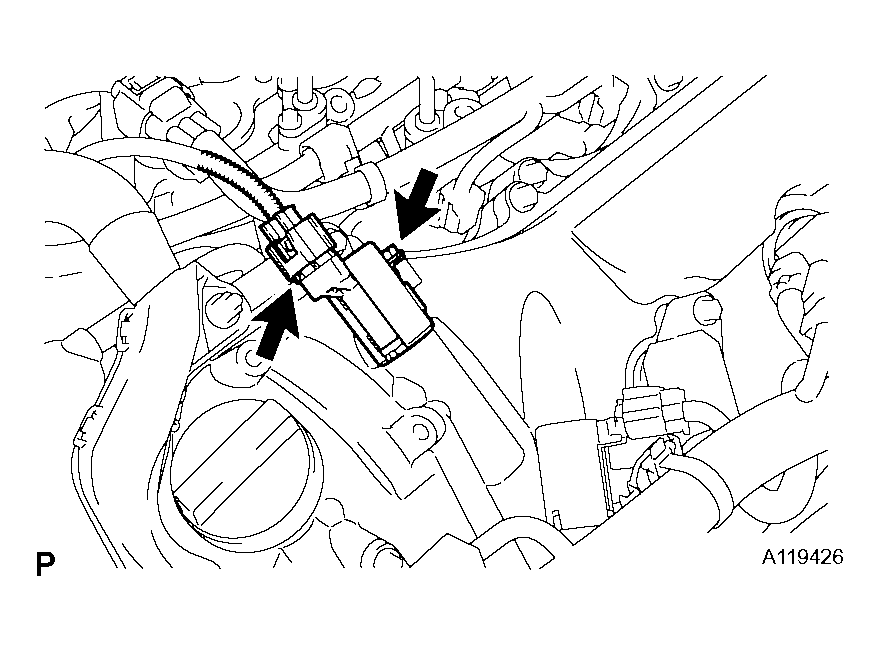

  Fig 3: Identifying Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

  Fig 4: Installing O-Ring To Oil Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE: Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.

  Fig 5: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Exhaust Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

  Fig 6: Identifying Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 7: Identifying Camshaft Timing Oil Control Valve (For Bank 1 Intake Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
4. Install the V-bank cover bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

  Fig 8: Identifying Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE: Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.

  Fig 9: Identifying Camshaft Timing Oil Control Valve (For Bank 1 Exhaust Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
