Crankshaft Position Sensor: Inspection

  1. INSPECT CRANKSHAFT POSITION SENSOR
    1. Measure the resistance between the terminals.

      Standard resistance

      RESISTANCE SPECIFICATION

      Temperature Specified Condition
      Cold 1,630 to 2,740 Ω
      Hot 2,065 to 3,225 Ω

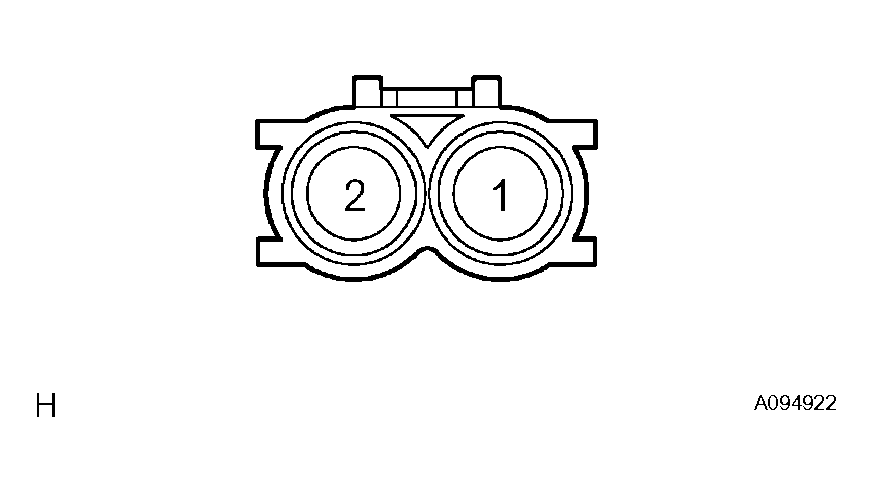

      Fig 1: Identifying Crankshaft Position Sensor Connectors
      G04054944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: In the table above, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

      If the resistance is not as specified, replace the sensor.
