Mass Air Flow Meter: Removal

REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL )
REMOVE MASS AIR FLOW METER
1. Disconnect the MAF meter connector.

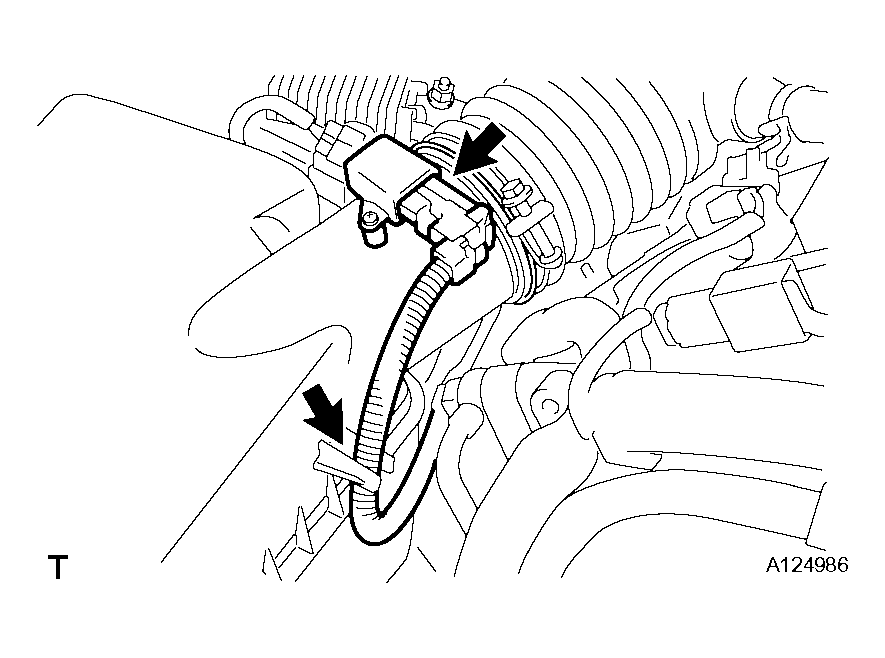

  Fig 1: Identifying MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and MAF meter.
3. Remove the O-ring from the MAF meter.

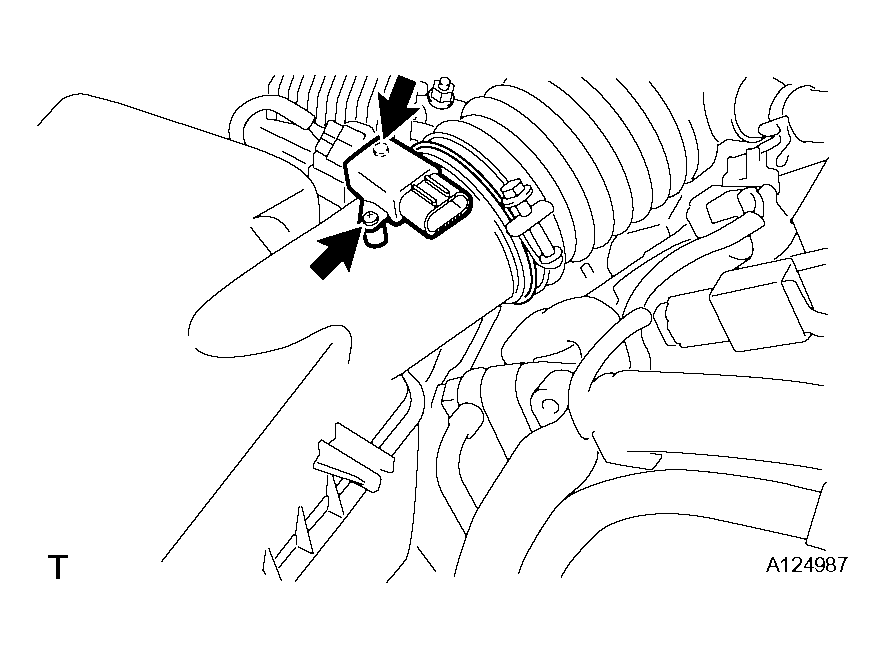

  Fig 2: Identifying Mass Air Flow Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
