Cranking Holding Function Circuit: Wiring Diagram

Refer to DTC P0617  .

  1. CHECK OPERATION OF CRANKING
    1. When starting the engine, check whether the starter motor starts.

    OK : CHECK FOR INTERMITTENT PROBLEMS

    NG : GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER (STA SIGNAL)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG) and turn the tester on.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / STARTER SIG.
    4. Check the result when the engine switch is turned on (IG) and the engine is started.

      Standard

      STARTER SIG AND ENGINE SWITCH POSITION REFERENCE

      STARTER SIG Engine Switch Position
      OFF ON (IG)
      ON ENGINE START

    OK : Go to step   6

    NG : Go to next step

  3. INSPECT ECM (STAR AND STSW VOLTAGE)
    1. Measure the voltage according to the value(s) in the table below while cranking the engine.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      STAR (E4-4) - E1 (E4-7) 9 to 14 V
      STSW (A5-19) - E1 (E4-7) 9 to 14 V

      Result

      RESULT REFERENCE

      Terminal STAR Terminal STSW Proceed to
      9 to 14 V 9 to 14 V A
      0 V 9 to 14 V B
      0 V 0 V C

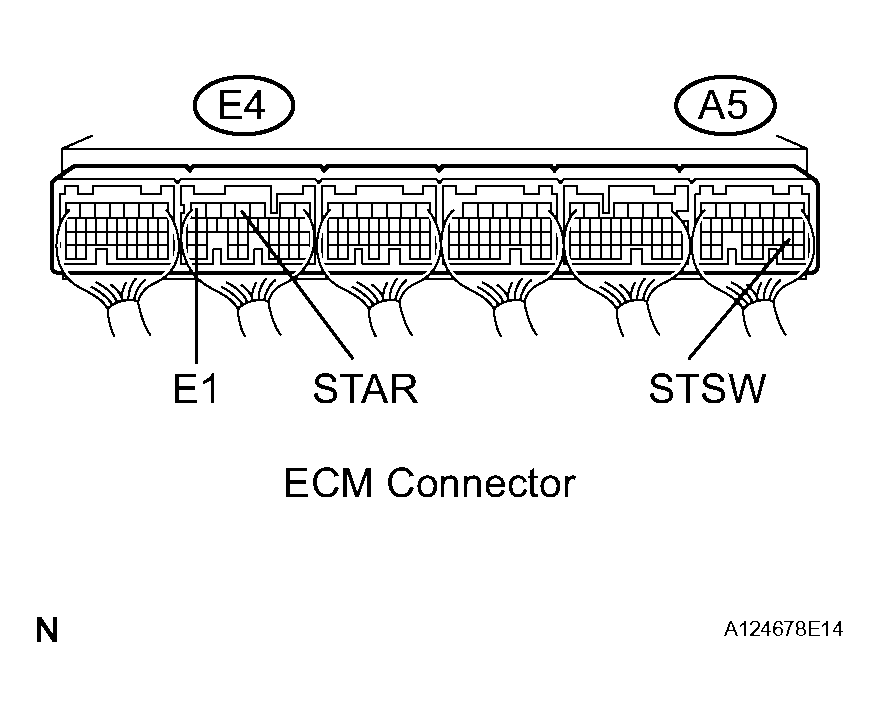

      Fig 1: Identifying ECM Connectors
      G04054891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B : REPLACE ECM

    C : Go to step   10

    A : GO TO NEXT STEP

  4. INSPECT ST CUT RELAY
    1. Remove the ST CUT relay from the engine room J/B and R/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
      Fig 2: Identifying Relay Test Terminals
      G04044792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE ST CUT RELAY

    OK : GO TO NEXT STEP

  5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the park/neutral position (PNP) switch.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Shift Position Tester Connection Specified Condition
      P 4 - 5 Below 1 Ω
      N 4 - 5 Below 1 Ω

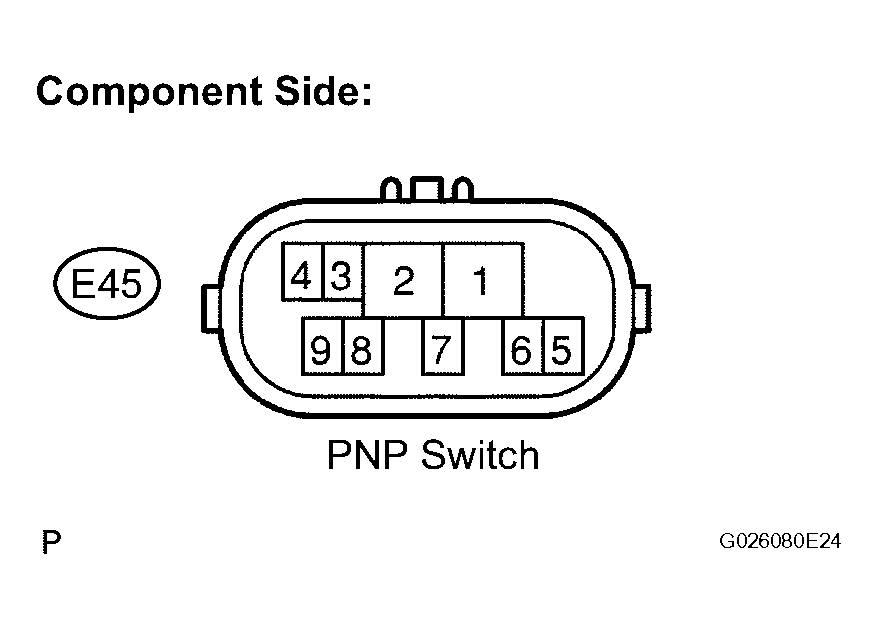

      Fig 3: Identifying Park/Neutral Position Switch Connector
      G04054893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

    OK : CHECK AND REPAIR HARNESS AND CONNECTOR ((PARK/NEUTRAL POSITION SWITCH - ECM, ECM - ST CUT RELAY, ST)

  6. INSPECT STARTER RELAY
    1. Remove the starter relay from the engine room J/B and R/B No. 1.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
      Fig 4: Identifying Relay Test Terminals
      G04061617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE STARTER RELAY

    OK : GO TO NEXT STEP

  7. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - STARTER RELAY)
    1. Check the harness and the connectors between the park/neutral position switch and the starter relay.
      1. Disconnect the E45 switch connector.
      2. Remove the starter relay from the engine room J/B and R/B No. 1.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Park/Neutral position switch (E45-5) - Starter relay (1) Below 1 Ω

        Standard resistance (Check for short)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Park/Neutral position switch (E45-5) or Starter relay (1) - Body ground 10 kΩ or higher
    2. Check the harness and the connector between the starter relay and the body ground.
      1. Remove the starter relay from the engine room No. 1 relay block.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Starter relay (2) - Body ground Below 1 Ω

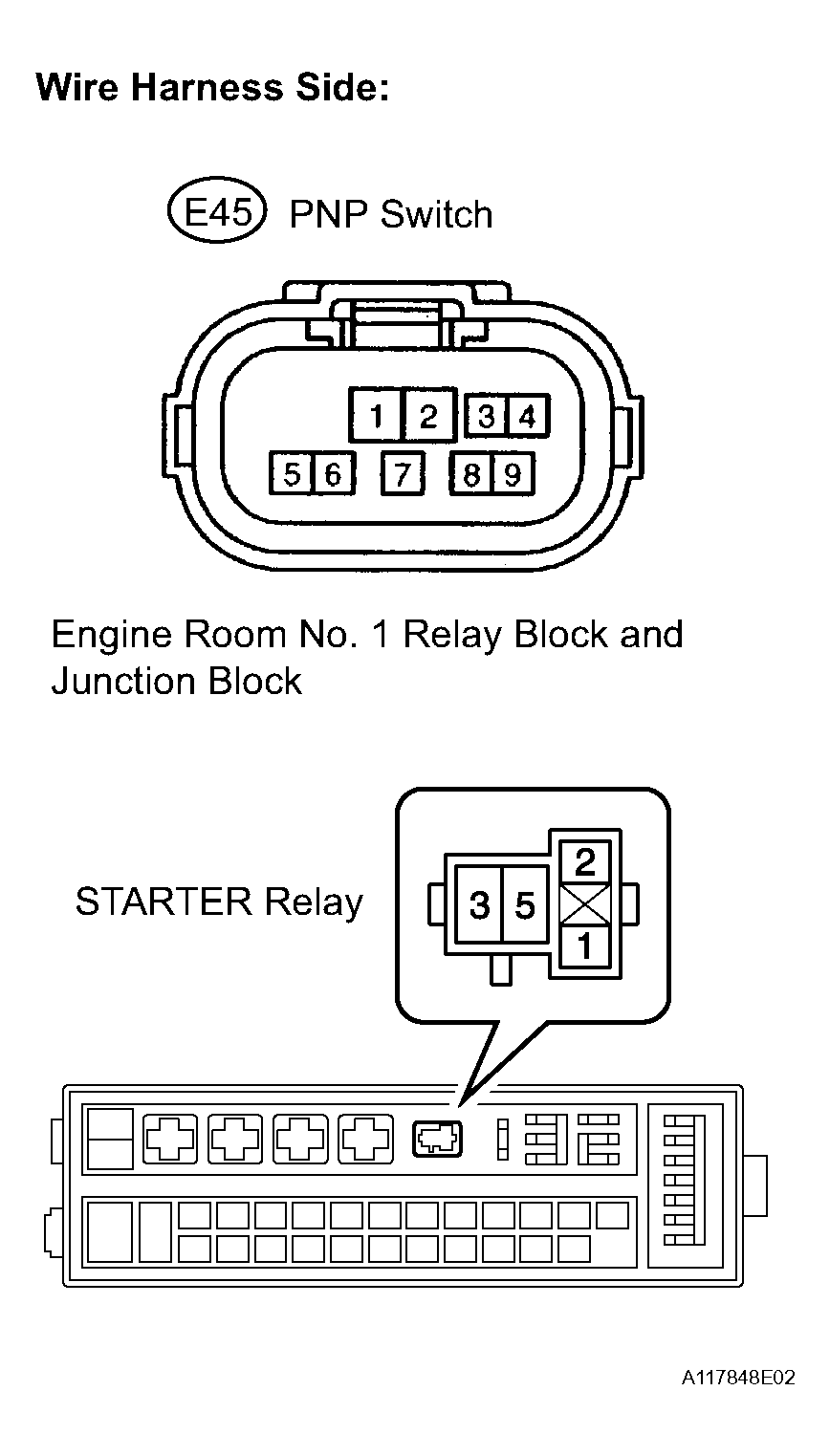

        Fig 5: Identifying PNP Switch And Starter Relay Connectors
        G04054895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP

  8. INSPECT ENGINE ROOM RELAY BLOCK (STARTER RELAY VOLTAGE)
    1. Remove the starter relay from the engine room J/B and R/B No. 1.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      Starter relay (5) - Body ground 9 to 14 V

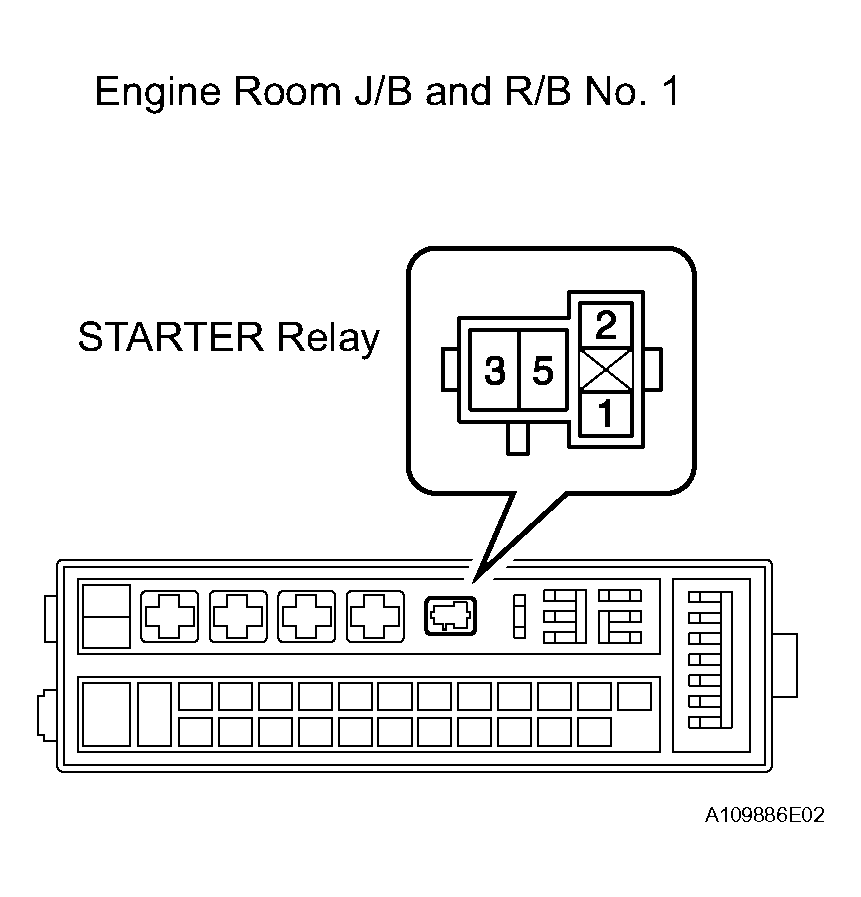

      Fig 6: Identifying Starter Relay Connectors
      G04054896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP

  9. INSPECT STARTER ASSEMBLY

    NG : REPAIR OR REPLACE STARTER ASSEMBLY

    OK : REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY - STARTER, STARTER - BATTERY)

  10. CHECK HARNESS AND CONNECTOR (POWER SOURCE CONTROL ECU - ECM)
    1. Check the harness and the connectors between the power source control ECU and ECM.
      1. Disconnect the power source control ECU connector.
      2. Disconnect the A5 ECM connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        J55-39 (STSW) - A5-19 (STSW) Below 1 Ω

        Standard resistance (Check for short)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        J55-39 (STSW) or A5-19 (STSW) - Body ground 10 kΩ or higher

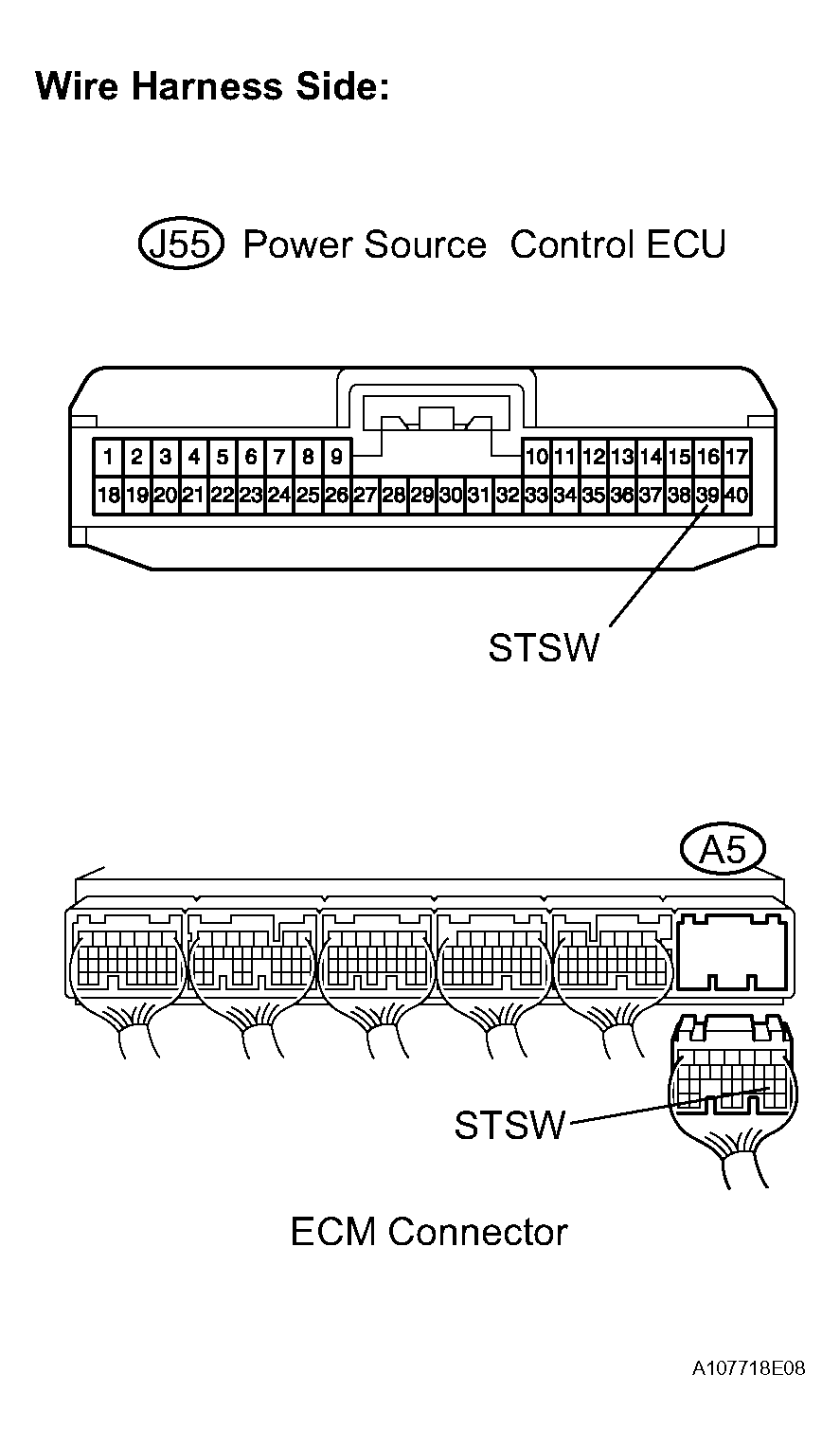

        Fig 7: Identifying A5 ECM Connector
        G04054897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO PUSH BUTTON START SYSTEM
