Fuel Pump Control Circuit: Wiring Diagram

Refer to DTC P0230  .

  1. CHECK FUEL PUMP OPERATION
    1. Check if there is pressure in the fuel inlet hose.

      HINT:

      If there is fuel pressure, you will hear the sound of fuel flowing.

    OK : Go to step   12

    NG : GO TO NEXT STEP

  2. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (OPERATE CIRCUIT OPENING RELAY)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG) and turn the intelligent tester on.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / FUEL PUMP / SPD.
    4. Check the operation of the relay while operating it using the intelligent tester.

      OK: Operating noise can be heard from the relay.

    OK : Go to step   8

    NG : GO TO NEXT STEP

  3. INSPECT ECM POWER SOURCE CIRCUIT
    1. Check the ECM POWER SOURCE CIRCUIT  .

      Standard voltage: 9 to 14 V

    NG : REPAIR OR REPLACE POWER SOURCE CIRCUIT

    OK : GO TO NEXT STEP

  4. INSPECT FUSE (F/PMP FUSE)
    1. Remove the F/PMP fuse from the engine room J/B and R/B No. 2.
    2. Measure the resistance of the F/PMP fuse.

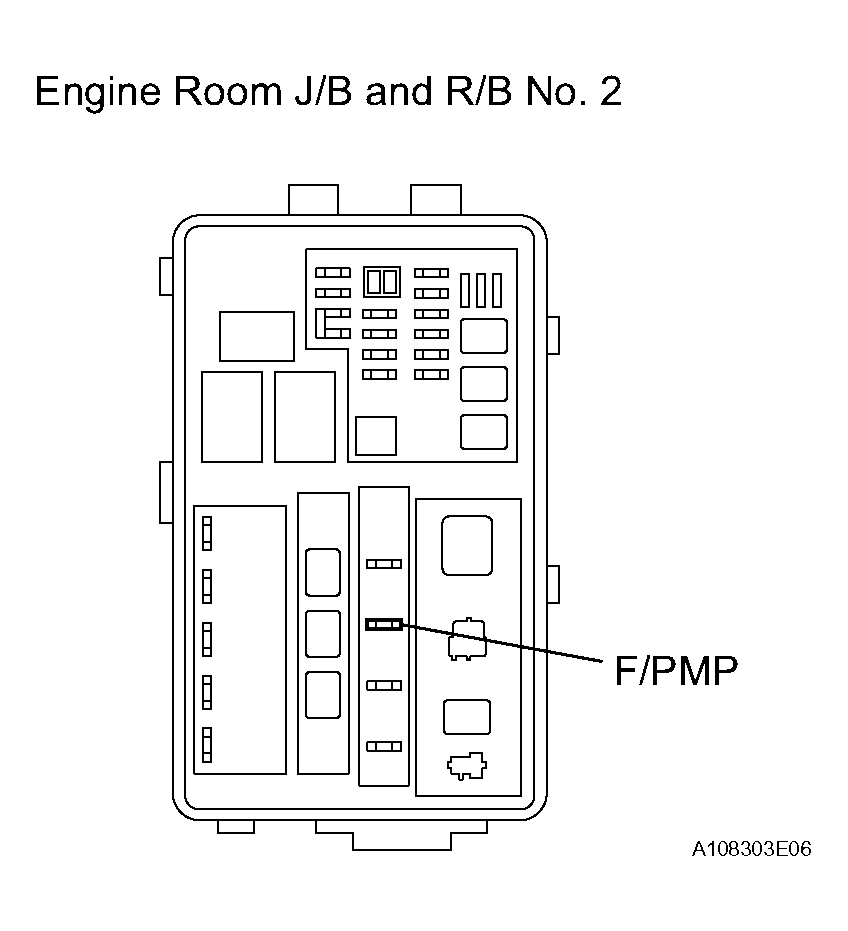

      Fig 1: Identifying F/PMP Fuse
      G04054879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance: Below 1 Ω

    NG : REPLACE F/PMP FUSE

    OK : GO TO NEXT STEP

  5. INSPECT INTEGRATION RELAY (EFI NO. 2 RELAY)
    1. Remove the integration relay from the engine room J/B and R/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      2B-4 - 2C-1 10 kΩ or higher
      2B-4 - 2C-1 Below 1 Ω (when battery voltage applied to terminals 2B-3 and 2B-2)
      Fig 2: Identifying Integration Relay
      G04054880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE INTEGRATION RELAY

    OK : GO TO NEXT STEP

  6. INSPECT INTEGRATION RELAY (C/OPN RELAY)
    1. Remove the integration relay from the engine room J/B and R/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      2B-6 - 2B-8 10 kΩ or higher
      2B-6 - 2B-8 Below 1 Ω (when battery voltage applied to terminals 2B-6 and 2B-7)

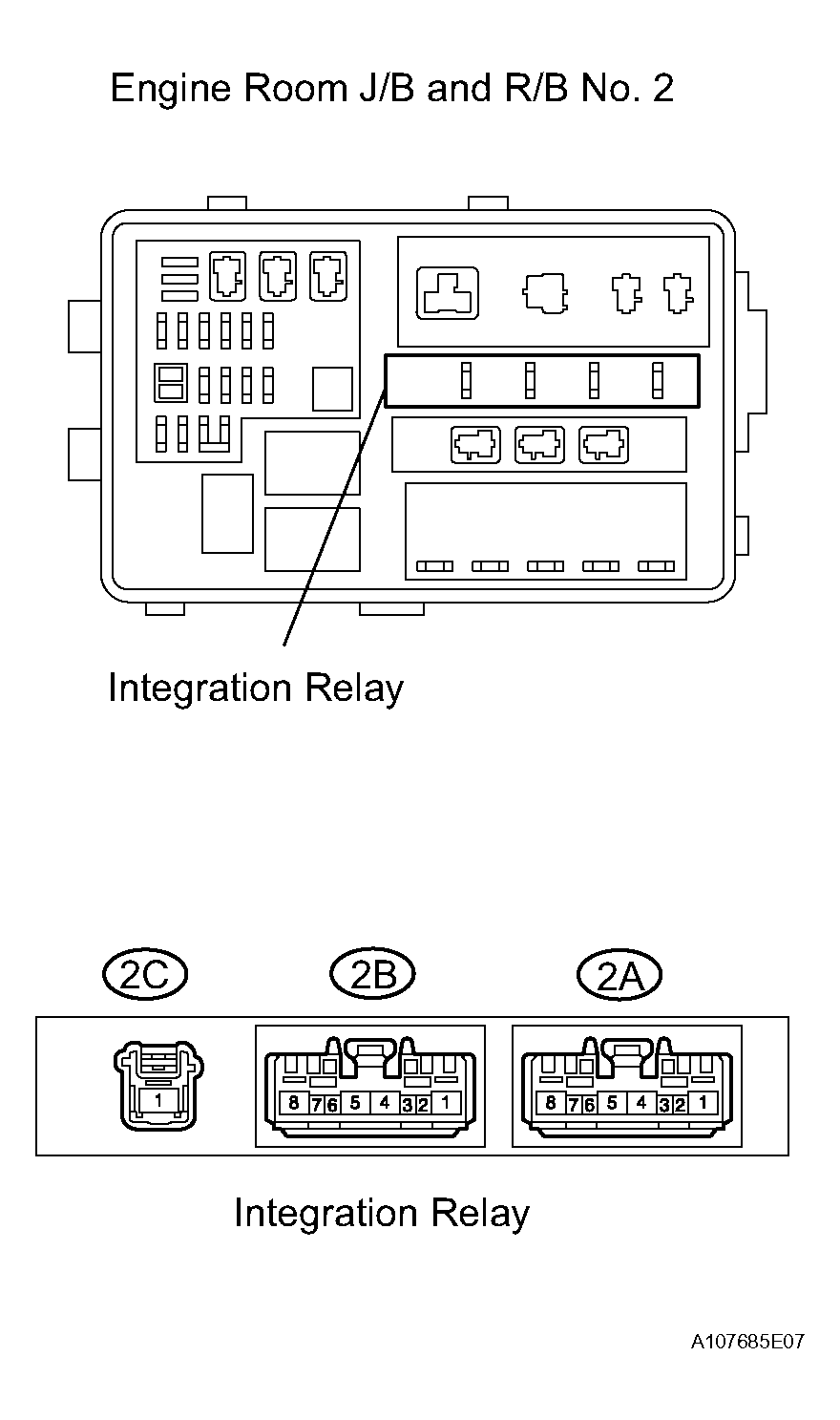

      Fig 3: Identifying Integration Relay
      G04054881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE INTEGRATION RELAY

    OK : GO TO NEXT STEP

  7. INSPECT ECM (FC VOLTAGE)
    1. Turn the engine switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      FC (A5-14) - E1 (E4-7) 9 to 14 V

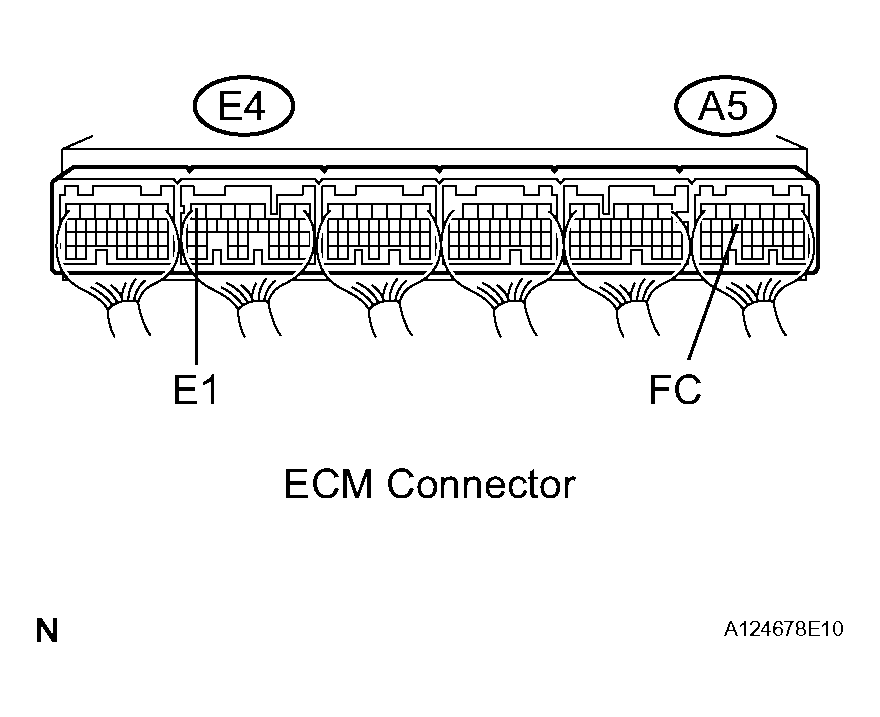

      Fig 4: Identifying ECM Connectors
      G04054882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE ECM

    NG : CHECK AND REPAIR HARNESS AND CONNECTOR (ECM - CIRCUIT OPENING RELAY)

  8. INSPECT F/PMP RELAY
    1. Remove the F/PMP relay from the engine room J/B and R/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 4 10 kΩ or higher
      3 - 4 Below 1 Ω (when battery voltage applied to terminals 1 and 2)

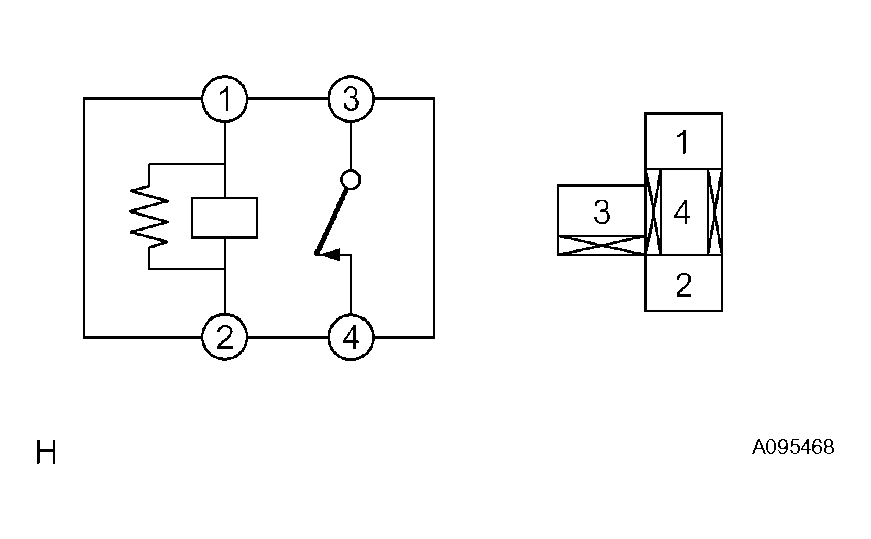

      Fig 5: Identifying Relay Test Terminals
      G04054635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE F/PMP RELAY

    OK : GO TO NEXT STEP

  9. INSPECT FUEL PUMP
    1. Inspect fuel pump resistance.
      1. Measure the resistance between terminals 4 and 5.

        Standard resistance: 0.2 to 3.0 Ω at 20°C (68°F)

    2. Inspect fuel pump operation.
      1. Apply battery voltage to both terminals. Check that the pump operates.

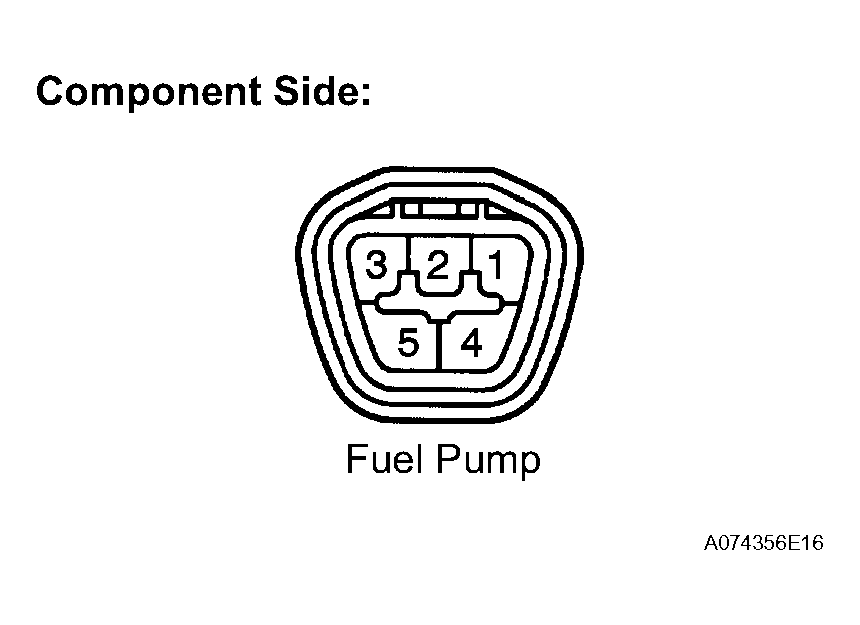

        Fig 6: Identifying Fuel Pump Connectors
        G04054884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • These tests must be done quickly (within 10 seconds) to prevent the coil from burning out.
        • Keep the fuel pump as far away from the battery as possible.
        • Always switch at the battery side.

    NG : REPLACE FUEL PUMP

    OK : GO TO NEXT STEP

  10. CHECK HARNESS AND CONNECTOR (FUEL PUMP - F/PMP RELAY)
    1. Check the harness and the connectors between the fuel pump and the F/PMP relay.
      1. Disconnect the fuel pump connector.
      2. Remove the F/PMP relay from the engine room J/B and R/B No. 2.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Fuel pump (Q14-4) - F/PMP relay (4) Below 1 Ω

        Standard resistance (Check for short)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Fuel pump (Q14-4) or F/PMP (4) - Body ground 10 kΩ or higher
    2. Check the harness and the connectors between the fuel pump and body ground.
      1. Disconnect the fuel pump connector.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Fuel pump (Q14-5) - Body ground 10 kΩ or higher

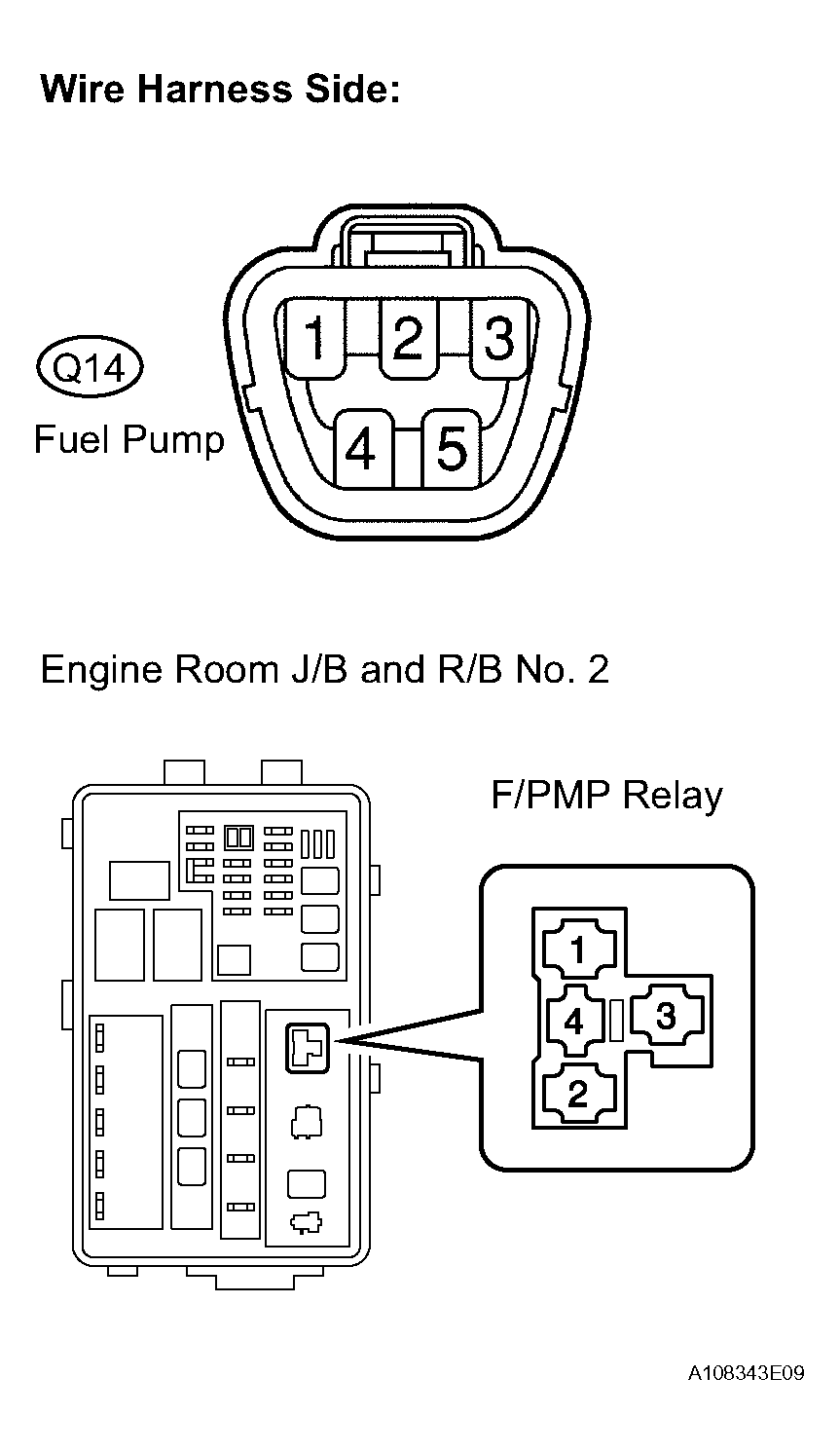

        Fig 7: Identifying Fuel Pump Connector And F/PMP Relay
        G04054885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP

  11. CHECK HARNESS AND CONNECTOR (INTEGRATION RELAY - F/PMP RELAY)
    1. Remove the integration relay from the engine room J/B and R/B No. 2.
    2. Remove the F/PMP relay from the engine room J/B and R/B No. 2.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      Integration relay (2B-8) - F/PMP relay (1) Below 1 Ω
      Integration relay (2B-8) - F/PMP relay (3) Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      Circuit opening relay (2B-8) or F/PMP relay (1) - Body ground 10 kΩ or higher
      Circuit opening relay (2B-8) or F/PMP relay (3) - Body ground 10 kΩ or higher

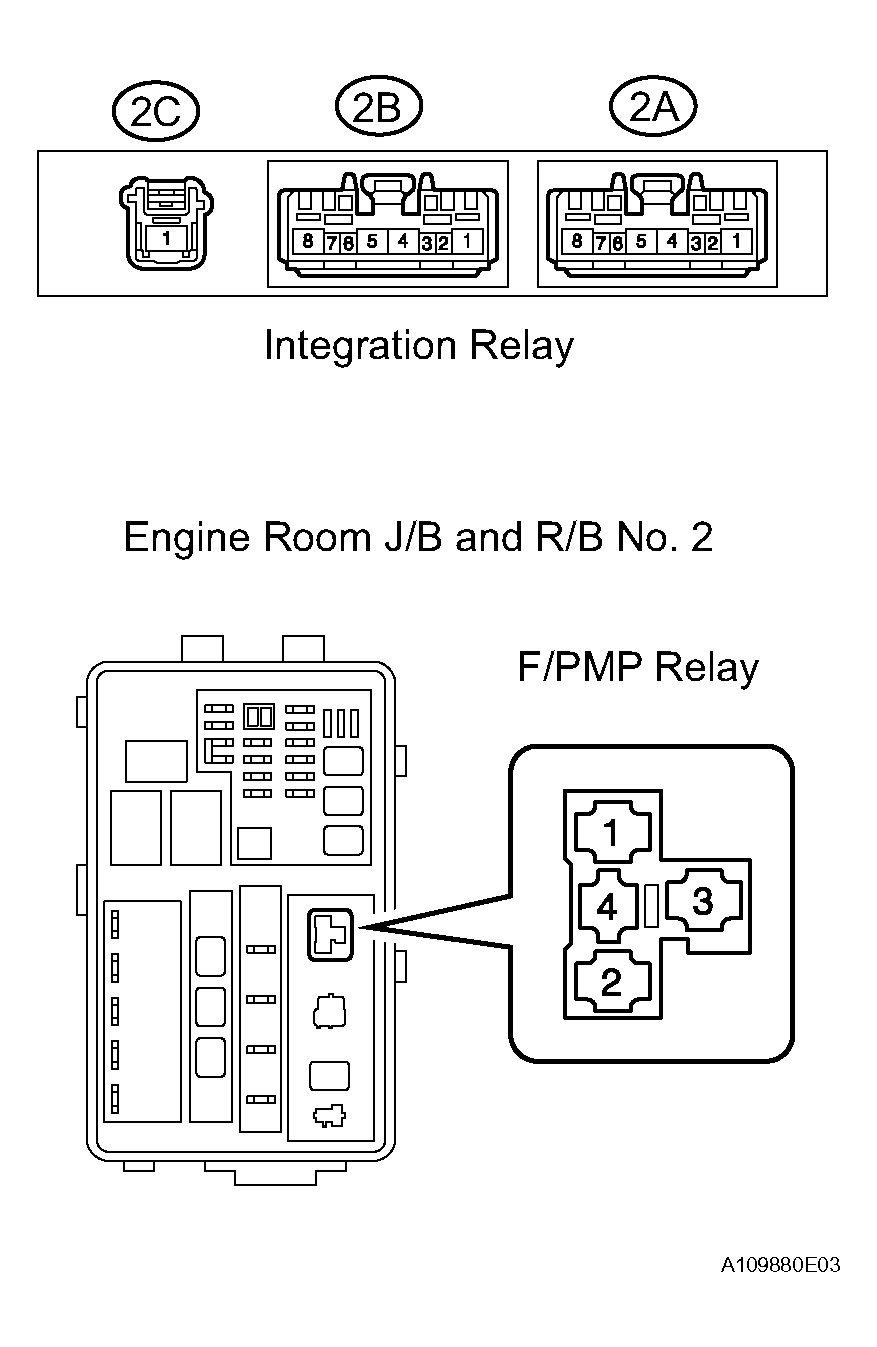

      Fig 8: Identifying Integration And F/PMP Relay Connectors
      G04054886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : REPAIR OR REPLACE INTEGRATION RELAY

  12. INSPECT F/PMP RELAY
    1. Remove the F/PMP relay from the engine room J/B and R/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 4 10 kΩ or higher
      3 - 4 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
      Fig 9: Identifying Relay Test Terminals
      G04054635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE F/PMP RELAY

    OK : GO TO NEXT STEP

  13. INSPECT FUEL PUMP RESISTER
    1. Measure the resistance of the fuel pump resistor.

      Standard resistance: 0.30 to 0.34 Ω at 20°C (68°F)

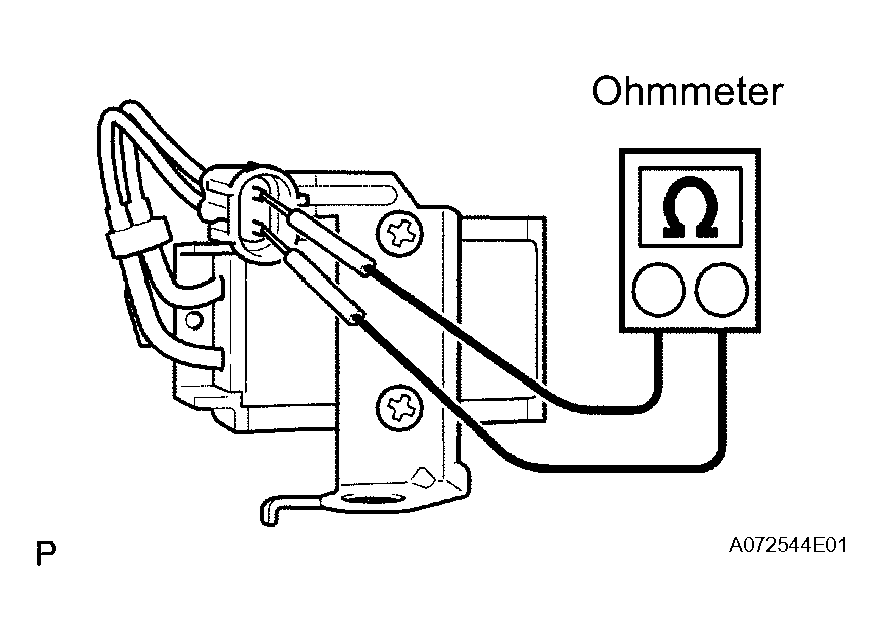

      Fig 10: Measuring Resistance Of Fuel Pump Resistor
      G04054888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE FUEL PUMP RESISTER

    OK : GO TO NEXT STEP

  14. CHECK HARNESS AND CONNECTOR (F/PMP RELAY - FUEL PUMP RESISTER)
    1. Check the harness and the connectors between the F/PMP relay and the fuel pump resistor.
      1. Remove the F/PMP relay from the engine room J/B and R/B No. 2.
      2. Disconnect the fuel pump resistor connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        F/PMP relay (4) - Fuel pump resistor (A40-2) Below 1 Ω
        F/PMP relay (3) - Fuel pump resistor (A40-1) Below 1 Ω

        Standard resistance (Check for short)

        RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        Fuel pump relay (4) or Fuel pump resistor (A40-2) - Body ground 10 kΩ or higher
        Fuel pump relay (3) or Fuel pump resistor (A40-1) - Body ground 10 kΩ or higher

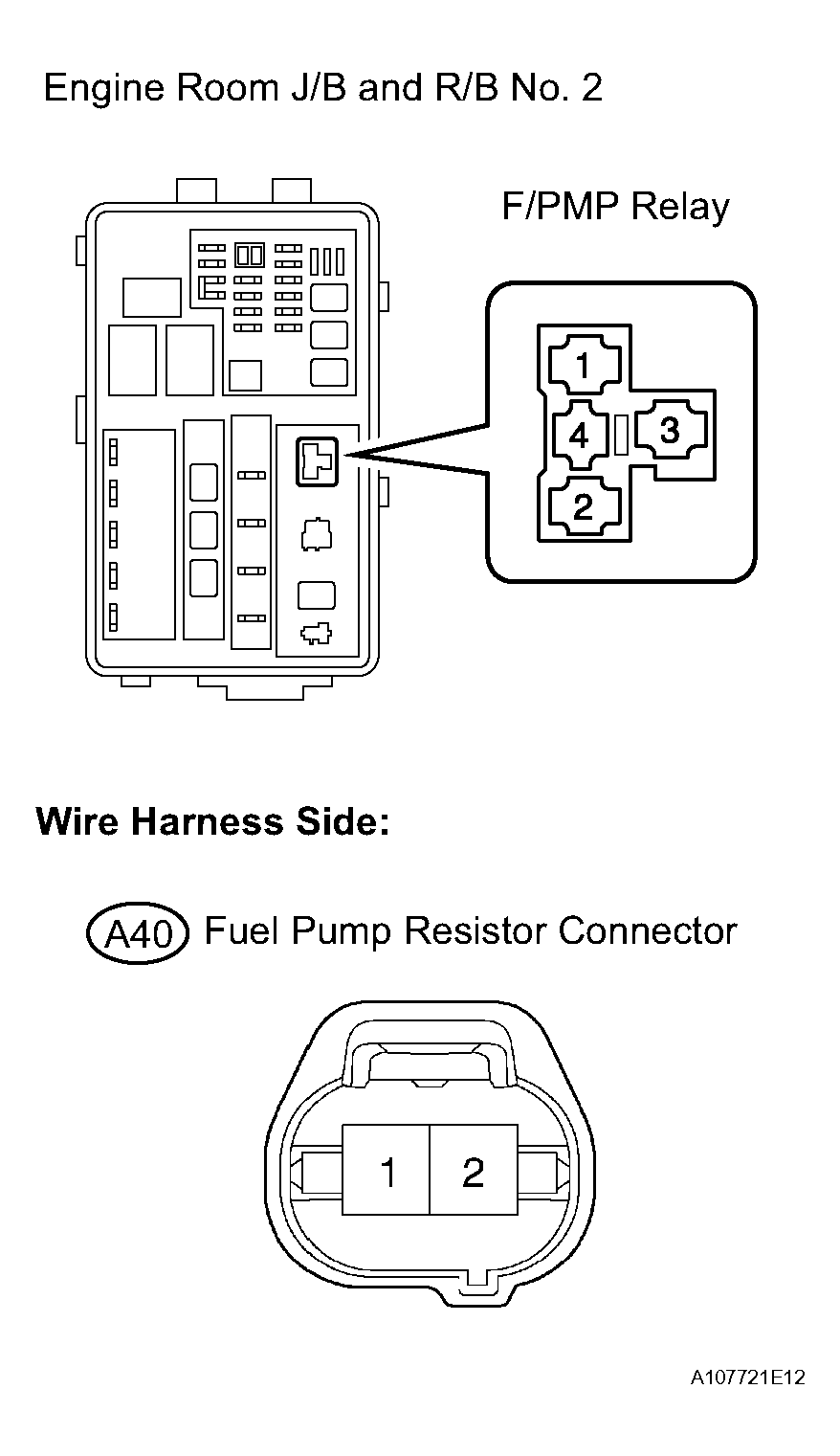

        Fig 11: Identifying Fuel Pump Resistor Connector
        G04054889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
