Throttle Body: Removal

REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL )
REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
DISCONNECT NO. 2 VENTILATION HOSE
1. Disconnect the ventilation hose from the cylinder head.

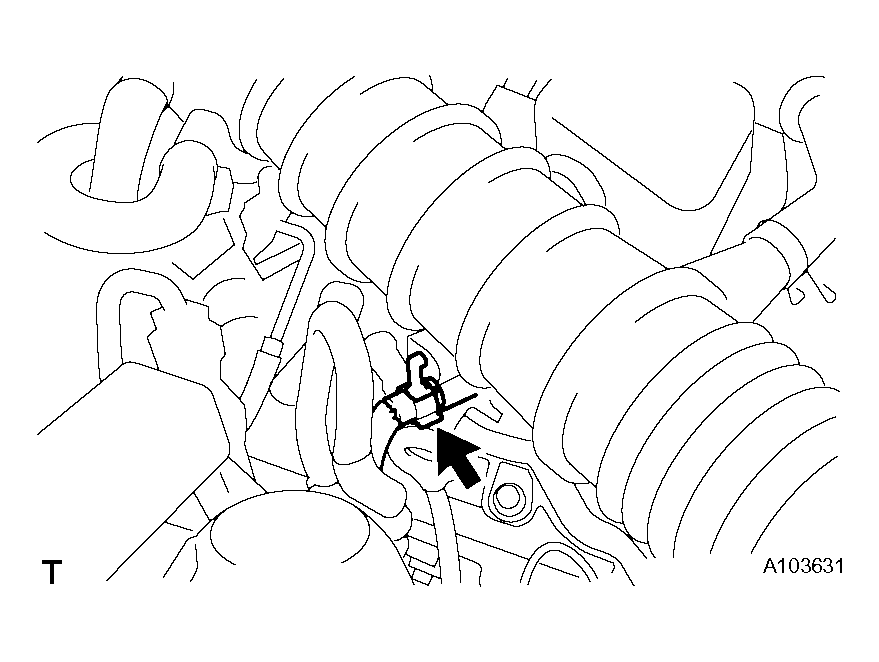

  Fig 1: Identifying Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
1. Disconnect the MAF meter connector.
2. Disconnect the clamp from the air cleaner.

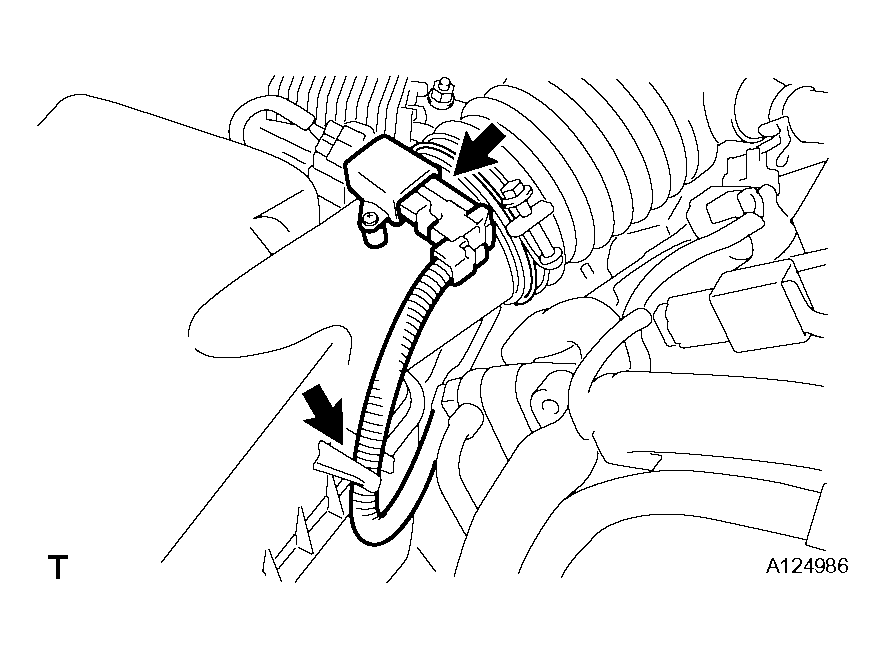

  Fig 2: Identifying MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the VSV hose.

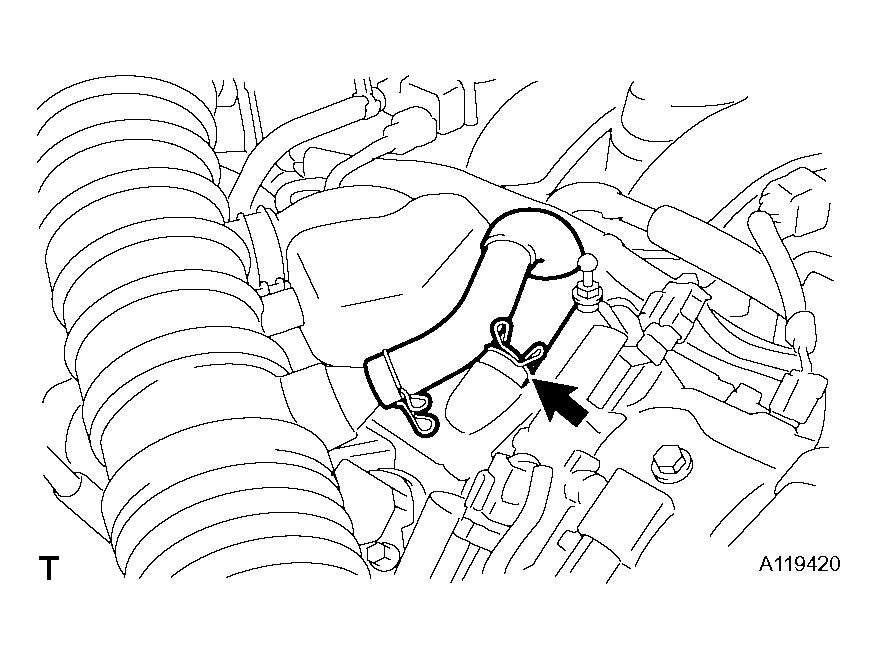

  Fig 3: Identifying VSV Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the 4 clamps.
5. Remove the hose clamp and air cleaner cap with air cleaner hose.

  Fig 4: Identifying Hose Clamp And Air Cleaner Cap With Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY
1. Disconnect the throttle motor connector.
2. Remove the 4 bolts and disconnect the throttle body from the intake air surge tank.

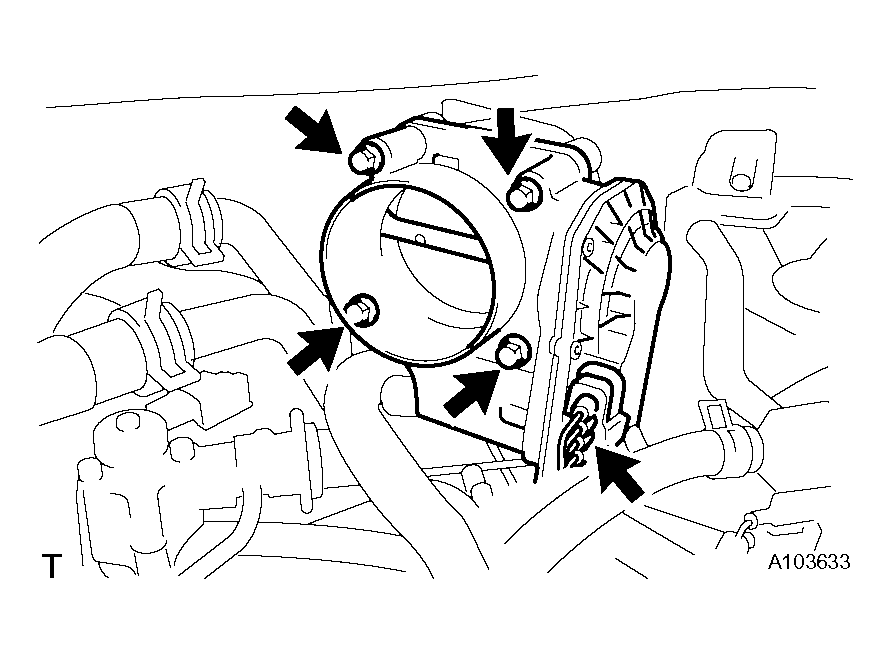

  Fig 5: Disconnecting Throttle Body From Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 2 water by-pass hoses from the throttle body.
4. Remove the throttle body and gasket.

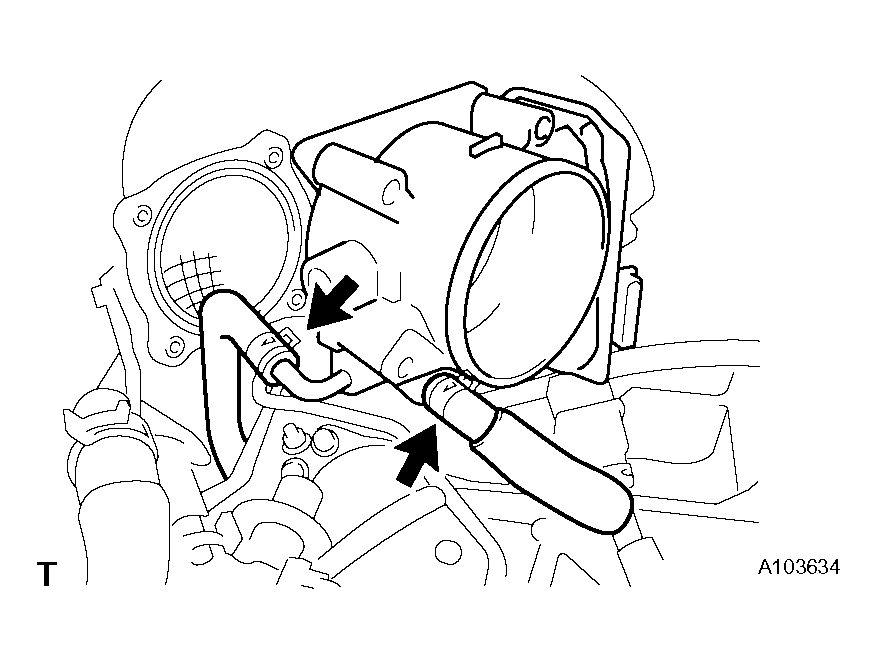

  Fig 6: Disconnecting Water By-Pass Hoses From Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
