Front Axle Hub Bolt: Replacement

WARNING: This page is about a different car, the 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See Step 4 in REMOVAL )
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See Step 5 in REMOVAL )
REMOVE FRONT DISC (See Step 5 in DISASSEMBLY )
REMOVE FRONT AXLE HUB BOLT
1. Using SST, remove the front axle hub bolt.
SST 09628-10011

NOTE: Do not damage the threads of the hub bolts.

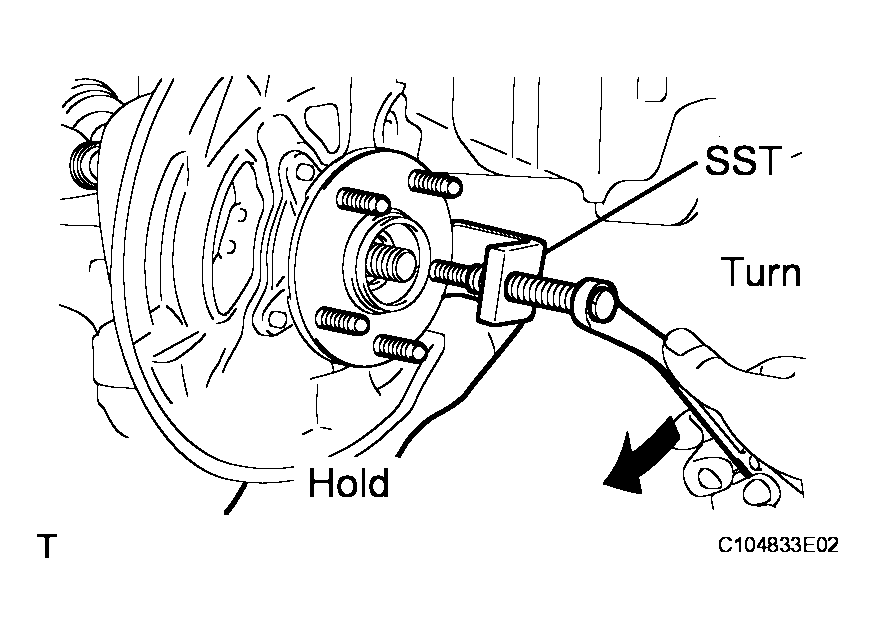

Fig 1: Removing Front Axle Hub Bolt Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB BOLT
1. Install the washer and nut to a new bolt as shown in Fig 2 .
2. Using a screwdriver or equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.

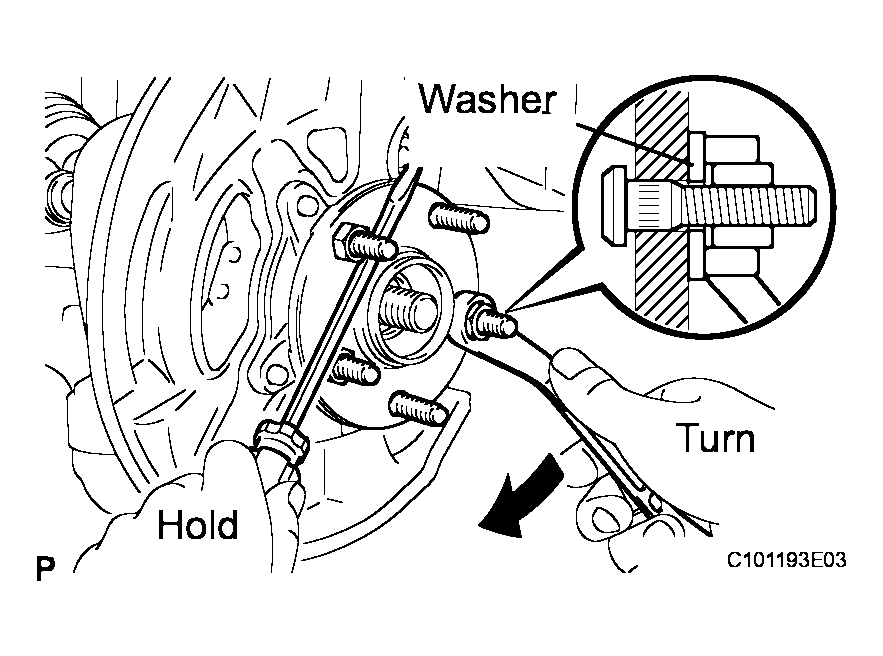

Fig 2: Holding Hub & Turn Wheel Nut To Pull Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not damage the threads of the hub bolts.
INSTALL FRONT DISC (See REASSEMBLY )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See Step 7 in INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See Step 8 in INSTALLATION )
INSTALL FRONT WHEEL

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
