Rear Axle Hub: Components

WARNING: This page is about a different car, the 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

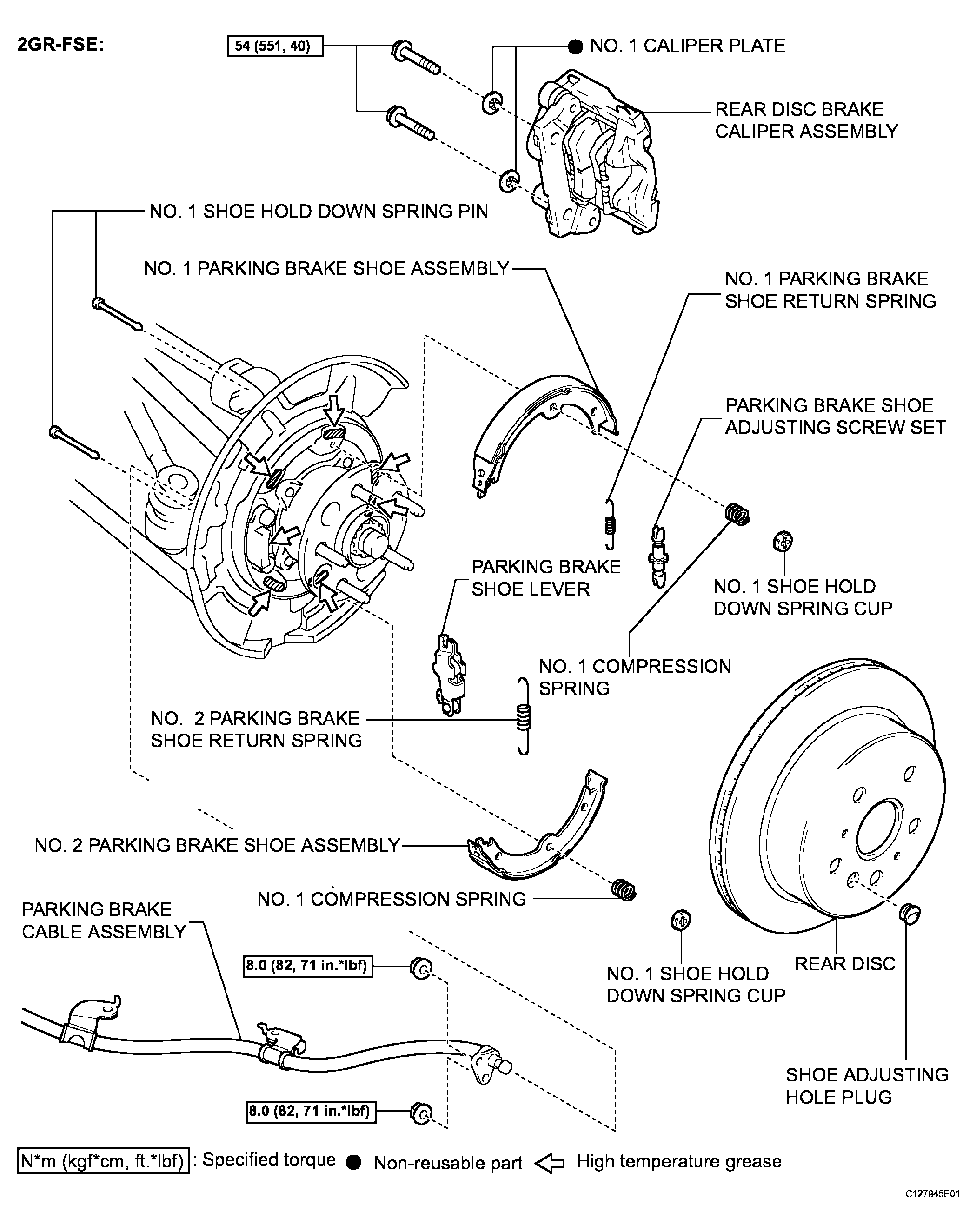

Fig 1: Rear Axle Hub Replacement Components (1 Of 3) With Torque Specifications
G04047241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Axle Hub Replacement Components (2 Of 3) With Torque Specifications
G04047242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

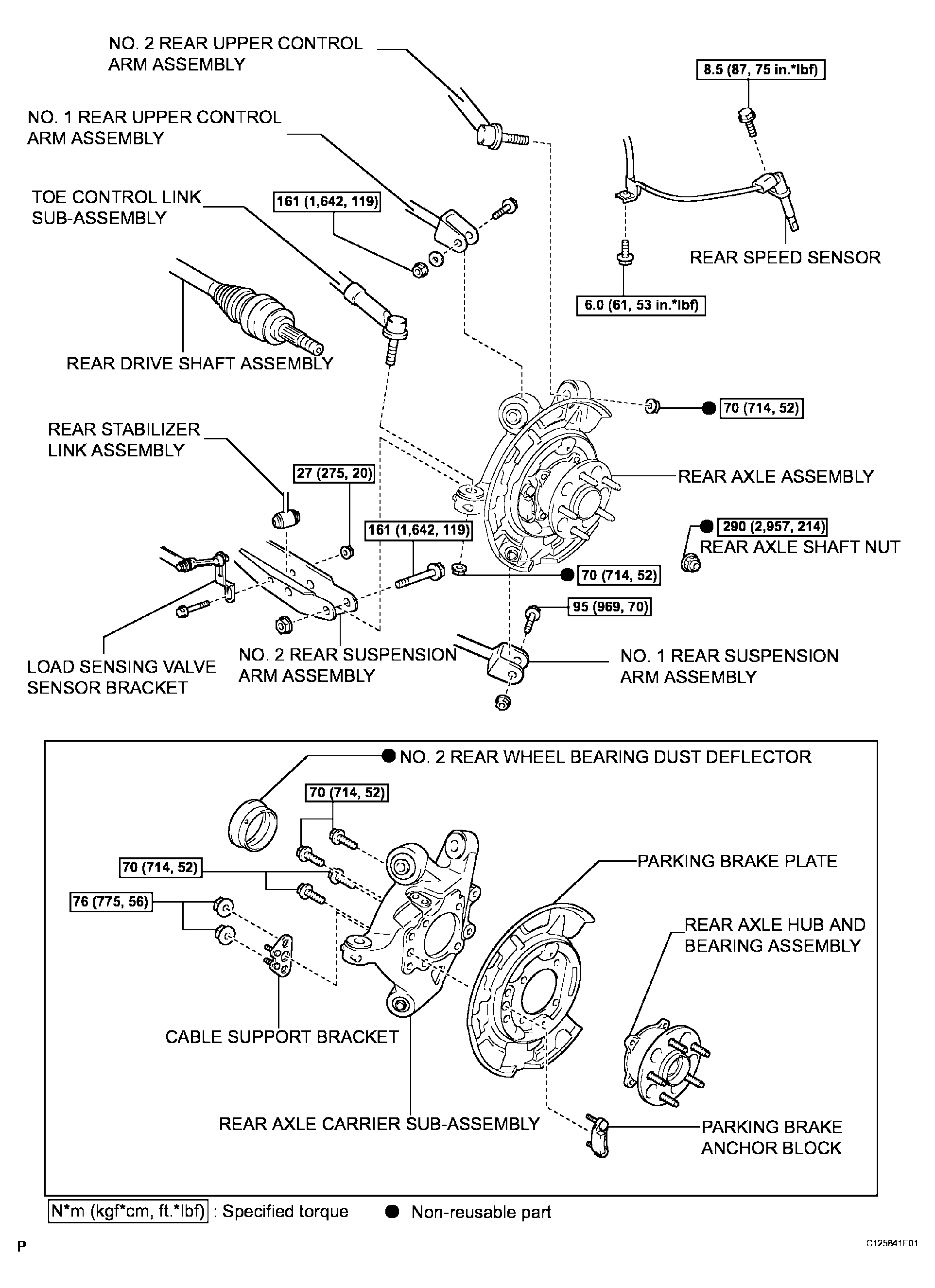

Fig 3: Rear Axle Hub Replacement Components (3 Of 3) With Torque Specifications
G04047243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
