Vehicle Identification And

SERIAL NUMBERS

1. VEHICLE IDENTIFICATION NUMBER

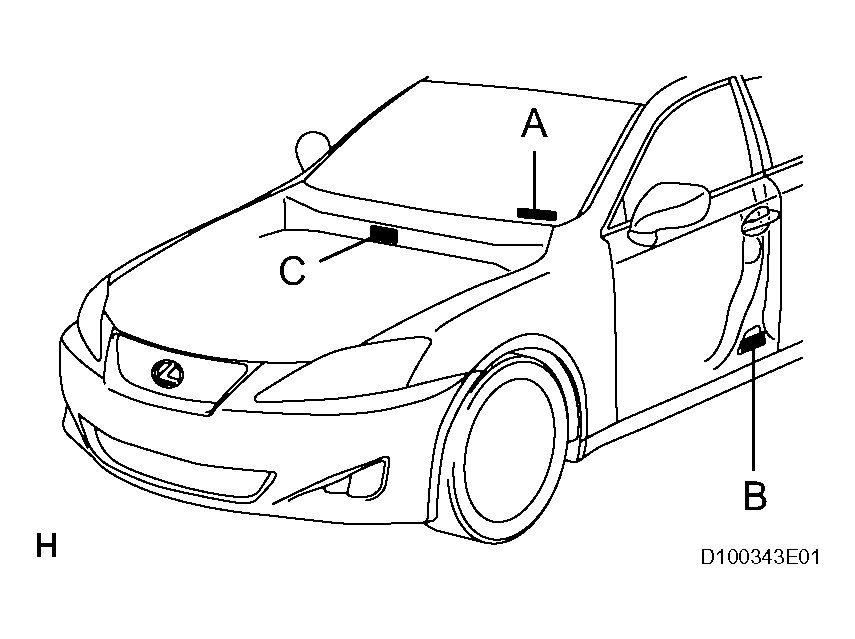

   1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in Fig 1 .

      A:

      Vehicle Identification Number

      B:

      Certification Label

      C:

      Frame Number

   Fig 1: Identifying Certification Label Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

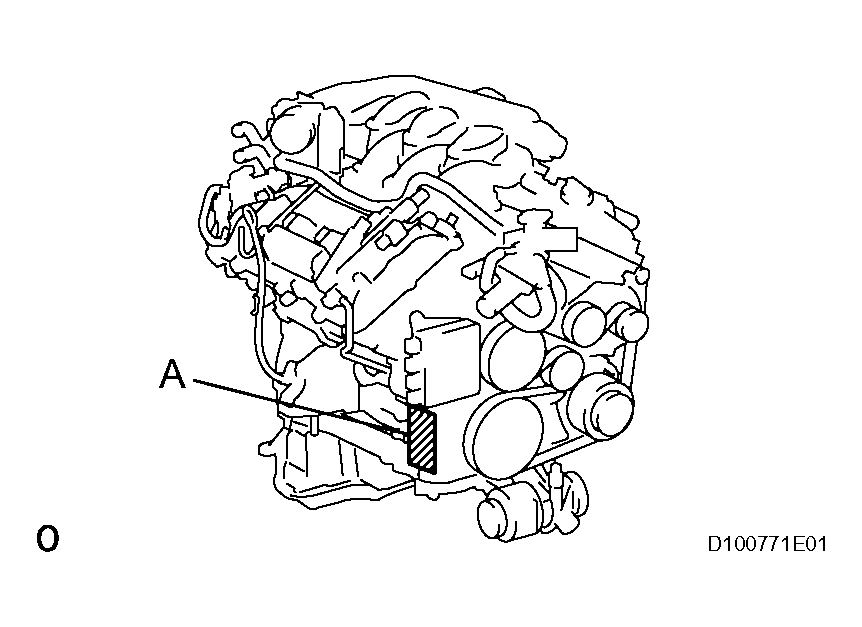

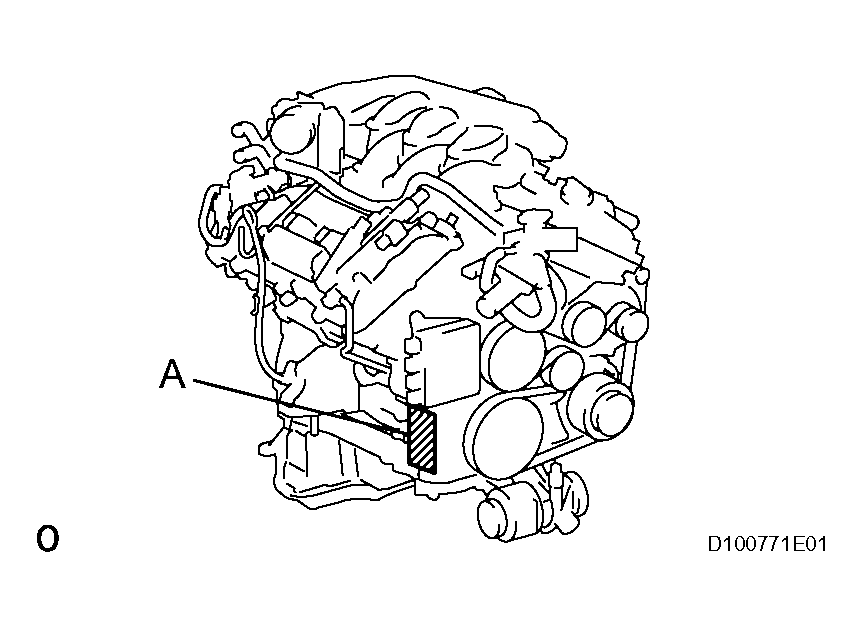

   1. The engine serial number is stamped on the cylinder block of the engine as shown in Fig 2 .

      A:

      2GR-FSE, 4GR-FSE

      Fig 2: Identifying Engine Serial Number Location

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

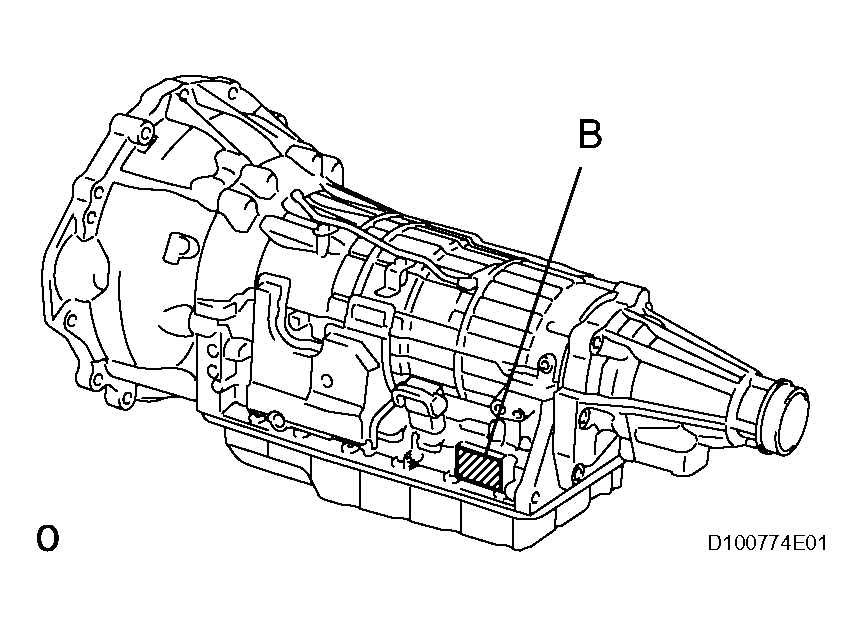

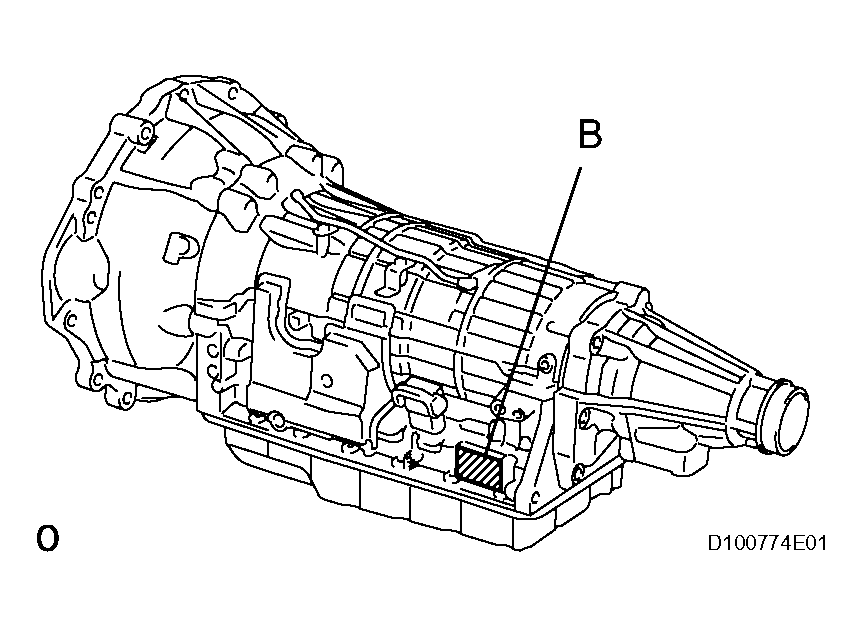

   2. The transmission serial number is stamped on the housing as shown in Fig 3 .

      B:

      A960E Transmission Serial Number

      Fig 3: Identifying Transmission Serial Number Location

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

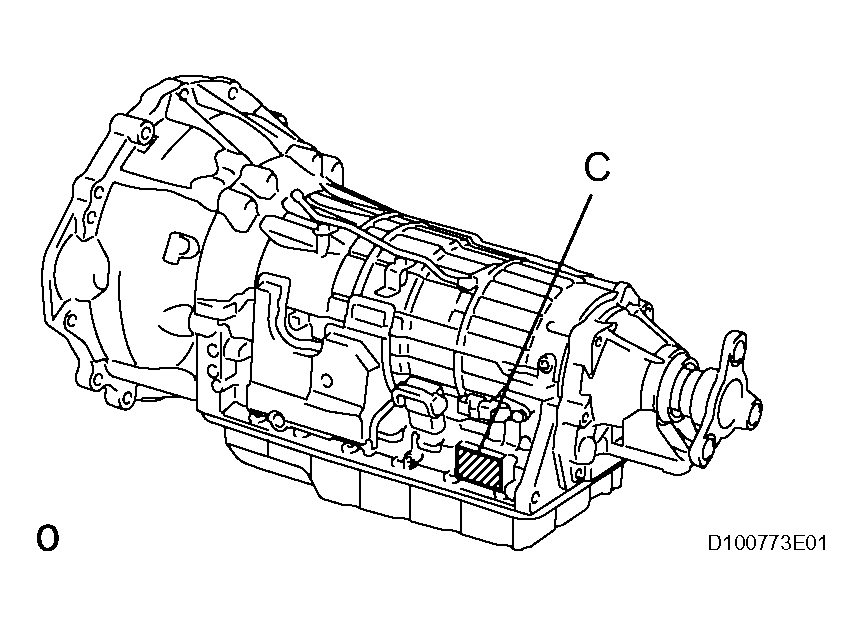

      C:

      A760E Transmission Serial Number

      Fig 4: Identifying Transmission Serial Number Location (A760E)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

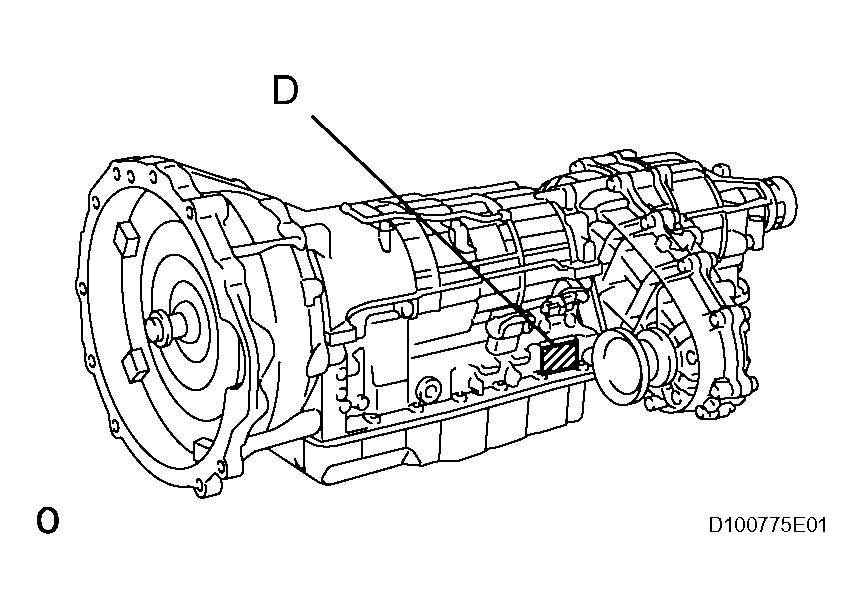

      D:

      A760H Transmission Serial Number

      E:

      RA62 Transmission Serial D Number

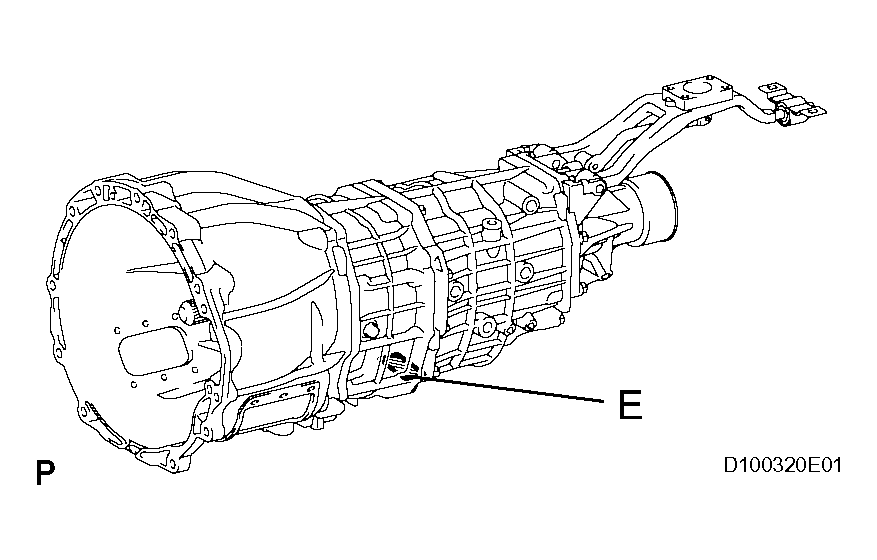

      Fig 5: Identifying Transmission Serial Number Location (RA62)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 6: Identifying Transmission Serial D Number Location (RA62)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
