Front Seat Inner Belt Assembly: Installation

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)
   1. Install the front seat inner belt assembly with the nut.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

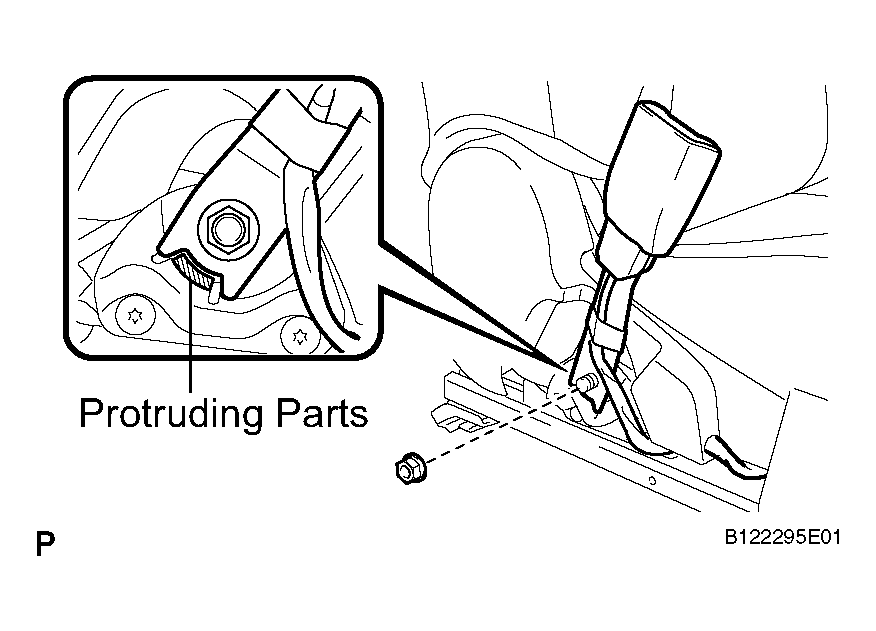

      Fig 1: Installing Front Seat Inner Belt Assembly With Nut (For Manual Seat)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the connector and attach the 3 clamps.

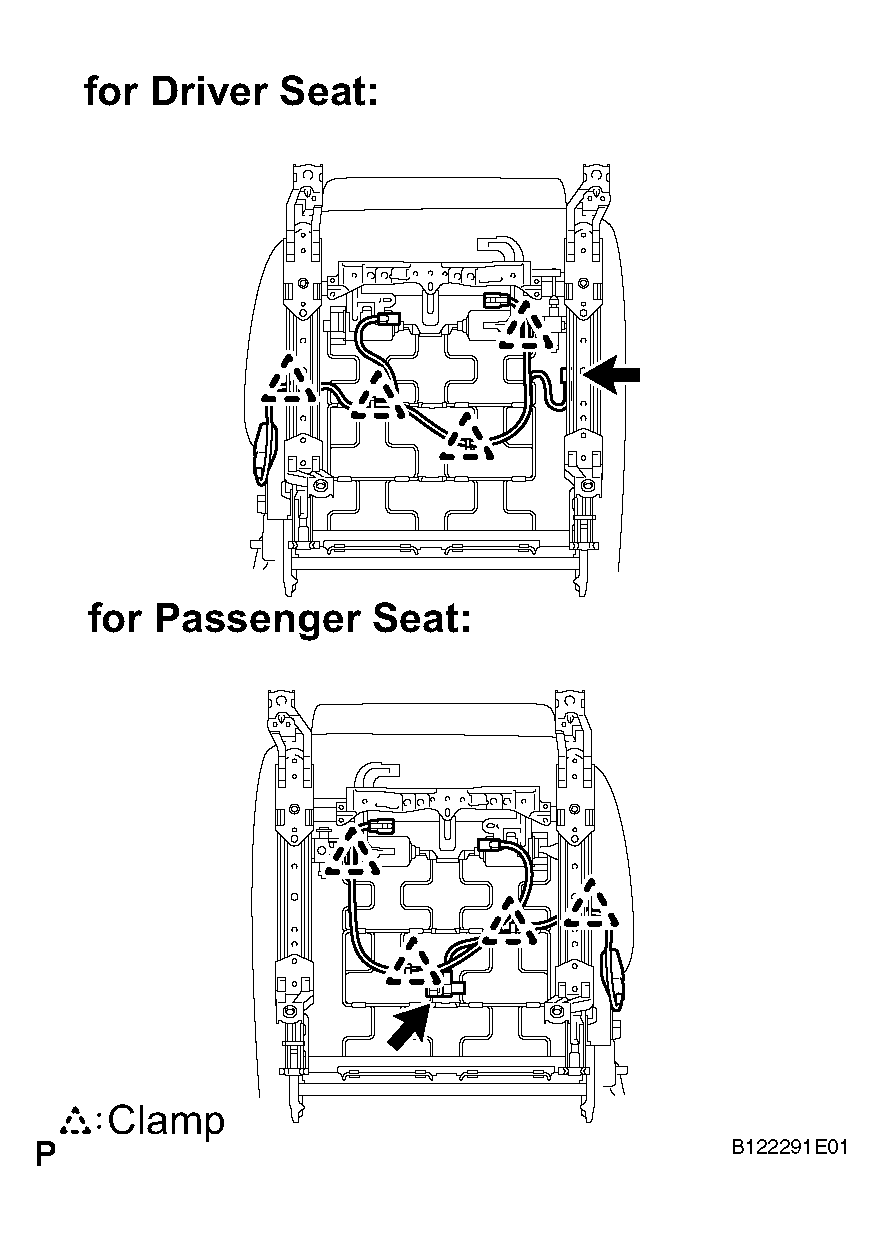

   Fig 2: Installing Front Seat Inner Belt Assembly Clamps (For Manual Seat)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)
   1. Install the front seat inner belt assembly with the nut.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

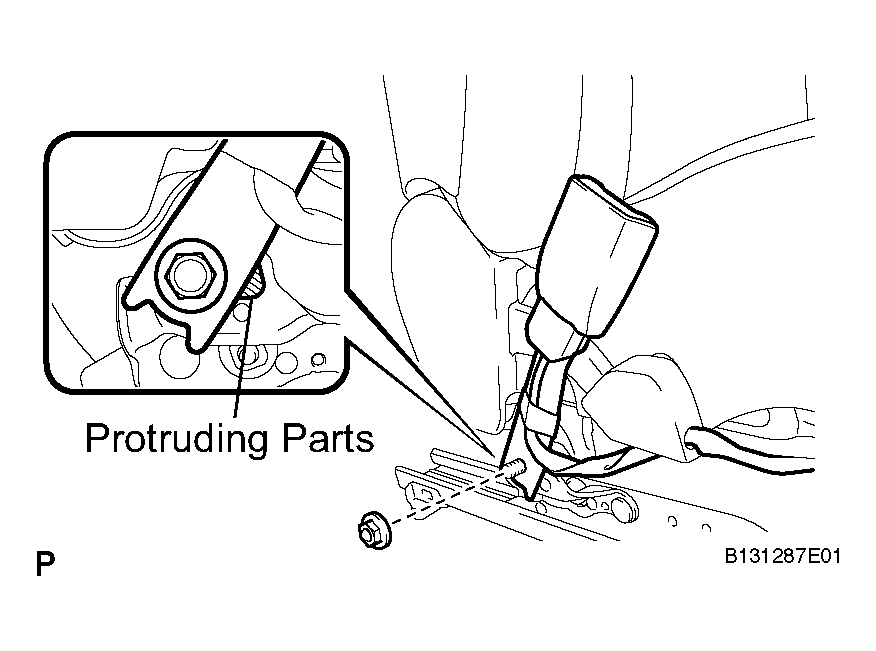

      Fig 3: Installing Front Seat Inner Belt Assembly With Nut (For Power Seat)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the connector and attach the 4 clamps.

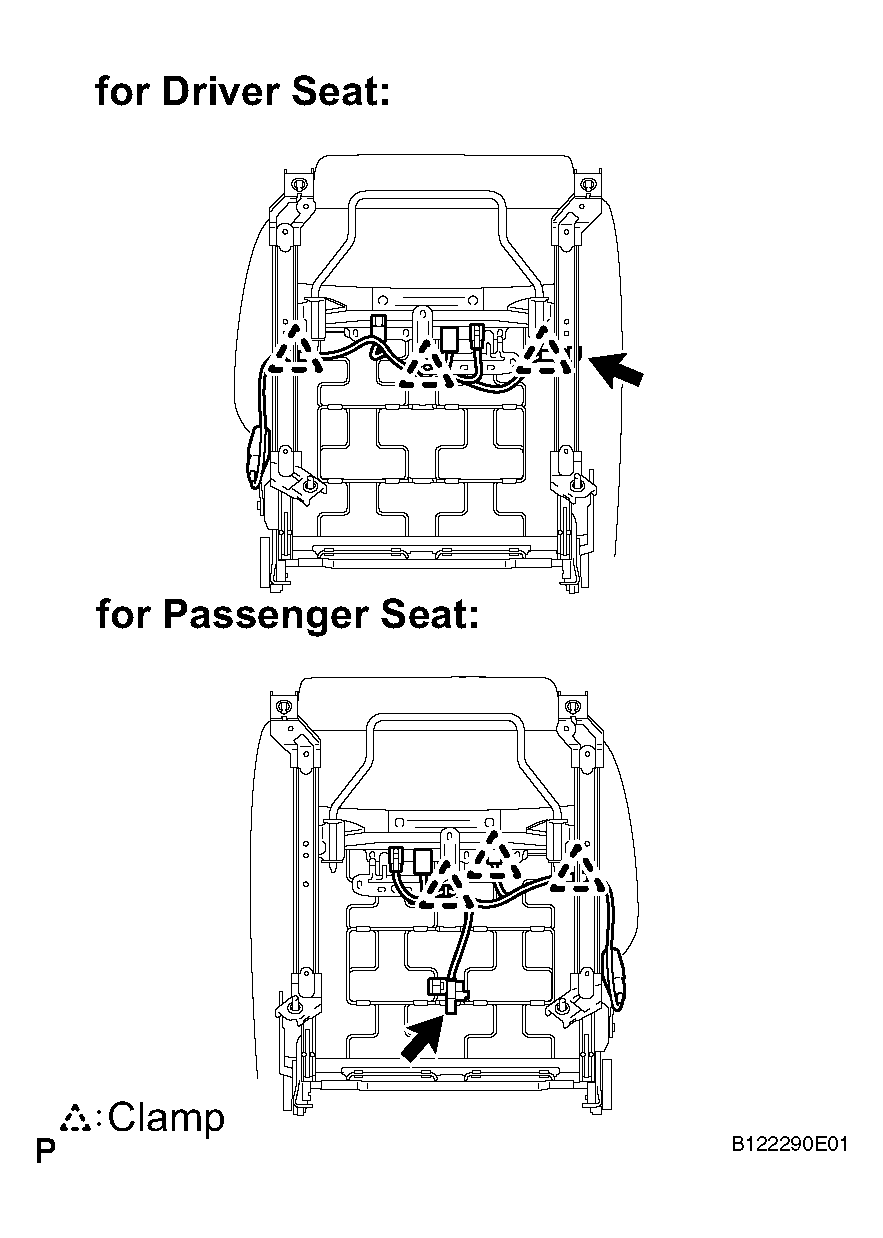

      Fig 4: Installing Front Seat Inner Belt Assembly Clamps (For Power Seat)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat) (See  INSTALLATION  )
4. INSTALL REAR INNER SEAT TRACK COVER (for Manual Seat) (See Step 2 in  INSTALLATION  )
5. INSTALL REAR OUTER SEAT TRACK COVER (for Manual Seat) (See Step 3 in  INSTALLATION  )
6. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat) (See Step 5 in  INSTALLATION  )
7. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat) (See Step 4 in  INSTALLATION  )
8. INSTALL FRONT SEAT ASSEMBLY (for Power Seat) (See  INSTALLATION  )
9. INSTALL REAR INNER SEAT TRACK COVER (for Power Seat)
10. INSTALL REAR OUTER SEAT TRACK COVER (for Power Seat)
11. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
12. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat)
13. INSTALL FRONT SEAT HEADREST ASSEMBLY
14. PERFORM INITIALIZATION

    HINT:

    Some systems need initialization after reconnecting the cable to the negative battery terminal. (See INITIALIZATION )

15. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
16. INSPECT FRONT SEAT ASSEMBLY (for Power Seat) (See Step 9 in  INSTALLATION  )
17. INSPECT SRS WARNING LIGHT

Inspect the SRS warning light. (See DIAGNOSIS SYSTEM )
