Steering Knuckle: Components

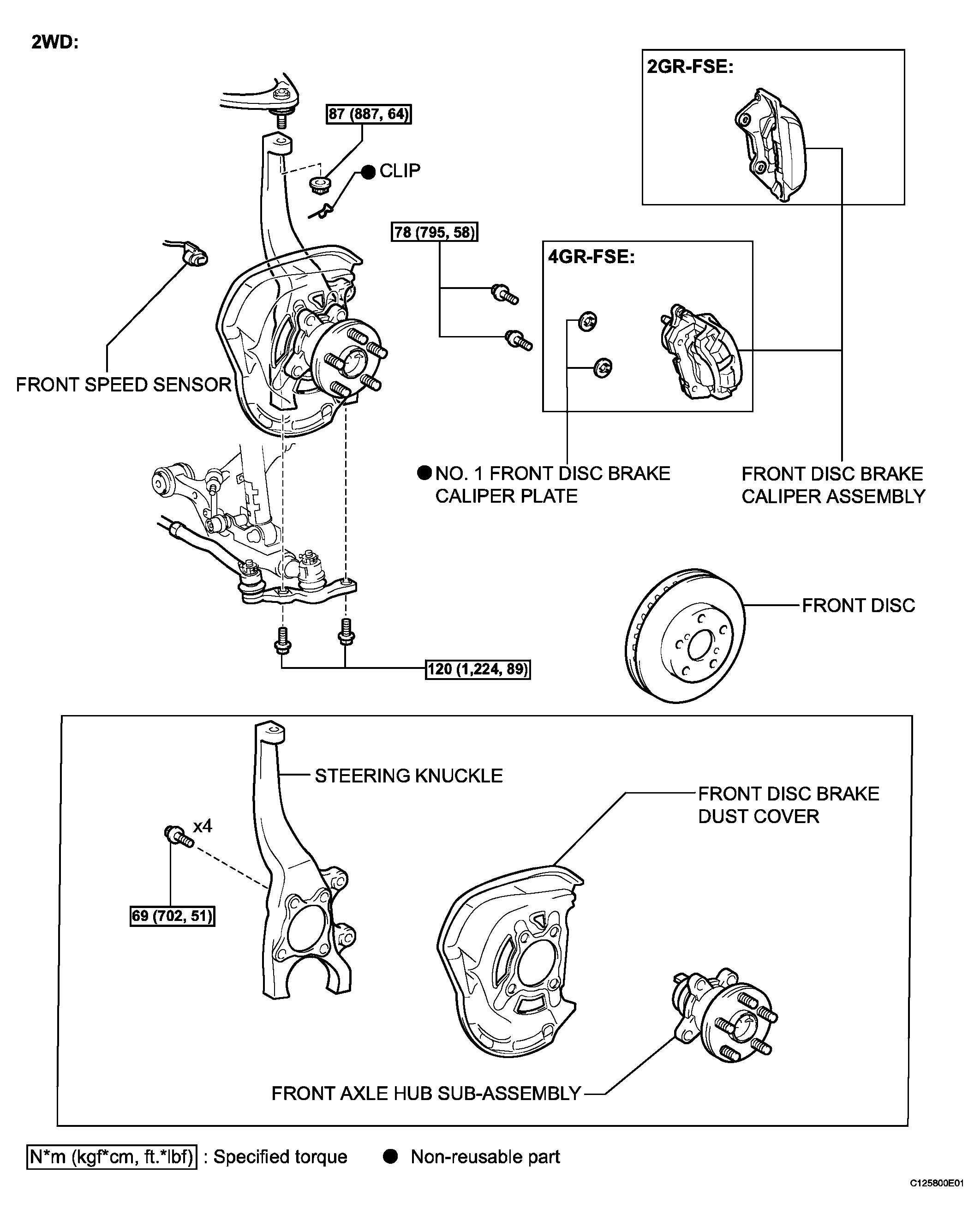

Fig 1: Steering Knuckle Replacement Components With Torque Specifications (2WD)
G04053721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

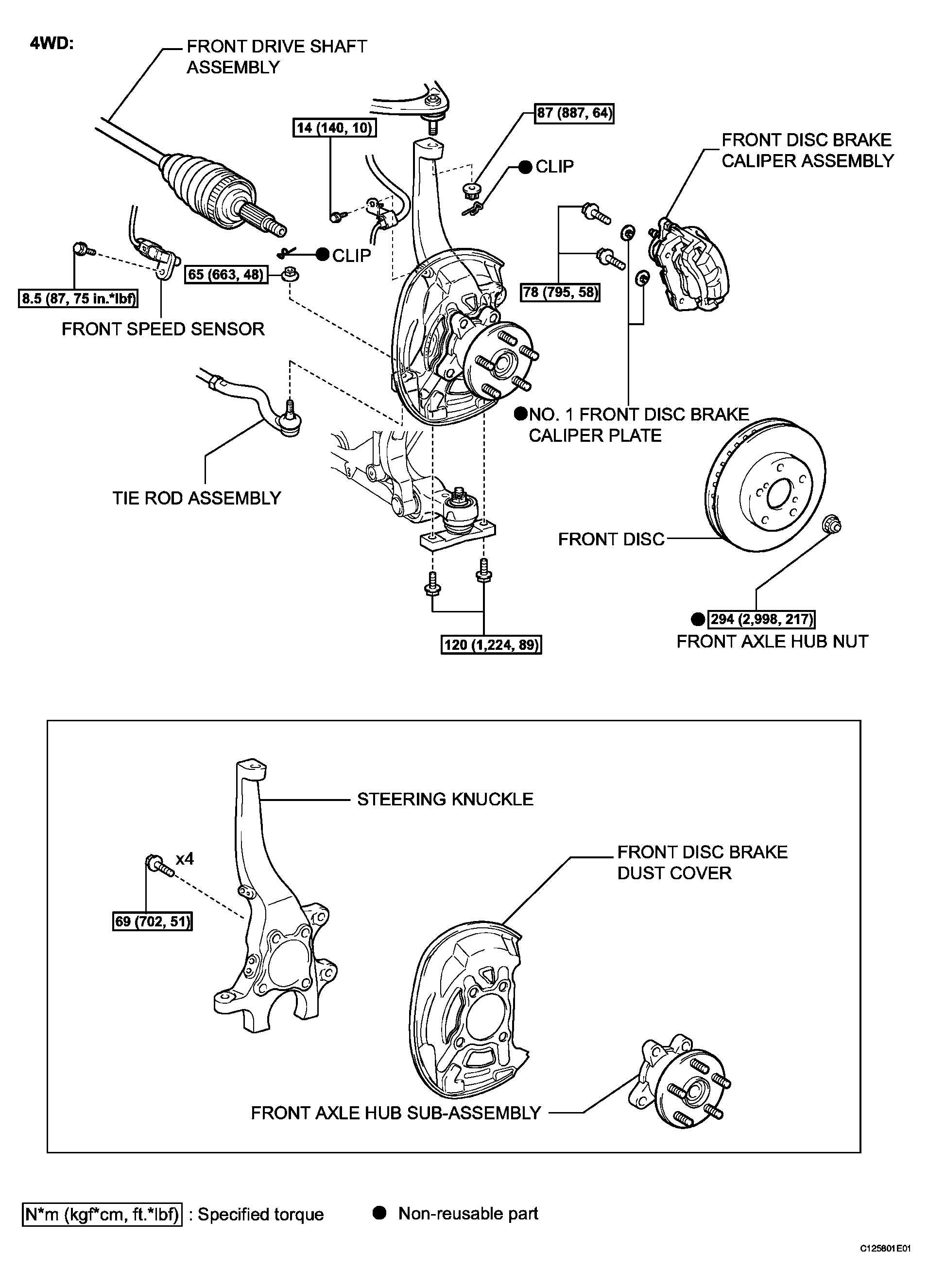

Fig 2: Steering Knuckle Replacement Components With Torque Specifications (4WD)
G04053722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
