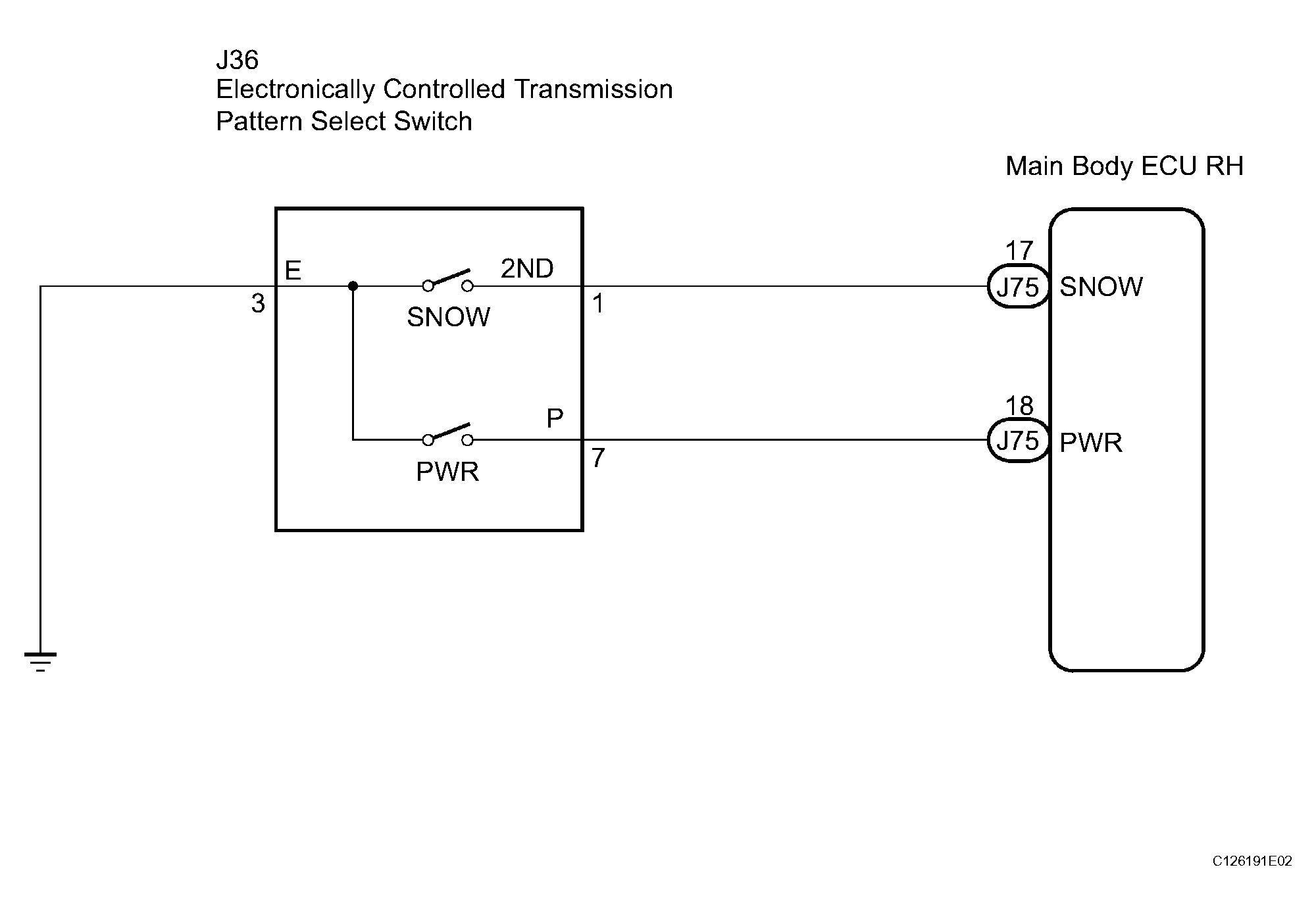

Pattern Select Switch Power Mode Circuit: Wiring Diagram

1. Disconnect the connector of pattern select switch.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   3 - Body ground	Below 1 Ω

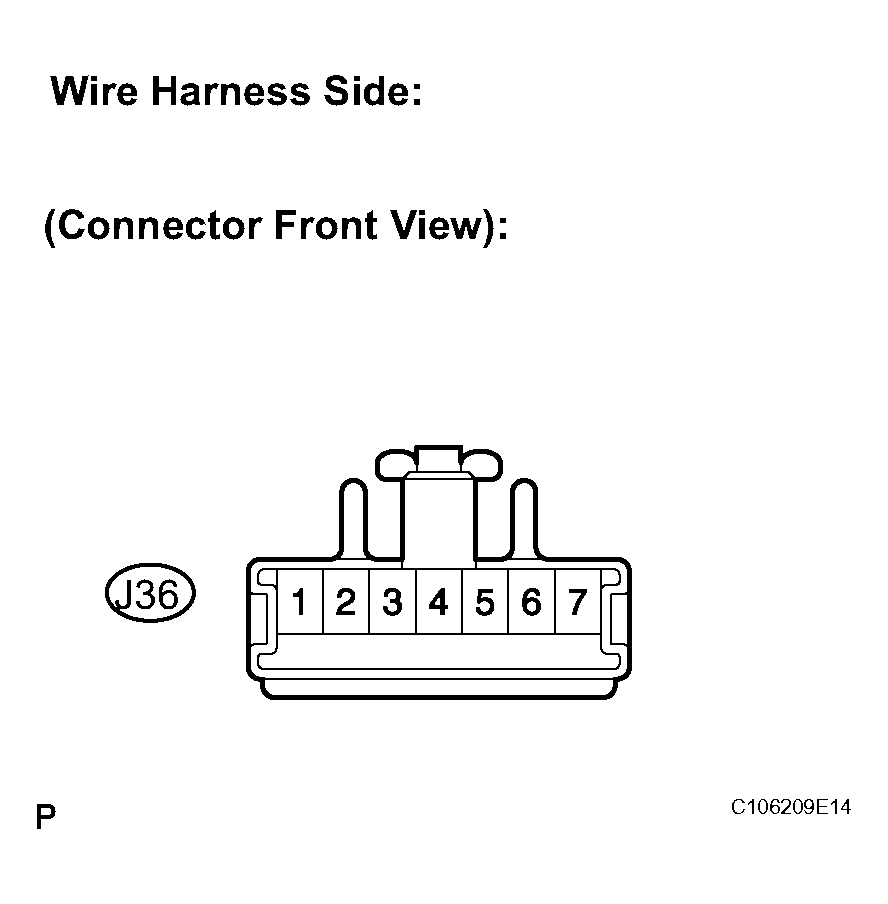

   Fig 2: Checking Pattern Select Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	3 - 7	Below 1 Ω
   Pattern select switch (NORM)		10 kΩ or higher

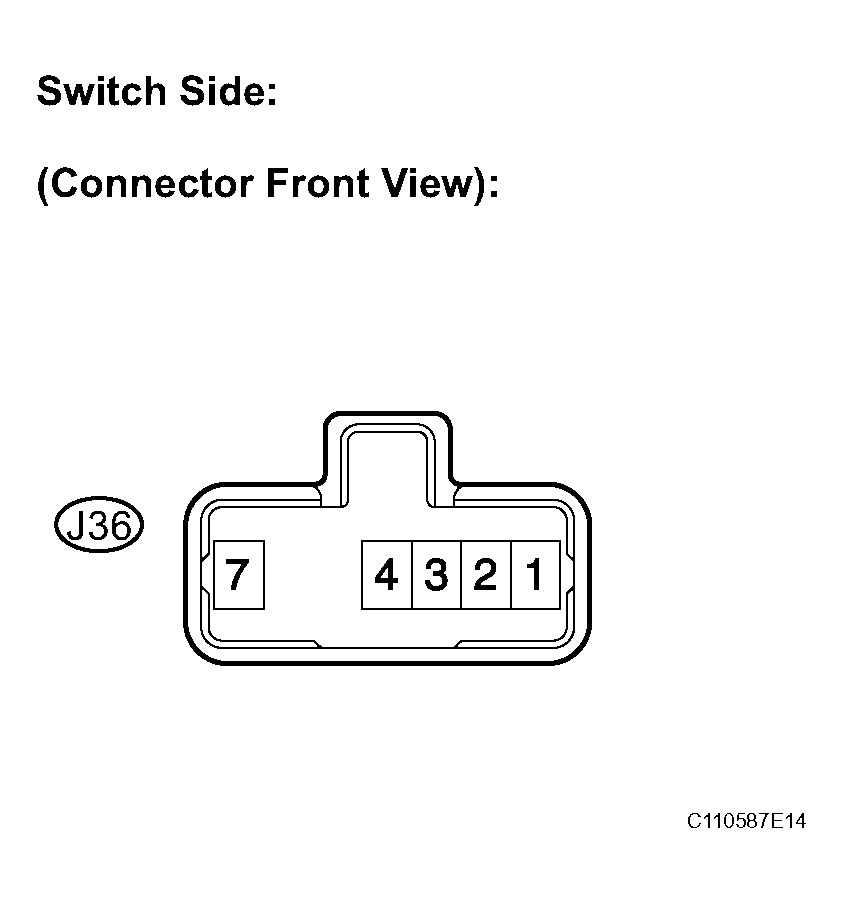

   Fig 3: Identifying Pattern Select Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE PATTERN SELECT SWITCH ASSEMBLY

OK : GO TO NEXT STEP

1. Connect the connector of pattern select switch.
2. Disconnect the cowl side junction block (main body ECU RH) connector.
3. Measure the resistance between terminal PWR of the cowl side junction block (main body ECU RH) and body ground.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	J75 - 18 (PWR) - Body ground	Below 1 Ω
   Pattern select switch (NORM)		10 kΩ or higher

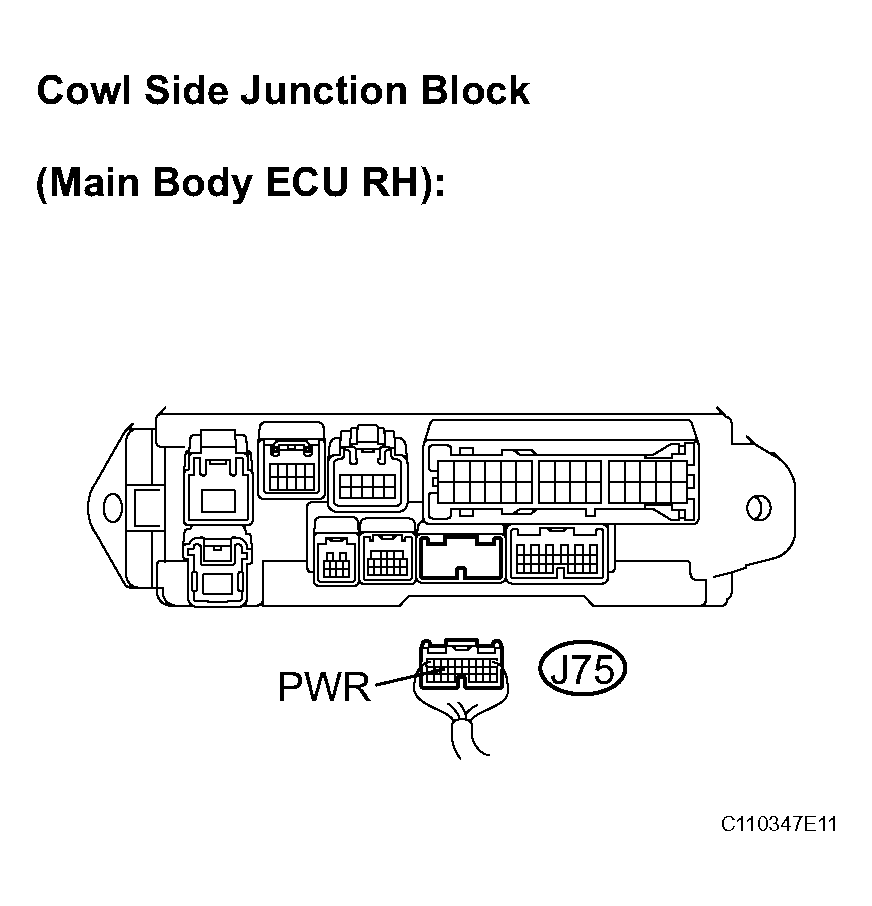

   Fig 4: Identifying Cowl Side Junction Block (Main Body ECU RH) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
