Terminals Of ECM

ECM

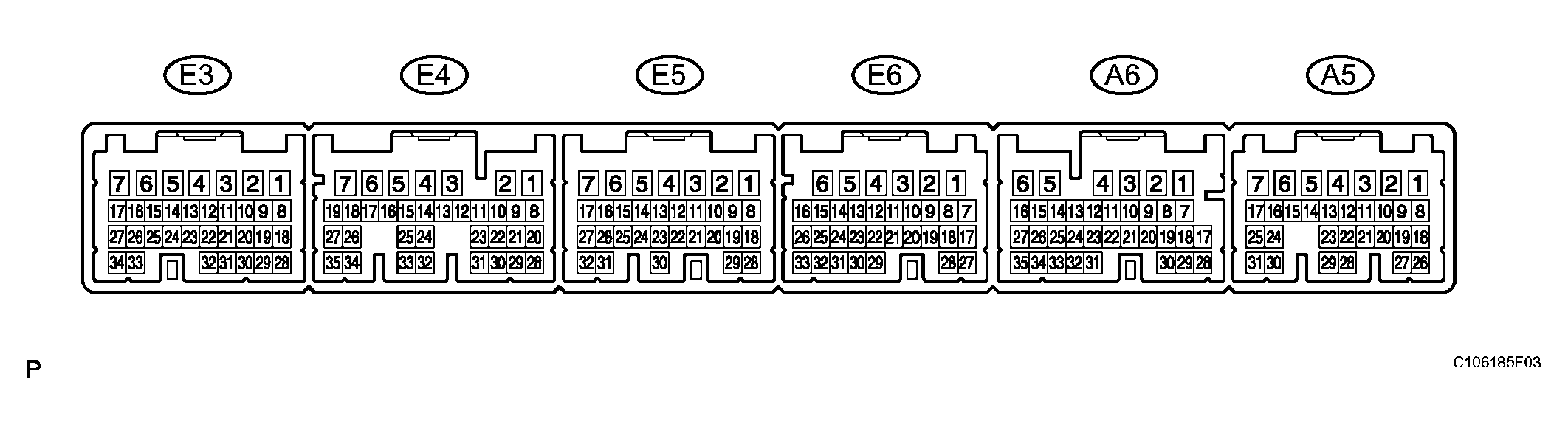

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

Use the illustration above as a reference for the ECM terminals.

ECM TERMINALS REFERENCE

Symbols (Terminals No.)	Wiring Color	Terminal Description	Condition	Specified Condition
D (E4-9) - E1 (E4-7)	R-W - BR	D shift position switch signal	Engine switch on (IG) and shift lever D and S position	10 to 14 V
			Engine switch on (IG) and shift lever except D and S position	Below 1 V
R (E4-8) - E1 (E4-7)	V - BR	R shift position switch signal	Engine switch on (IG) and shift lever R position	10 to 14 V
			Engine switch on (IG) and shift lever except R position	Below 1 V
STP (A6-4) - E1 (E4-7)	R-B - BR	Stop light switch signal	Brake pedal is depressed	7.5 to 14 V
			Brake pedal is released	Below 1.5 V
SFTD (A6-19) - E1 (E4-7)	O - BR	Down shift switch signal	Engine switch on (IG) and shift lever S position	10 to 14 V
			Engine switch on (IG) and shift lever "-" position (Down shift)	Below 1 V
SFTU (A6-30) - E1 (E4-7)	Y - BR	Up shift switch signal	Engine switch on (IG) and shift lever S position	10 to 14 V
			Engine switch on (IG) and shift lever "+" position (Up shift)	Below 1 V
S (A6-9) - E1 (E4-7)	W-G - BR	S shift position switch signal	Engine switch on (IG) and shift lever S position	10 to 14 V
			Engine switch on (IG) and shift lever except S position	Below 1 V
P (E4-6) - E1 (E4-7)	W - BR	Park position switch signal	Engine switch on (IG) and shift lever P position	10 to 14 V
			Engine switch on (IG) and shift lever except P position	Below 1 V
N (E4-32) - E1 (E4-7)	G-R - BR	Neutral position switch signal	Engine switch on (IG) and shift lever N position	10 to 14 V
			Engine switch on (IG) and shift lever except N position	Below 1 V
STAR (E4-4) - E1 (E4-7)	L-Y - BR	Park neutral switch signal	Engine switch on (IG) and shift lever P and N position	Below 1 V
			Engine switch on (IG) and shift lever except P and N position	10 to 14 V
SLU+ (E4-13) - SLU- (E4-12)	L-Y - L-R	SLU solenoid signal	5th (lock-up) or 6th (lockup) gear	Pulse generation (See WAVEFORM 2 )
SR (E4-2) - E1 (E4-7)	G-W - BR	SR solenoid signal	1st, 2nd, 3rd or 4th gear	10 to 14 V
			5th or 6th gear	Below 1 V
S4 (E4-16) - E1 (E4-7)	G-R - BR	S4 solenoid signal	5th or 6th gear	10 to 14 V
			1st, 2nd, 3rd or 4th gear	Below 1 V
S3 (E4-17) - E1 (E4-7)	G - BR	S3 solenoid signal	1st, 2nd or 3rd gear	10 to 14 V
			4th, 5th or 6th gear	Below 1 V
S2 (E4-18) - E1 (E4-7)	W - BR	S2 solenoid signal	1st, 2nd or 6th gear	10 to 14 V
			3rd, 4th or 5th gear	Below 1 V
S1 (E4-19) - E1 (E4-7)	R - BR	S1 solenoid signal	1st gear	Below 1 V
			Except 1st gear	10 to 14 V
SL2+ (E4-11) - SL2- (E4-10)	L-W - B-W	SL2 solenoid signal	Engine idle speed Pulse generation	(See WAVEFORM 3 )
SL1+ (E4-25) - SL1- (E4-24)	Y - L	SL1 solenoid signal	5th or 6th gear	Pulse generation (See WAVEFORM 4 )
SP2+ (E4-23) - SP2- (E4-22)	L - Y	Speed sensor (SP2) signal	Vehicle speed 20 km/h (12 mph)	Pulse generation (See WAVEFORM 6 )
NT+ (E4-21) - NT- (E4-20)	R - G	Speed sensor (NT) signal	Engine idle speed	Pulse generation (See WAVEFORM 5 )
SLT+ (E4-35) - SLT- (E4-34)	B - G-B	SLT solenoid signal	Engine idle speed	Pulse generation (See WAVEFORM 1 )
OIL (E4-27) - EOIL (E4-26)	G-Y - BR	ATF temperature sensor signal	ATF temperature: 115°C (239°F) or more	Below 1.5 V

Waveform 1

Reference:

WAVEFORM REFERENCE

Terminal	SLT+ - SLT-
Tool setting	5 V/DIV., 1 ms./DIV.
Vehicle condition	Engine idle speed

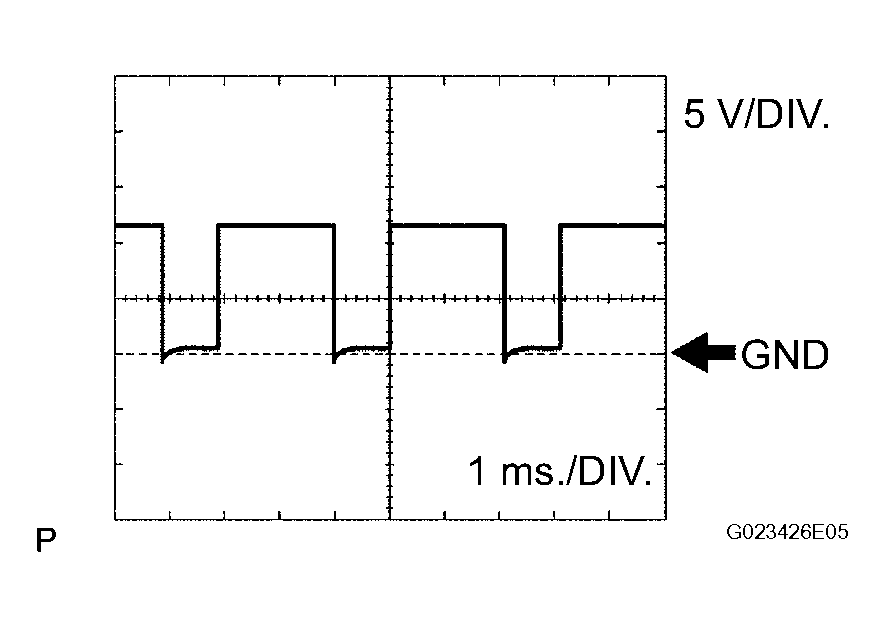

Fig 2: Identifying Oscilloscope Voltage Waveform Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Waveform 2

Reference:

WAVEFORM REFERENCE

Terminal	SLU+ - SLU-
Tool setting	5 V/DIV., 1 ms./DIV.
Vehicle condition	5th (lock-up) or 6th (lock-up) gear

Fig 3: Identifying Oscilloscope Voltage Waveform Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Waveform 3

Reference:

WAVEFORM REFERENCE

Terminal	SL2+ - SL2-
Tool setting	5 V/DIV., 1 ms./DIV.
Vehicle condition	Engine idle speed

Fig 4: Identifying Oscilloscope Voltage Waveform Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Waveform 4

Reference:

WAVEFORM REFERENCE

Terminal	SL1+ - SL1-
Tool setting	5 V/DIV., 1 ms./DIV.
Vehicle condition	5th or 6th gear

Fig 5: Identifying Oscilloscope Voltage Waveform Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Waveform 5

Reference:

WAVEFORM REFERENCE

Terminal	NT+ - NT-
Tool setting	1 V/DIV., 2 ms./DIV.
Vehicle condition	Engine idle speed (P or N position)

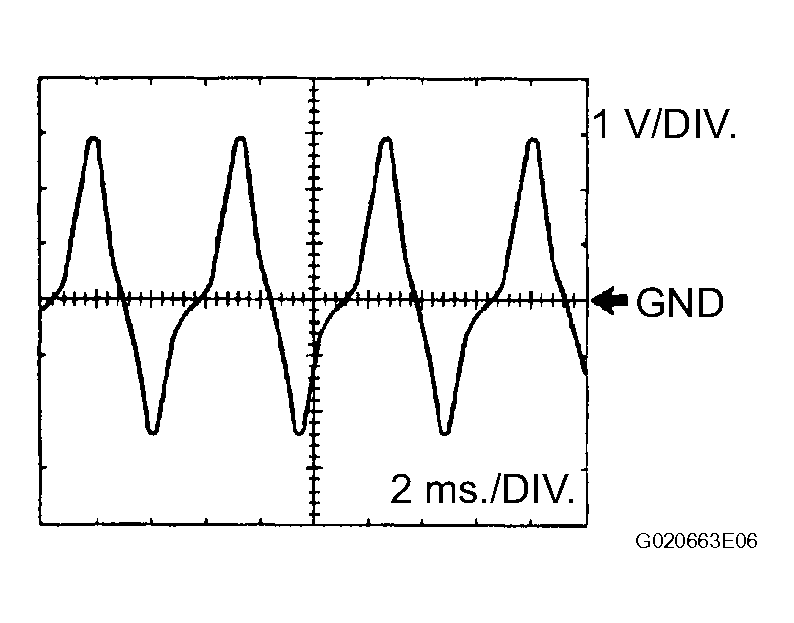

Fig 6: Identifying Waveform 5

Waveform 6

Reference:

WAVEFORM REFERENCE

Terminal	SP2+ - SP2-
Tool setting	2 V/DIV., 20 ms./DIV.
Vehicle condition	Vehicle speed 20 km/h (12 mph)

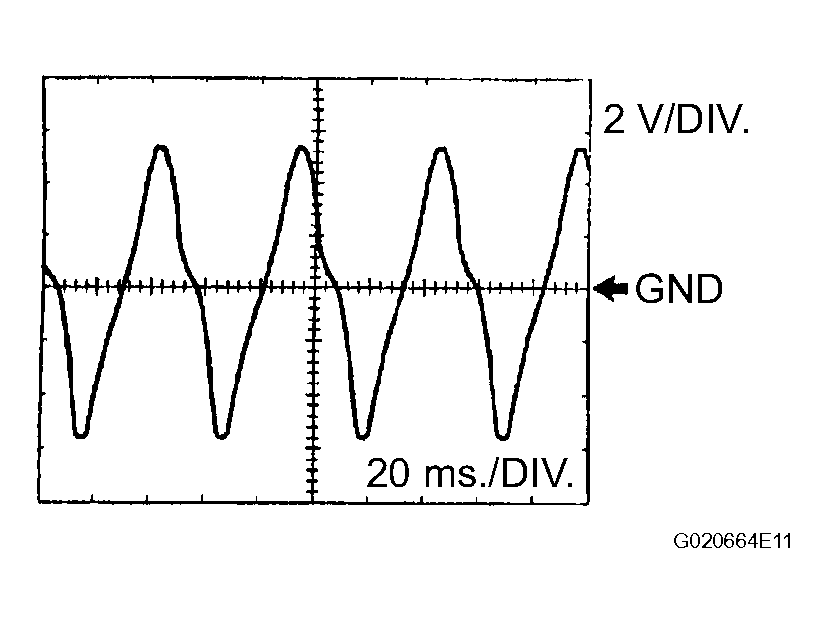

Fig 7: Identifying Waveform 6

Cowl Side J/B ECU (Multiplex network Body ECU)

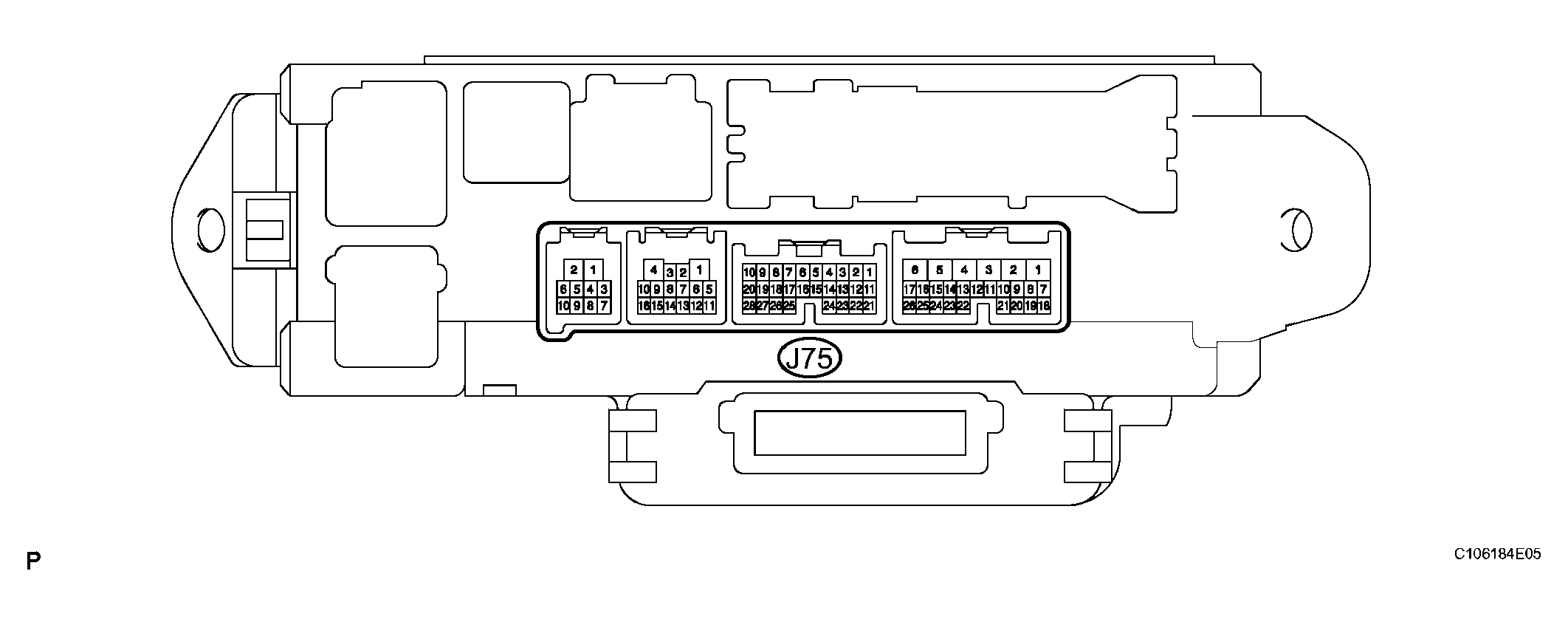

Fig 8: Identifying Cowl Side J/B ECU (Multiplex Network Body ECU)

HINT:

Each ECU terminal's standard voltage is shown in the table below.

Use the illustration above as a reference for the ECU terminals.

ECU TERMINALS REFERENCE

Symbols (Terminals No.)	Wiring Color	Terminal Description	Condition	Specified Condition
PWR (J75-18) - Body ground	P	PWR switch signal	Engine switch on (IG) and Pattern select switch (PWR) ON	0 to 1.5 V
			Engine switch on (IG) and Pattern select switch (PWR) OFF	Pulse generation^*1
SNOW (J75-17) - Body ground	L	SNOW switch signal	Engine switch on (IG) and Press continuously pattern select switch (SNOW) ON	0 to 1.5 V
			Engine switch on (IG) and Release pattern select switch (SNOW) OFF	Pulse generation^*1

HINT:

*1: Voltage is input intermittently as this is an intermittent circuit. (Voltage varies between a peak of 7.5 to 14 V and a low of 0 to1.5 V.)
