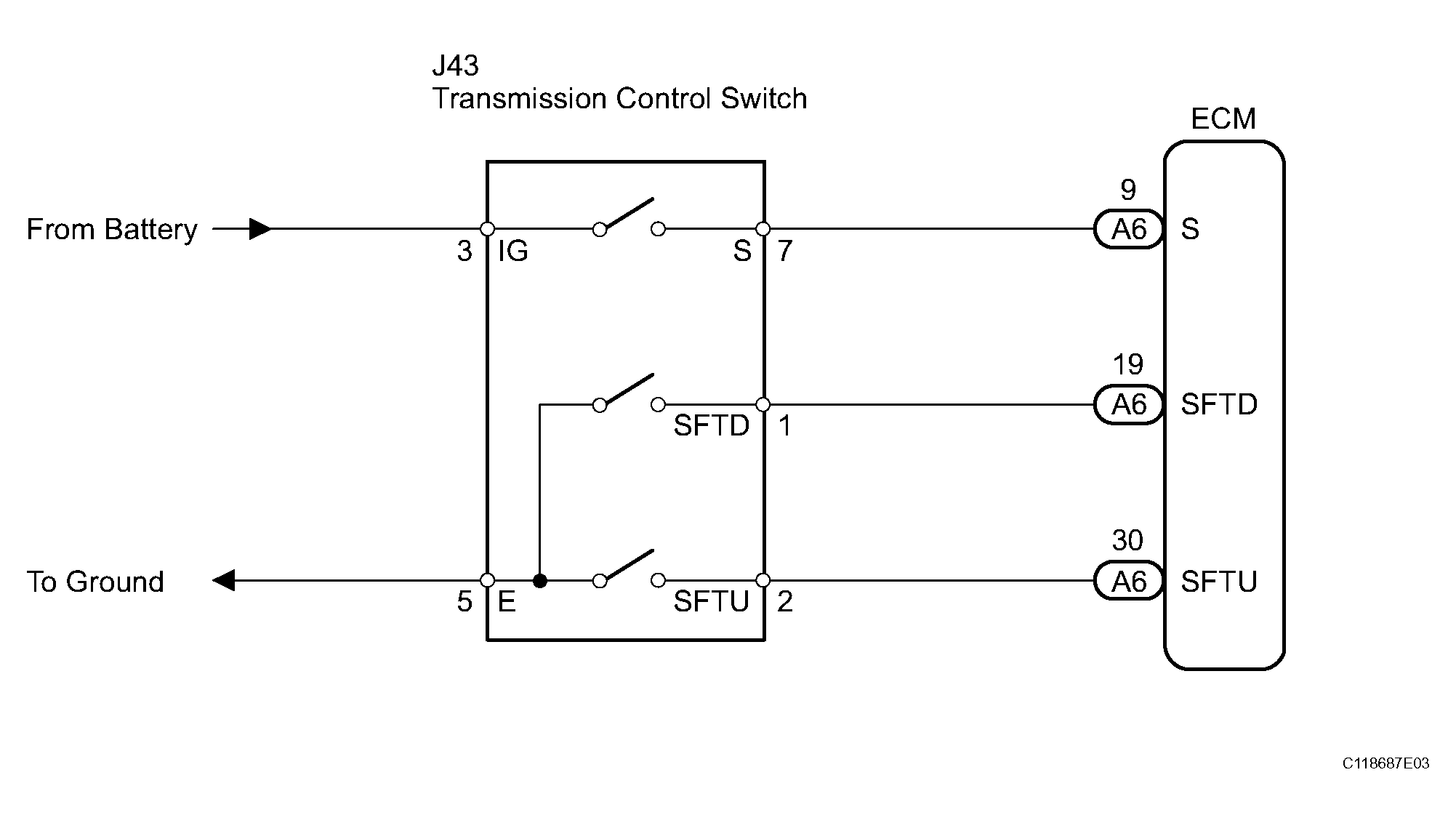

Transmission Control Switch Circuit: Wiring Diagram

1. Disconnect the transmission control switch connector of shift lock control unit assembly.
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Switch Condition	Tester Connection	Specified Condition
   Engine switch on (IG)	3 - Body ground	10 to 14 V
   Engine switch off		Below 1 V

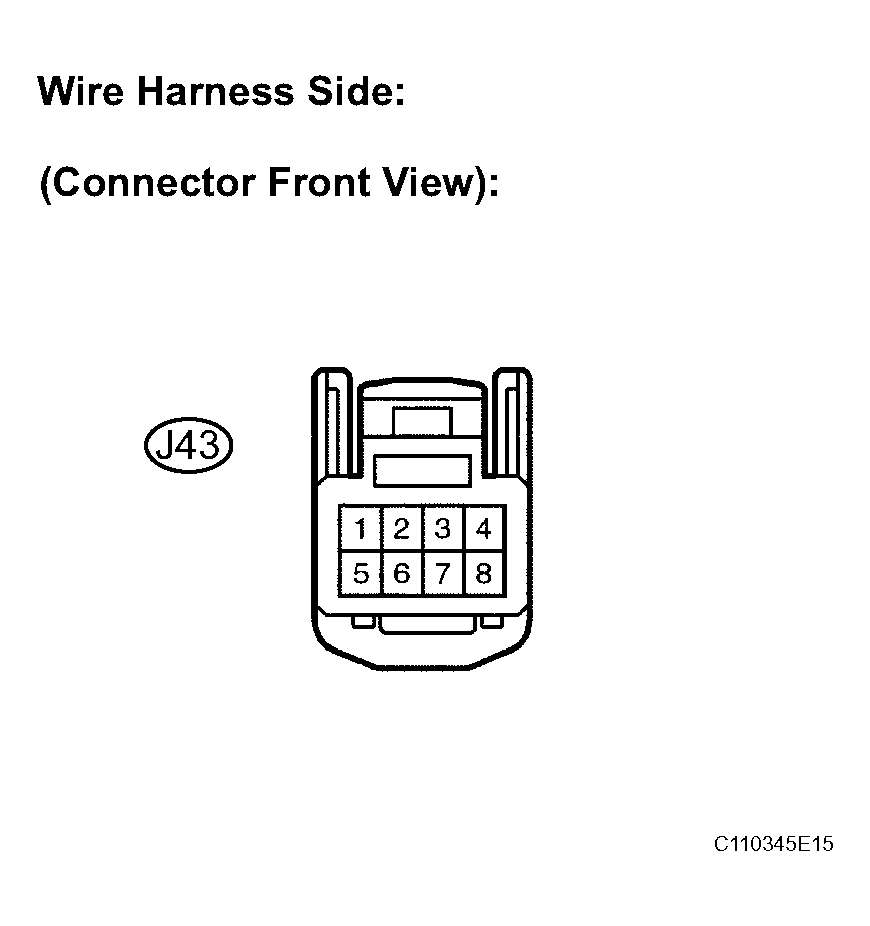

   Fig 2: Identifying Transmission Control Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   5 - Body ground	Below 1 Ω

   Fig 3: Checking Transmission Control Switch - Body Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : GO TO NEXT STEP

1. Measure resistance between each terminal of shift lock control unit assembly when the shift lever is moved to each position.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Shift Position	Tester Connection	Specified Condition
   S, "+" and "-"	3 - 7	Below 1 Ω
   Except S, "+" and "-"		10 kΩ or higher
   Press continuously "+" (Up shift)	2 - 5	Below 1 Ω
   S		10 kΩ or higher
   Press continuously "-" (Down shift)	1 - 5	Below 1 Ω
   S		10 kΩ or higher

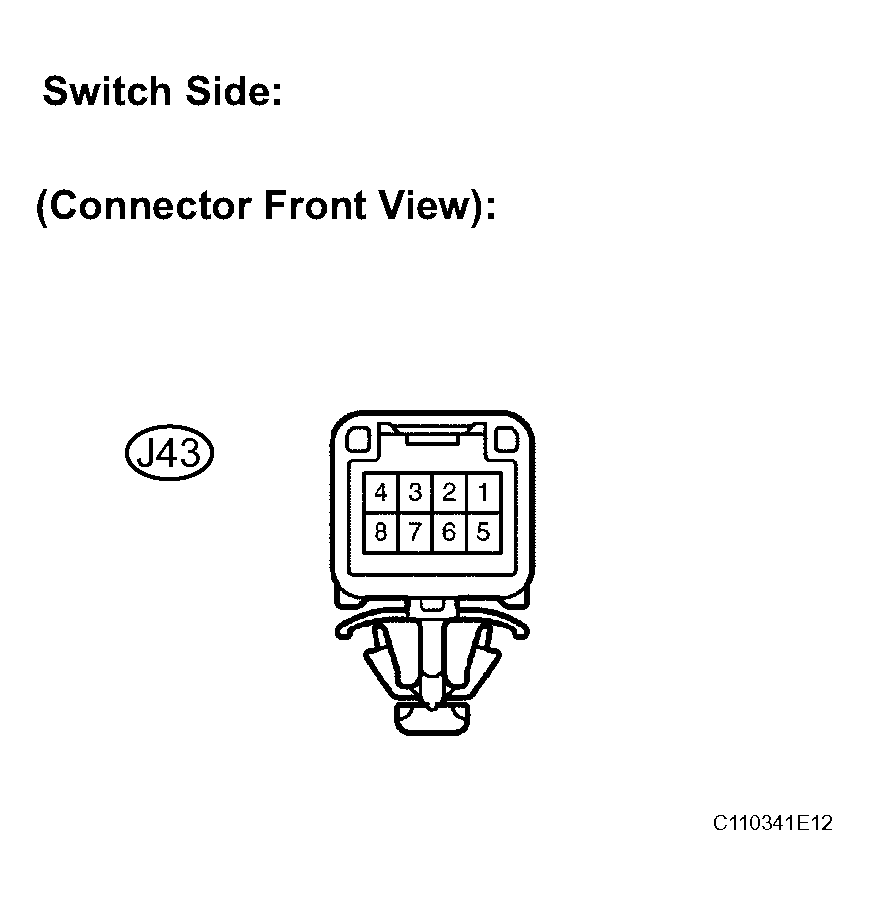

   Fig 4: Inspecting Transmission Control Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE TRANSMISSION CONTROL SWITCH

OK : GO TO NEXT STEP

1. Connect the transmission control switch connector of shift lock control unit assembly.
2. Disconnect the ECM connector.
3. Turn the ignition switch on (IG) position, and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Shift Position	Tester Connection	Specified Condition
   S, "+" and "-"	A6-9 (S) - Body ground	10 to 14 V
   Except S, "+" and "-"		Below 1 V

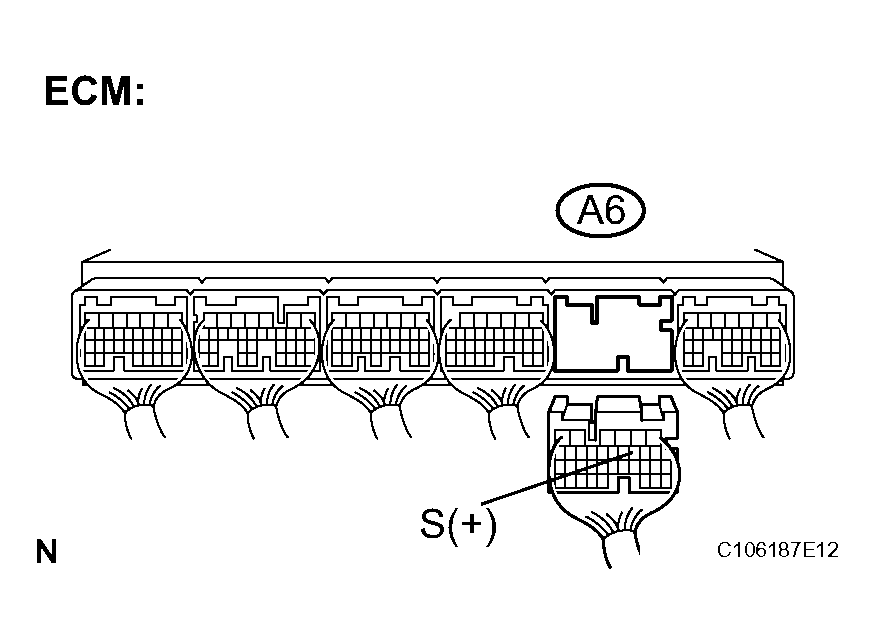

   Fig 5: Identifying ECM A6 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the ignition switch off position.
5. Disconnect the ECM connector.
6. Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Shift Position	Tester Connection	Specified Condition
   Press continuously "+" (Up shift)	A6-30 (SFTU) - Body ground	Below 1 Ω
   S		10 kΩ or higher
   Press continuously "-" (Down shift)	A6-19 (SFTD) - Body ground	Below 1 Ω
   S		10 kΩ or higher

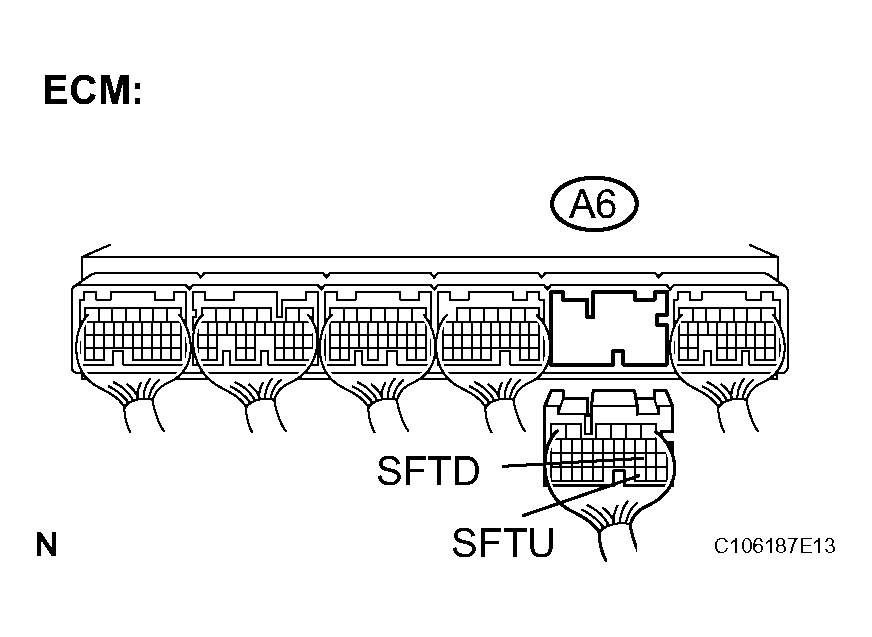

   Fig 6: Identifying ECM A6 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
