Oil Pump: Disassembly

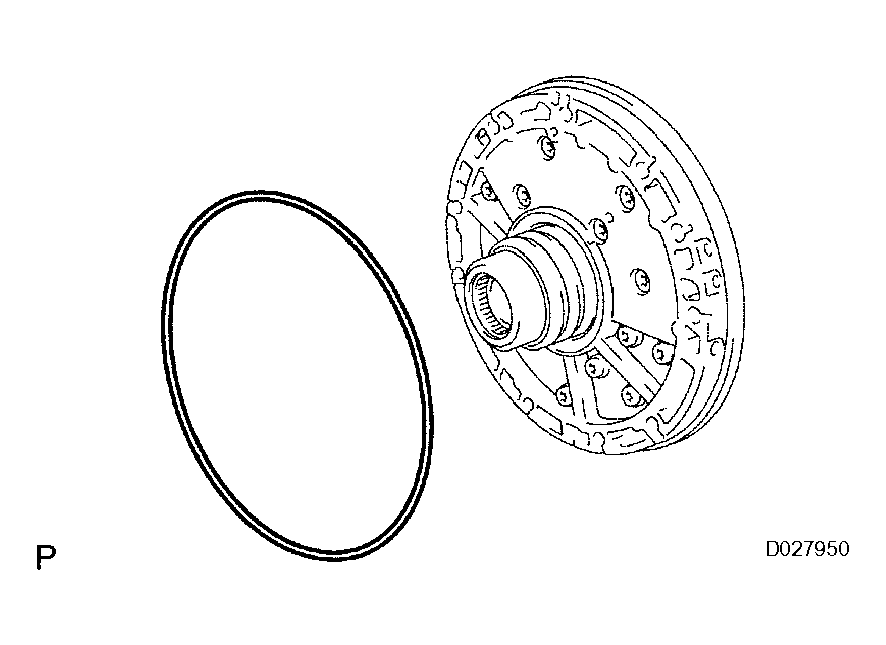

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump assembly.

  Fig 1: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

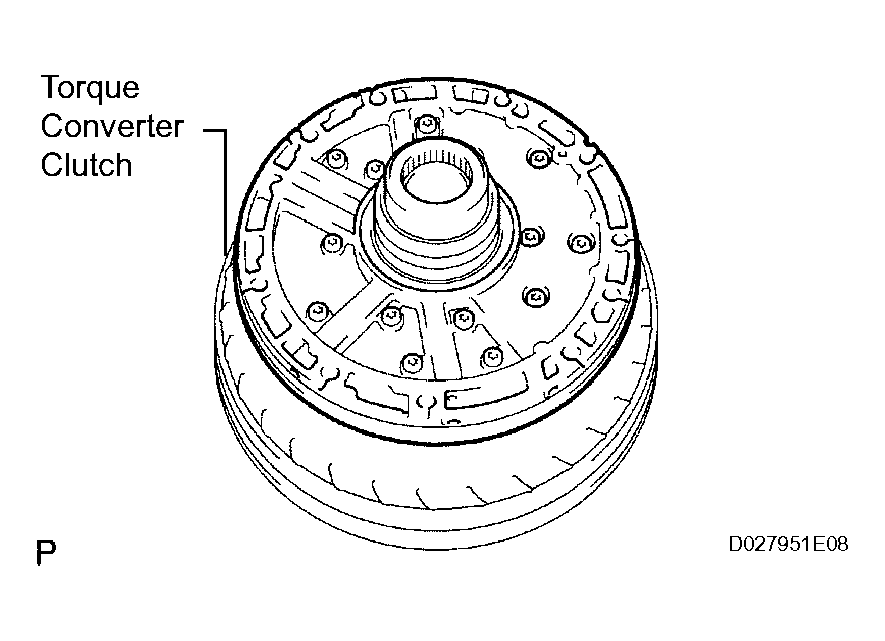

FIX OIL PUMP ASSEMBLY
1. Place the oil pump body on the torque converter clutch.

  Fig 2: Placing Oil Pump Body On Torque Converter Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

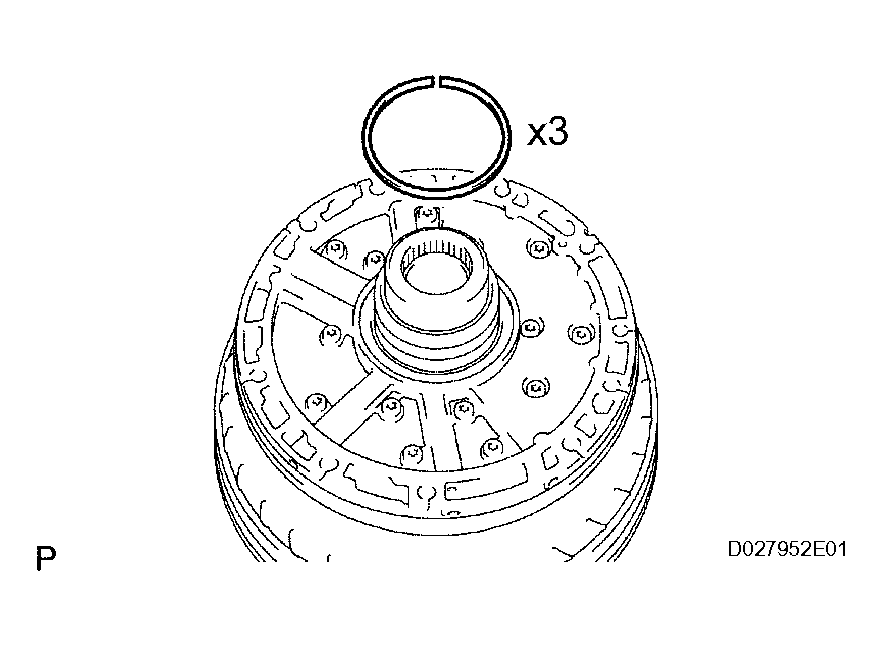

REMOVE CLUTCH DRUM OIL SEAL RING
1. Remove the 3 oil seal rings.

  Fig 3: Identifying Oil Seal Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

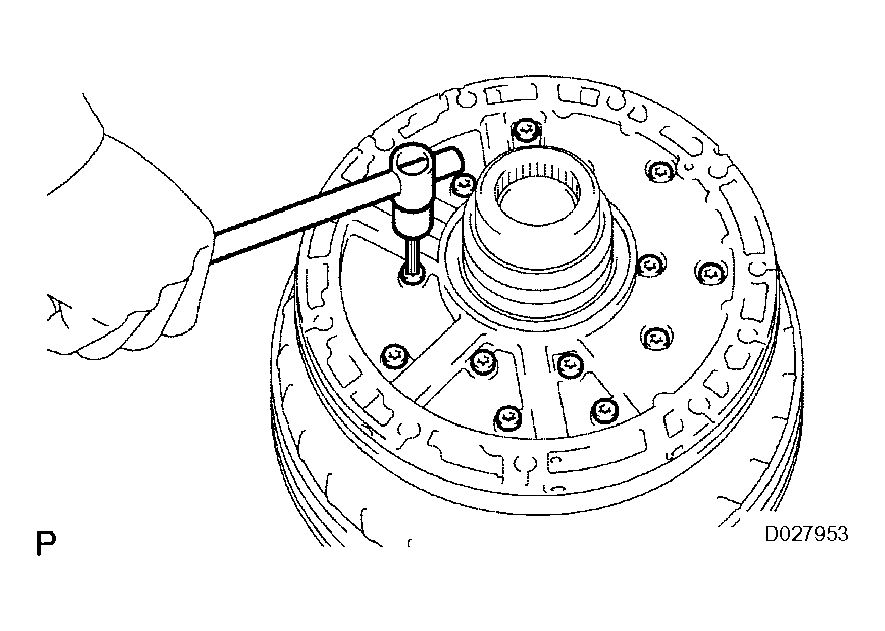

REMOVE STATOR SHAFT ASSEMBLY
1. Remove the 14 hexagon bolts and the stator shaft from the oil pump body.

  Fig 4: Identifying Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

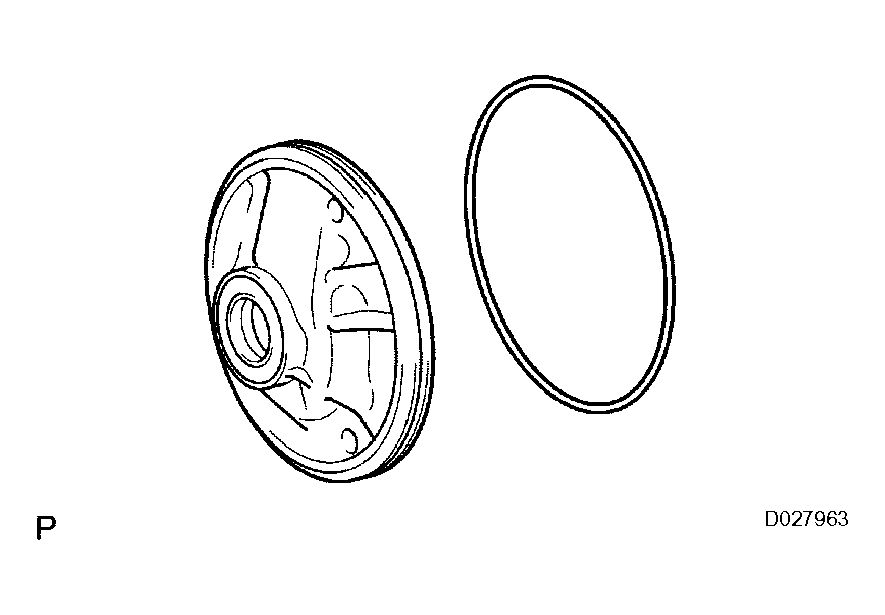

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump body.
2. Remove the oil pump body from the torque converter clutch.

  Fig 5: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY (See INSPECTION )
INSPECT STATOR SHAFT ASSEMBLY (See INSPECTION )
INSPECT CLEARANCE OF OIL PUMP ASSEMBLY (See INSPECTION )

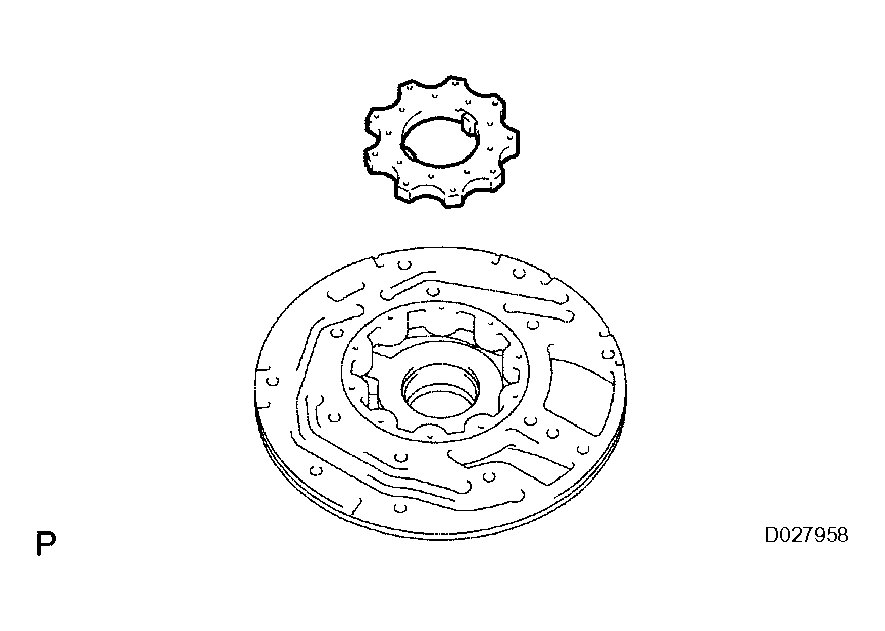

REMOVE FRONT OIL PUMP DRIVE GEAR
1. Remove the front oil pump drive gear.

  Fig 6: Identifying Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

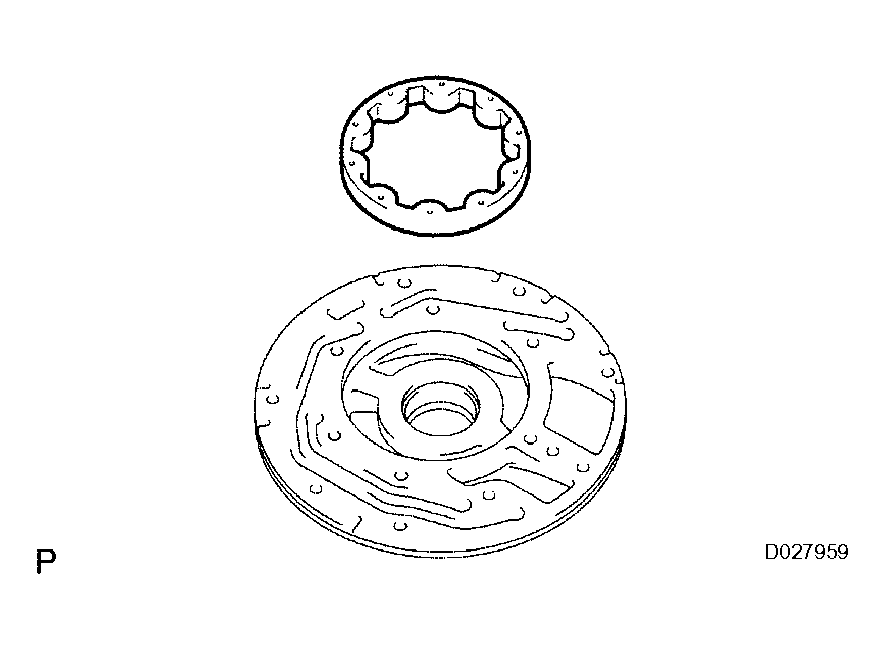

REMOVE FRONT OIL PUMP DRIVEN GEAR
1. Remove the front oil pump driven gear.

  Fig 7: Identifying Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

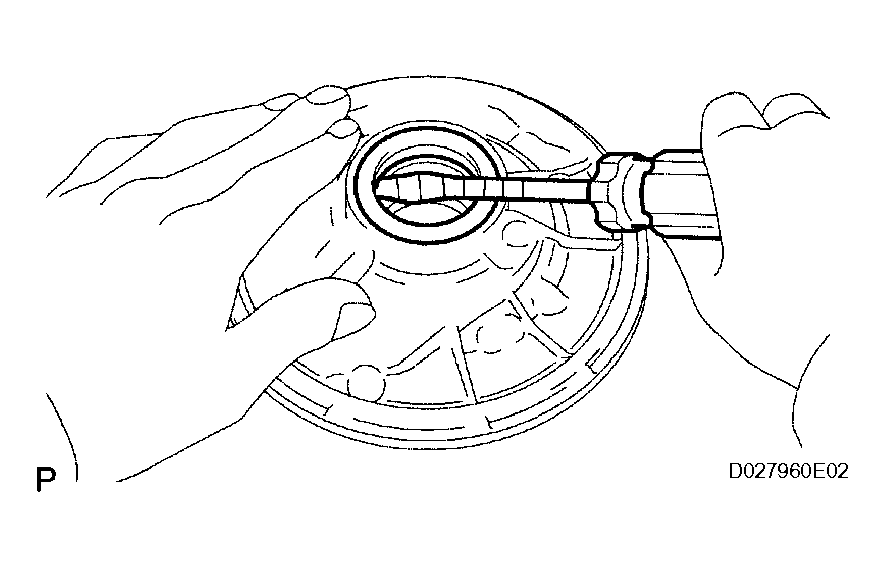

REMOVE FRONT OIL PUMP OIL SEAL
1. Using a screwdriver with its tip wrapped with tape, remove the oil seal.
  NOTE: Be careful not to damage the bushing and the oil pump body.

  Fig 8: Identifying Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
