Oil Pump: Reassembly

INSTALL FRONT OIL PUMP OIL SEAL

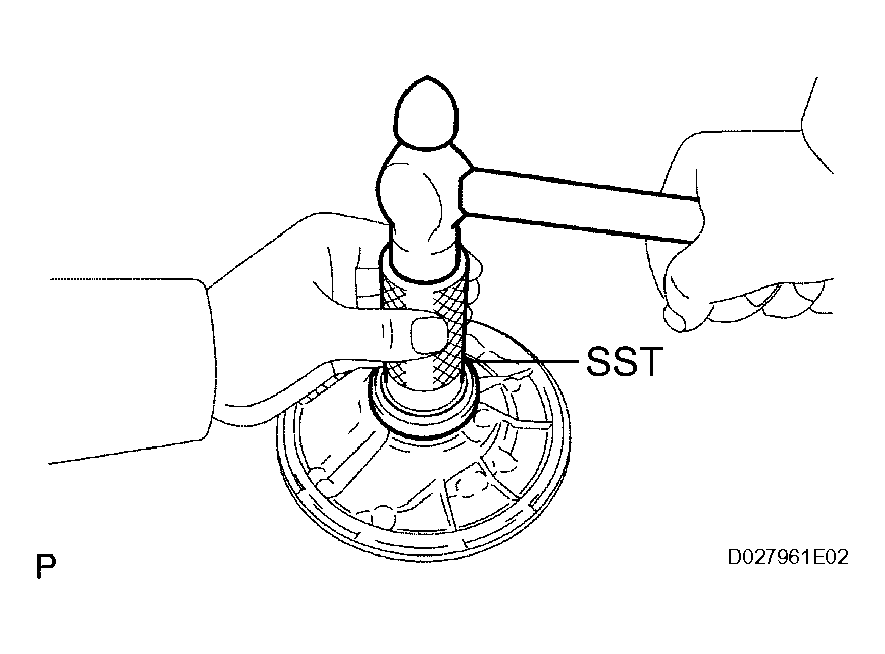

1. Using SST and a hammer, install a new oil seal.
  SST 09350-30020 (09351-32140)

  Fig 1: Identifying Front Oil Pump Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The oil seal end should be flush with the outer edge of the pump body.
2. Coat the oil seal lip with MP grease.
FIX FRONT OIL PUMP BODY SUB-ASSEMBLY
1. Place the oil pump body on the torque converter clutch.
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the driven gear with ATF.
2. Install the driven gear to the oil pump body.

  Fig 2: Identifying Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the drive gear with ATF.
2. Install the drive gear to the oil pump body.

  Fig 3: Identifying Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump body.

  Fig 4: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STATOR SHAFT ASSEMBLY

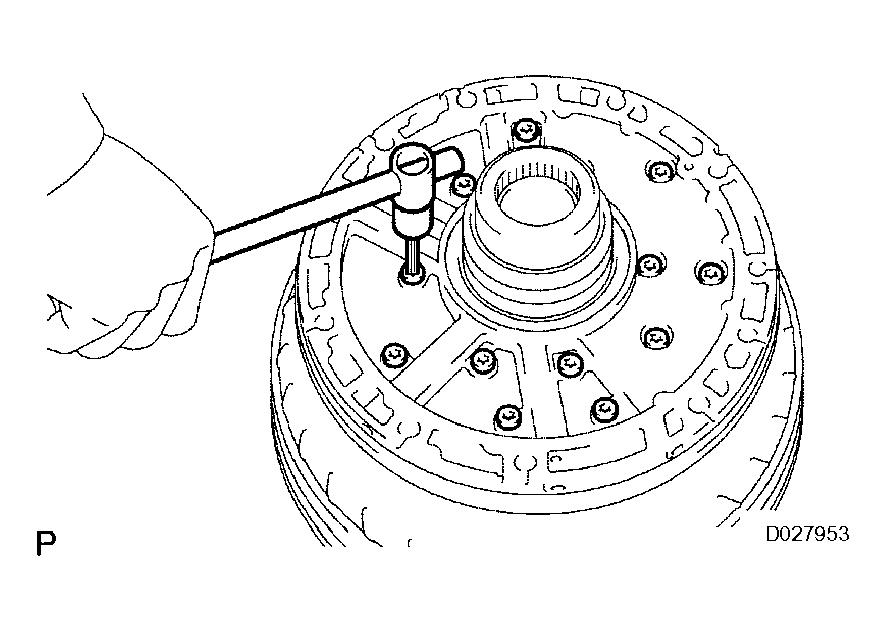

1. Align the stator shaft with each bolt hole.
2. Install the 14 hexagon bolts.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Fig 5: Identifying Stator Shaft Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH DRUM OIL SEAL RING

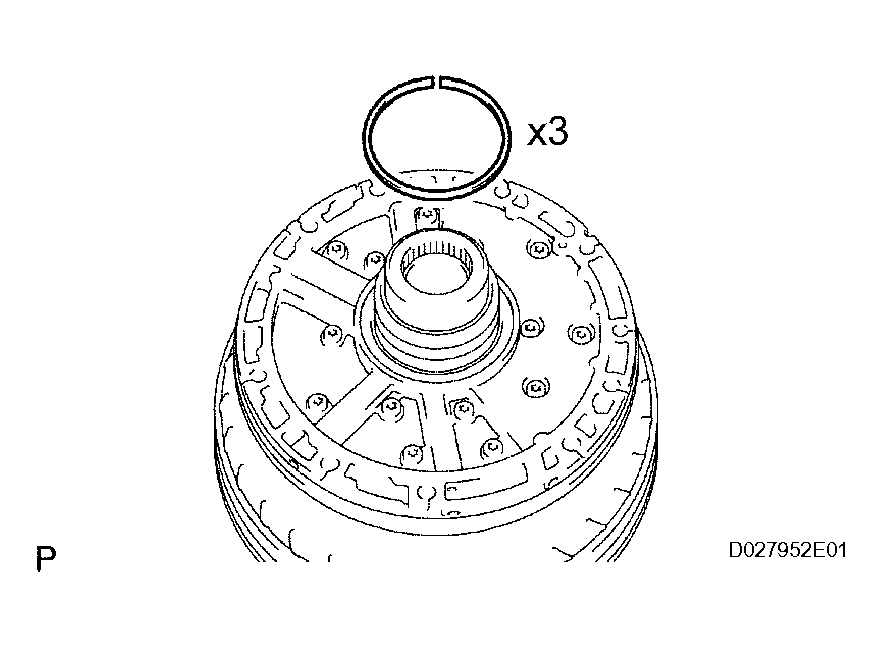

1. Coat 3 new oil seal rings with ATF.
2. Squeeze the ends of the 3 oil seal rings so that the gap distance becomes 8 mm or less, and then install them to the stator shaft groove.
  NOTE: Do not expand the ring ends excessively.

  Fig 6: Identifying Clutch Drum Oil Seal Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  After installing the oil seal rings, check that they rotate smoothly.
INSPECT OIL PUMP DRIVE GEAR ROTATION (See INSPECTION )
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump assembly.

  Fig 7: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
