Park / Neutral Position Switch: Installation

INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Install the park/neutral position switch to the automatic transmission.

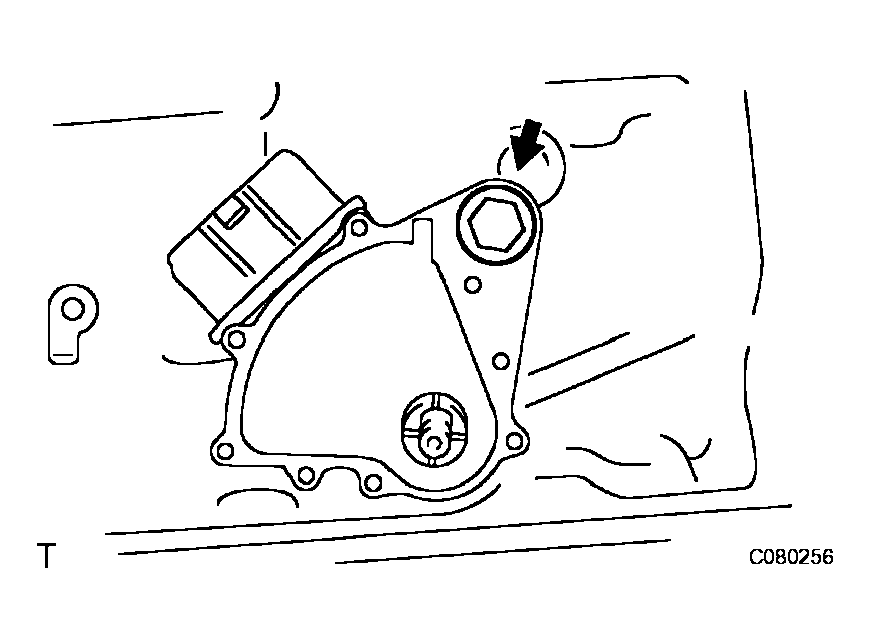

  Fig 1: Identifying Park/Neutral Position Switch Mounting Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Temporarily install the bolt.
3. Install a new lock washer and the nut.
  Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

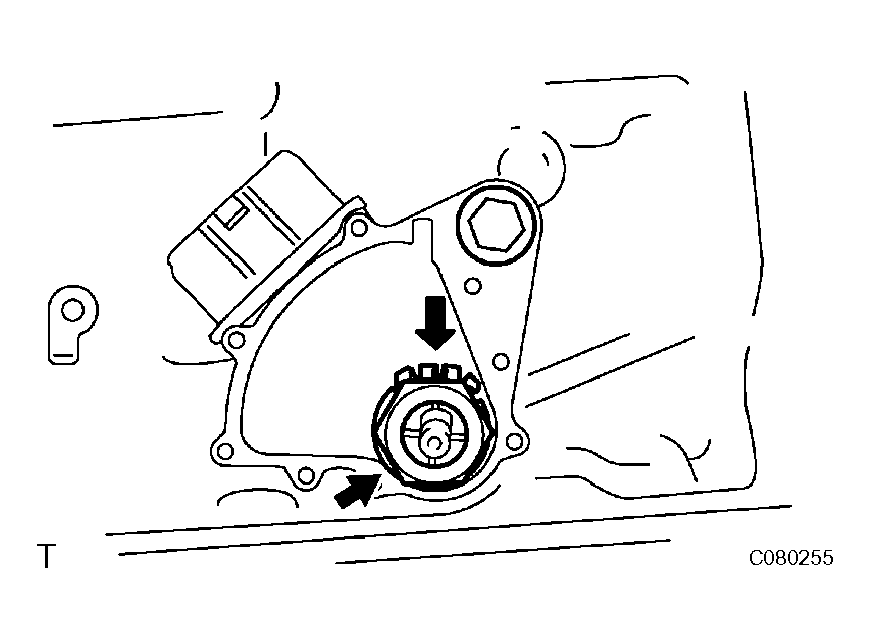

  Fig 2: Identifying Lock Washer And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Temporarily install the control shaft lever.

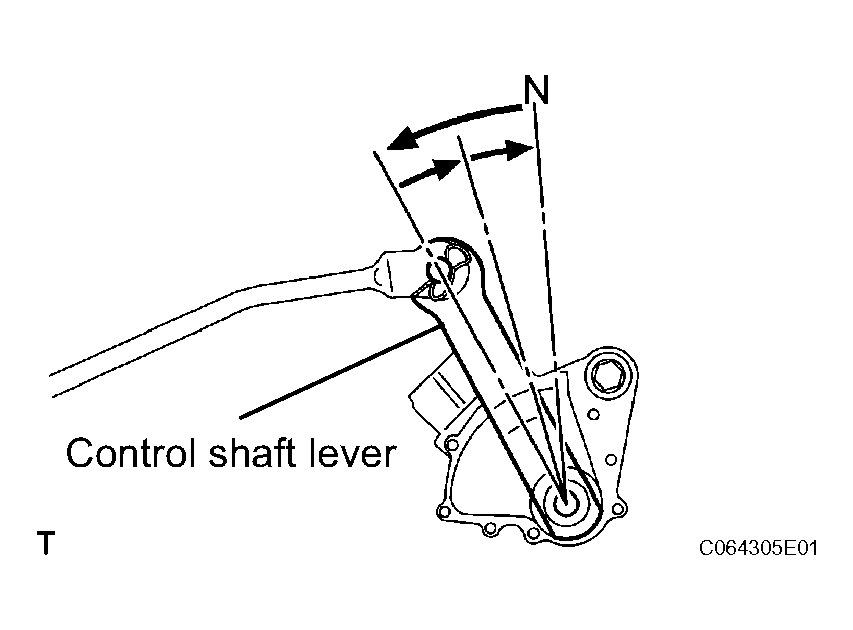

  Fig 3: Identifying Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Turn the control shaft lever counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
6. Remove the transmission control shaft lever.

  Fig 4: Identifying Transmission Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Align the neutral alignment mark line with the switch groove, and tighten the adjusting bolt.
  Torque: 13 N*m (133 kgf*cm, 9 ft.*lbf)

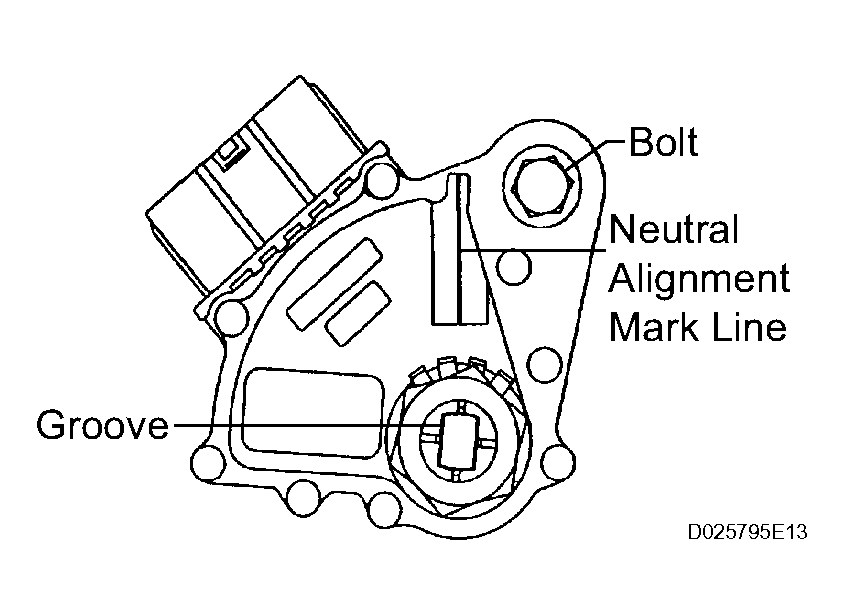

  Fig 5: Aligning Neutral Alignment Mark Line With Switch Groove
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Using a screwdriver, bend the tabs of the lock washer.

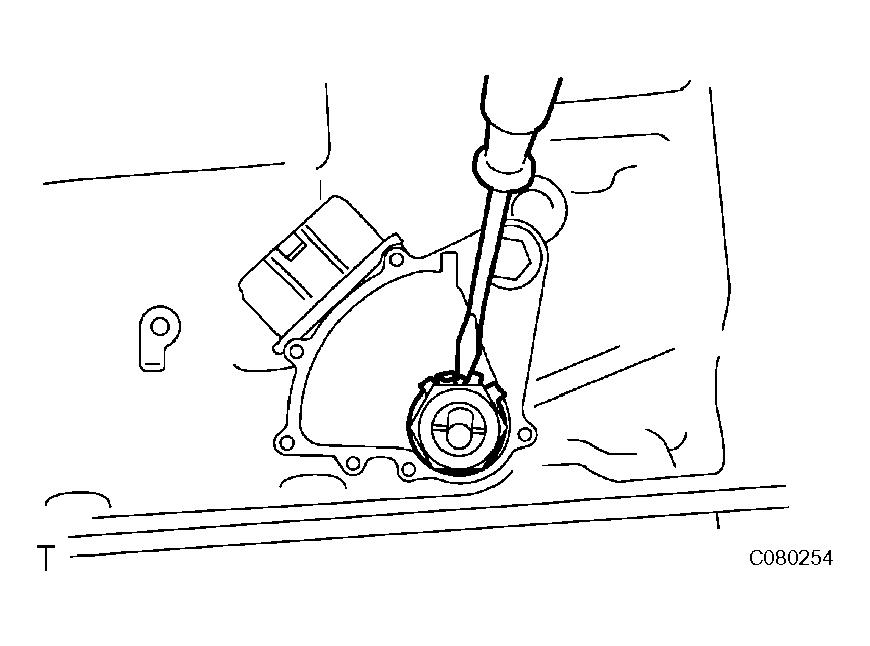

  Fig 6: Bending Tabs Of Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

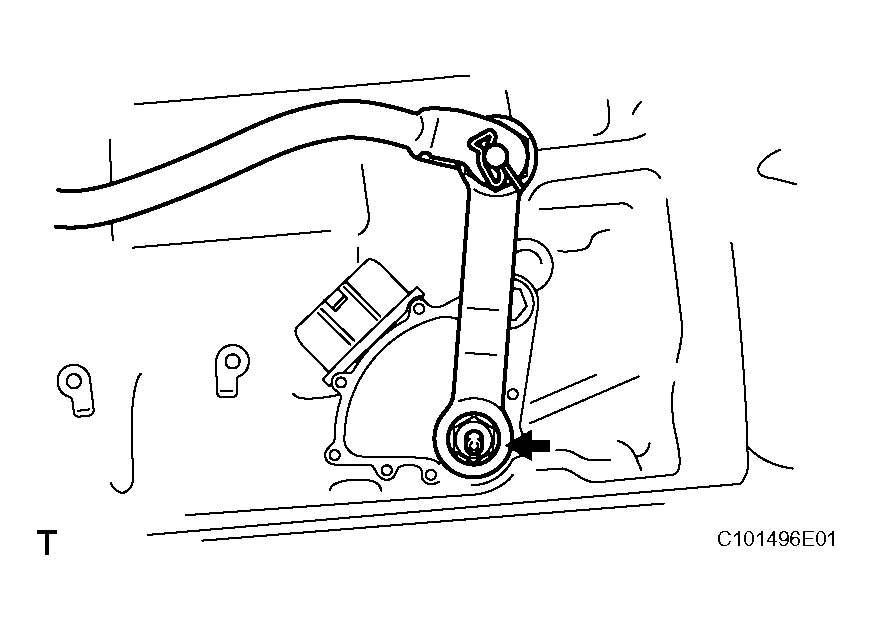

9. Install the transmission control shaft lever RH with the nut.
  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  Fig 7: Identifying Transmission Control Shaft Lever RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Connect the park/neutral position switch connector.
CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (See REMOVAL )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ON-VEHICLE INSPECTION )
ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY (See ADJUSTMENT )

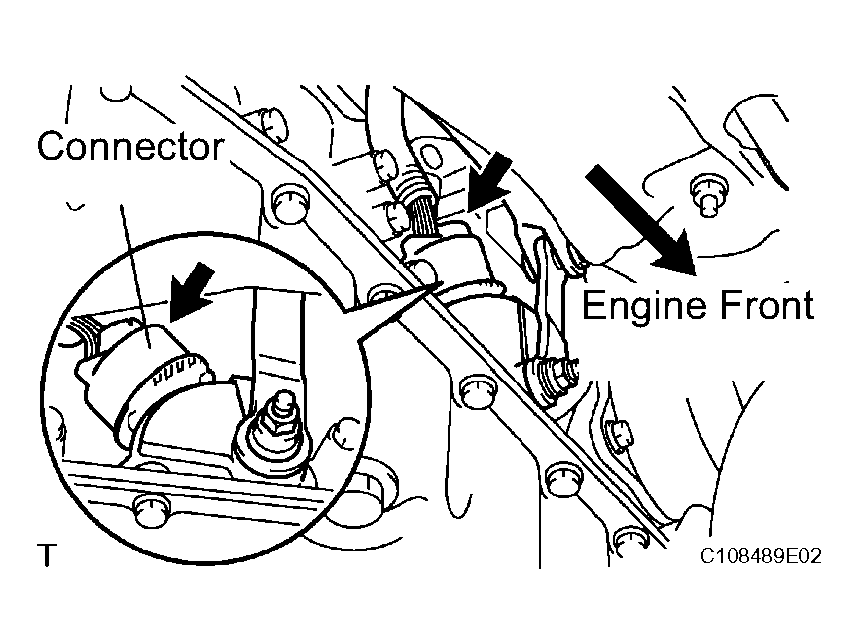

Fig 8: Identifying Park/Neutral Position Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (See PARK / NEUTRAL POSITION SWITCH )
