Shift Lever Assembly: Installation

INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
1. Install the floor shift assembly with the 4 bolts.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
2. Connect the 2 connectors to the floor shift assembly.

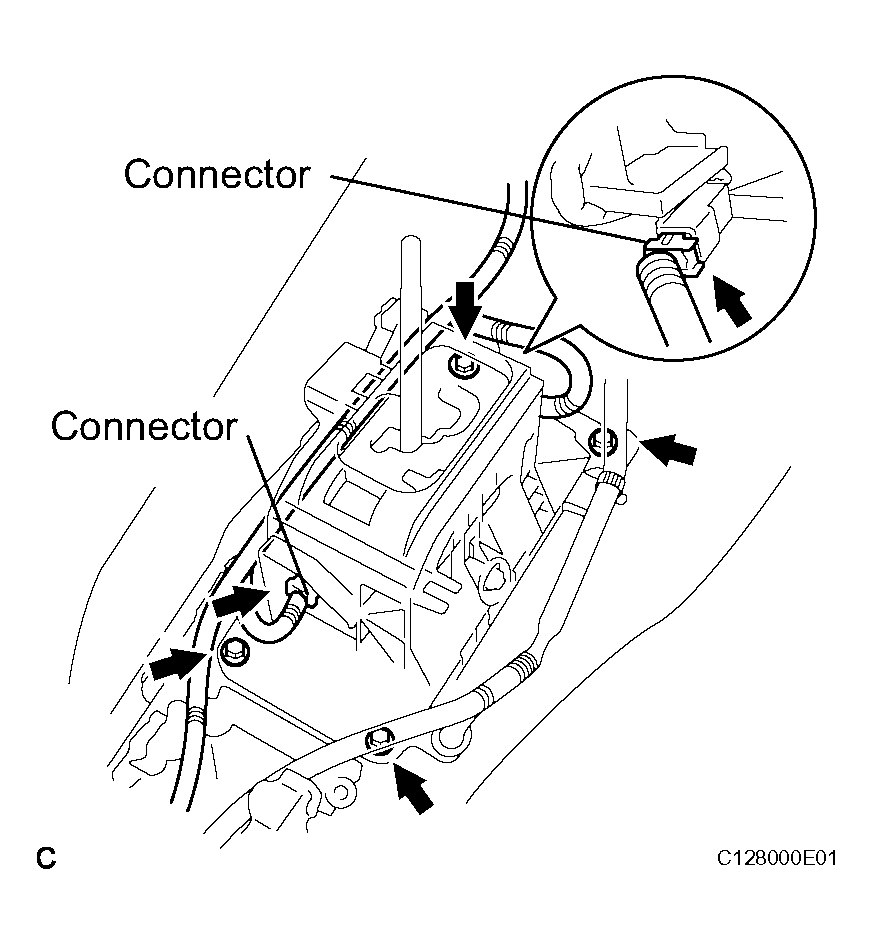

  Fig 1: Identifying Connector And Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY
1. Install the floor shift gear shifting rod sub-assembly with the nut.
  Torque: 13 N*m (133 kgf*cm, 9 ft.*lbf)

  Fig 2: Identifying Floor Shift Gear Shifting Rod Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR (See INSTALLATION )
INSTALL FRONT EXHAUST PIPE ASSEMBLY (See INSTALLATION )
INSTALL OXYGEN SENSOR (See INSTALLATION )
INSTALL FRONT CENTER FLOOR BRACE (See INSTALLATION )
INSTALL NO. 1 REAR FLOOR PANEL BRACE (See INSTALLATION )
INSTALL NO. 2 CONSOLE BOX DUCT (See INSTALLATION )
INSTALL CONSOLE BOX (See INSTALLATION )
INSTALL CONSOLE BOX REGISTER ASSEMBLY (See INSTALLATION )
INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY (See INSTALLATION )
INSTALL CONSOLE PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (See INSTALLATION )
INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ON-VEHICLE INSPECTION )
CHECK FOR EXHAUST GAS LEAKS (See INSTALLATION )
