Shift Lever Assembly: Removal
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL
)
- REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (See REMOVAL
)
- REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (See REMOVAL
)
- REMOVE CONSOLE PANEL SUB-ASSEMBLY (See REMOVAL
)
- REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY (See REMOVAL
)
- REMOVE CONSOLE BOX REGISTER ASSEMBLY (See REMOVAL
)
- REMOVE CONSOLE BOX (See REMOVAL
)
- REMOVE NO. 2 CONSOLE BOX DUCT (See REMOVAL
)
- REMOVE NO. 1 REAR FLOOR PANEL BRACE (See REMOVAL
)
- REMOVE FRONT CENTER FLOOR BRACE (See REMOVAL
)
- REMOVE OXYGEN SENSOR (See REMOVAL
)
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (See REMOVAL
)
- REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR (See REMOVAL
)
- REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY

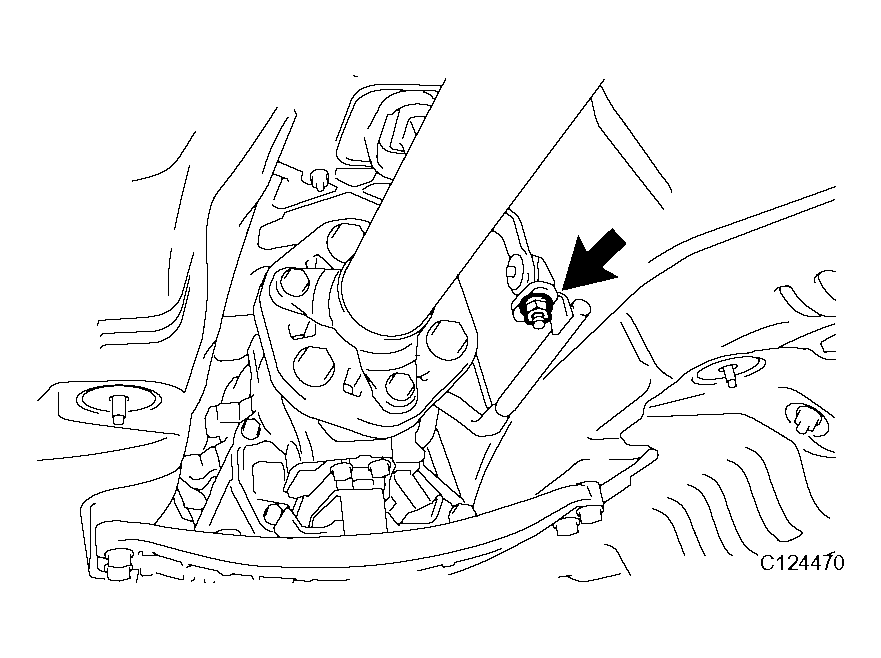

- Remove the nut and separate the floor shift gear shifting rod sub-assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

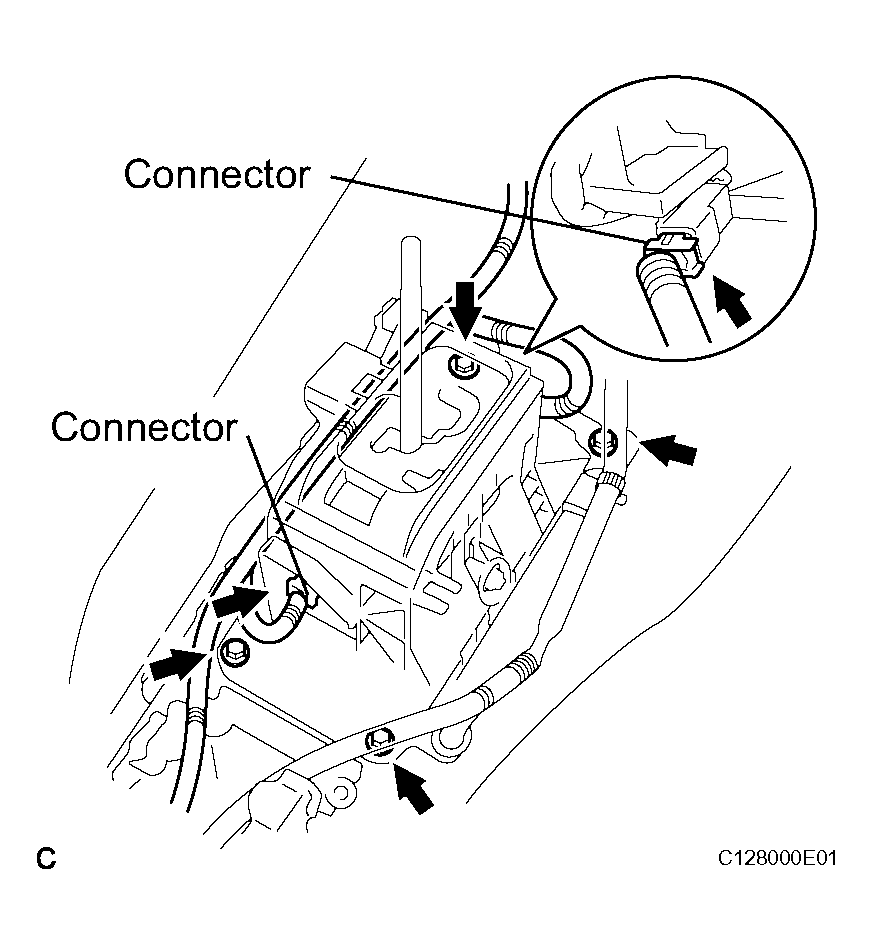

- Disconnect the 2 connectors.
- Remove the 4 bolts.
- Remove the floor shift assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
