Shift Solenoid Valve: Components

Fig 1: Shift Solenoid Valve Replacement Components With Torque Specifications (1 Of 2)
G04053452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

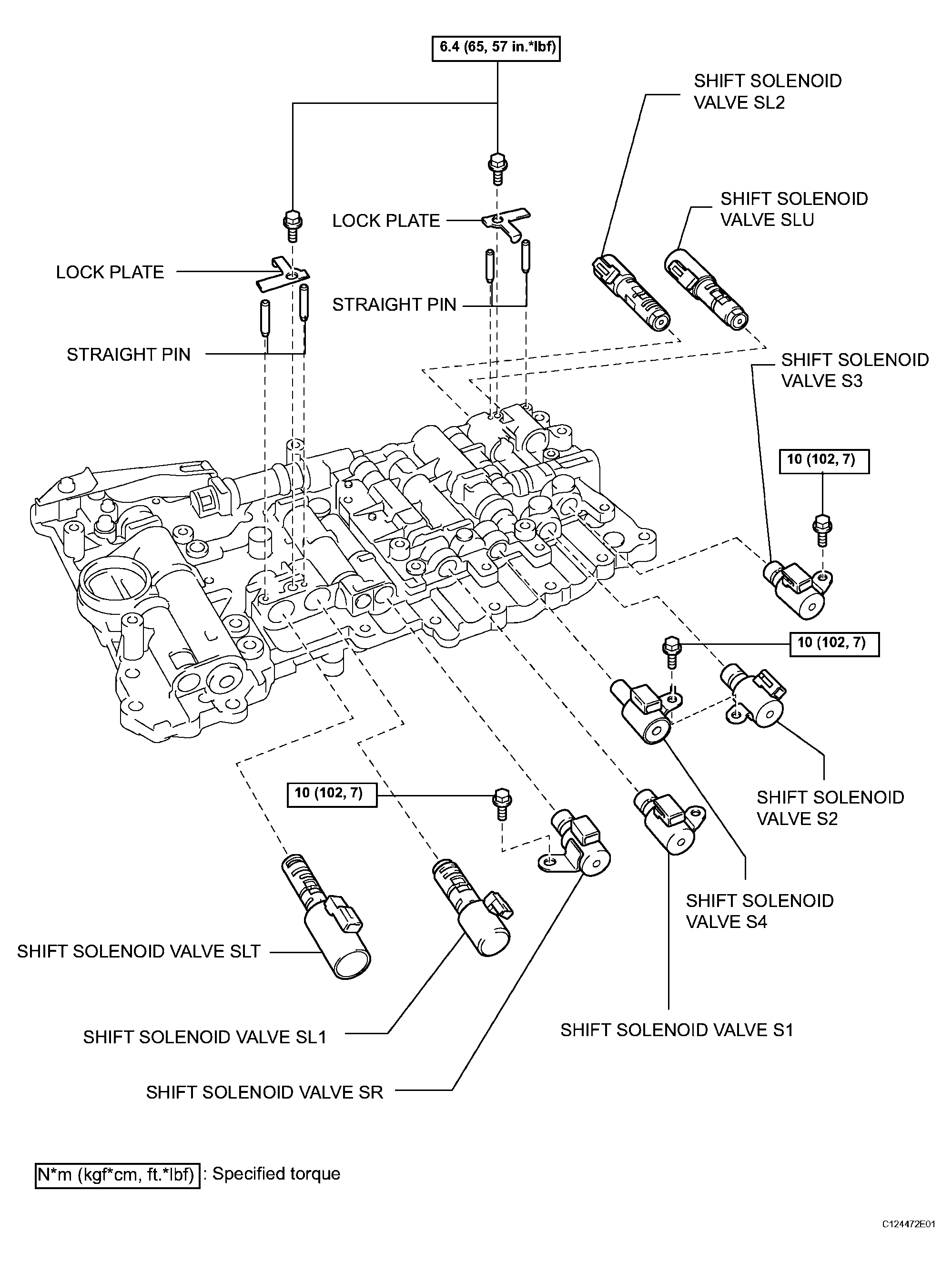

Fig 2: Shift Solenoid Valve Replacement Components With Torque Specifications (2 Of 2)
G04053453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
