Transmission Wire: Inspection

  1. INSPECT TRANSMISSION WIRE
    1. Using an ohmmeter, measure the resistance between the terminals.

      Standard resistance

      STANDARD RESISTANCE

      ATF Temperature Specified Condition
      20°C (68°F) 3 to 4 kΩ
      110°C (230°F) 0.22 to 0.28 kΩ

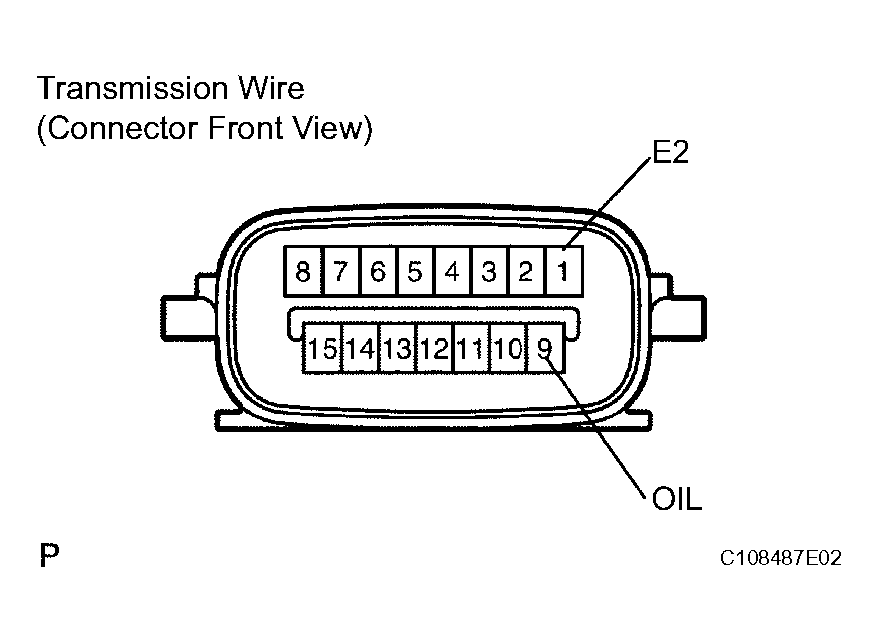

      Fig 1: Inspecting Transmission Wire
      G04052999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
