Transmission Wire: Installation

INSTALL TRANSMISSION WIRE
1. Coat a new O-ring with ATF and install it to the transmission wire.

  Fig 1: Identifying Transmission Wire Harness O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transmission wire with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the transmission wire connector.

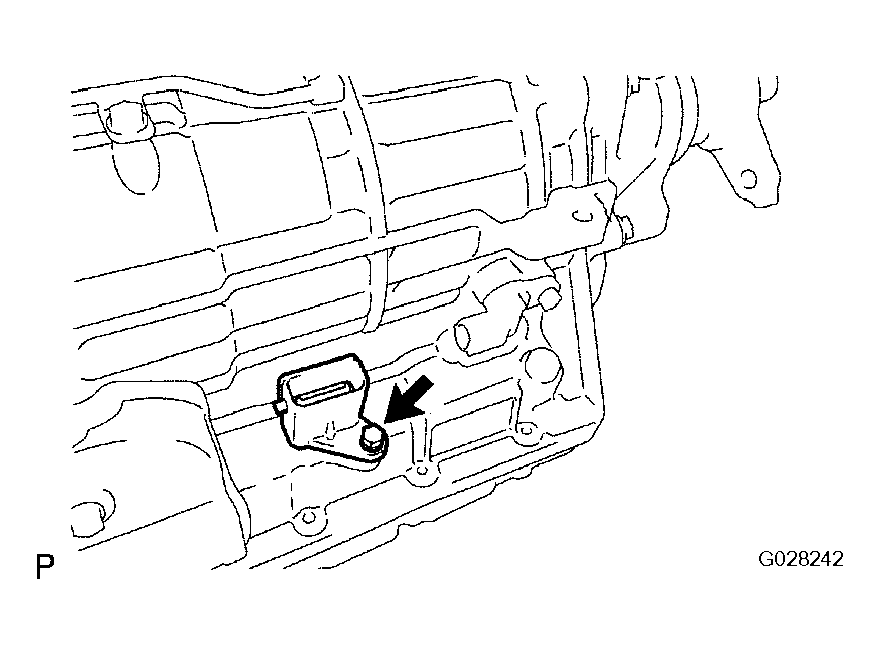

  Fig 2: Identifying Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION WIRE
1. Connect the 9 connectors to the solenoid valves.

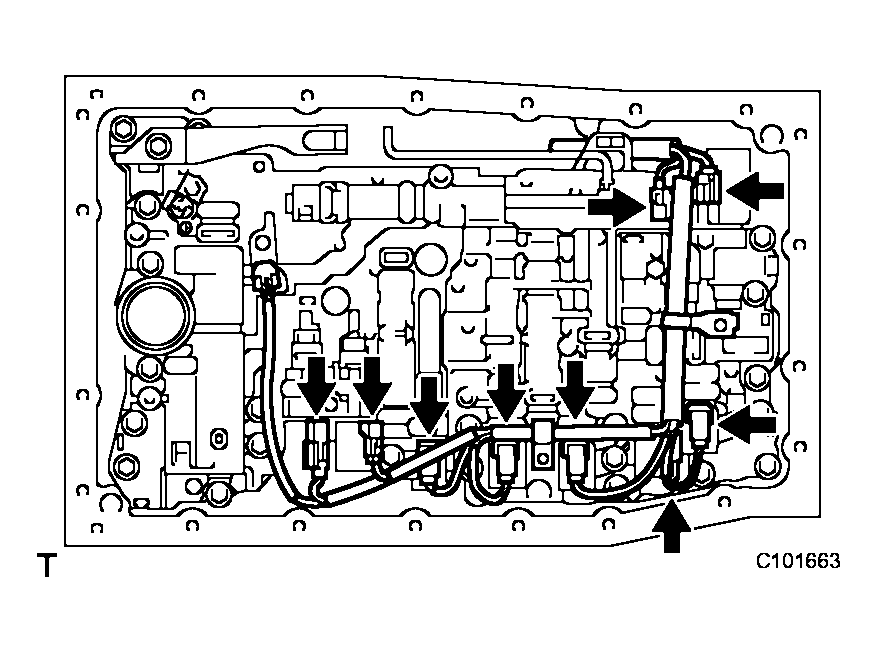

  Fig 3: Locating 9 Electrical Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 clamps with the 2 bolts.
  Torque:
  - Bolt A 6.4 N*m (65 kgf*cm, 57 in.*lbf)
  - Bolt B 10 N*m (102 kgf*cm, 7 ft.*lbf)

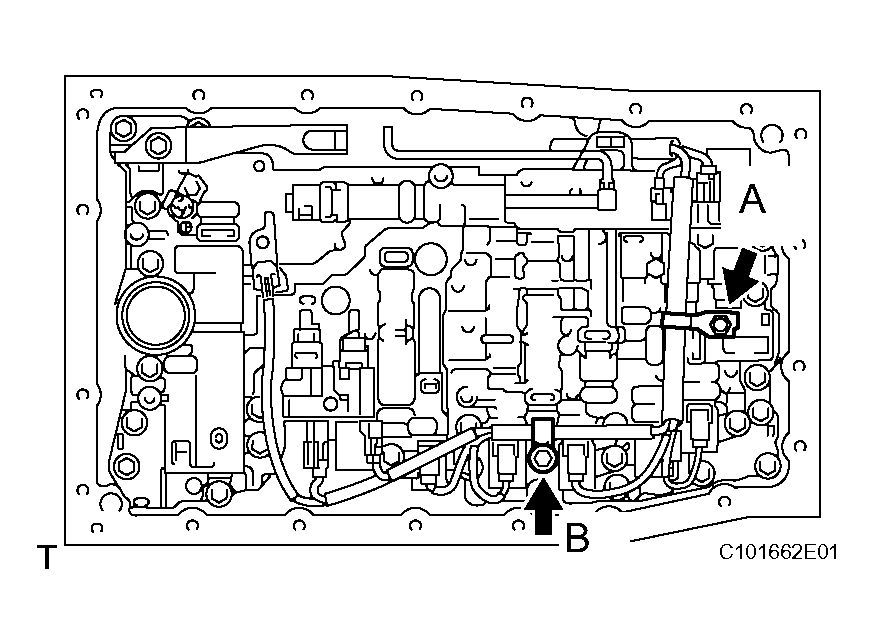

  Fig 4: Identifying Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the ATF temperature sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

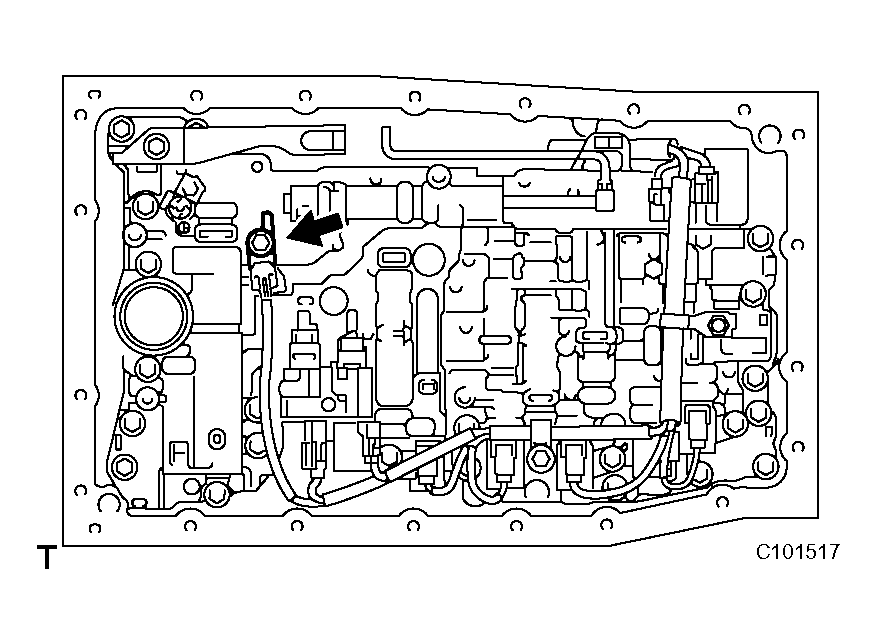

  Fig 5: Locating ATF Temperature Sensor Locking Plate Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VALVE BODY OIL STRAINER ASSEMBLY
1. Coat a new O-ring with ATF and install it to the oil strainer.

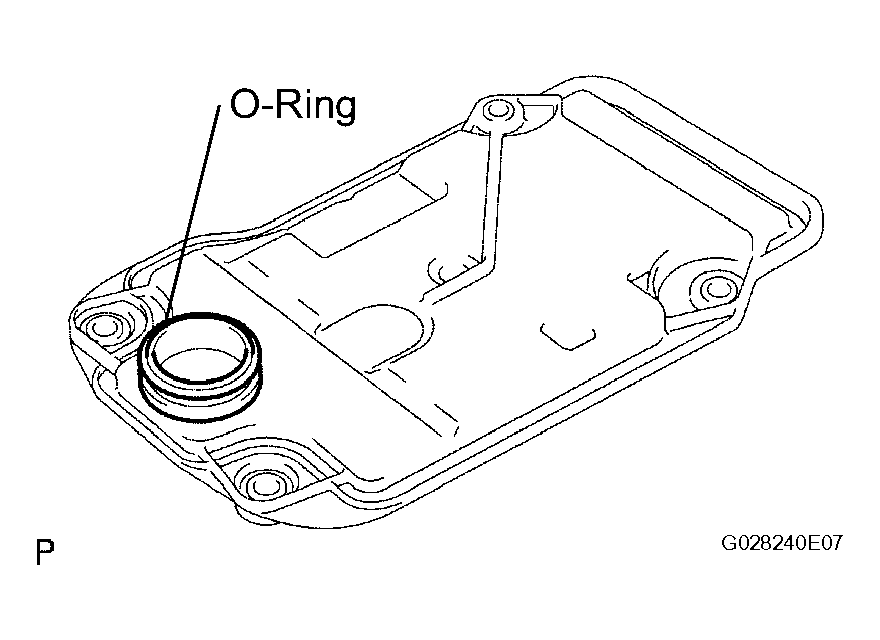

  Fig 6: Identifying O-Ring With Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil strainer with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

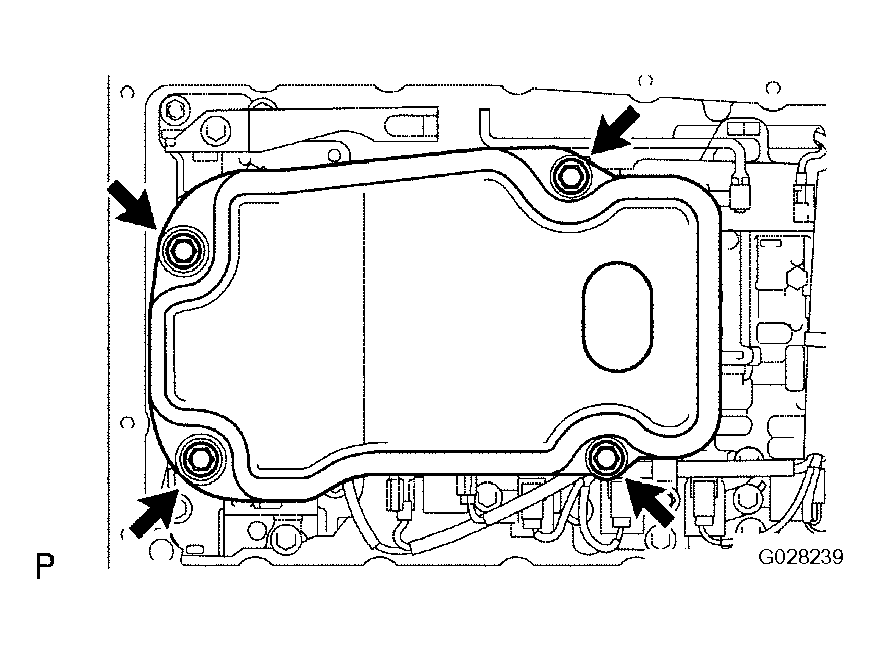

  Fig 7: Identifying Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
1. Install the 3 magnets in the oil pan.

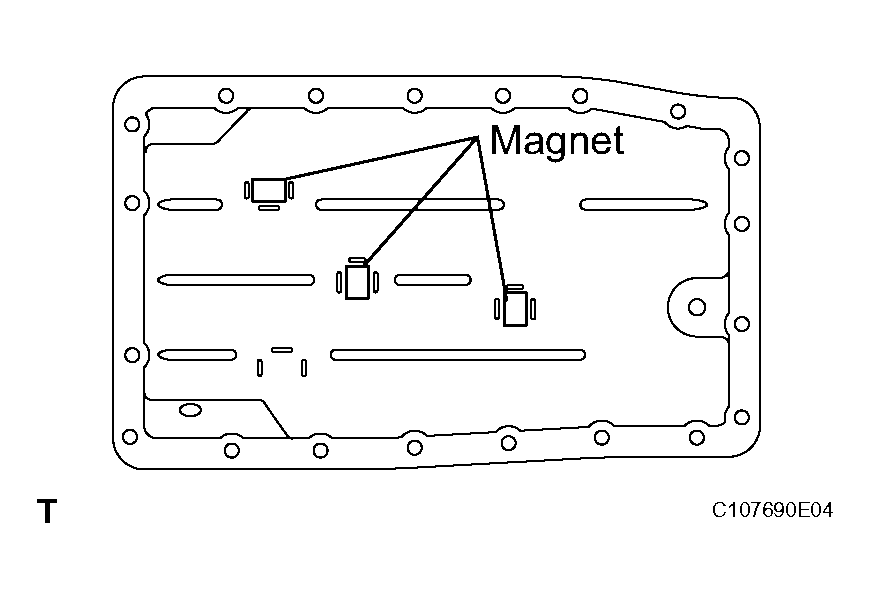

  Fig 8: Identifying Magnets With Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan to the transmission case with the 20 bolts.
  Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)
ADD AUTOMATIC TRANSMISSION FLUID
(See ADJUSTMENT )
RESET MEMORY
(See HYDRAULIC TEST )

Fig 9: Identifying Oil Pan Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
